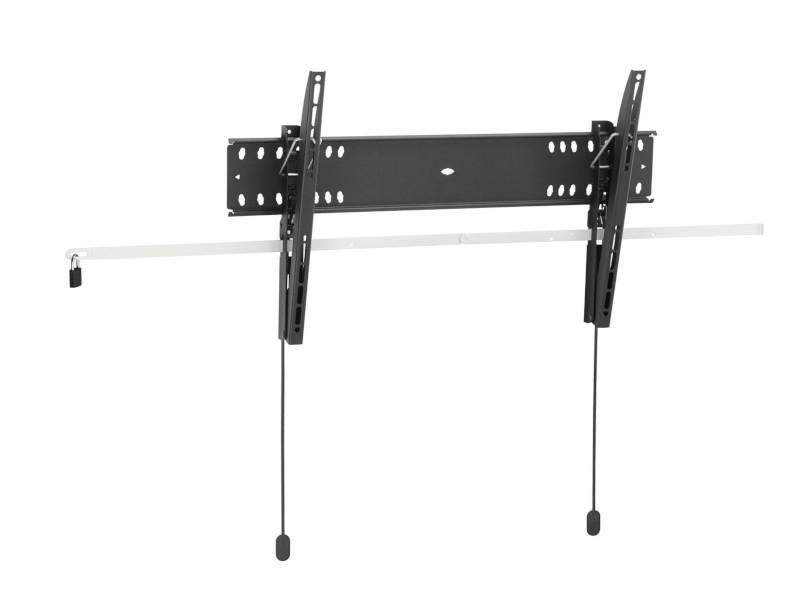

Vogels PFW 4710 tilt TV wall mount 55-65 inch lockable
The lockable Vogel's PFW 4710 tilt TV wall mount is suitable for displays from 55 to 65 inches with a weight of up to 75 kg. The safety bar and the padlock secure the TV to the bracket against theft.
Flat TV wall mount lockable
The Vogels 4000 series is especially suitable for public areas that can not be monitored continuously. The vogels Autolock mechanism secures the flatscreen securely to the flat wall mount. Thanks to the integrated anti-theft device, the installation of screens in public places such as possible in hotels, entrance areas, museums or shopping malls.
Theft-proof Flatscreen mount
The Vogel's PFW 4710 tilt flat TV wall mount lockable is suitable for screens with a size of 55 "- 65" and a max. weight of up to 75 kg. The lockable flatscreen mount protects the TV in the holder from theft. A solid security bar and lock prevent theft and screen access is still possible.
Key features Vogels PFW 4710 tilt TV wall mount 55-65inches
- Screen size: 55-65 Inch
- Capacity: 75 kg
- TÜV certified
- VESA mount: 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm
- Flat wall mount
- Min. wall distance: 52 mm
- Tilt: 15°
- Landscape Screen orientation
- Theft-proof by security bar & lock
- Finish: black
- Warranty: 5 years
Does your monitor or display fit?
We will gladly check if your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this Vogel monitor bracket PFW4710. Simply send us your model (manufacturer + model no.) at the end of the ordering process in the comment field. We then check for you whether the monitor fits and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 75 kg |
| Tilt: | 15° |
| Height range (mm): | - |
| Swivelling range: | - |
| Screen size: | 55 - 65 " |
| Depth of the bracket: | 52 mm |
| Special features: | Theft-proof |
| VESA Standard: | 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 760 x 130 x 82 |
| Contains installation material: | + |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Warranty: | 5 years |
| Inch size: | 55 inch, 58 inch, 60 inch, 63 inch, 65 inch |
| Mobility: | tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | Yes |
| color: | Black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
