Vogel's PFF 1500 LCD/Plasma floor stand (130 - 150 cm) incl. FAU 3150

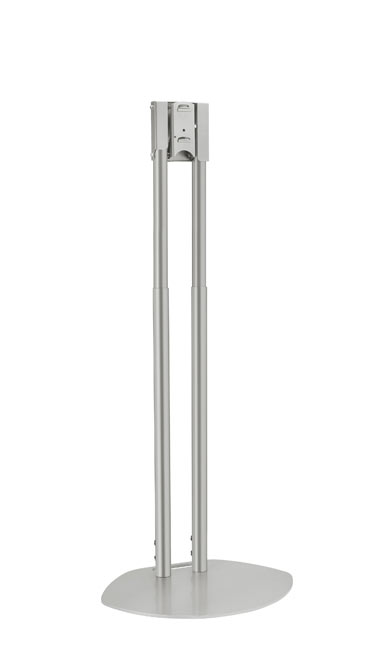

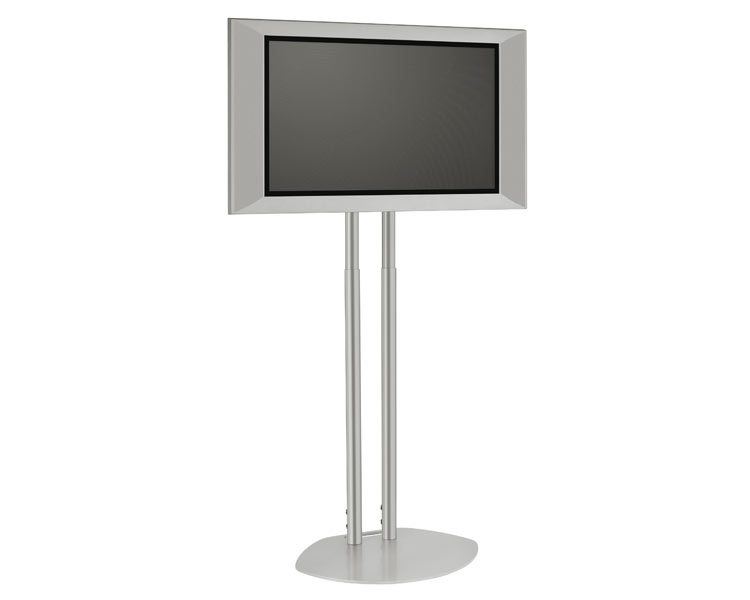

PFF 1500 is a stylish LCD/plasma floorstand for use on shows, exhibitions, showrooms, office or retailshops.

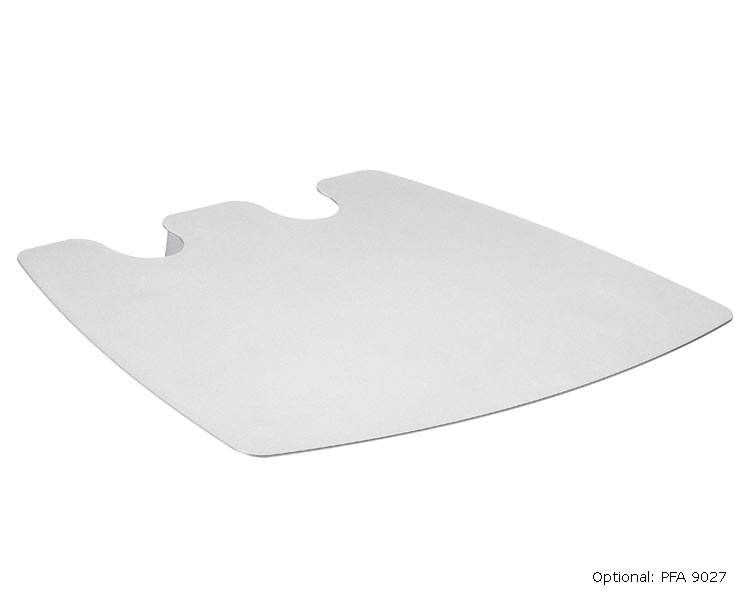

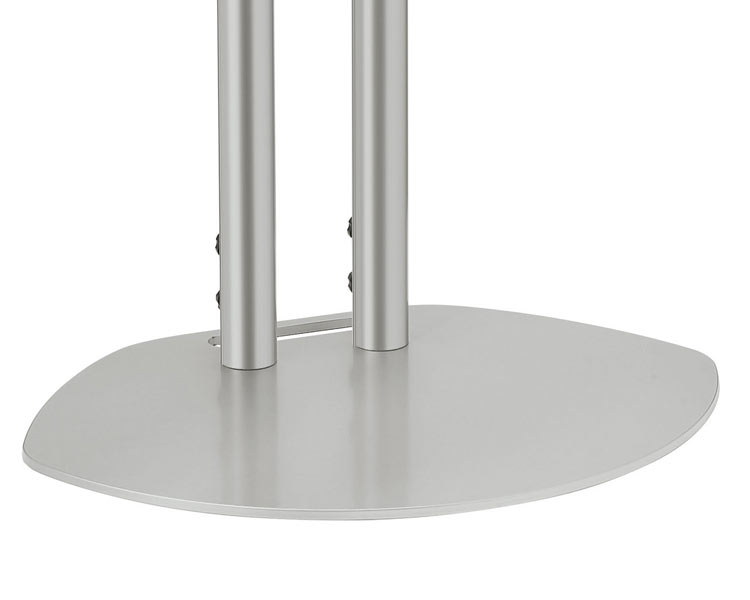

The PFF 1500 is very easy and quick to assemble, just slide the two telescope poles on the base plate and secure it with 4 screws. Two telescopic poles offer a flexible height adjustment from 130-170cm. The solid and flat metal baseplate offers a secure stability. Use the optional FAU 3125 or FA 3150 interfaces to attach the display and the optional PFA 9027 accessory tray for placing a DVD player of laptop PC.
- Sturdy design
- CIS® Cable Inlay System
- Adjustable height 1300-1700 mm (center display)
- Easy and compact in transport (only 2 components)
- Incl. universal interface FAU 3150

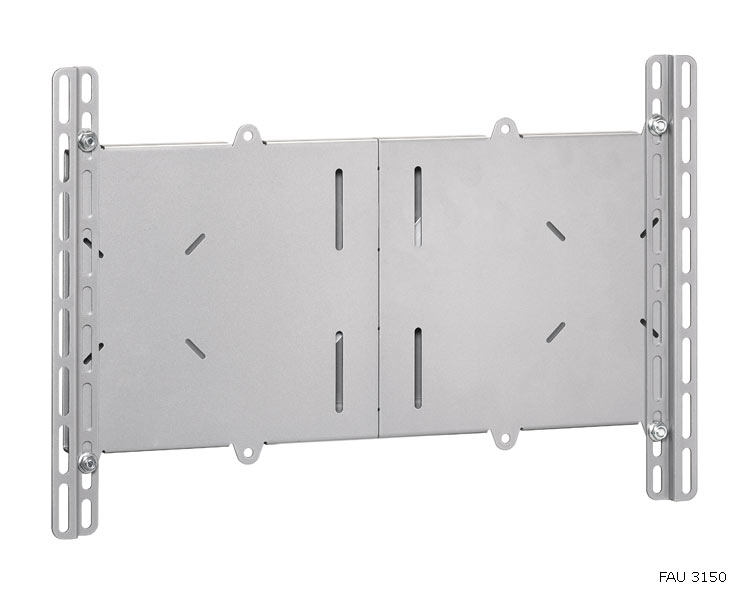

Universal interface FAU 3150
The FAU 3150 universal LCD/Plasma interface can be used to mount a LCD/Plasma TV (with VESA MIS-F) to the wall, ceiling or floor (in combination with other modular parts).
The FAU 3150 universal LCD/Plasma interface is part of a modular system which enables you to create your own wall, ceiling or floor mounting solution for LCD/Plasma TV's (30-65", with VESA MIS-F, up to 70 kg). The Autolock® locking system locks the interface onto the support and prevents the display from falling of the turn & tilt unit when accidently lifted. The optional lock PFA 9008 blocks the locking system, hence preventing theft. For wall mounting just add the needed wall mounting plate (PFW 910/920/930) or support (PFW 950/952). For ceiling mounting add the needed ceiling mounting plate, extension tube and turn & tilt unit. In case of floor mounting add floor stand PFA9011 and the needed turn & tilt unit.
- Autolock® locking system
- VESA MIS-F (max. 920x512 mm)
- VESA MIS-D-E possible
- Horizontal and vertical mounting

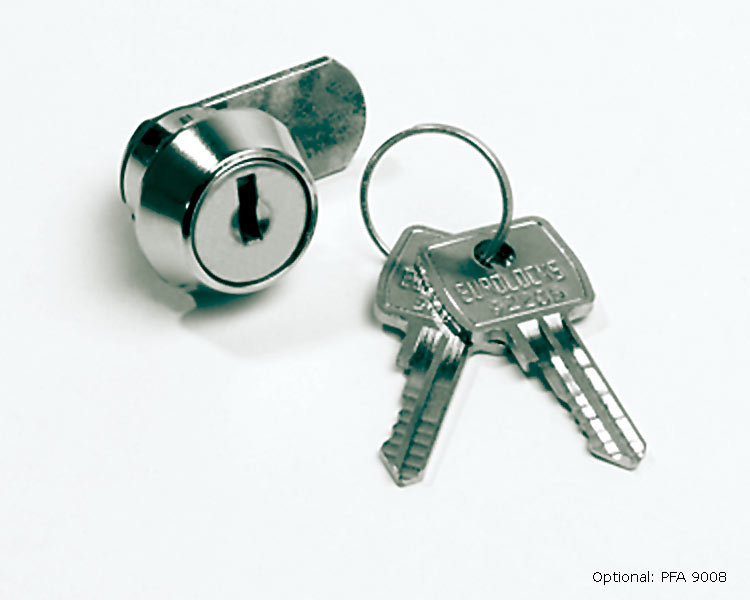

- Optional anti-theft lock PFA 9008
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: | [pdf, 60 kb] |
|---|---|
| Technical drawing: |  [pdf, 279 kb] |
| Installation manual: | [pdf, 160 kb] |
| Capacity: | 40 kg |
| Height range (mm): | 1700mm - 1300mm = 400mm |
| Screen size: | 37 - 60" |
| VESA Standard: | max. 920x512 mm; VESA MIS-D-E possible (www.vesa-standard.com) |
| Accessories: | Vogel´s PFA 9027 Vogel´s PFA 9008 |
| Contains installation material: | + |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Warranty: | 5 years |
| Theft-proof: | No |
| color: | Silver |
| VESA (in mm): | VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400, VESA 800x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
