Novus POS base connect 100 with EC terminal mount for Yomani ML+XR Touch
The combination of Novus POS base connect 100 column and EC card terminal mount can be easily attached to a table in the checkout area. Thanks to the tiltable and rotatable connect joint, the column is particularly flexible. The connect plate is suitable for the cash terminal Yomani ML+XR Touch.
The modular elements of the Novus POS Solutions series can be integrated into various store environments and offer a wide range of individual design options to optimize daily processes in the checkout area. As a result, user-friendliness at the point of sale is significantly increased.
EC cash terminal mount for POS systems
The Novus EC cash terminal mount for POS systems (006+1080+000) consists of a stand column with mounting plate, which is particularly suitable for cash desk areas with limited space. The POS base connect 100 column is made of robust aluminum and can be attached to the table by screw-on or screw-through mounting. Designed for the EC card terminal Yomani ML+XR Touch, the terminal is simply and quickly screwed onto the connect plate. Thanks to the rotatable and tiltable connect joint, the mount is particularly flexible. The column is also equipped with two slots for cable management, hidden behind the practical cover brushes.
Key features Novus POS base connect 100 with mounting plate for Yomani ML+XR Touch
- Finish: anthracite
- Material column: aluminum
- Material connect plate: high-quality metal, powdered in anthracite
- Connect plate for EC cash terminal Yomani ML+XR Touch
- Handle ring for easy movement
- Tiltable: 70°
- Rotatable: 360 degrees
- Base diameter: 51 mm
- Column length: 100 mm
- Table top thickness: <70 mm

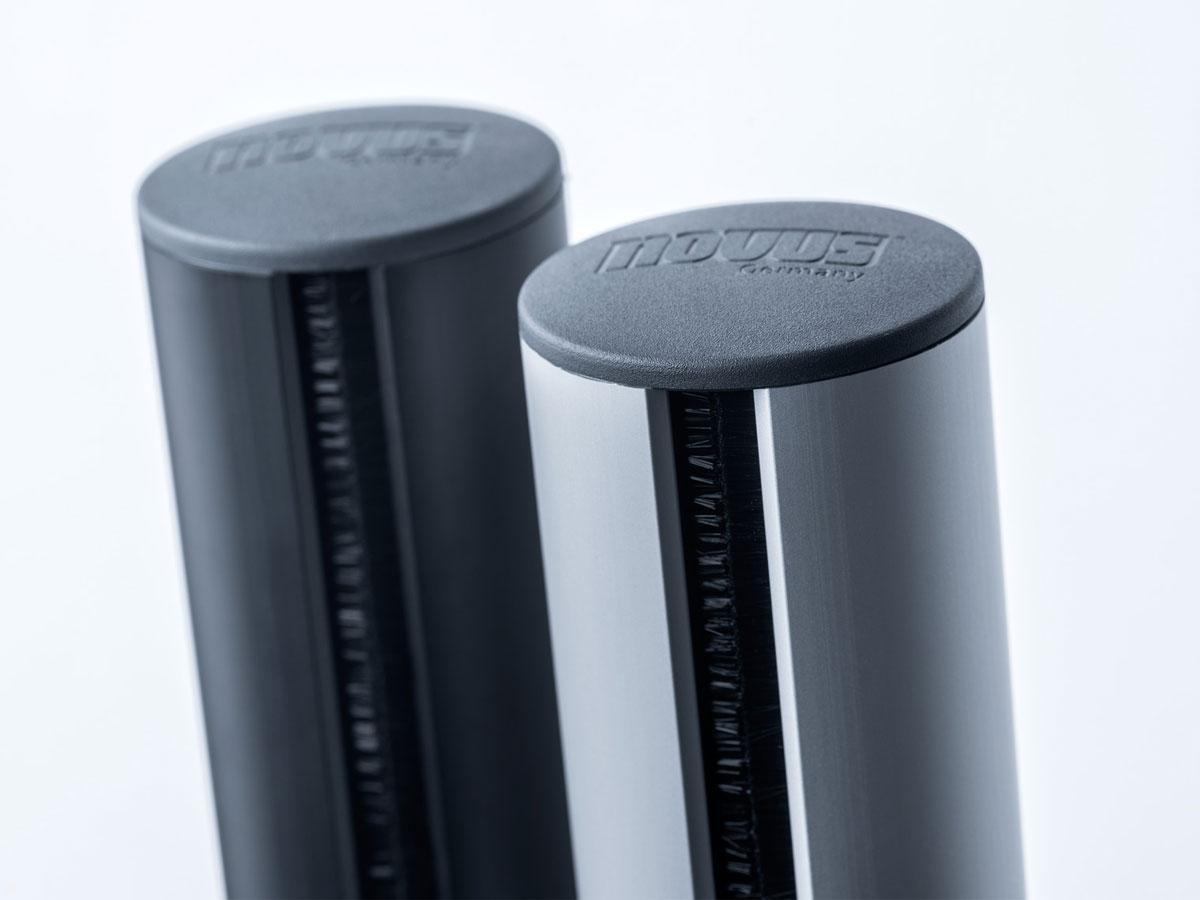

- 2 slots with cover brushes for clean cable routing

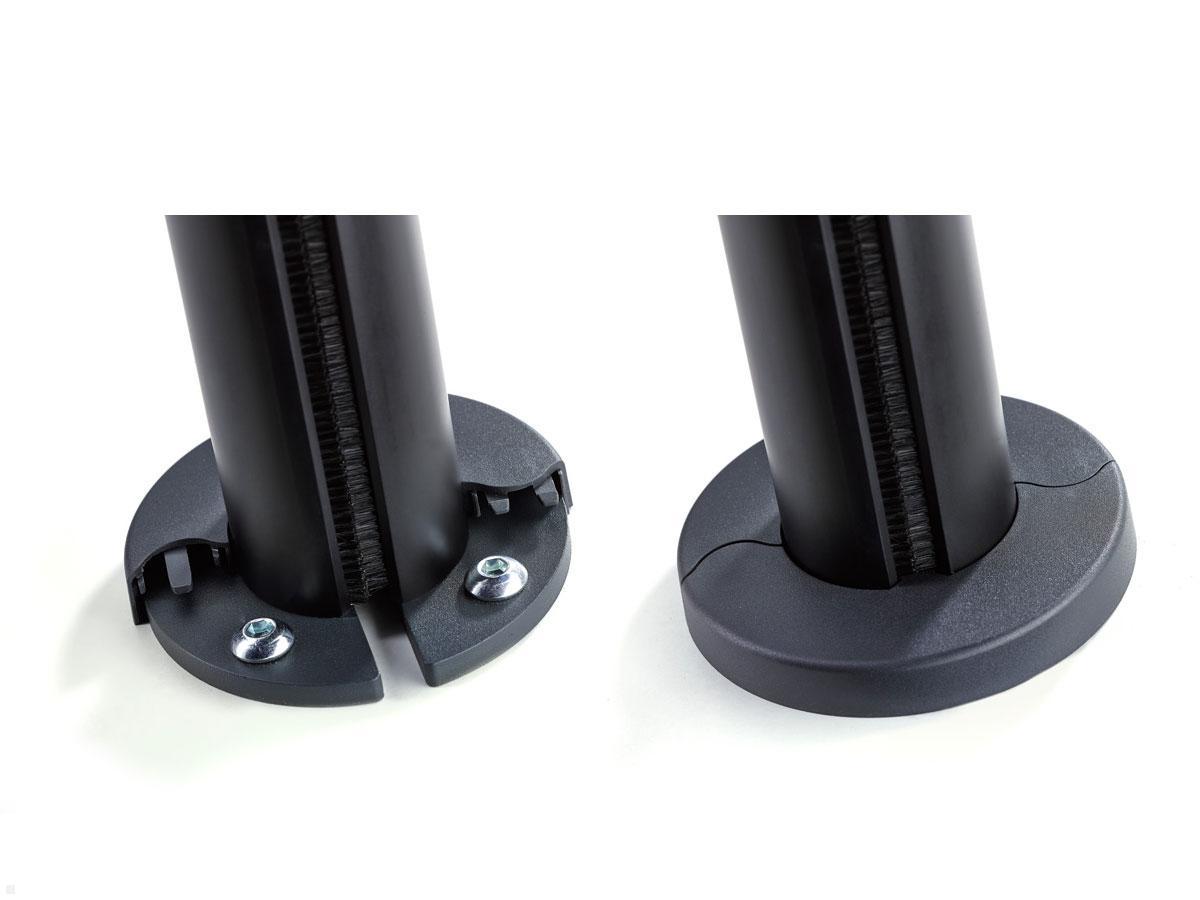

- 2-in-1 mounting option with screw-on and screw-through attachment
- Load capacity: max. 10 kg
Novus POS column with cash terminal mount (006+1080+000) consisting of:

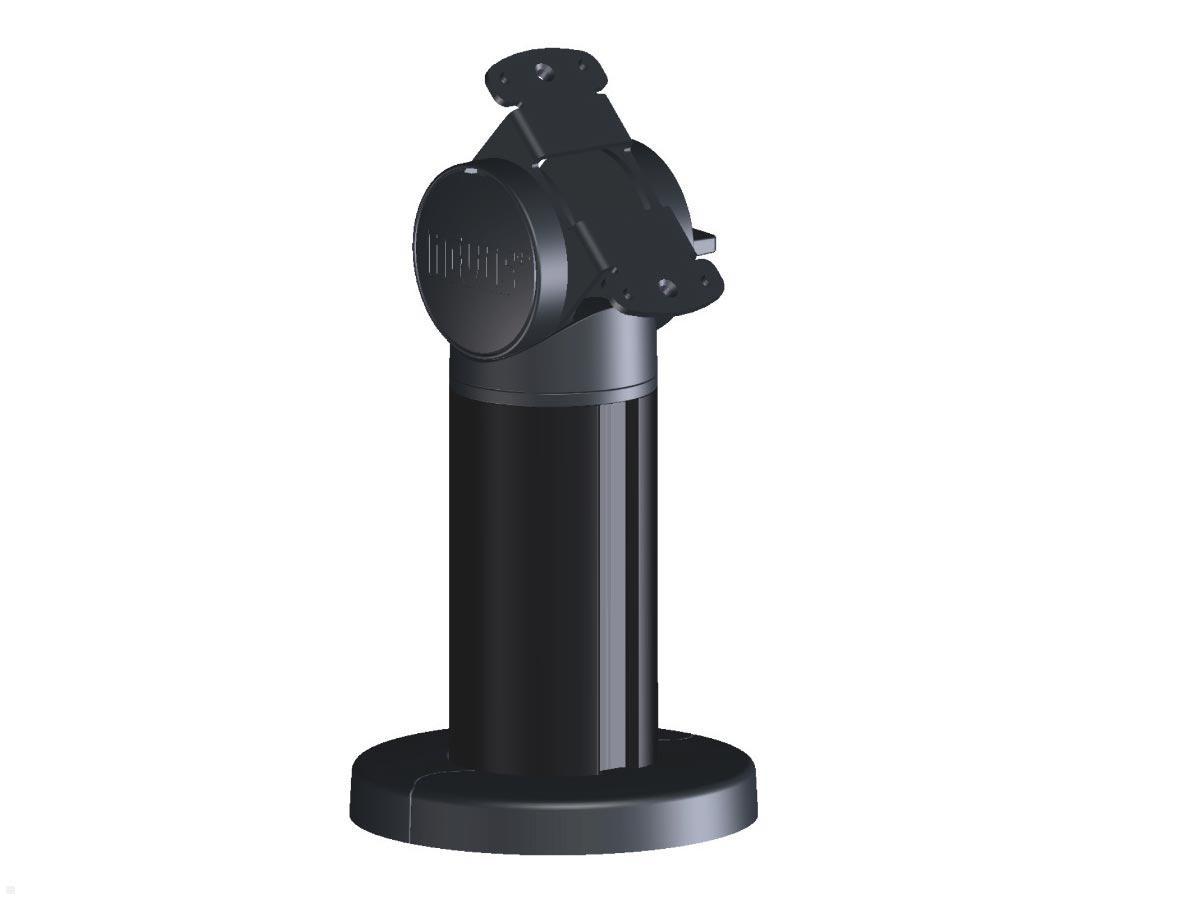

- 1x Novus POS base connect 100 (851+1045+000), anthracite

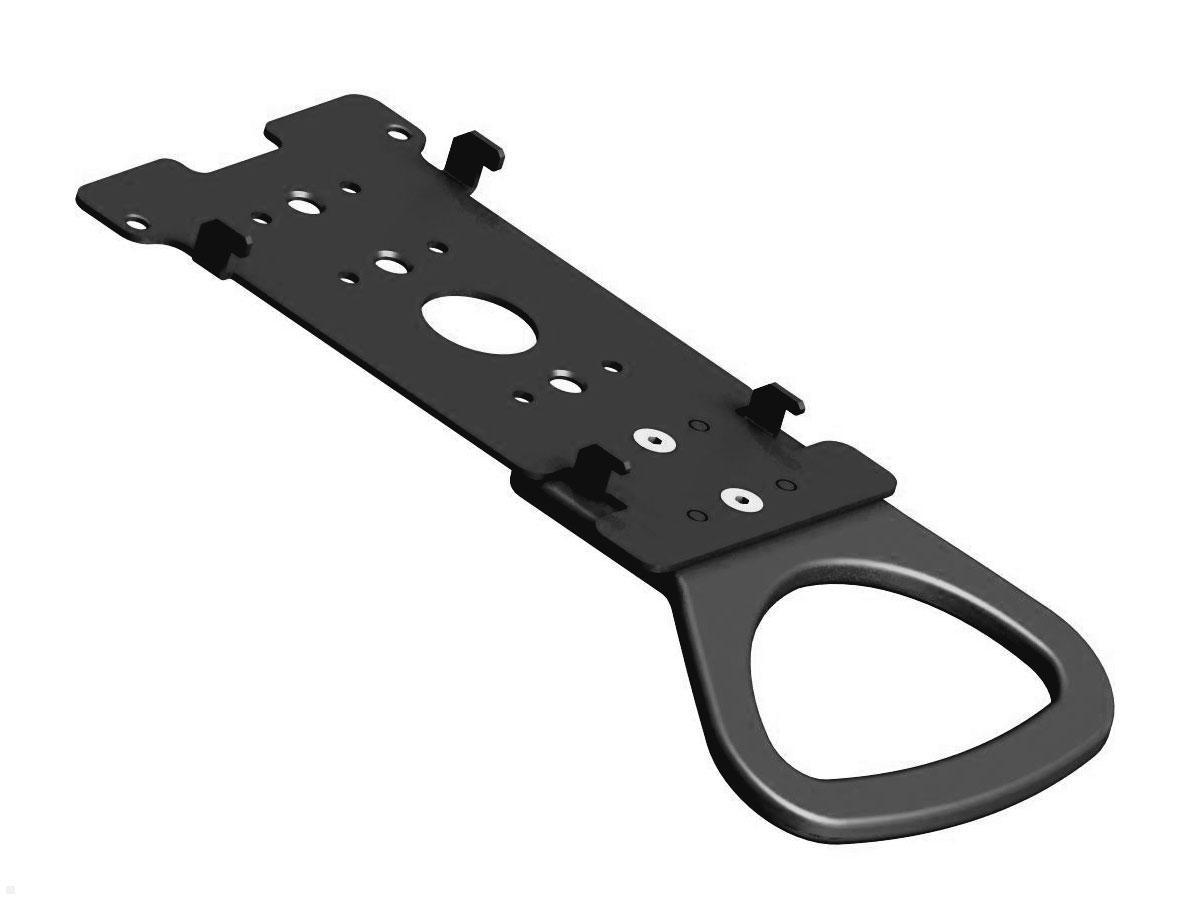

- 1x Novus POS connect plate for EC cash terminal Yomani ML+XR Touch (851+0035+007)
| Product sheet: |  [pdf, 274 kb] |
|---|---|

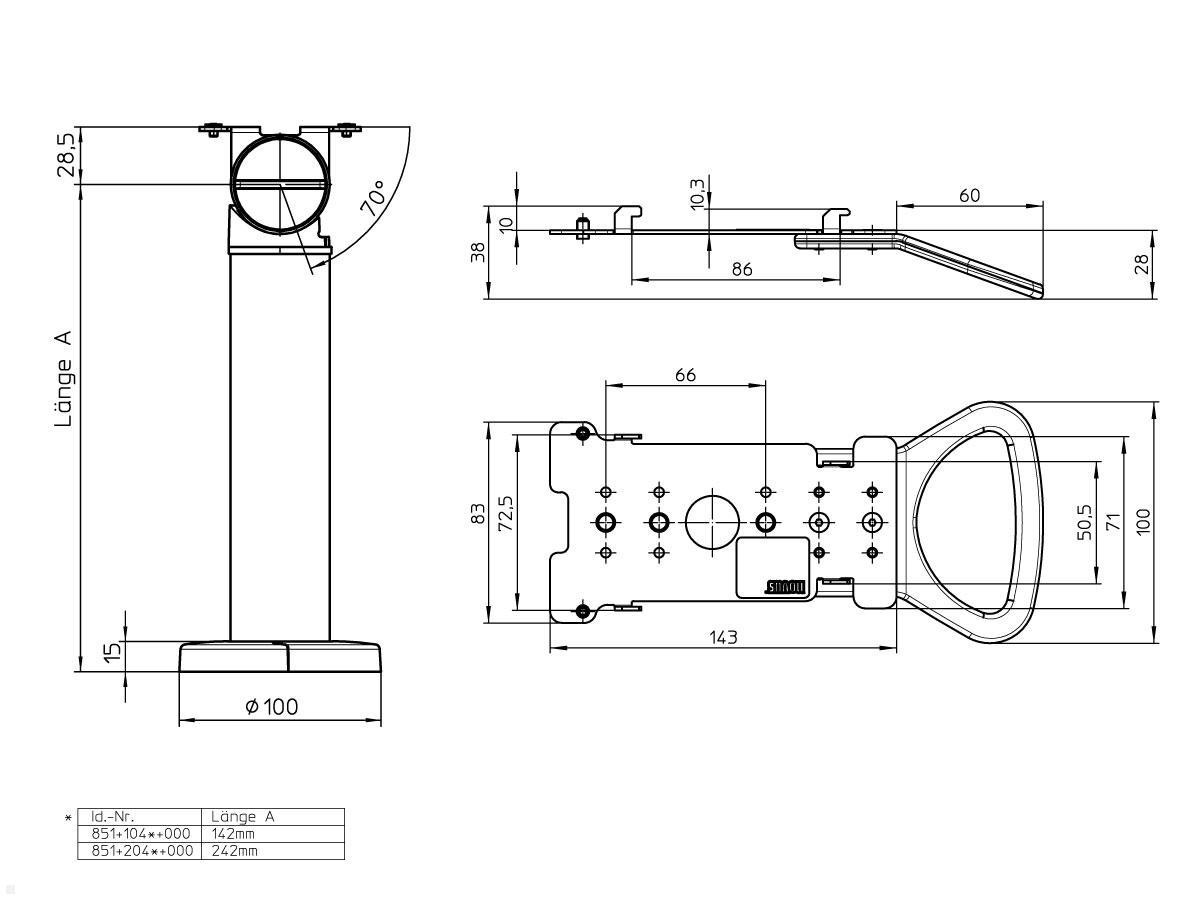

| Technical drawing: | [pdf, 190 kb] |
| Installation manual: | [pdf, 307 kb] |
| Capacity: | 10 kg |
| Tilt: | 70 Grad |
| Rotate: | 360° |
| Thickness of table (mm): | max. 70 mm |
| Material: | aluminum |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Warranty: | 2 years |
| Mobility: | swivelling, tilting |
| Mounting type: | desk - drill screw fastening |
| Theft-proof: | No |
| color: | Anthracite |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
