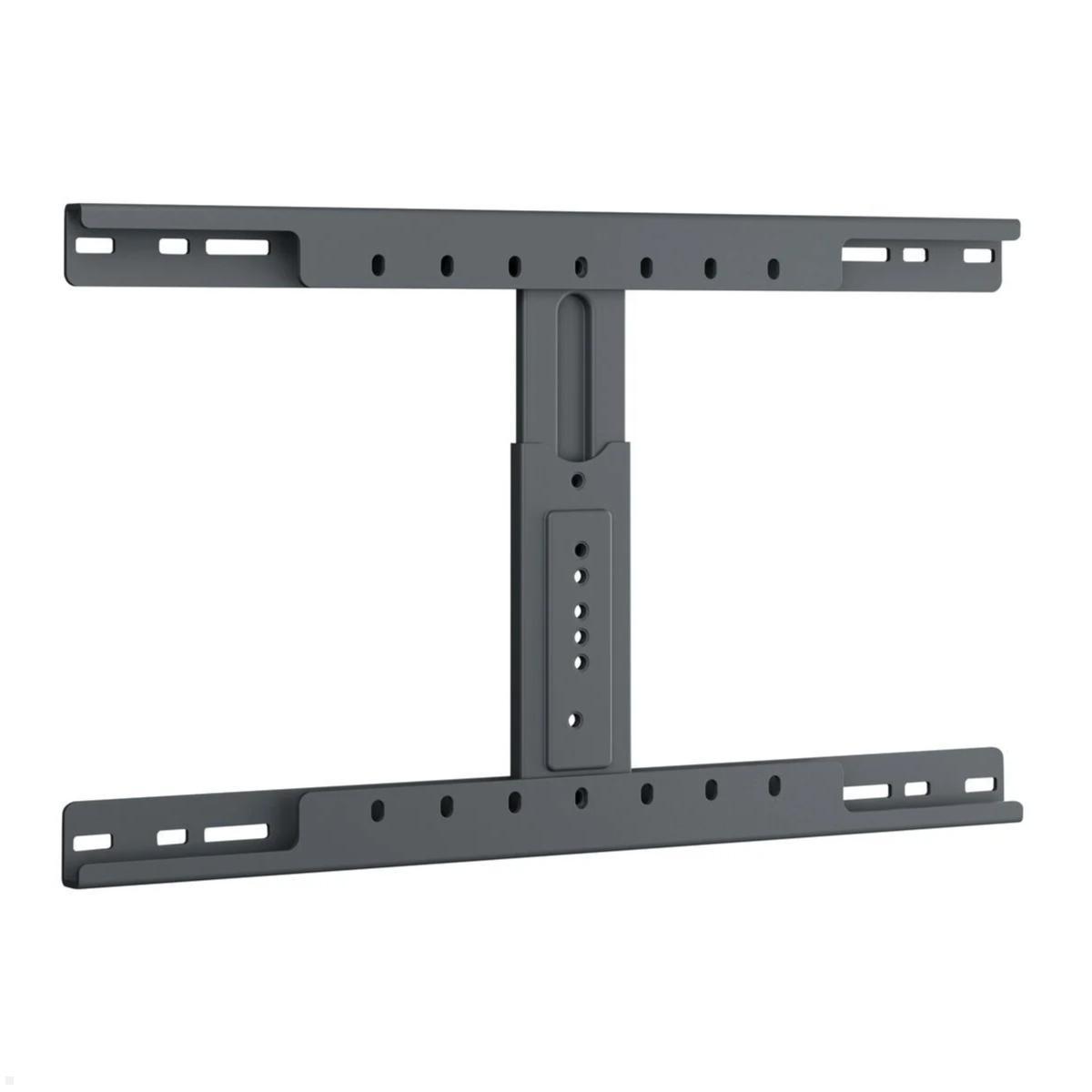

Adapter plate for cavity wall mounting
Vogels TV wall mounts, for example from the COMFORT, ELITE or SIGNATURE series, offer a lot of convenience thanks to their high flexibility. With the TVA 6950 adapter plate for cavity wall mounting, the popular TV mounts also find a secure hold on a wooden stud wall / plasterboard wall. The cavity wall adapter is screwed directly into the wooden studs, whereby the pre-drilled screw holes already have exactly the right distance. After wall mounting, the respective TV wall mount can be easily attached to the adapter. The sturdy design is compatible with Vogel's swivel wall mounts from all series, has a load capacity of 75 kg and also has an integrated cable guide.
Key features Vogels accessory connection adapter for cavity walls (TVA 6950)

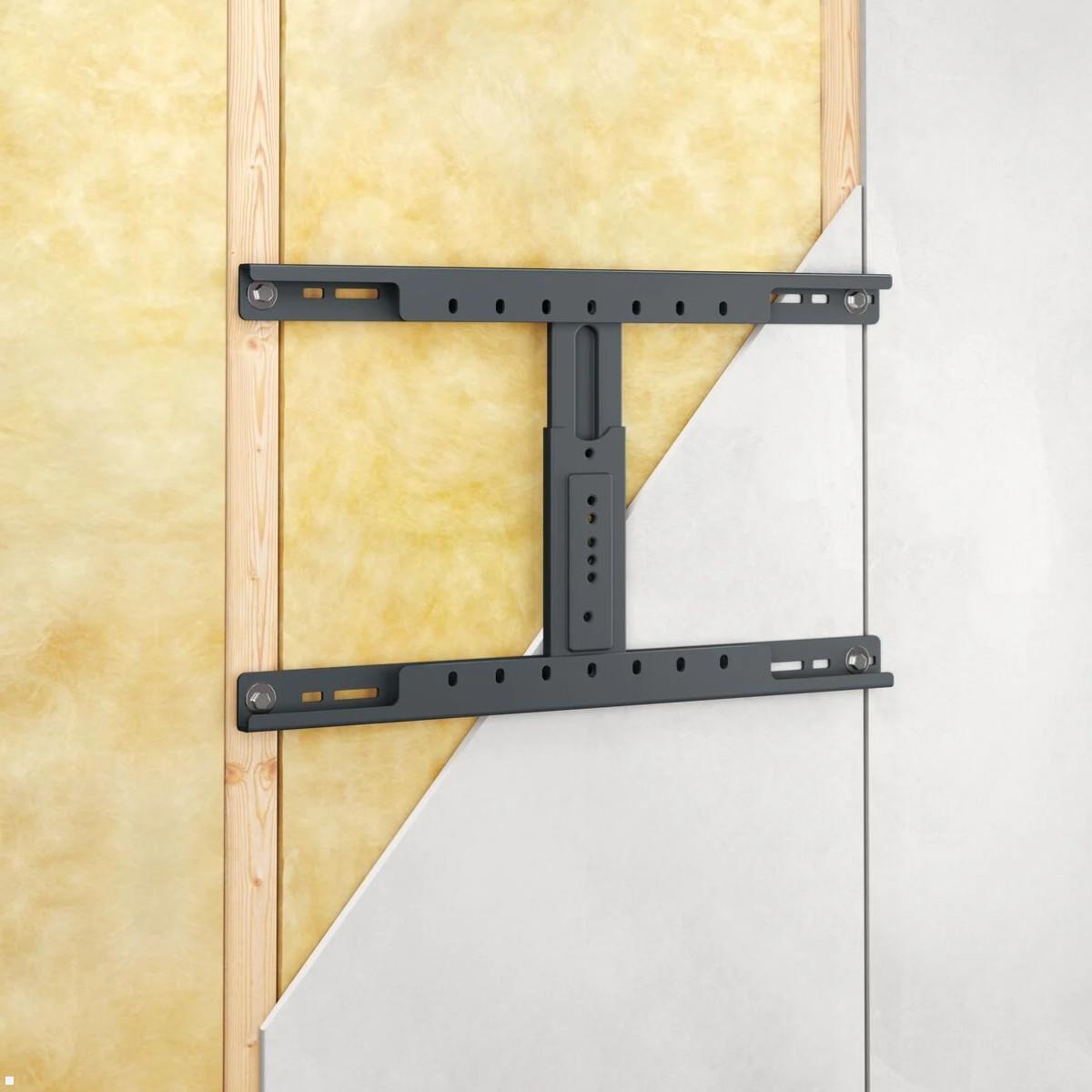

- For secure mounting of Vogels TV wall mounts on cavity walls / plasterboard walls / wooden stud walls

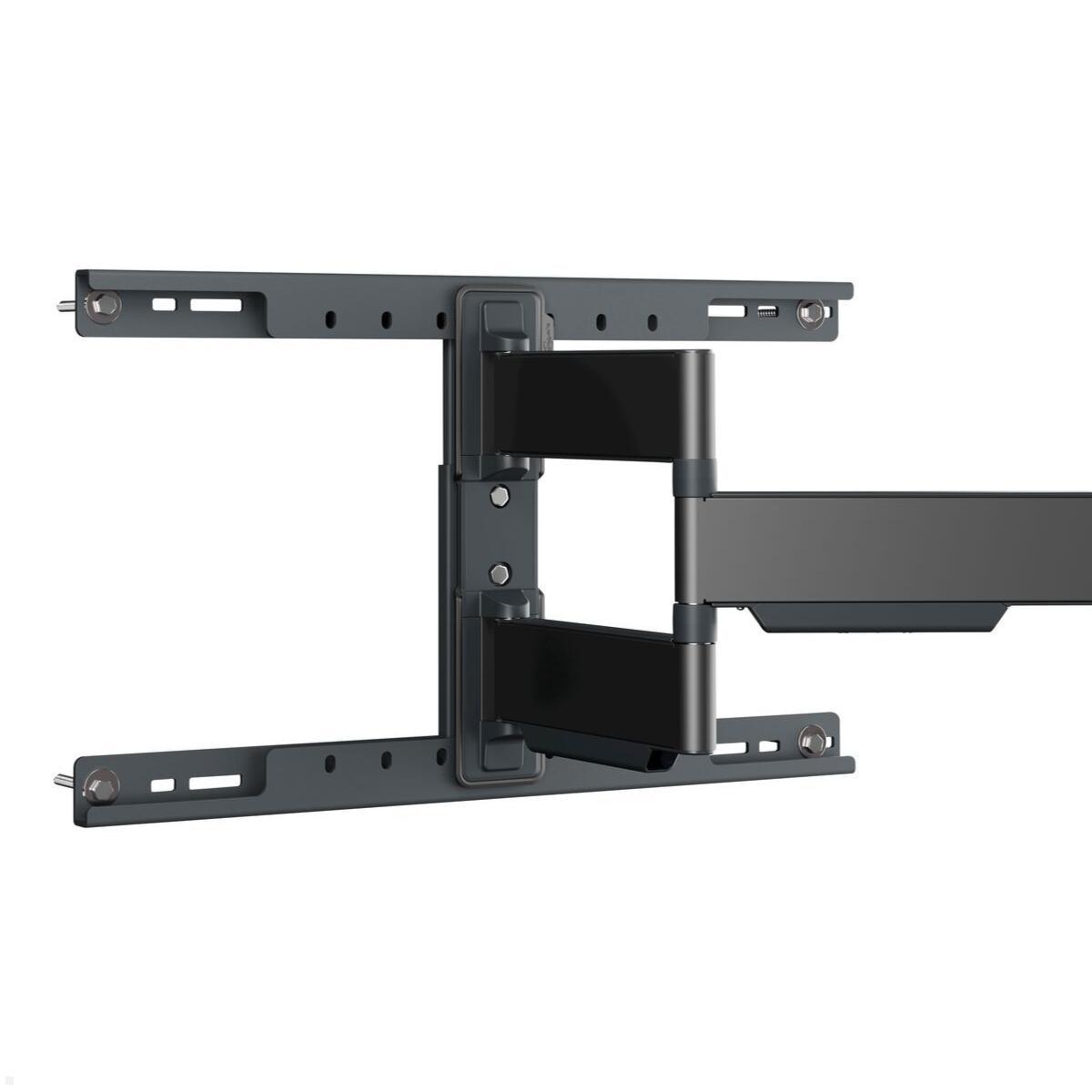

- Suitable for swivel TV wall mounts of all Vogel's series
- Suitable for stud spacing of 16, 20 and 24 inches / 450 and 600 mm
- Load capacity: 75 kg

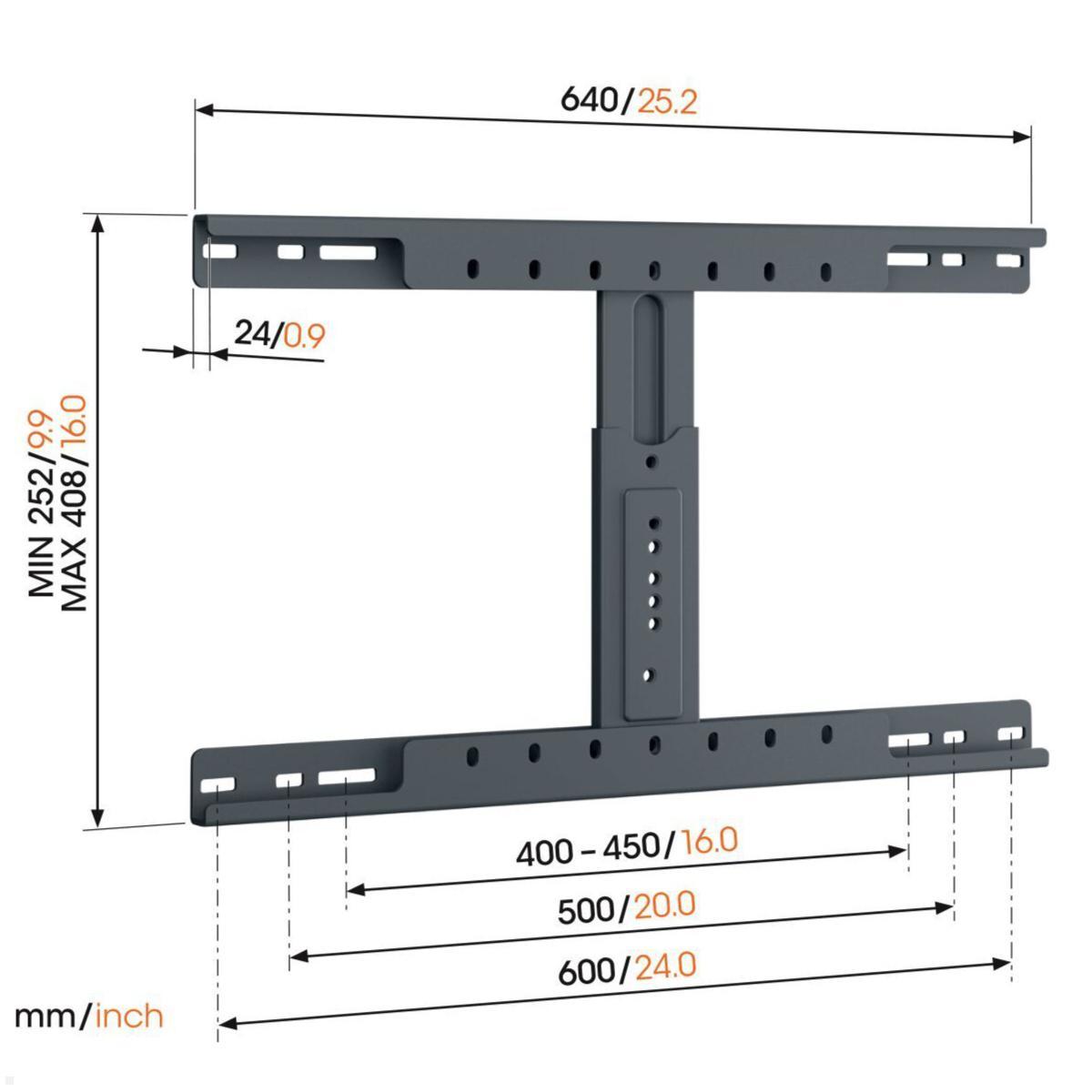

- Dimensions (WxD): 640 x 24 mm
- Height: 252 - 408 mm
- Integrated cable management
- Color: Black
- Warranty: 2 years
Product sheet: | [pdf] |
---|---|
Technical drawing: | [pdf] |
Installation manual: | [pdf] |
Capacity: | 75 kg |
Suitable for: | Vogels TV wall mounts |
Scope of delivery: | 1x cavity wall adapter | installation material |
Contains installation material: | + |
Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
Warranty: | 2 years |
Mobility: | fixed |
Mounting type: | wall mount |
Theft-proof: | No |
color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
