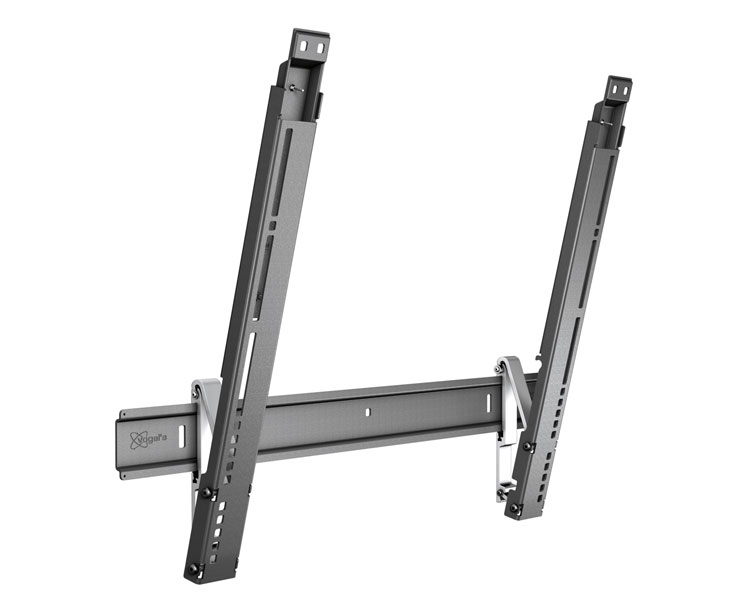

Vogel's THIN 315 tilt LED/LCD wall mount
Article number:
30317446
Manufacturer:
Vogels
Manufacturernumber:
THIN 315
EAN:
8712285317446
Vogels THIN 315 LED TV mount: turn and tilt your TV When you want a flat look and the most viewing flexibility, choose Vogel’s THIN 315 tiltabe TV mount. Suitable for flatscreens with a maximum screen depth of 50 mm.
Vogels THIN 315 UltraThin tilt TV Wall Mount

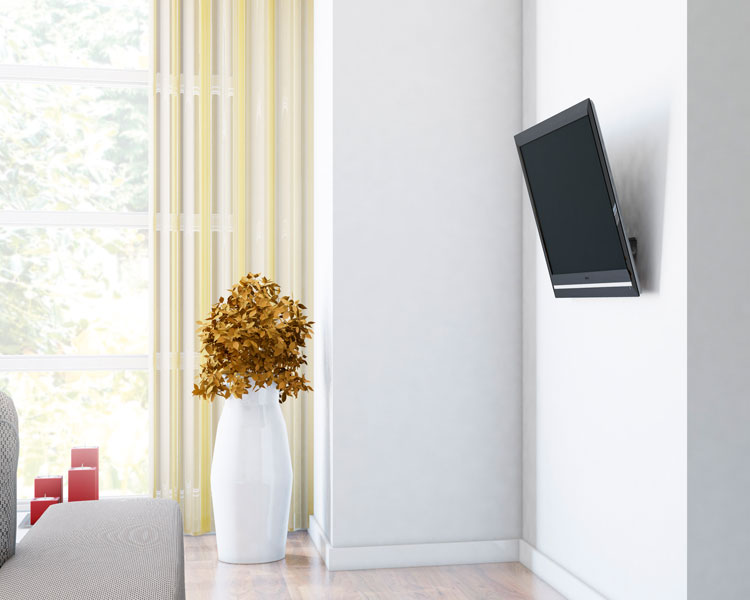

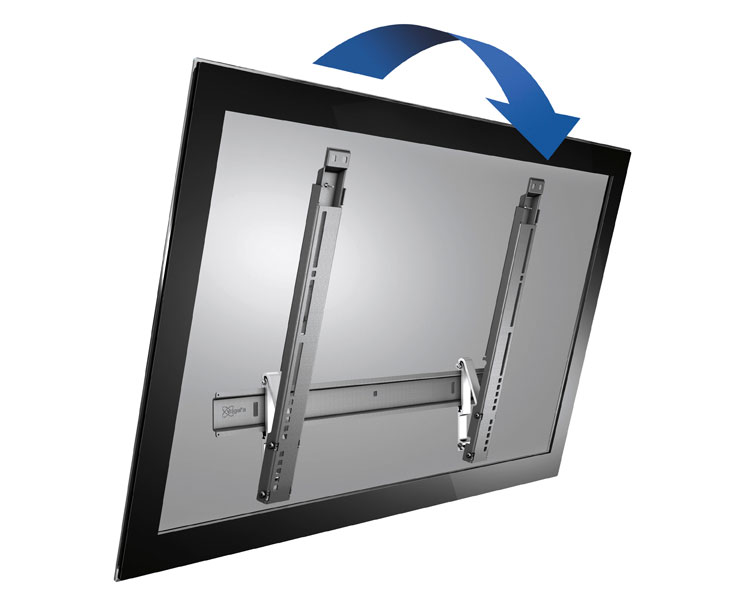

It lets you turn and tilt your screen away from the wall. With just 2 centimetres of space between the wall and the TV, this LED TV mount is virtually invisible to the eye. You can tilt it 15 degrees for the best view wherever you are sitting. Our Cable Inlay System (CIS®) conceals cables out of sight. Max. Screen thickness 50mm / 2".Key features Vogel's THIN 315 THIN wall mount TV holders:
- Screen size: 40 to 65 inch
- Screen depth: max. 2" (50 mm)
- Capacity: max. 25 kg
- VESA mounting: 100x100 - 600x400mm
- Wall distance: 20 mm
- Tilt: 15°
- A flat look is guaranteed with this LED TV mount because your TV hangs only 35 mm from the wall.
- You can tilt your TV 20 degrees up and down with this LED TV mount.
- You get extra viewing flexibility, because this LED TV mount can turn 90 degrees right and left. So you always have the best view no matter where you sit.
- This LED TV mount comes with our unique Cable Inlay System (CIS®), which conceals cables from view.
- It is easy to install this LED TV mount.
- Combine this LED TV mount with Vogel’s EFA 8740/8741 cable cover to hide messy cables.
- Guarantee: lifetime
- Finish: grey
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 98 kb] |
|---|---|
| Technical drawing: | [pdf, 86 kb] |
| Installation manual: | [pdf, 475 kb] |
| Capacity: | 25 kg |
| Tilt: | 15° |
| Screen size: | 40 - 65 " |
| Material: | Stahl, Aluminium |
| VESA Standard: | 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm (www.vesa-standard.de) |
| Accessories: | Vogels Cable 4 Vogels Cable 8 |
| Contains installation material: | + |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Warranty: | Lifetime |
| Inch size: | 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch |
| Mobility: | tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| VESA (in mm): | VESA 100x100, VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
