Vogels PPL 2100 electric beamer ceiling lift 815 mm HUB, max. 30 kg

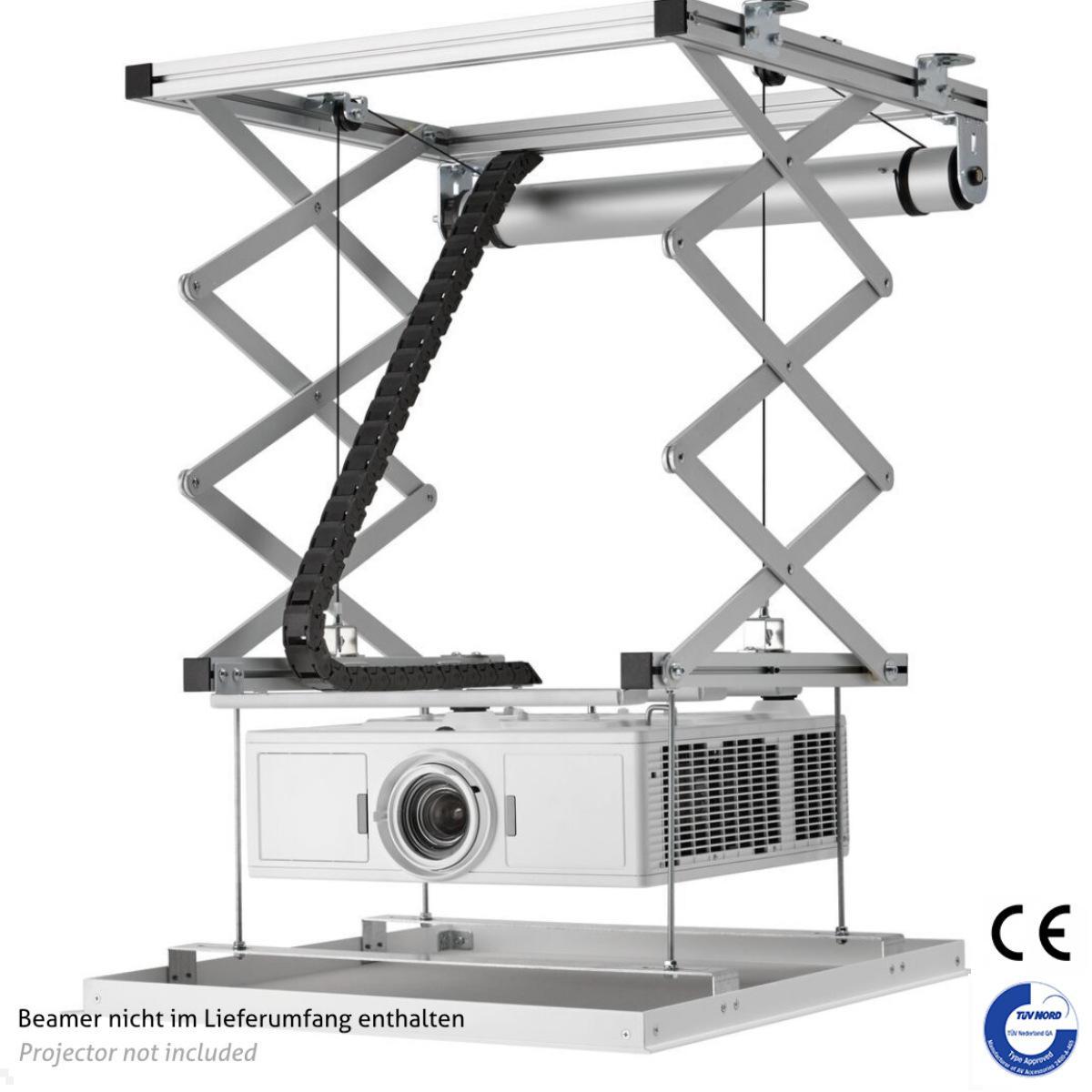

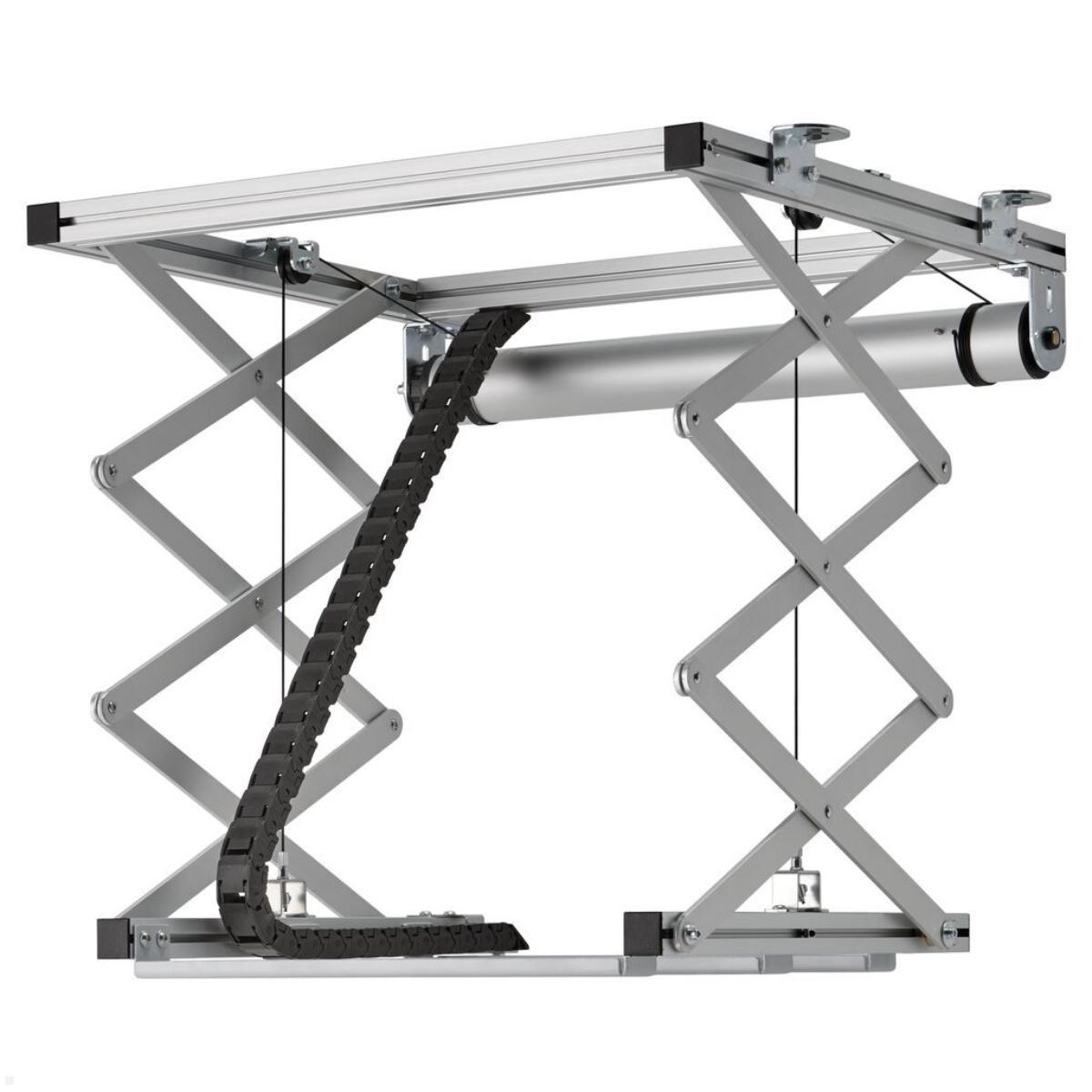

With the Vogel's PPL 2100 Beamer Ceiling Lift with 815 mm stroke in silver, beamers up to 30 kg can be moved silently out of the ceiling and back again. The electrical installation lift system has a light weight and a robust construction. Effortless mounting is done by the provided mounting brackets on the ceiling lift.
Electric projector ceiling lift

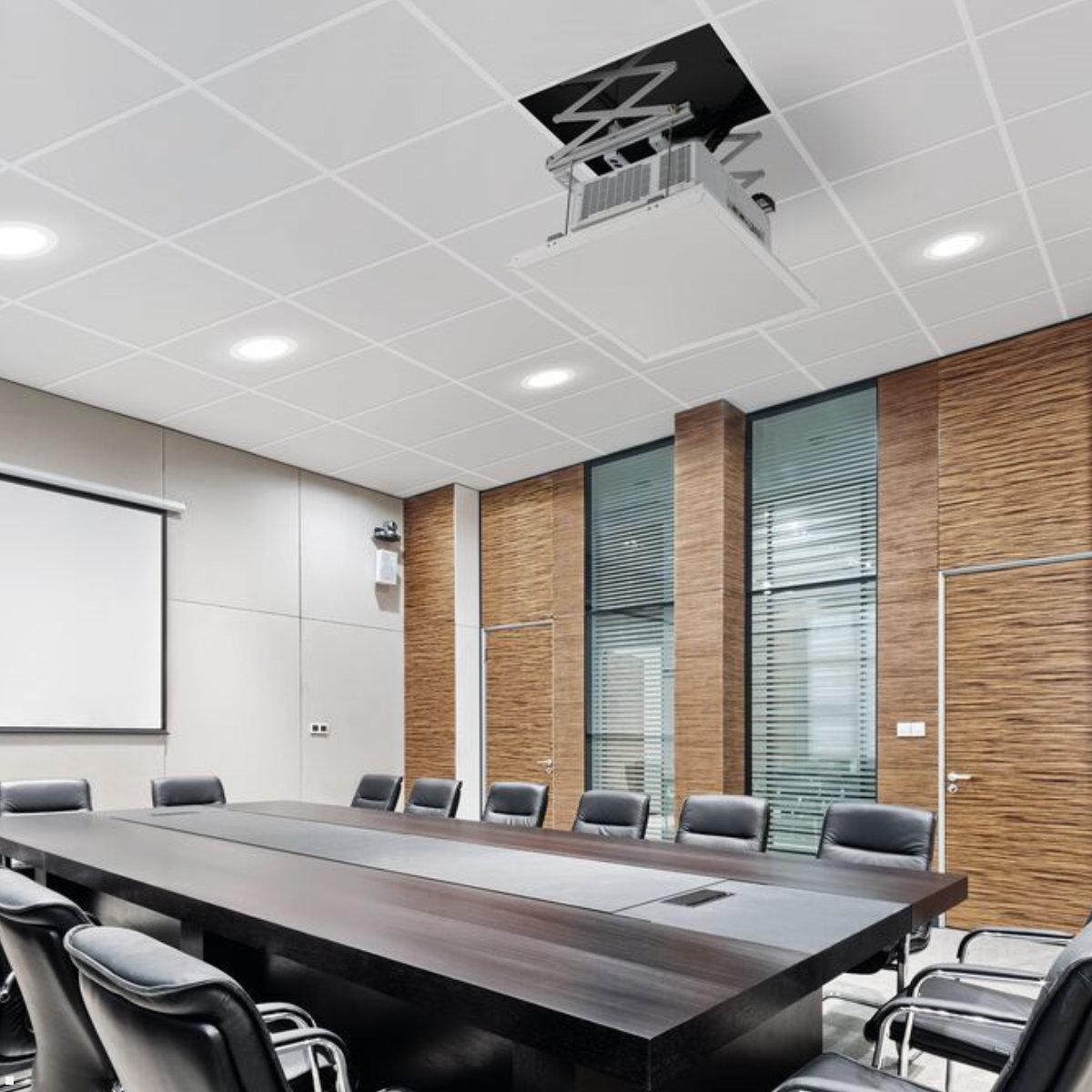

The Vogel's PPL 2100 electric projector ceiling lift with 815 mm stroke is the perfect solution for installing a projector / beamer weighing up to 30 kg in the ceiling. The projector can be installed almost invisibly in a conference room, meeting room, concert hall, auditorium or for home cinema in the living room in the ceiling. Visually concealed and at the same time protected against theft, the electric built-in lift system can be silently moved into two fixed positions with a wall switch.

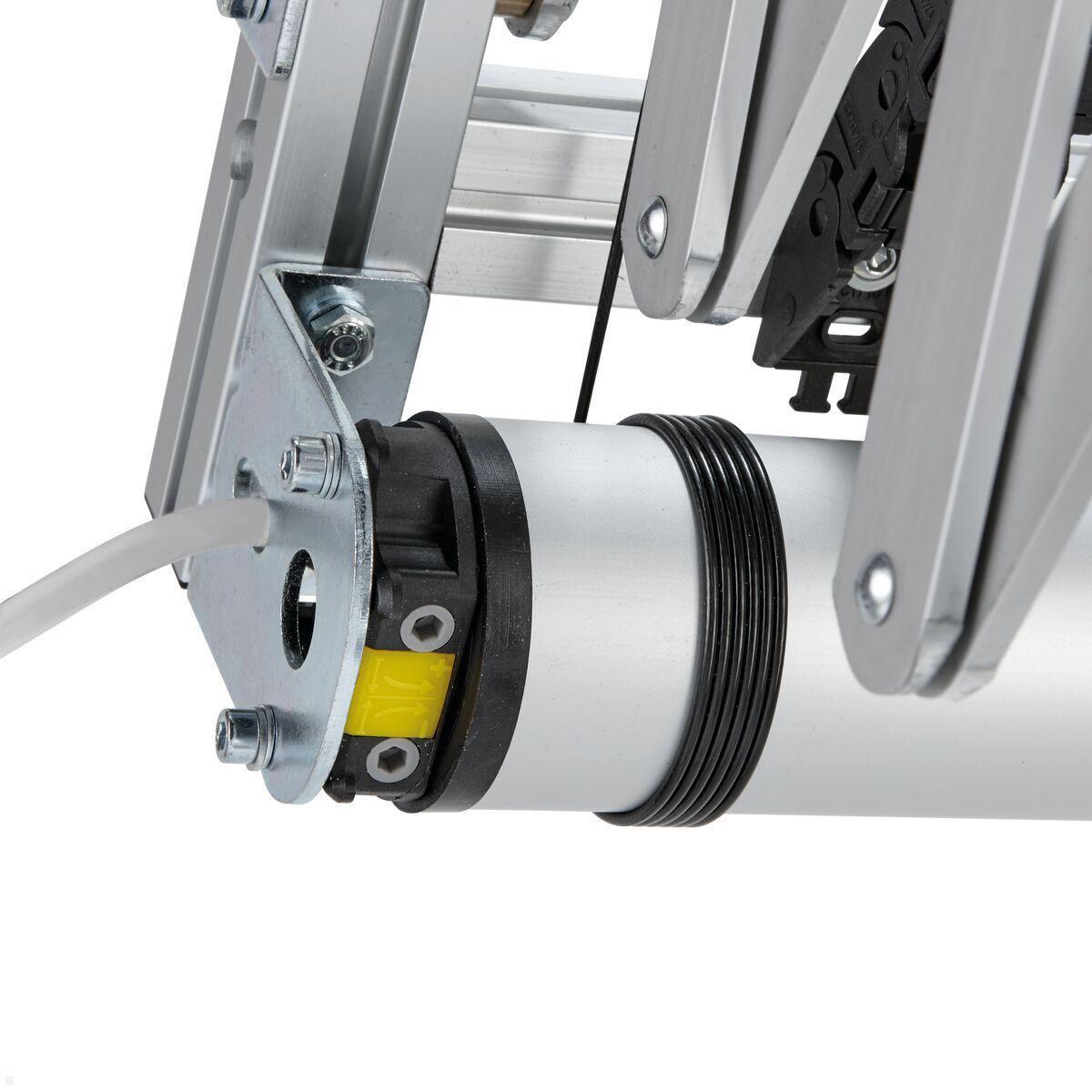

The motor of the projector mount allows a lowering of 81.5 cm. Vogel's PPL 2100 is supplied with extendable side brackets to allow the ceiling panel to fit exactly into the ceiling pattern. By means of the safety screws, the installation lift is prevented from extending beyond the preset end position. Whether in presentation position or parked in the ceiling, the Vogels electric projector lift is designed for installation in a suspended ceiling where space is at a premium. For the installation of the lift including the projector only 15.5 cm height is needed in the false ceiling.
Key features Vogels electric projector installation ceiling lift system
- Max. Weight beamer / projector: 30 kg
- Return distance / stroke: 815 mm

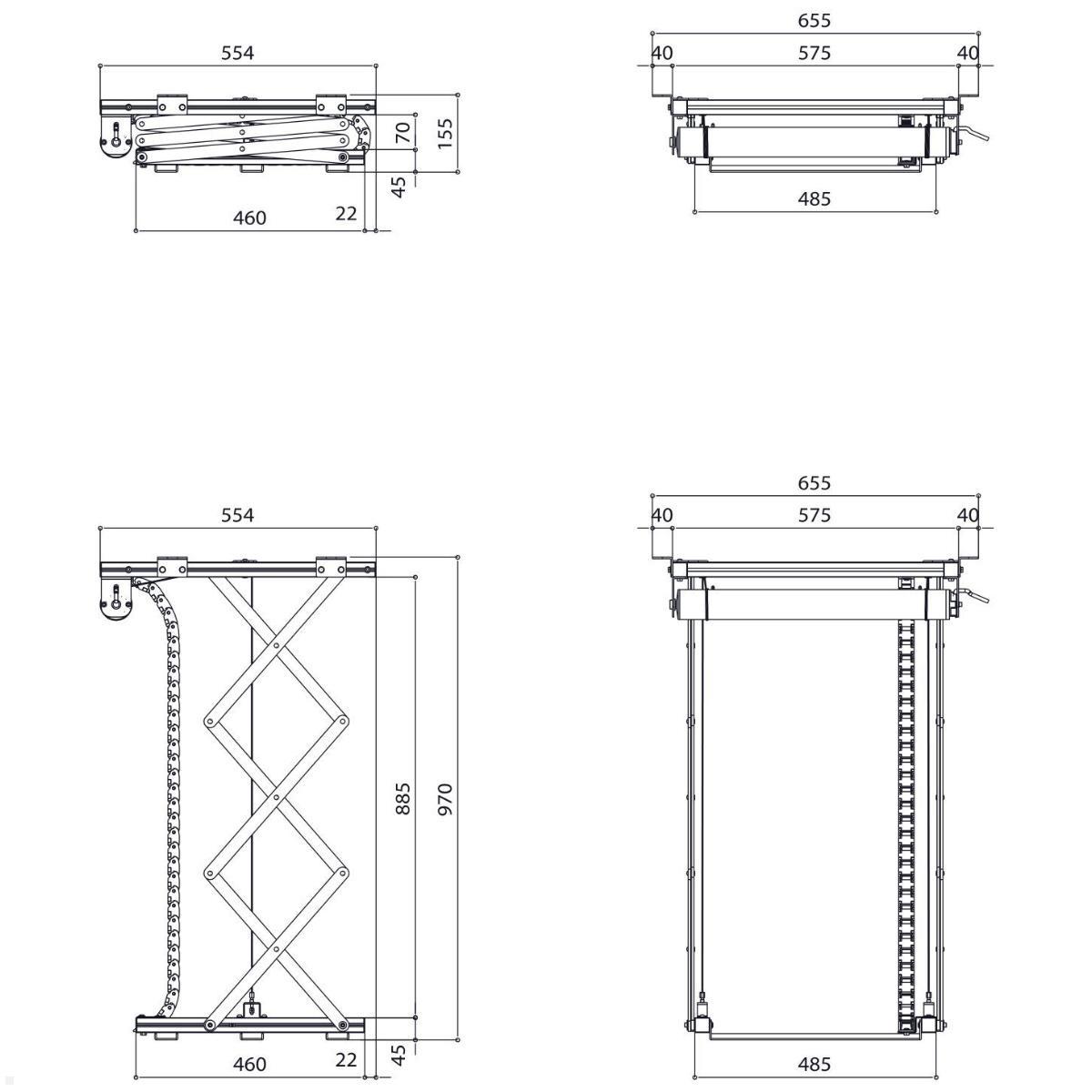

- Dimensions lift closed (WxHxD): 575 x 155 x 554 mm
- Dimensions lift extended (WxHxD): 575 x 970 x 554 mm
- Max. Projector size (WxH): 570 x 600 mm
- Min. ceiling distance: 155 mm
- Max. ceiling distance Ceiling distance: 970 mm
- Voltage: 220 - 230 V, 50 Hz

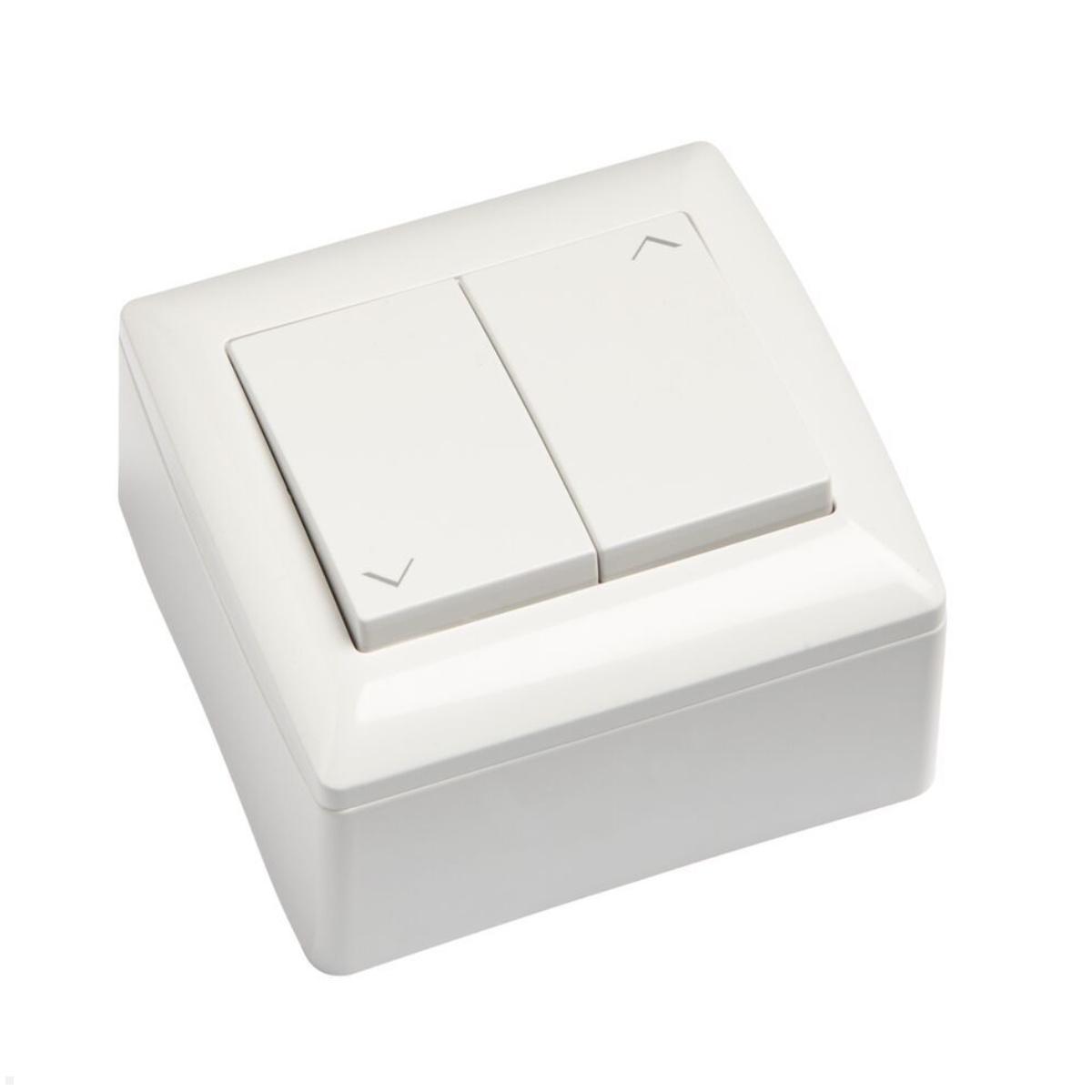

- Incl. wall switch for up / down adjustment of the ceiling lift
- Easy mounting
- Warranty: 2 years
Does your projector or beamer fit the ceiling lift?
We would be happy to check whether your projector is suitable for this Vogel's PPL 2100 built-in ceiling lift. Just tell us your model (manufacturer + model no.) in the comment field at the end of the order process. We will then check for you whether the beamer fits and if not, we will contact you. You can also call us or send us an email.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 30 kg |
| Tilt: | - |
| Rotate: | - |
| Height range (mm): | 815 |
| Packaging dimensions (LxWxH in mm): | 650 x 650 x 230 |
| Scope of delivery: | Lift system, cable management, universal beamer adapter, wall switch |
| Contains installation material: | + |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Warranty: | 2 years |
| Ceiling distance in m: | < 1m |
| Mobility: | electrical, height adjustable |
| Mounting type: | Ceiling mount |
| color: | Silver |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
