Vogels EPW 6565 projector wall mount, 360° swivel

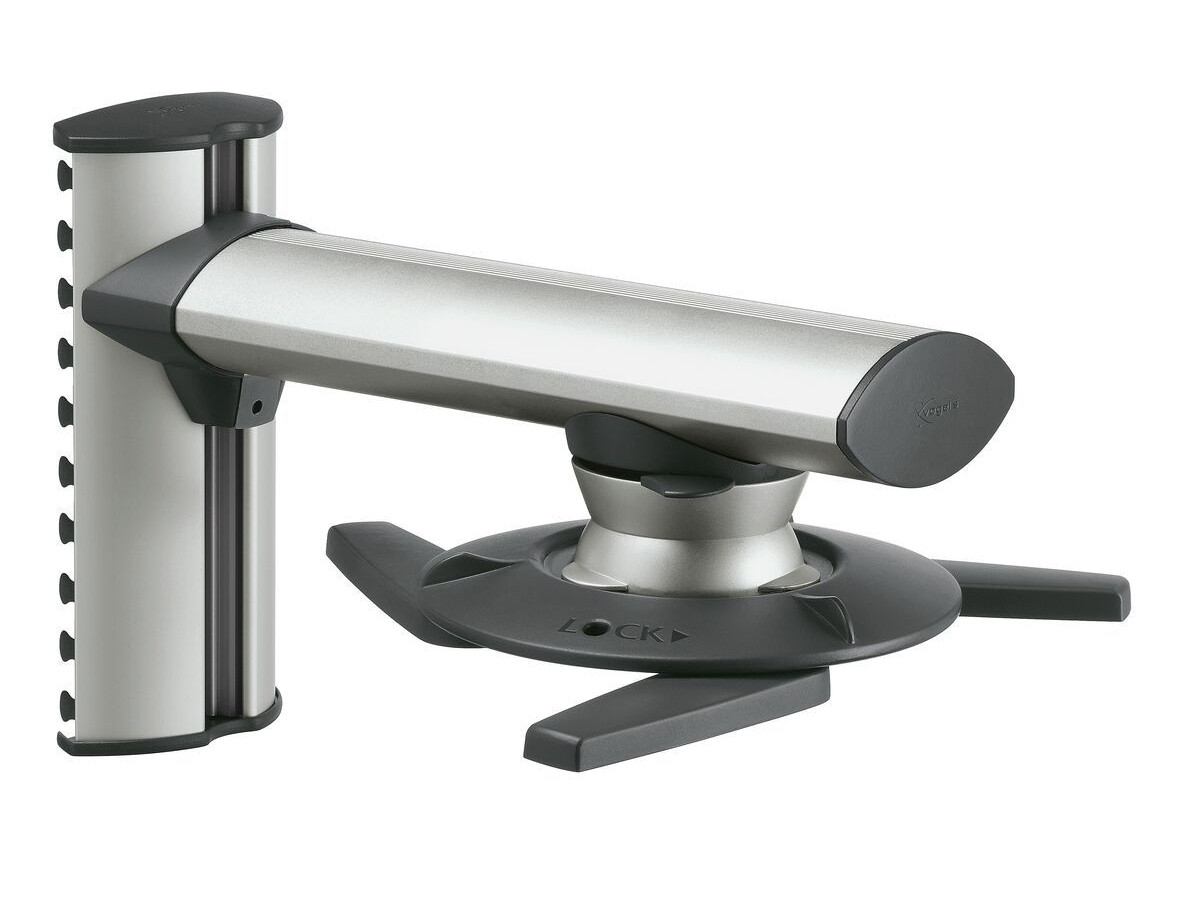

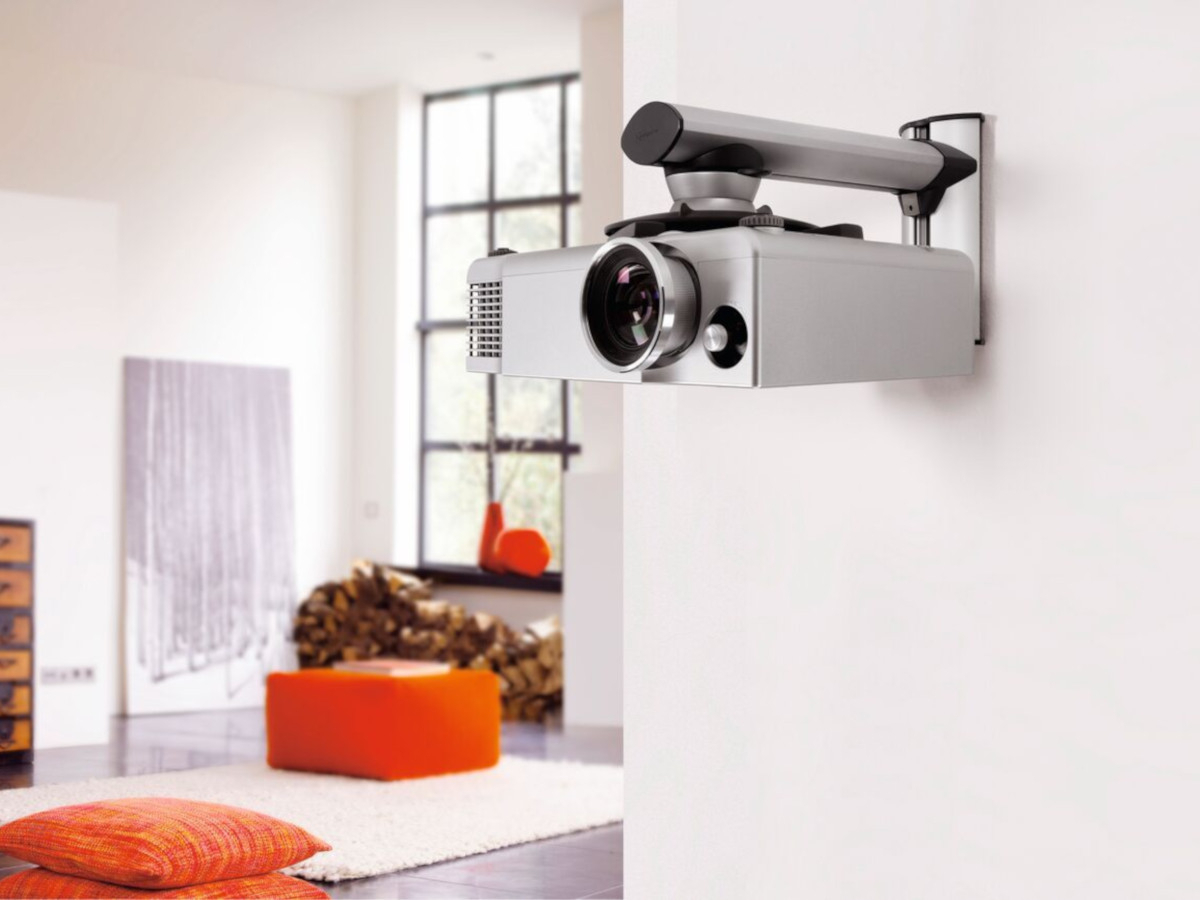

The Vogel's EPW 6565 projector wall bracket in silver suspends projectors up to 10 kg and can be easily attached to the wall. The projector holder has an adjustment mechanism & a locking function, which secures the aligned position of the projector.
Projector wall mount

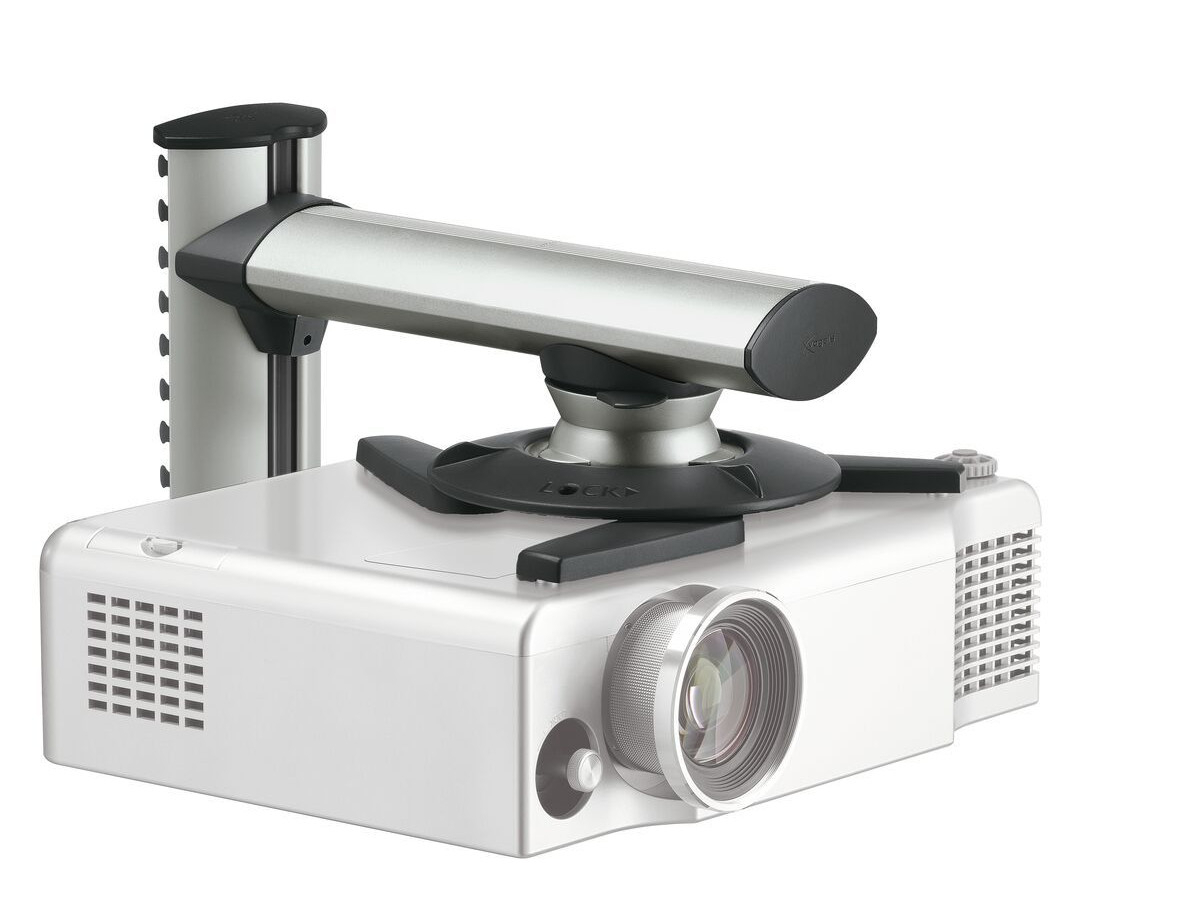

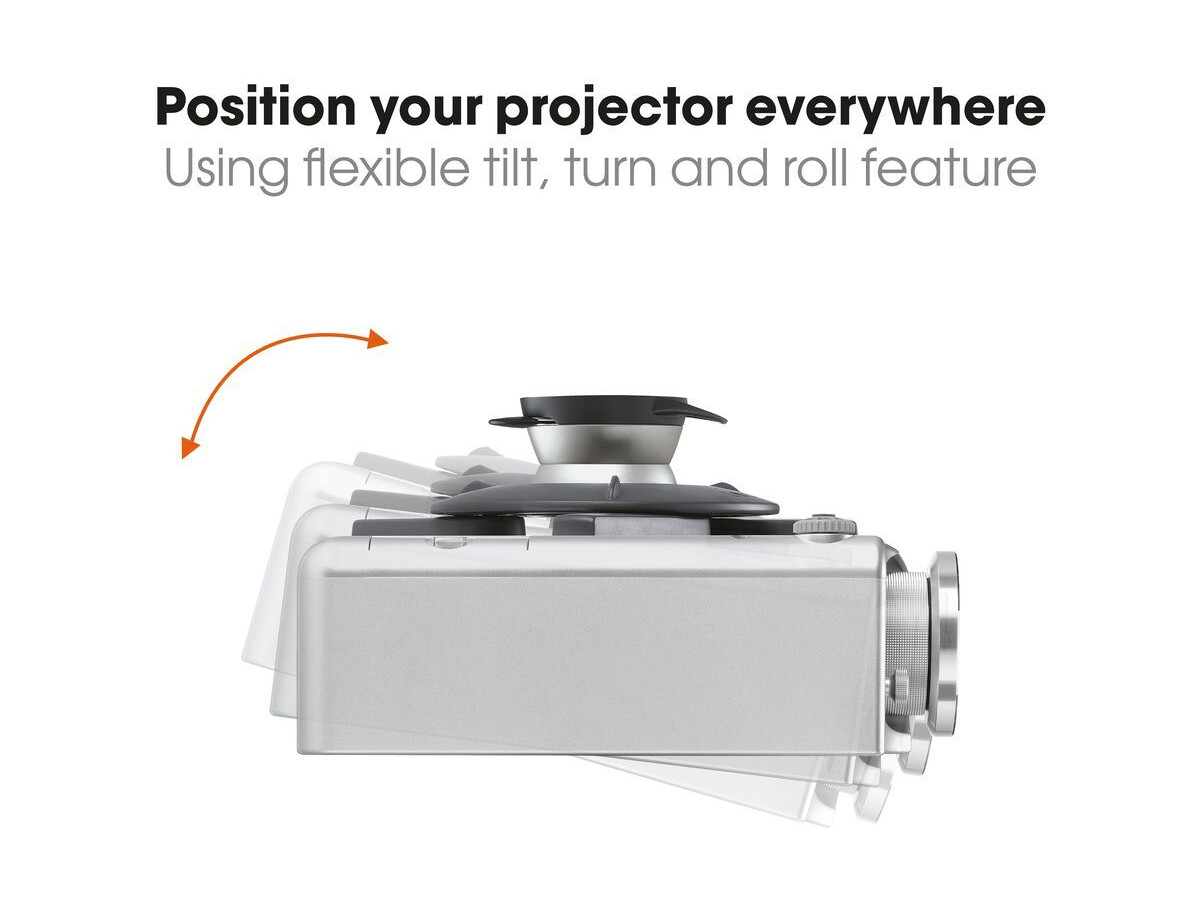

The Vogel's EPW 6565 projector wall mount in silver is designed for projectors weighing up to 10 kg. The included universal projector adapter fits almost all projectors. After alignment, the projector remains in a stable position. The Easy Connect function makes it suitable for the Vogel’s Click & Switch system. Additional fixings are included to maintain the desired position. Thanks to the reversible attachment to the arm, the projector can be mounted upright or upside down for optimal projection at any height. With almost all projector sizes, the projector can be easily positioned horizontally and vertically with the adjustable arm. The unique ball hinge offers enormous freedom of movement with which the desired projection can be realized. With the adjustment mechanism & securing function, the aligned position of the beamer is then secured. Thanks to the patented AdvanCIS ™ cable management system, the cable routing is hidden and when not in use, the projector can be easily removed with a single click. The Vogel's EPW 6565 projector wall bracket can optionally be equipped with a padlock for theft protection.
Key features Vogel's EPW 6565 beamer wall mount
- Finish: silver
- Swivel: 360 degrees
- Tilt: 20°
- Max. weight: 10 kg
- Number of projector: 1

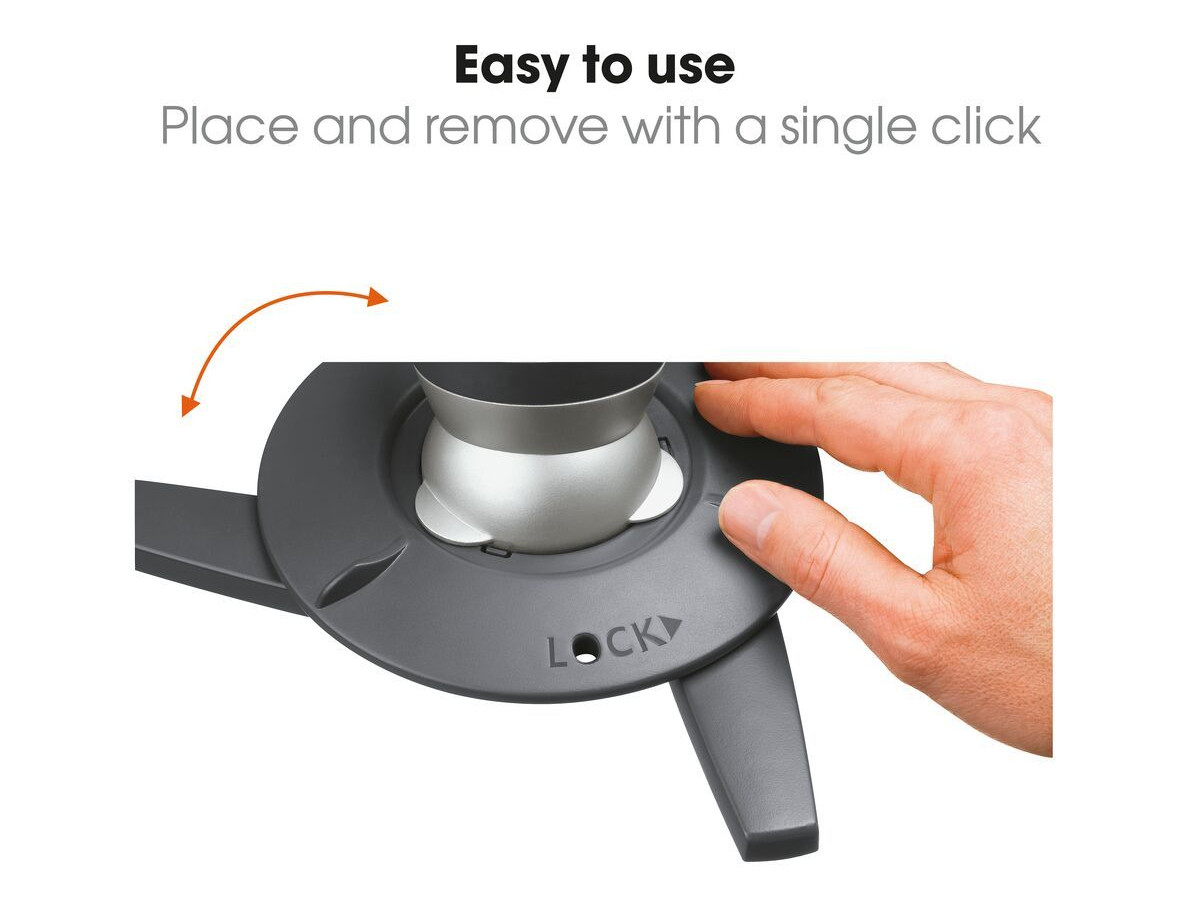

- Easy to fix and remove the projector with a single click

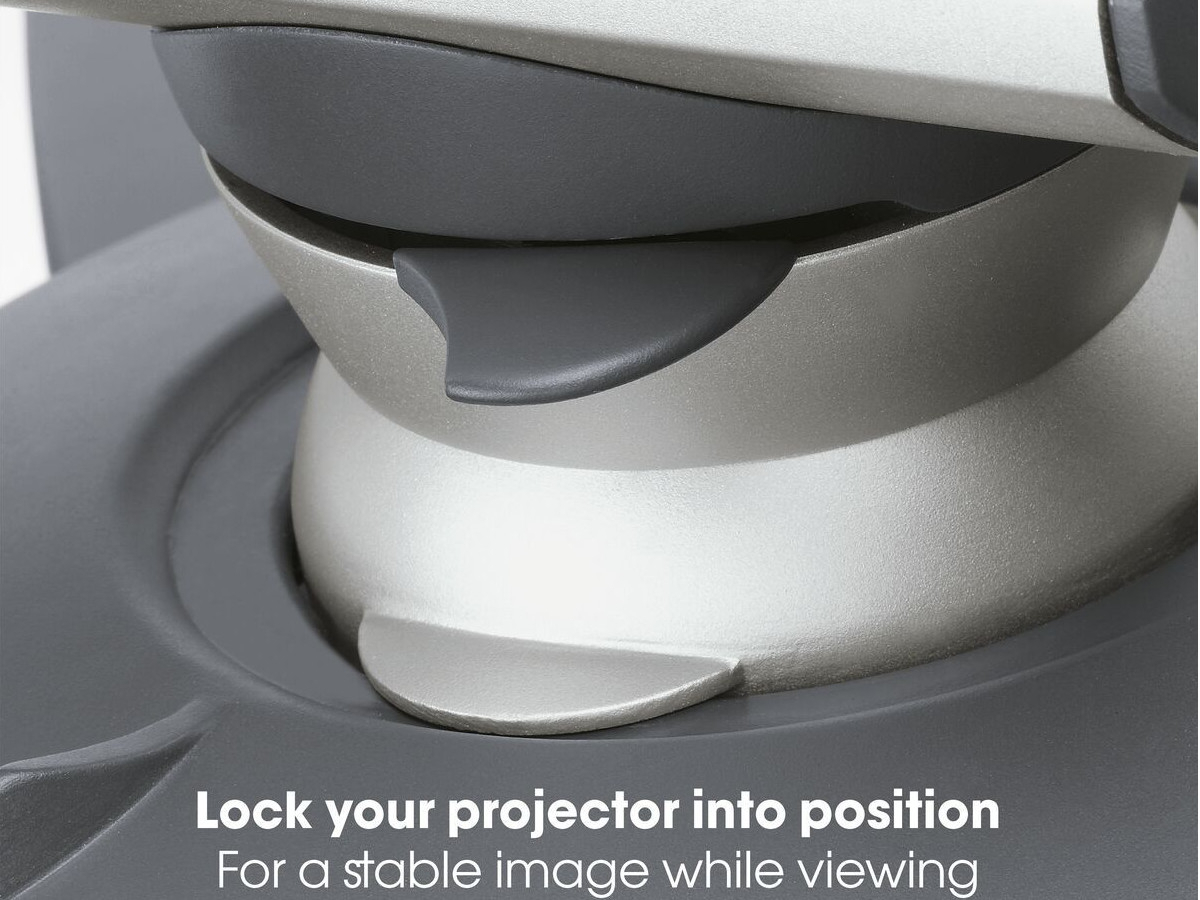

- Projector into fix position with the lock function
- Mount up the projector facing either straight up or upside down
- Easy installation
Does your projector or projector match the wall mount?
We will check whether your projector or projector is suitable for this Vogels EPW 6565 wall mount. Please send us your projector model (manufacturer + model number) in the comment field at the end of the ordering process. Afterwards we will check for you whether the projector fits and if not and contact you. Feel free to contact us.
| Product sheet: |  [pdf, 446 kb] |
|---|---|
| Installation manual: | [pdf, 0,7 MB] |

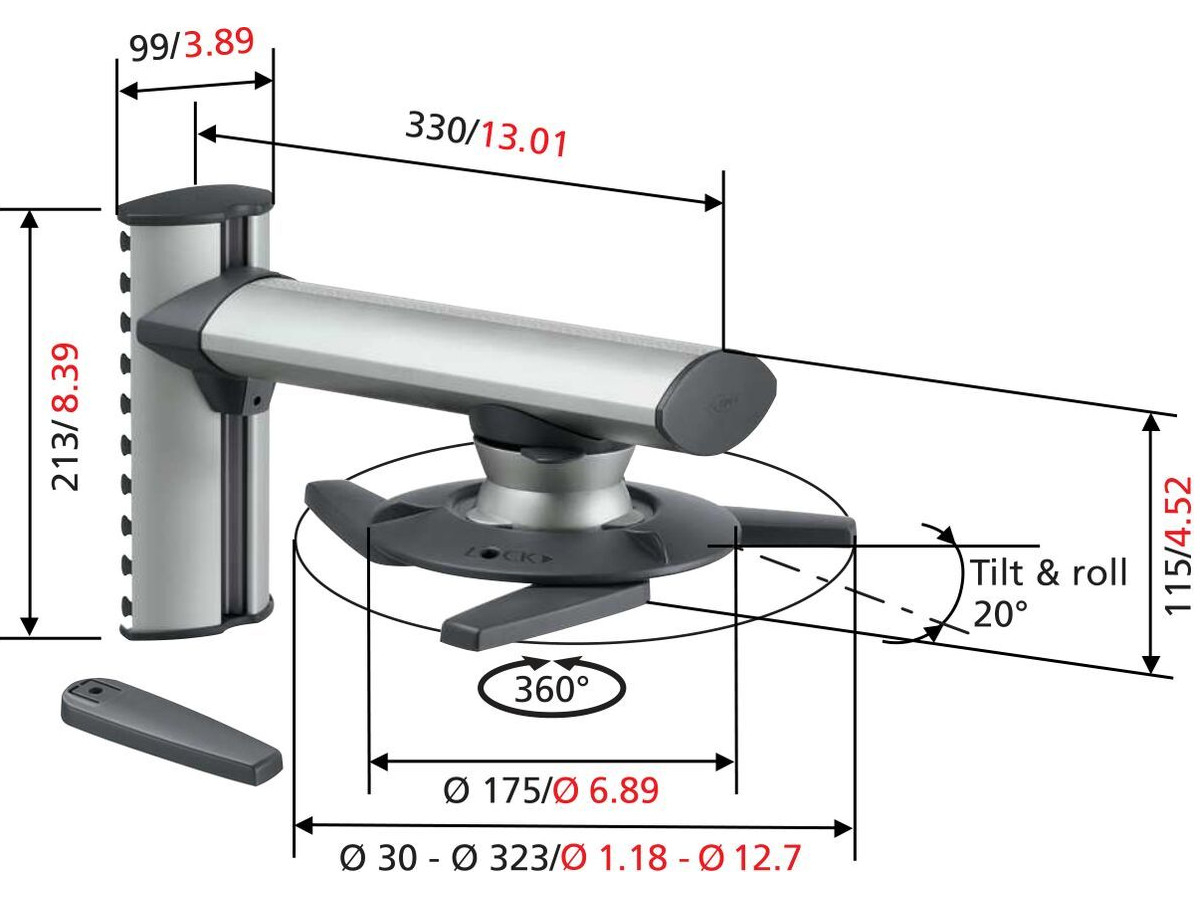

| Capacity: | 10 kg |
| Tilt: | 20° |
| Swivelling range: | 360° |
| Packaging dimensions (LxWxH in mm): | 542 x 280 x 100 |
| Contains installation material: | + |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Warranty: | 10 years |
| Mounting type: | wall mount |
| color: | Silver |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
