Vogels ELITE TVM 5645 swivel TV wall mount 40 - 77 inch, black
The Vogel's TVM 5645 swivel TV wall mount in black is suitable for TV / monitor sizes from 40 inch - 77 inch and supports a weight of up to 45 kg. With a VESA standard hole pattern from 100x100 to 600x400 mm and an integrated spirit level, mounting is quick and easy.
Swivel TV wall mount

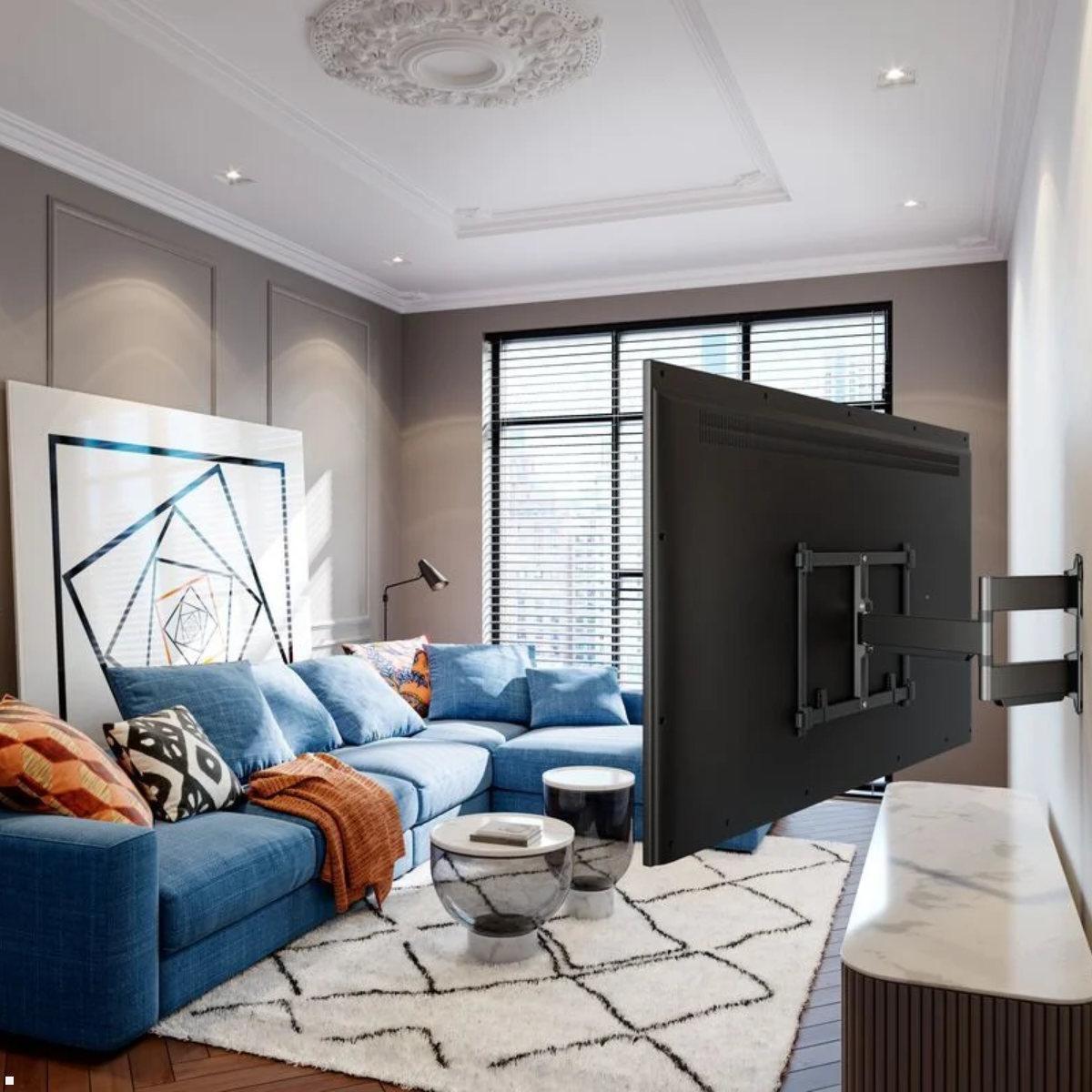

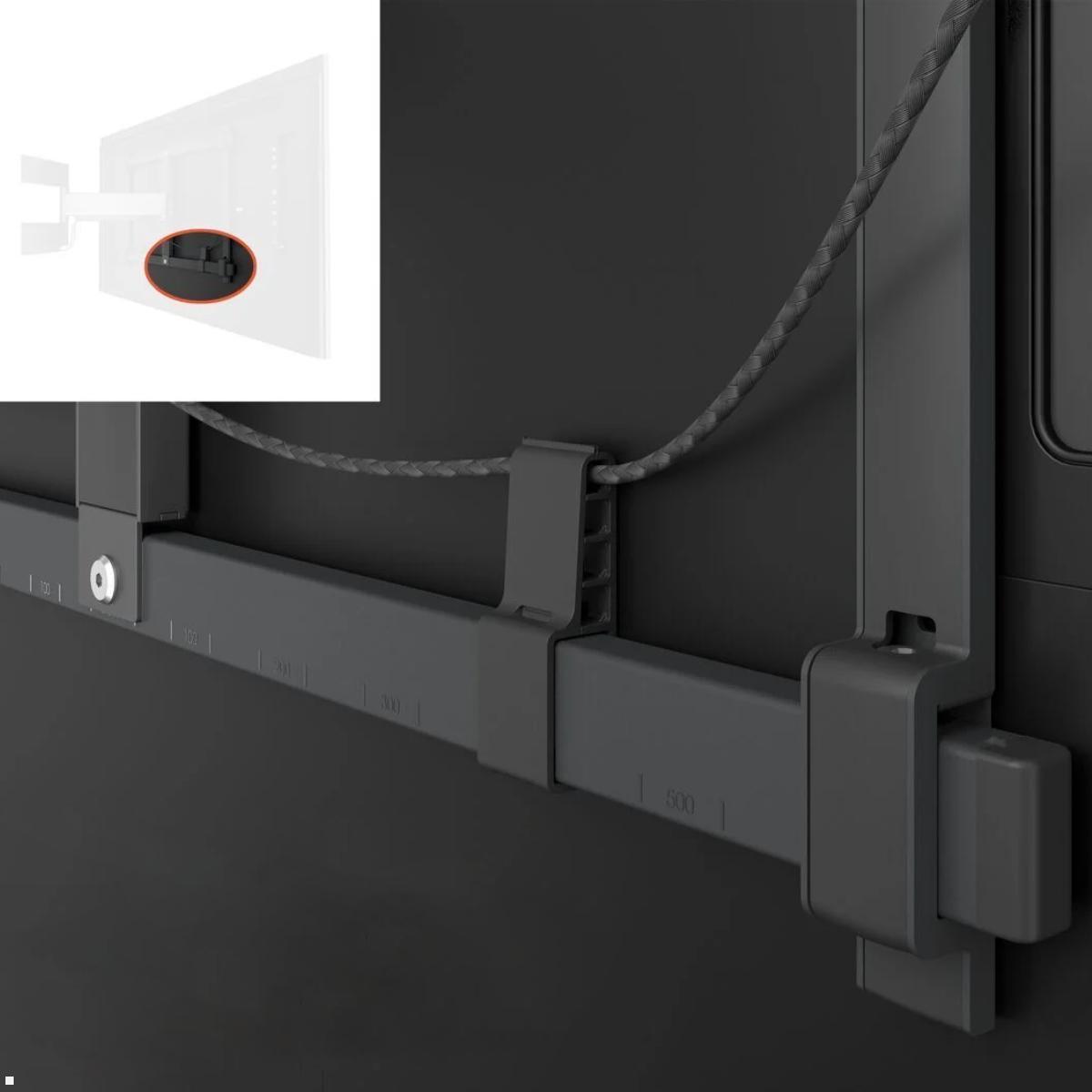

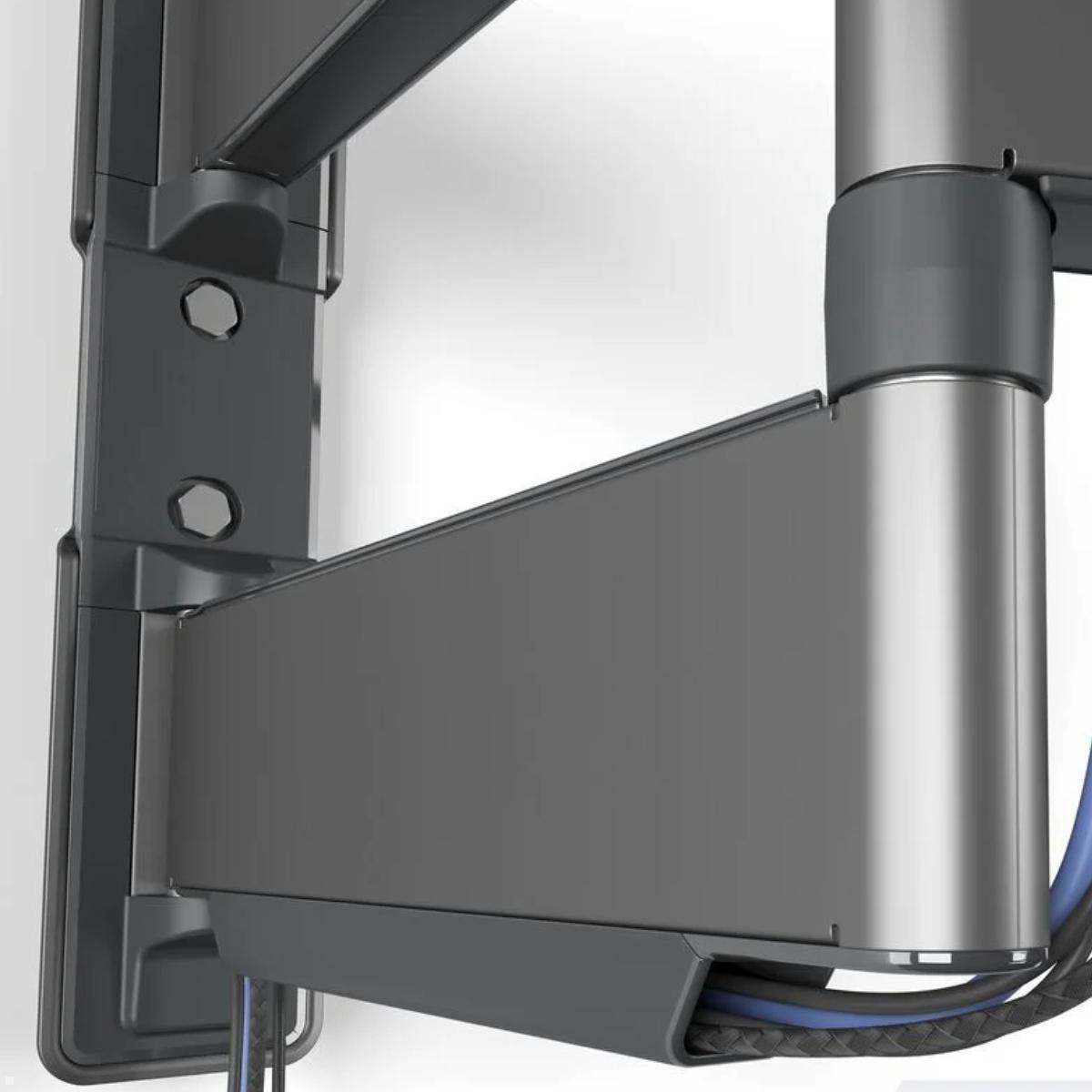

The TV mount with swivel arm is perfect for use in the living room. The TVM 5645 swivel TV wall mount from the ELITE series is equipped with a practical arm for a high reach of 652 mm. The Vogels TV wall bracket is the ideal mounting solution for large LED and OLED TVs from 40 to 77 inches. TVs with VESA mountings in the range 100x100 to 600x400 mm can be attached to the TV wall mount or mounted to the bracket using a VESA adapter. The installation of the ELITE TV wall mount is very simple. The scope of delivery includes a drilling template, spirit level, screws and spacers. With the free DrillRight AR app, drilling is made easier and the first drill holes can be marked effortlessly. An integrated cable guide ensures neat cable management. The Vogels ELITE TVM 5645 TV mount with swivel arm is TÜV certified and therefore meets the highest safety standards.
Key features Vogel's ELITE TVM 5645 TV wall mount with swivel arm
- Finish: Black
- Screen size: 40 inch - 77 inch
- Load capacity: 45 kg
- Wall distance: 40 - 652 mm
- Swivel: 180°
- Mounting type: Wall mount
- VESA mount : 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 400x200, 400x300, 400x400, 500x200, 500x300, 500x400, 600x200, 600x300, 600x400 mm

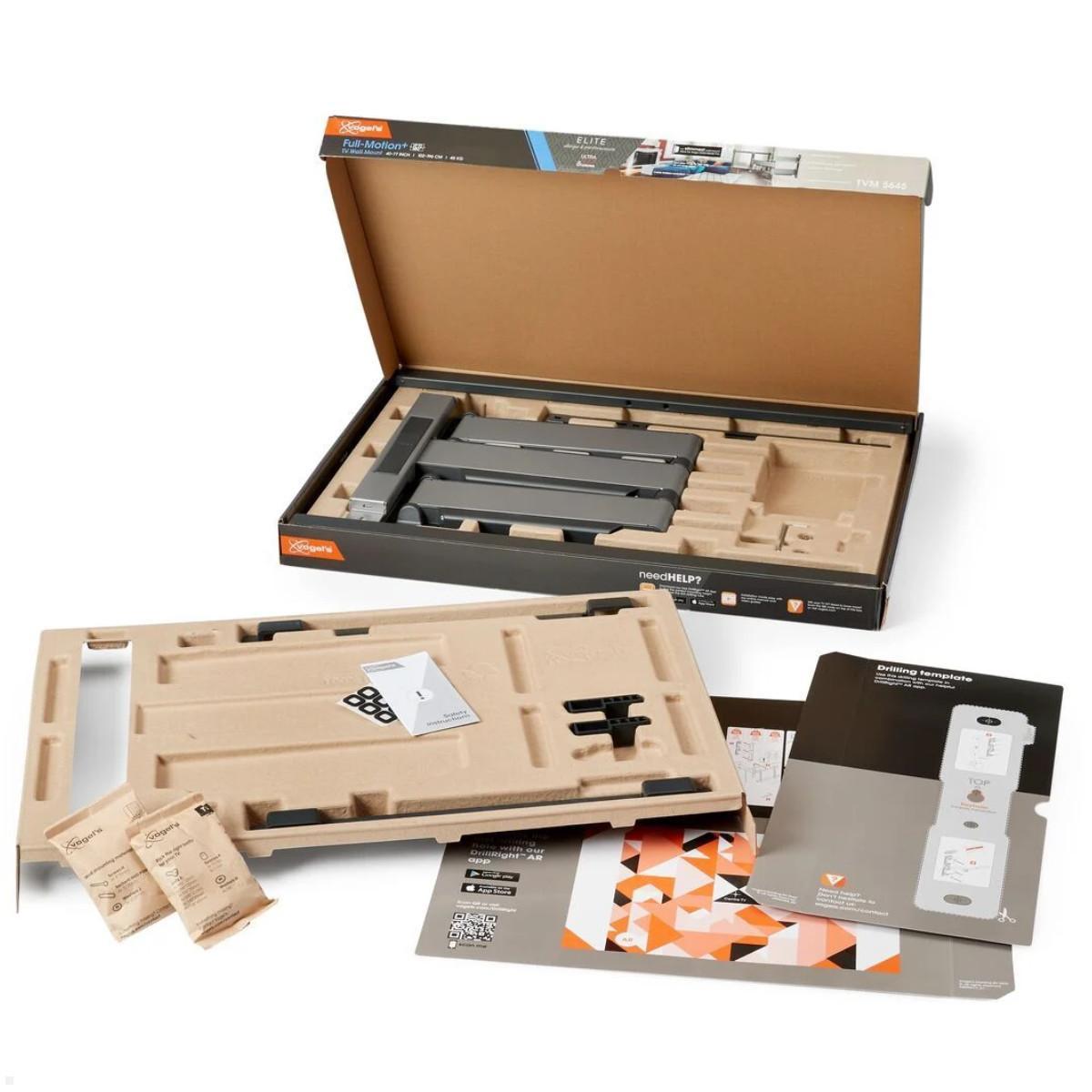

- Scope of delivery:
- Wall bracket
- Wall mounting kit with fischer® Duo Power plugs
- TV mounting kit
- Spirit level
- Quick Installation Guide
- DrillRight™ AR App
- Drilling template
- TÜV certified
- Warranty: 15 years
Does your TV or monitor fit the Vogels ELITE TVM 5645 mount?
We would be happy to check whether your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this Vogels TVM 5645 TV wall mount in black. Simply tell us your model (manufacturer + model no.) in the comments field at the end of the ordering process. We will then check for you whether the monitor fits and if not, we will contact you.

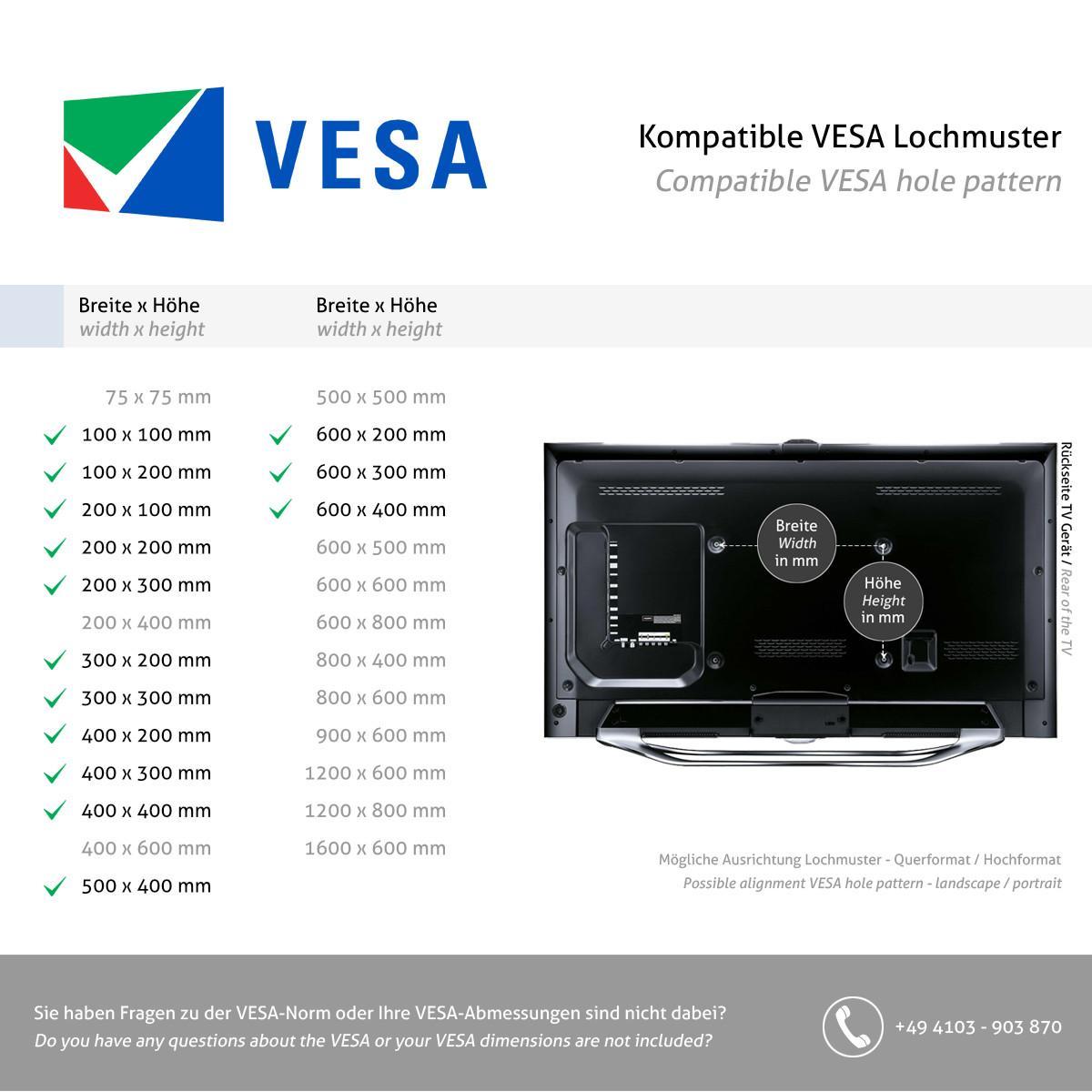

VESA standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

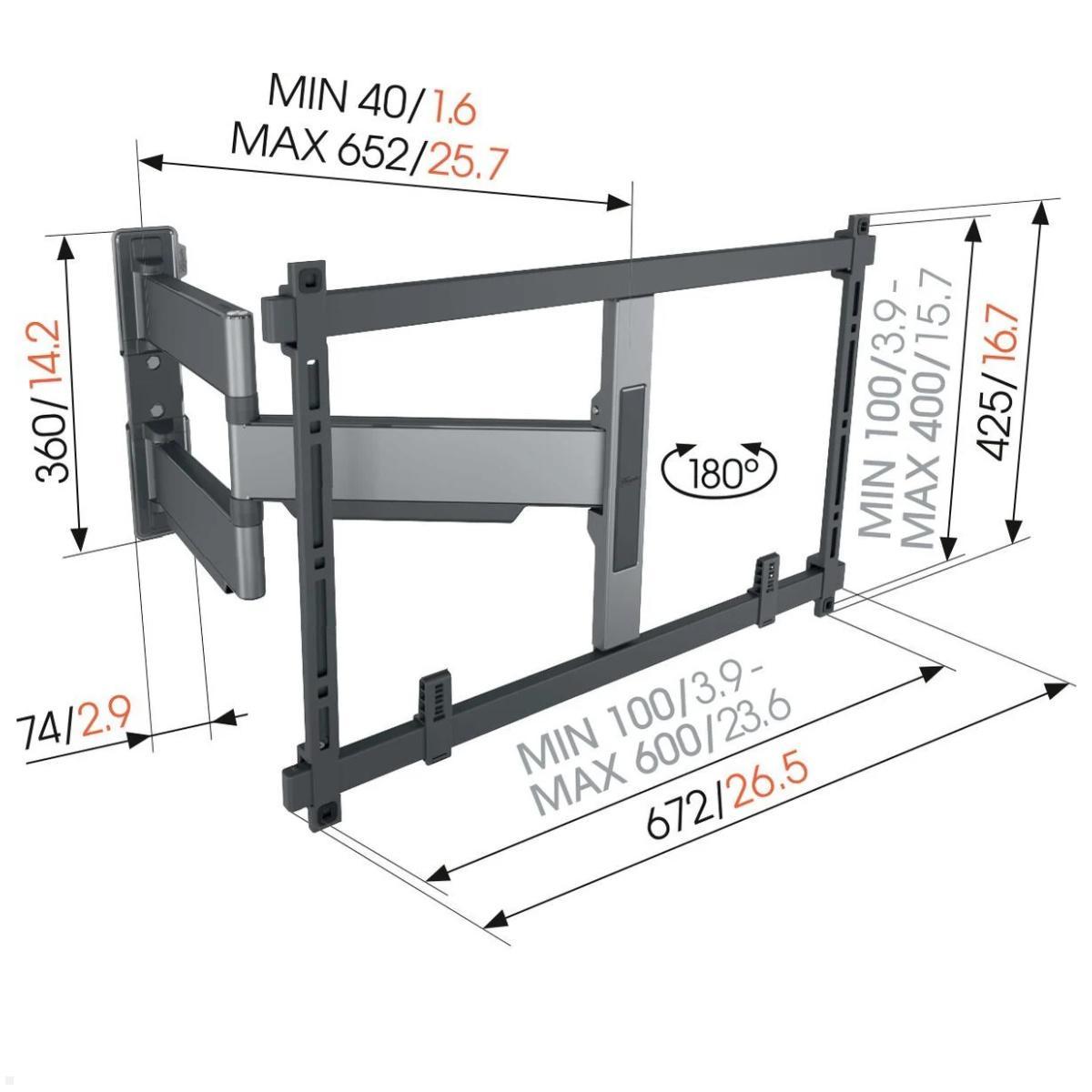

| Technical drawing: | [pdf] |
| Installation manual: | [pdf - German] |
| Capacity: | 45 kg |
| Swivelling range: | 180° |
| Length of the swivel arm: | 652 mm |
| Screen size: | 40 - 77" |
| Depth of the bracket: | 652 mm |
| VESA Standard: | 100 x 100, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 500 x 400, 600 x 200, 600 x 400 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 681 x 472 x 57 |
| Scope of delivery: | 1x Vogels ELITE TVM 5645 wall bracket | wall mounting kit | spirit level | drilling template |
| Contains installation material: | + |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Warranty: | 15 years |
| Inch size: | 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch |
| Mobility: | swivelling |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 100x200, VESA 200x100, VESA 200x200, VESA 200x300, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 500x400, VESA 600x200, VESA 600x300, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
