Vogel's PUC 2108 tube for ceiling mount 80cm

Vogel's PUC 2108 tube for ceiling mount 80cm

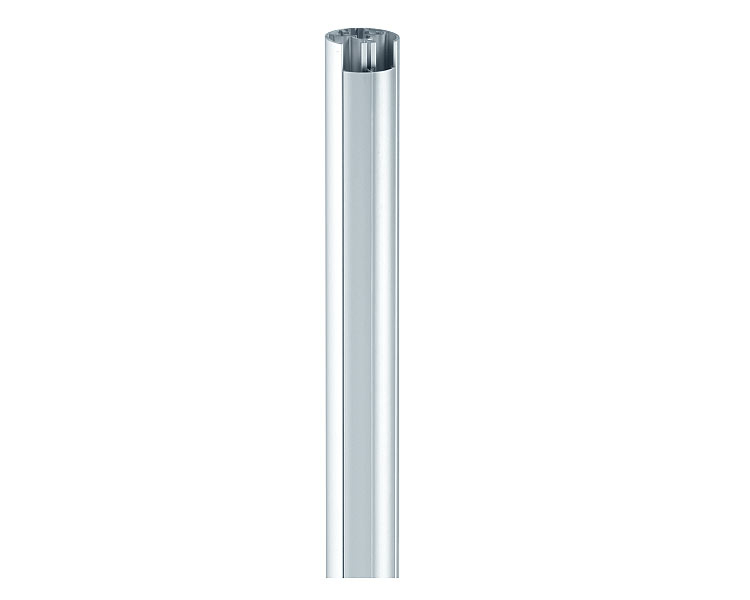

The PUC 2108 is an 80 cm pole and is a part of the modular Connect-it system with which you can create your own ceiling solution for small- to medium-sized displays.

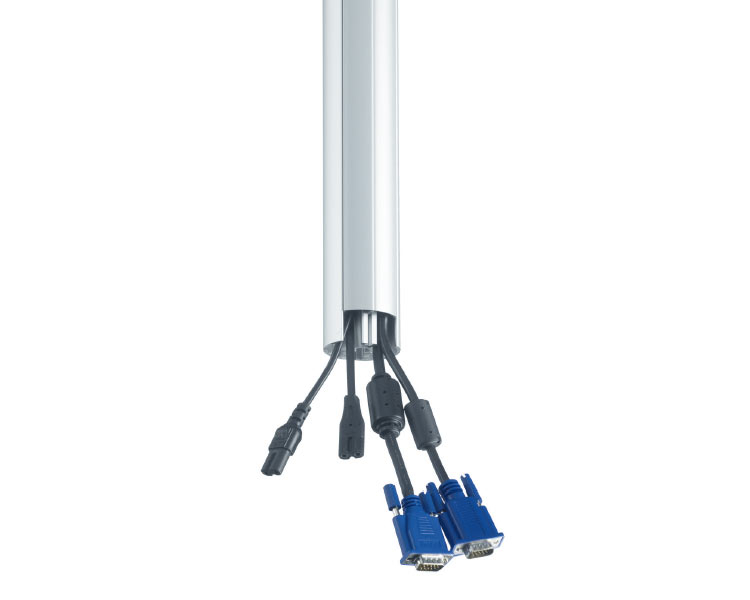

The PUC 2108 is equipped with a double CIS® cable duct system with which you can quickly and simply ensure that all cables are concealed. The pole is made of aluminium and, therefore, it can be easily cut at the required length. Therefore, combine a pole with one of the Connect-it ceiling plates or the truss adapter

• PUC 1010 (ceiling)
• PUC 1030 (ceiling)
• PUC 1040 (ceiling)
• PUC 1050 (truss)


and a Connect-it interface

• PFI 3010
• PFI 3020
• PFI 3030
• PFI 3040


for a complete ceiling solution.

Specifications

• Max. weight: 30 kg
• Stylish design
• Aluminium, easy to cut to length
• CIS® Cable Inlay System
• Easy mounting


Vogel´s Connect it  - A solution for almost every situation

Vogel’s Professional offers a complete new range of ceiling solutions for small to medium sized displays, the Connect-it Series. Connect-it is a modular system consisting of a limited number of products that can be combined into more than 80 solutions. That means the Connect-it range can provide a solution for almost every situation.

The key features of Connect-it:

• A solution for almost every situation
• Quick and easy installation
• Stylish design
• Cost effective
• Easy to customize


The range includes:

• 4 Ceiling plates: PUC 1010, PUC 1030, PUC 1040, PUC 1050
  The ceiling plates are part of the modular system which enables you to create your own ceiling mounting solution for flat displays. You can easily attach one of the poles with just 1 screw, which saves on installation time.
• 6 Poles: PUC 2108, PUC 2115, PUC 2130, PUC 2308, PUC 2315, PUC 2330
  The poles are the basis of the Connect-it (modular) system for small to medium sized flat displays. The main features of the poles are: quick and easy installation; large cable management system; stylish design; easy to cut to length if necessary; easy to customize (23xx Series); multiple displays can be mounted on one pole (23xx Series).
• 4 Interfaces: PFI 3010, PFI 3020, PFI 3030, PFI 3040
  There are three VESA interfaces available: 75x75/100x100, 200x100, 200x200 mm, which can easily be attached to the poles. The main features are: fast, easy and safe installation by just 1 person, horizontal levelling function, and tilt function (0-10-20°).
  There is one universal interface available which supports non-VESA fitments of up to 230x260 mm. It features all the functions mentioned above, but is also adjustable in height, can be used for multiple display mounting and tilt function to 30°.
