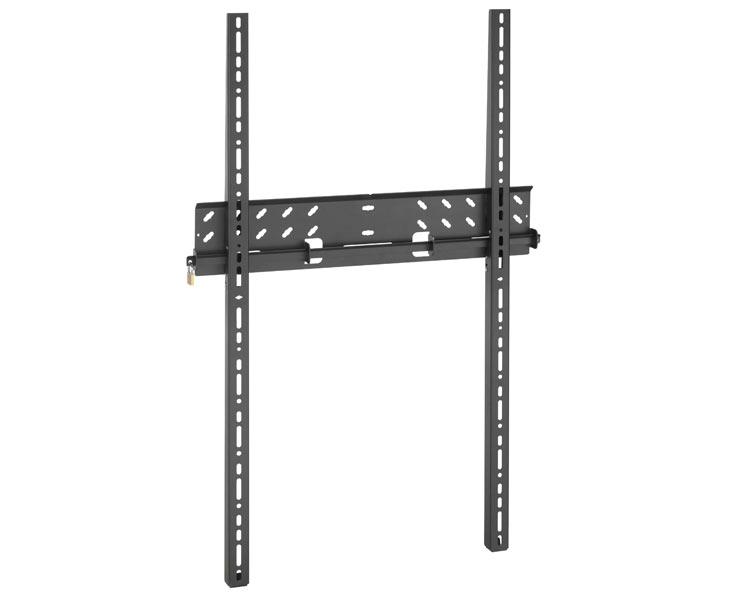

Vogel's PFW 5515 Super flat portrait wall mount
The Vogel's PFW 5515 wall mount is super flat, only 33.5 mm deep, and have security lock features that work effectively in the small space between the display and the wall.
Vogel’s new professional 5000 series wall mounts offer high levels of theft protection for flat displays used in public areas that cannot be continually supervised. This is a versatile product line that provides extra features for theft prevention and quick and easy installation. A sturdy lock secures displays effectively and very closely to the wall to prevent removal. These mounts have a clean and elegant look and take up a minimum amount of space, yet making the display easily accessible for display service. The unique built-in levelling function in the wall plate makes life a lot easier for installers. It helps them to correct the levelling during installation.
- Especially for portrait position
- Super flat only 34 mm from the wall

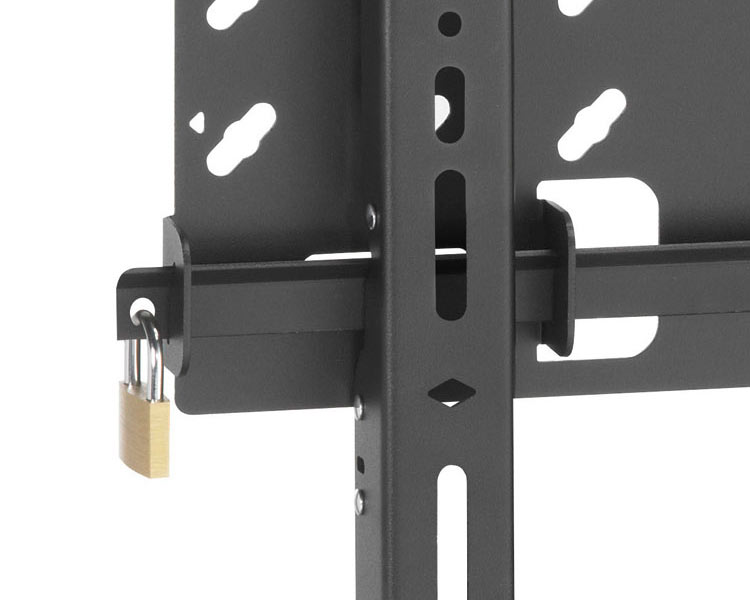

- Locking bar + padlock included

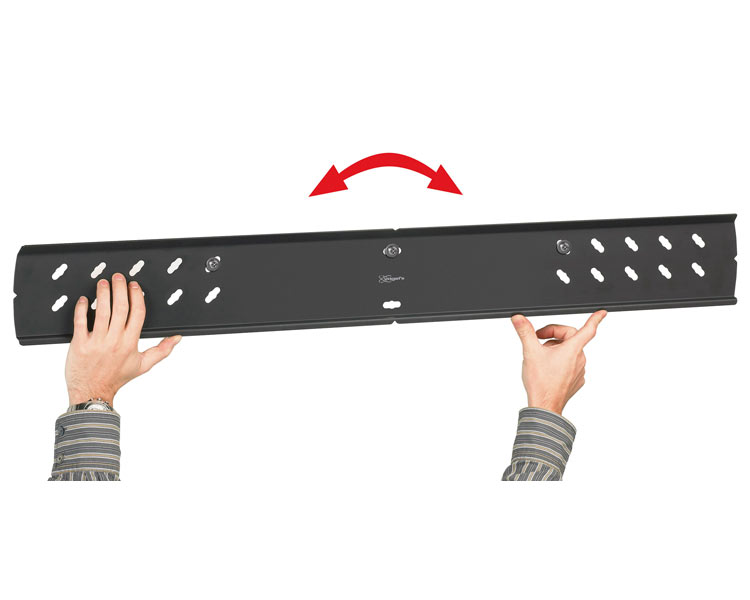

- Built-in wall plate level function

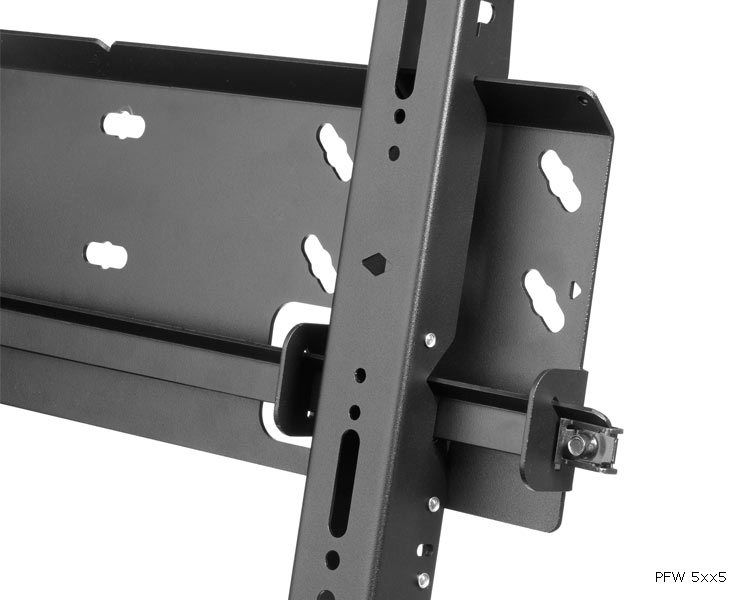

- Autolock® locking system
- Universal, complies with VESA MIS-F (max. 619x1075 mm)
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: | [pdf, 146 kb] |
|---|---|
| Technical drawing: |  [pdf, 98 kb] |
| Installation manual: | [pdf, 460 kb] |
| Capacity: | 100 kg |
| Screen size: | 50 - 65 " |
| Material: | Steel |
| VESA Standard: | VESA MIS-F (max. 619x1075mm) (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Warranty: | 5 years |
| Mounting type: | wall mount |
| Theft-proof: | No |
| VESA (in mm): | VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400, VESA 800x400, VESA 800x600 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
