TecLines TVS007S retractable 3-way power strip with USB A/C, silver
The TecLines TVS007S retractable built-in power strip in silver with three sockets and two USB A/C connections automatically retracts into the table cut-out at the touch of a finger and also extends fully automatically. The practical multiple socket can be installed in tabletop thicknesses from 18 to 60 mm.
Retractable built-in power strip with USB A/C

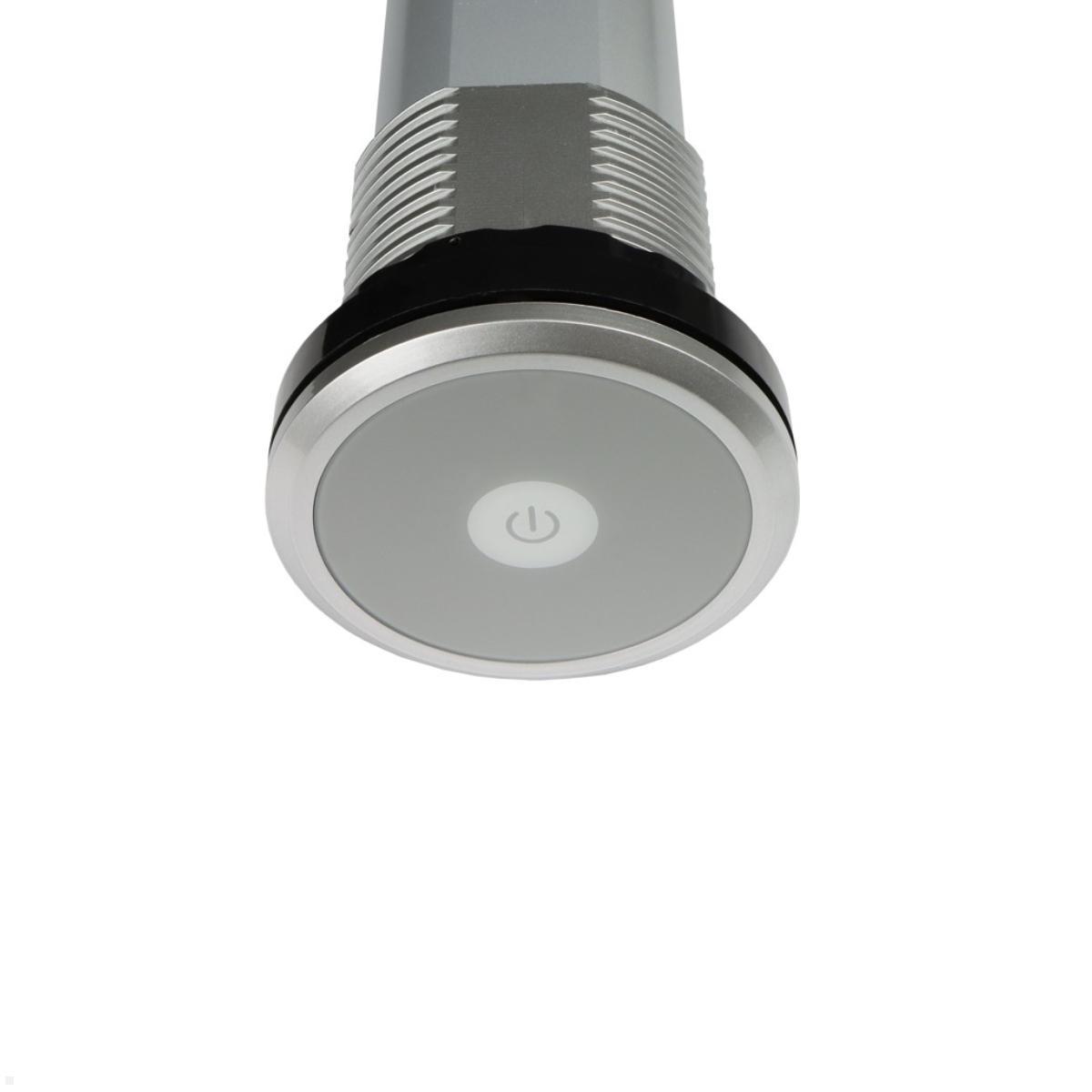

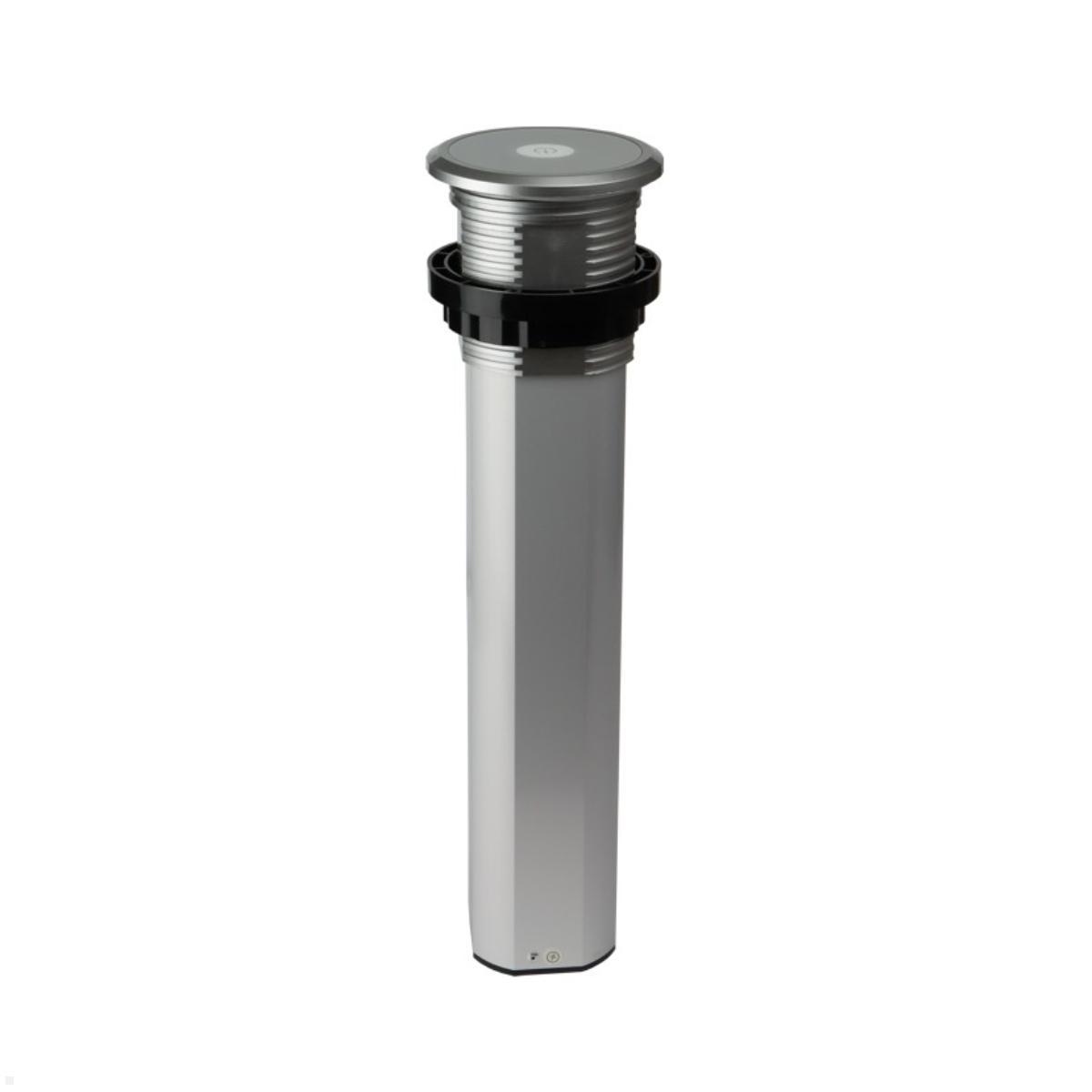

The TecLines TVS007S 3-way built-in power strip is a retractable built-in power strip with USB A/C connections. The silver multiple socket is designed for recessed installation in desks, work surfaces or counters. By simply touching the switch symbol on the cover, the recessed socket outlet can be automatically retracted or extended. Popular areas of application are offices, kitchens, conference and meeting rooms as well as in restaurants, at airports or at trade fairs.
Retractable socket outlet with USB charger

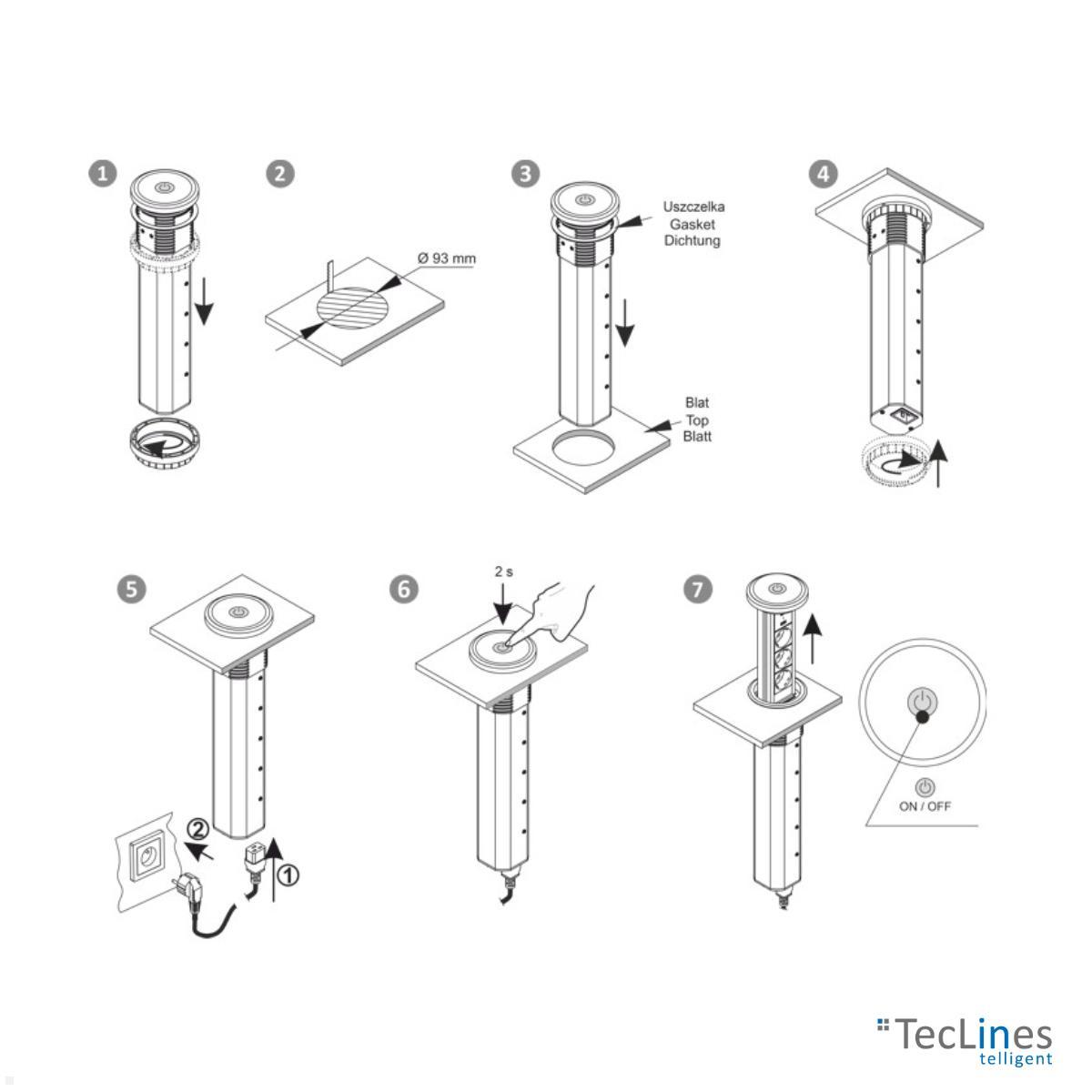

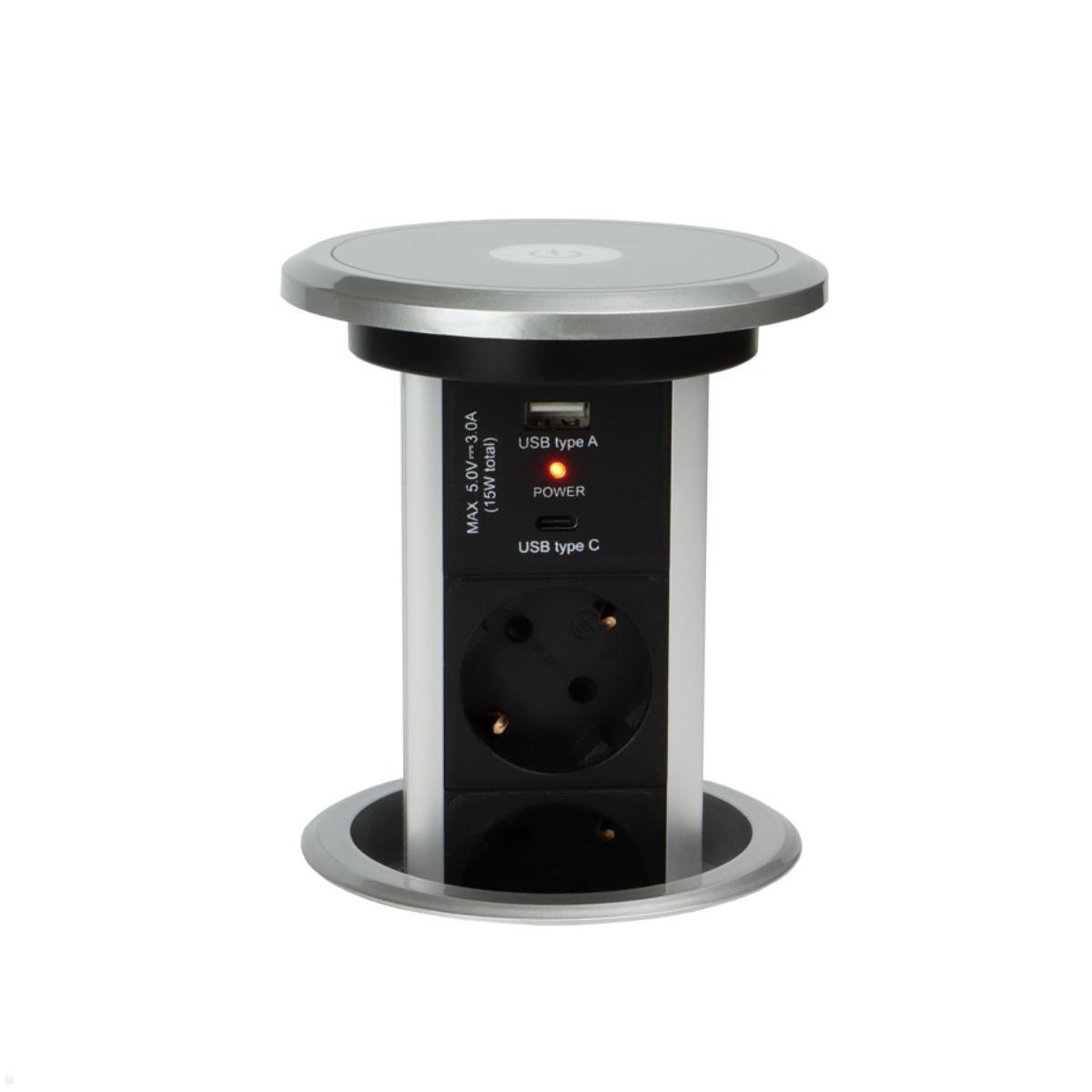

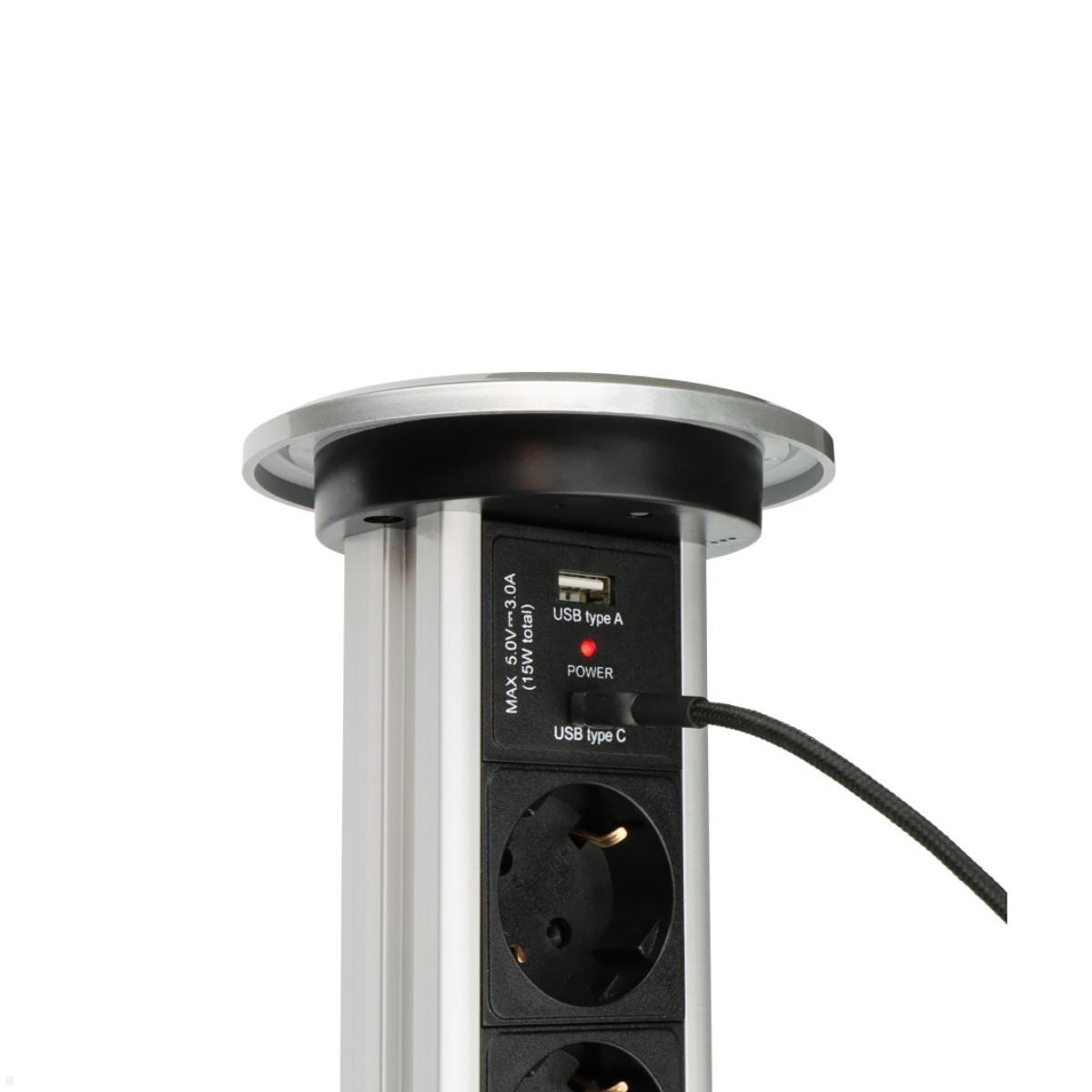

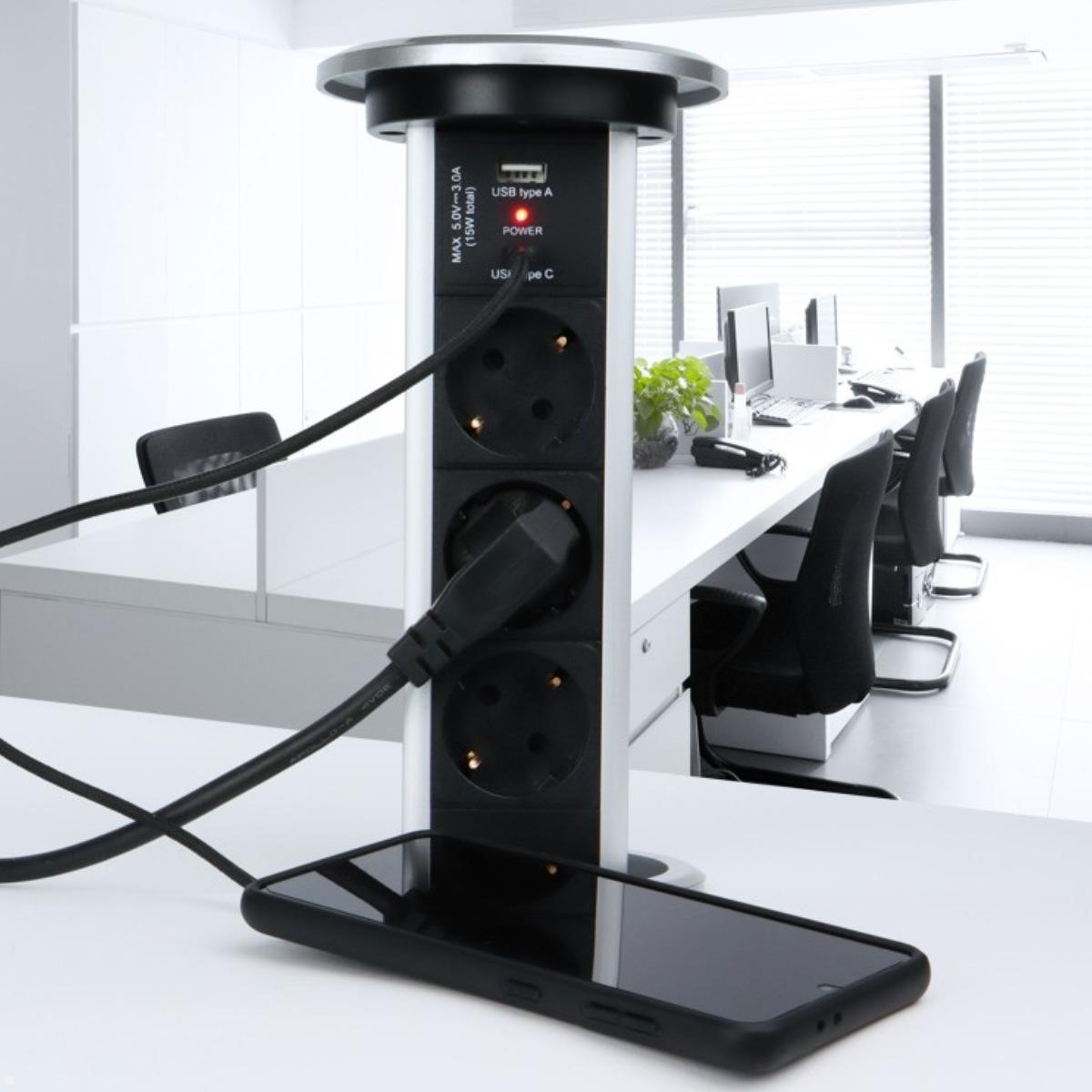

When extended, three earthed sockets and USB-A / USB-C ports are revealed, which can be used as USB chargers. The installation of the retractable Socket strip is very simple. The TecLines TVS007S is inserted into a table cut-out of 93 mm and attached to the tabletop from below with a ring. A 2m power cable is integrated on the 3-fold socket strip.
Key features TecLines TVS007S 3x socket, USB A/C Charger
- 3x sockets with earthing contact (230V AC, max. 16A)
- 1x USB connection type A, max. 16A. 5V DC/2,1A (total 10,5W)
- 1x USB connection type C, max. 16A. 5V DC/2,1A (total 10,5W)
- Automatically retractable / extendable
- Plate thickness: 18-60 mm
- Material: aluminium, plastic

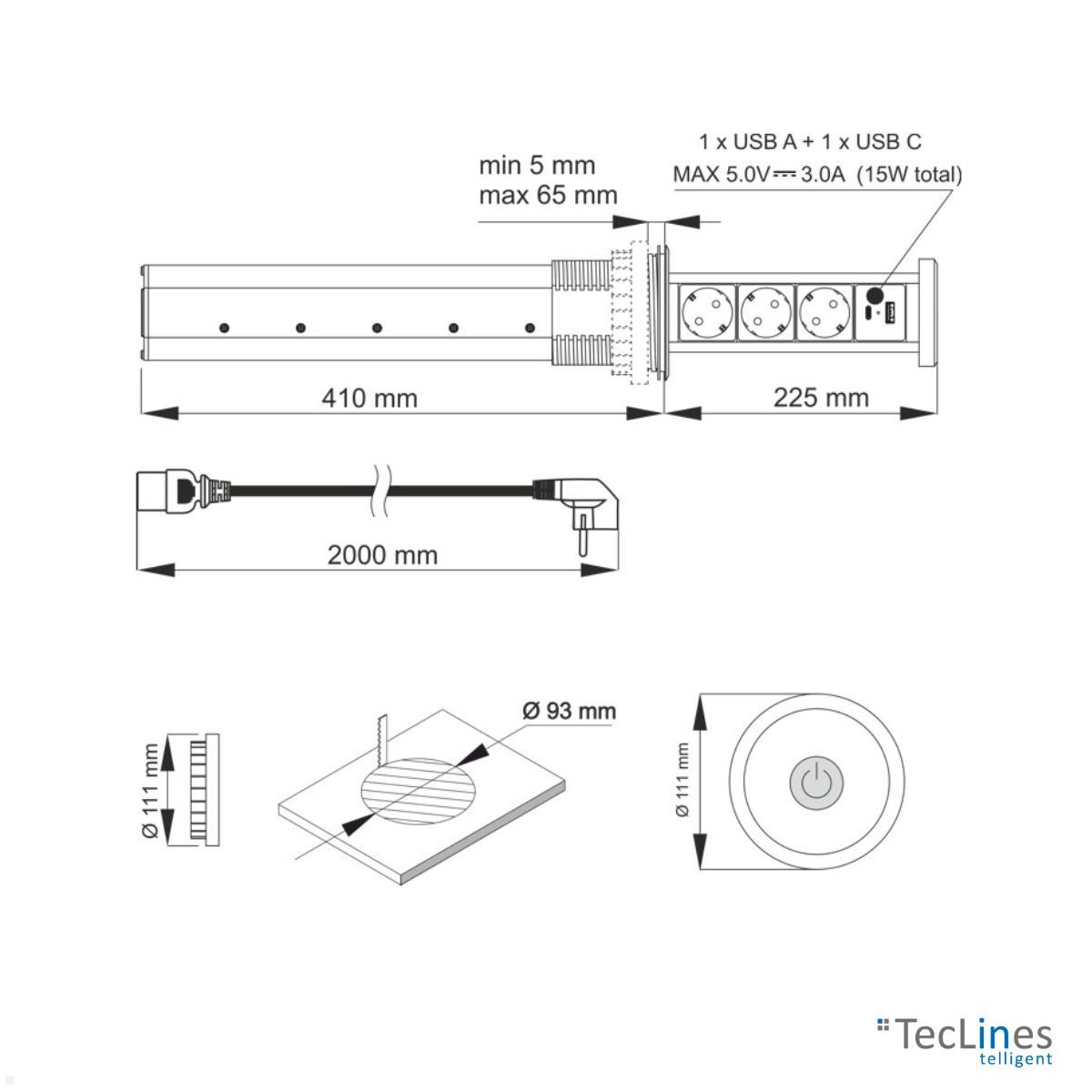

- Inlet diameter: 93 mm

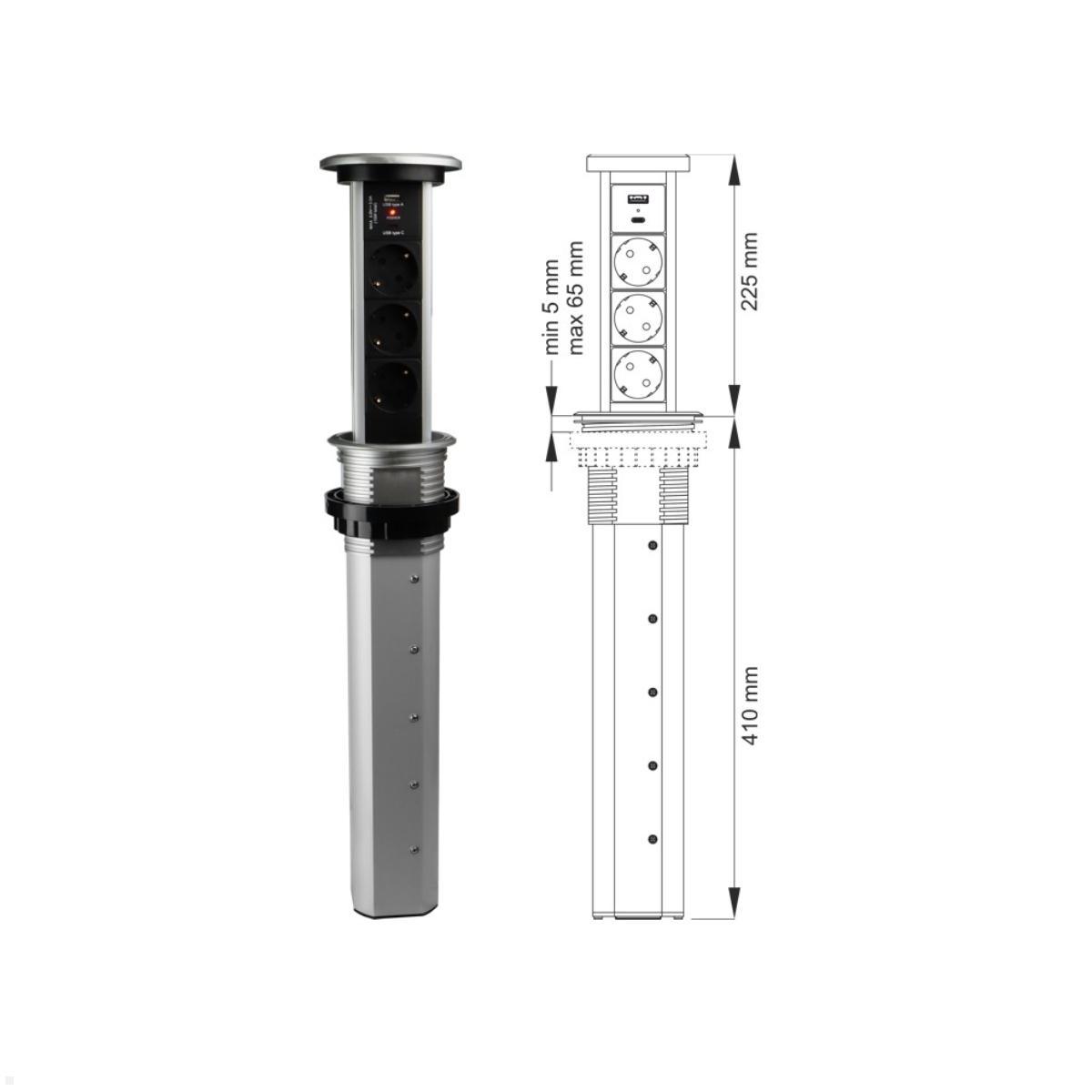

- Extending height from table: 228 mm
- Outer dimensions (extended): max. Ø 110 x 638 mm
- Voltage: 230V AC
- Power: 3600W
- Degree of protection: IP20

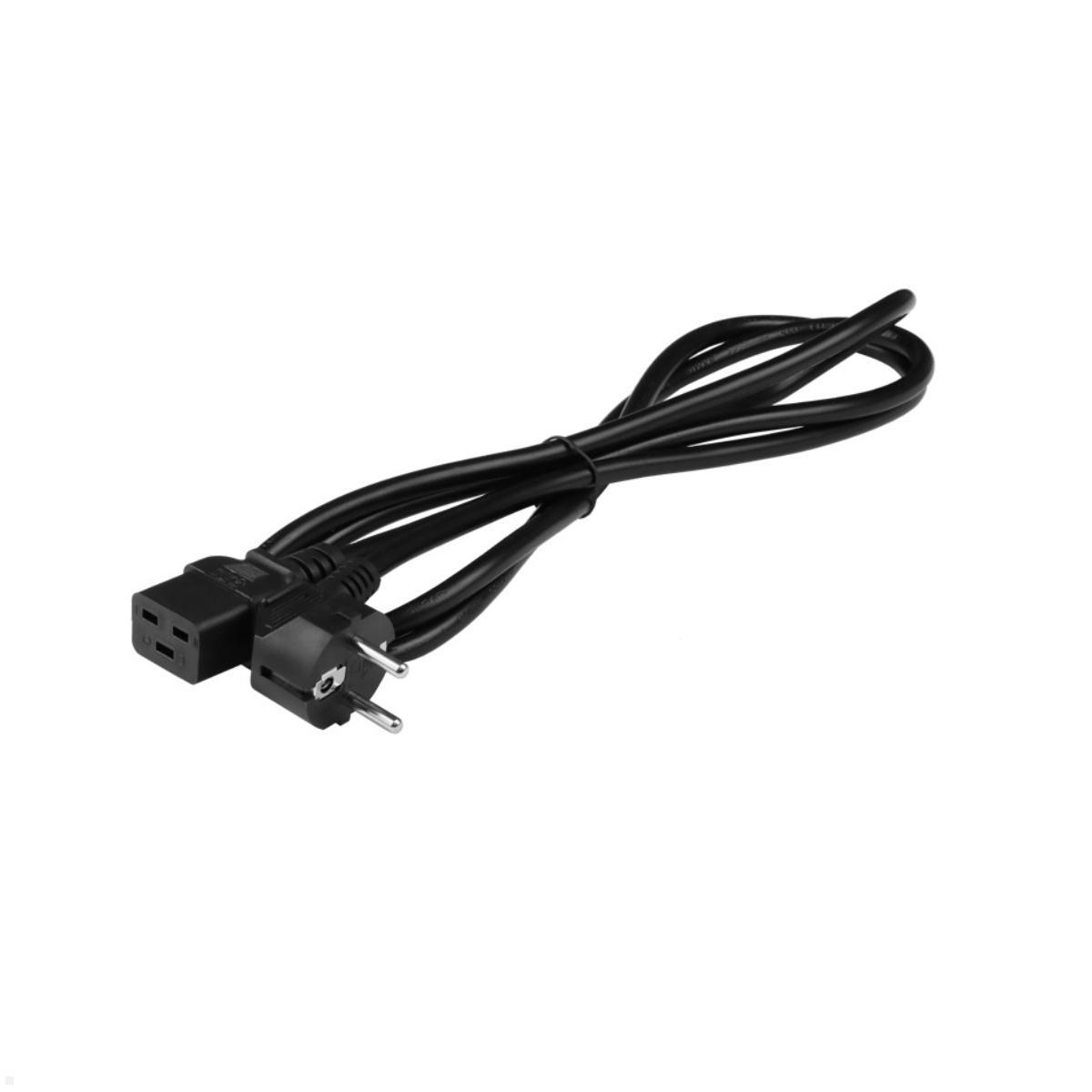

- Power cable: 2m with angled plug
- Finish: Silver
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 588 x 186 x 173 |
| Scope of delivery: | 1x socket strip including power cable |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / TecLines, Am Marienhof 8, 22880 Wedel, info@teclines.de |
| Number of sockets: | 3 |
| color: | Silver |
| USB-Charger: | USB A/C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
