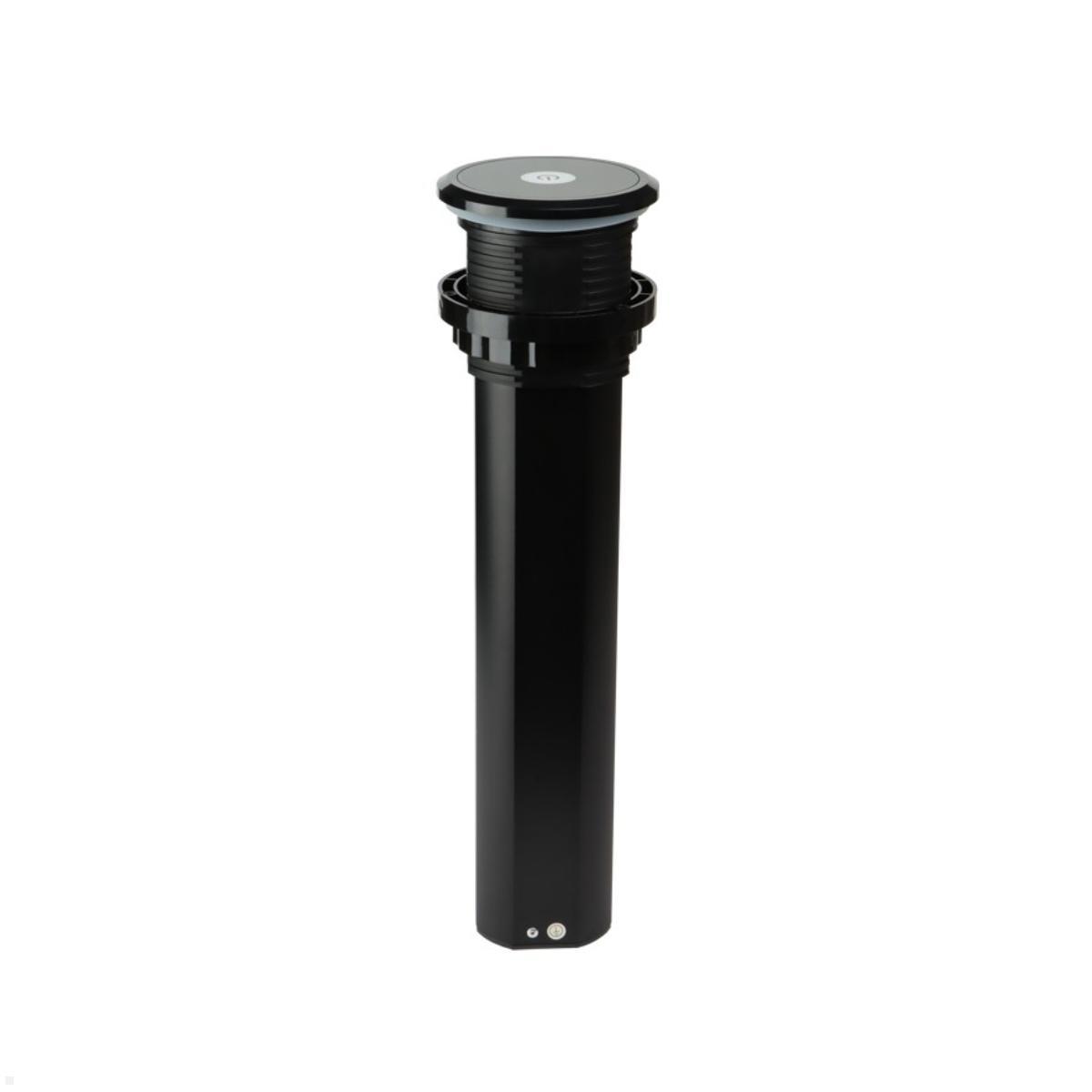

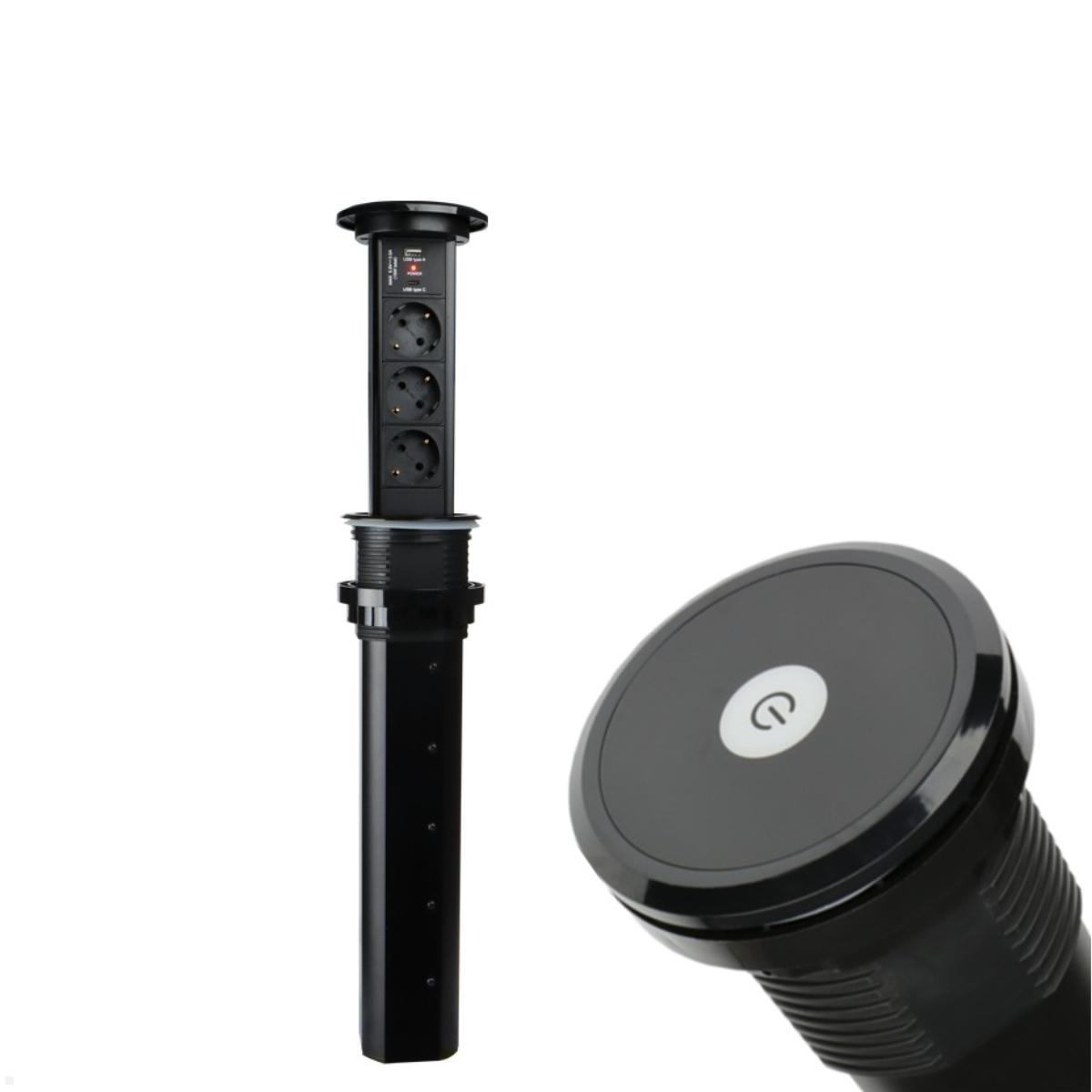

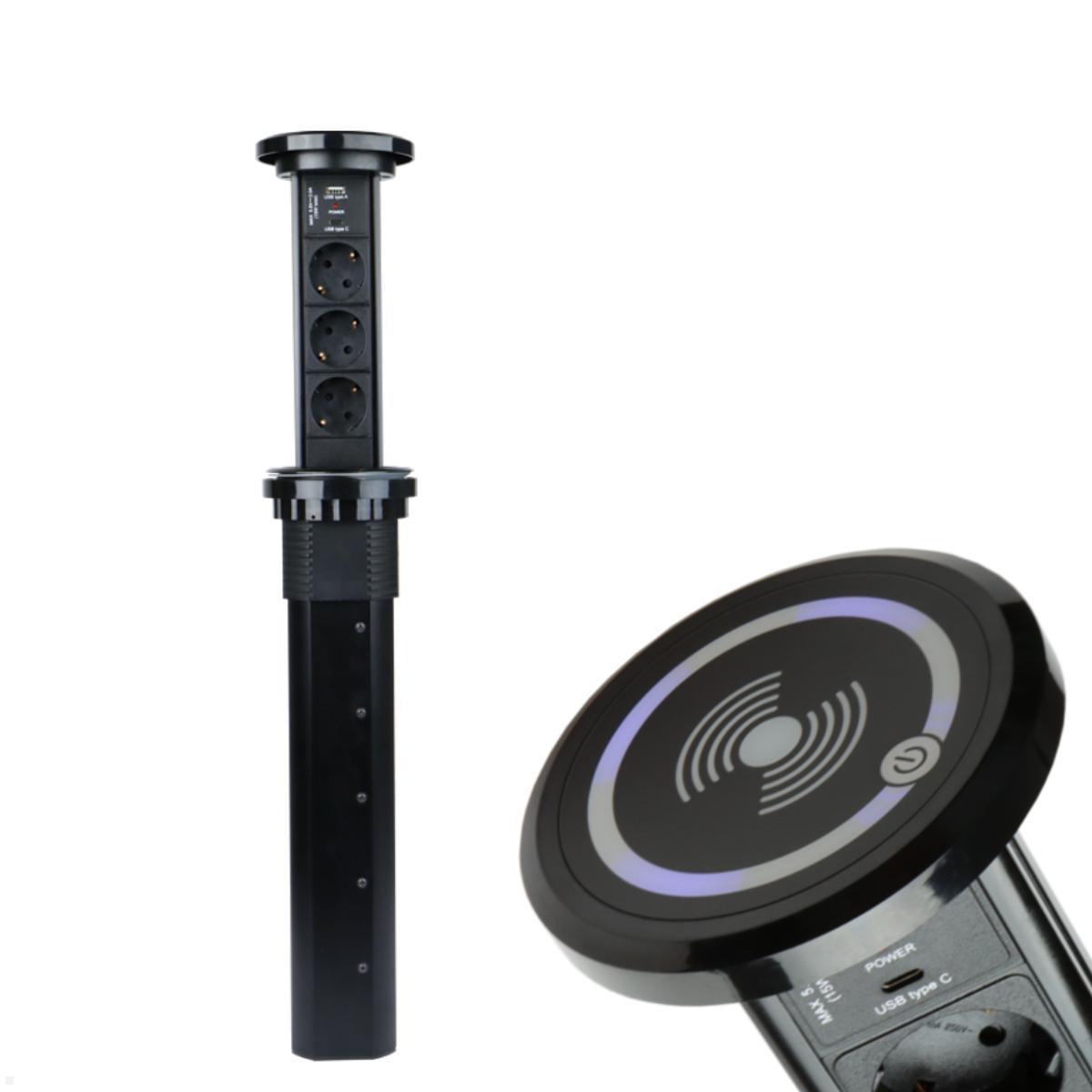

TecLines TVS007B retractable 3-way power strip with USB A/C, black
The TecLines TVS007B retractable built-in socket strip in black with three sockets and USB A/C sockets automatically enters the table cut-out when you press the switch symbol and is also fully automatic. The practical multiple socket can be installed in table top thicknesses from 18 to 60 mm.
Retractable built-in socket strip with USB

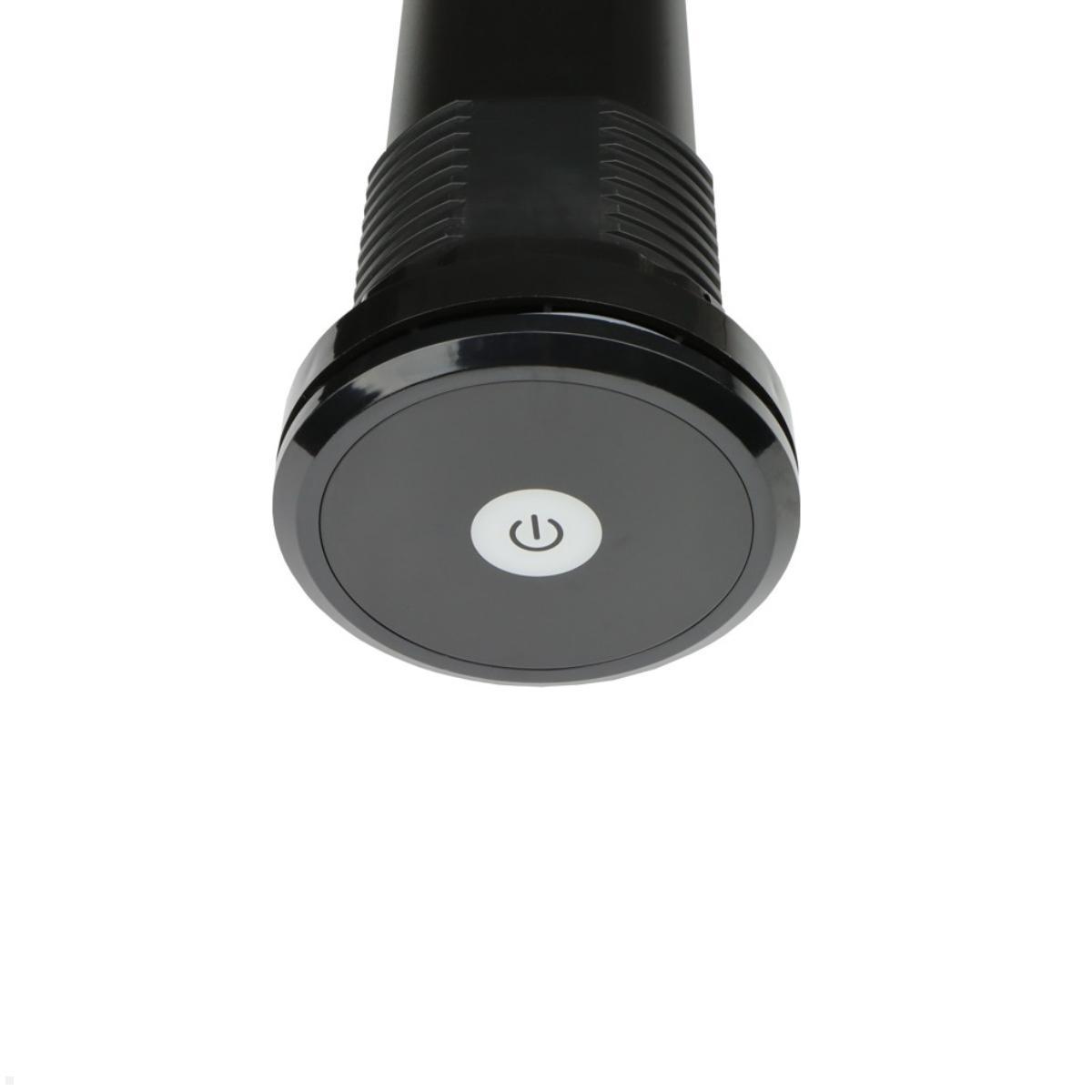

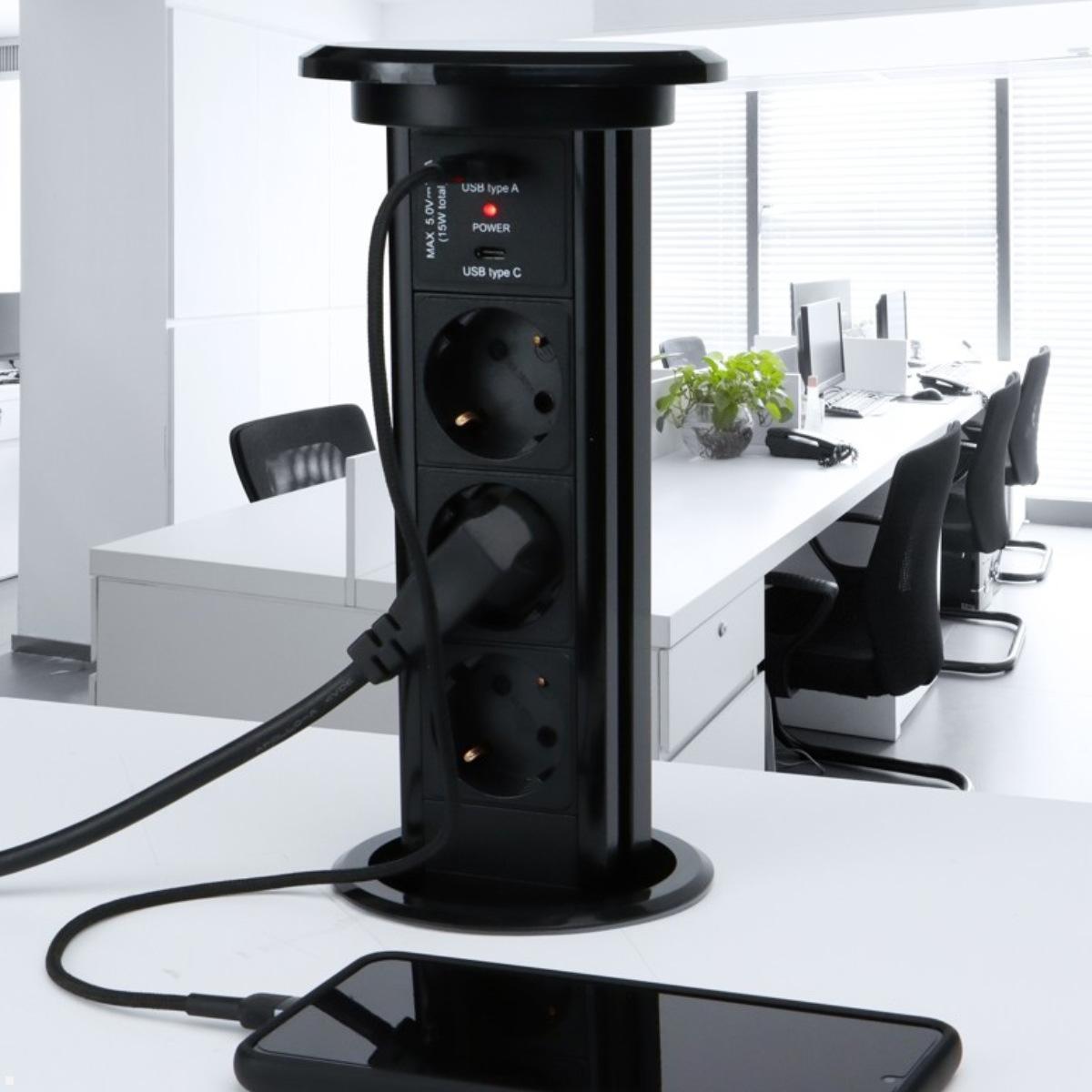

The TecLines TVS007B 3-way built-in socket is a retractable built-in socket strip with USB-A / USB-C connections. The black multiple socket is designed for installation in desks, work surfaces or counters. By briefly touching the switch symbol on the cover, the built-in socket can be lowered or extended fully automatically. Popular areas of application are offices, kitchens, conference and meeting rooms as well as in restaurants, at airports or at trade fairs.
Built-in socket with USB charger

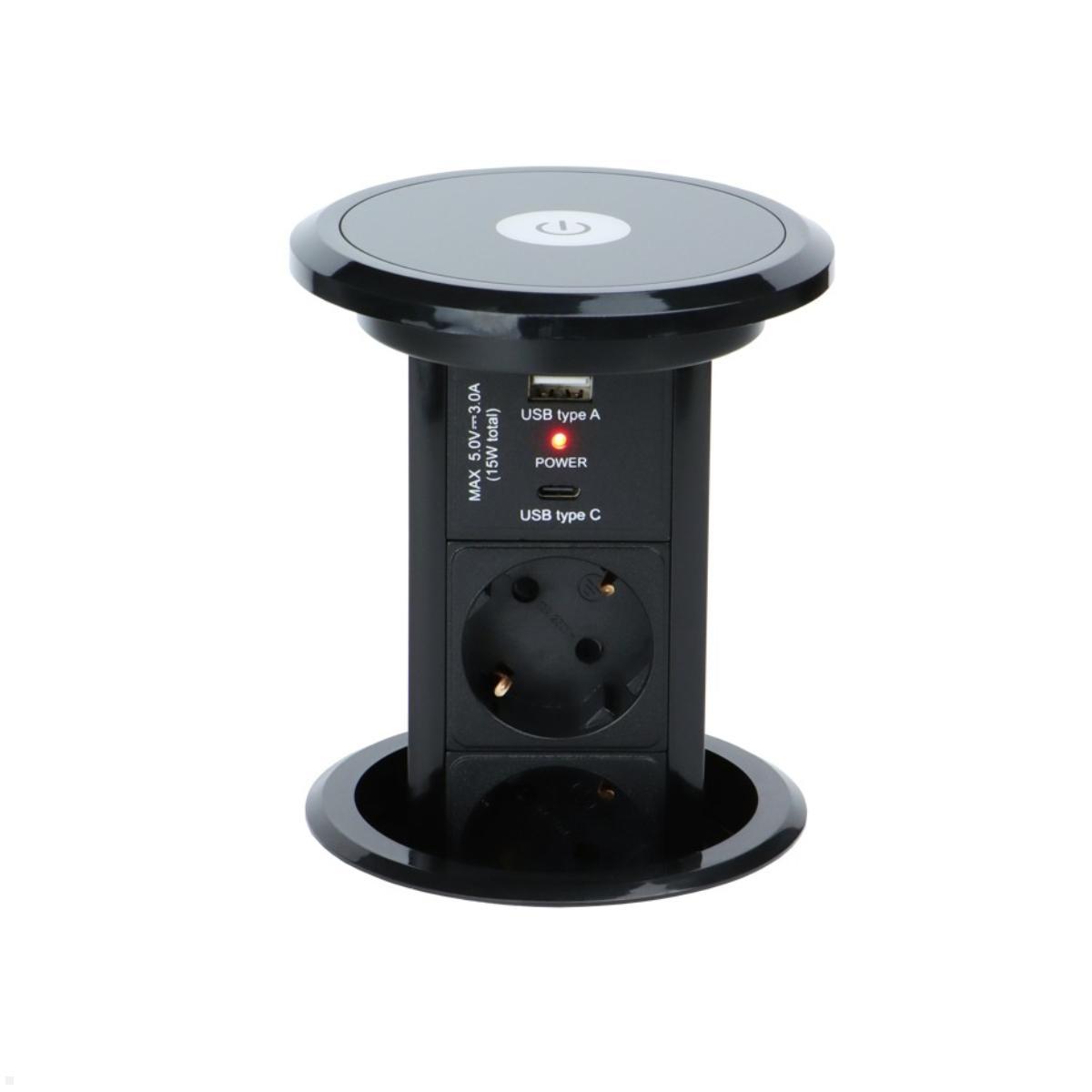

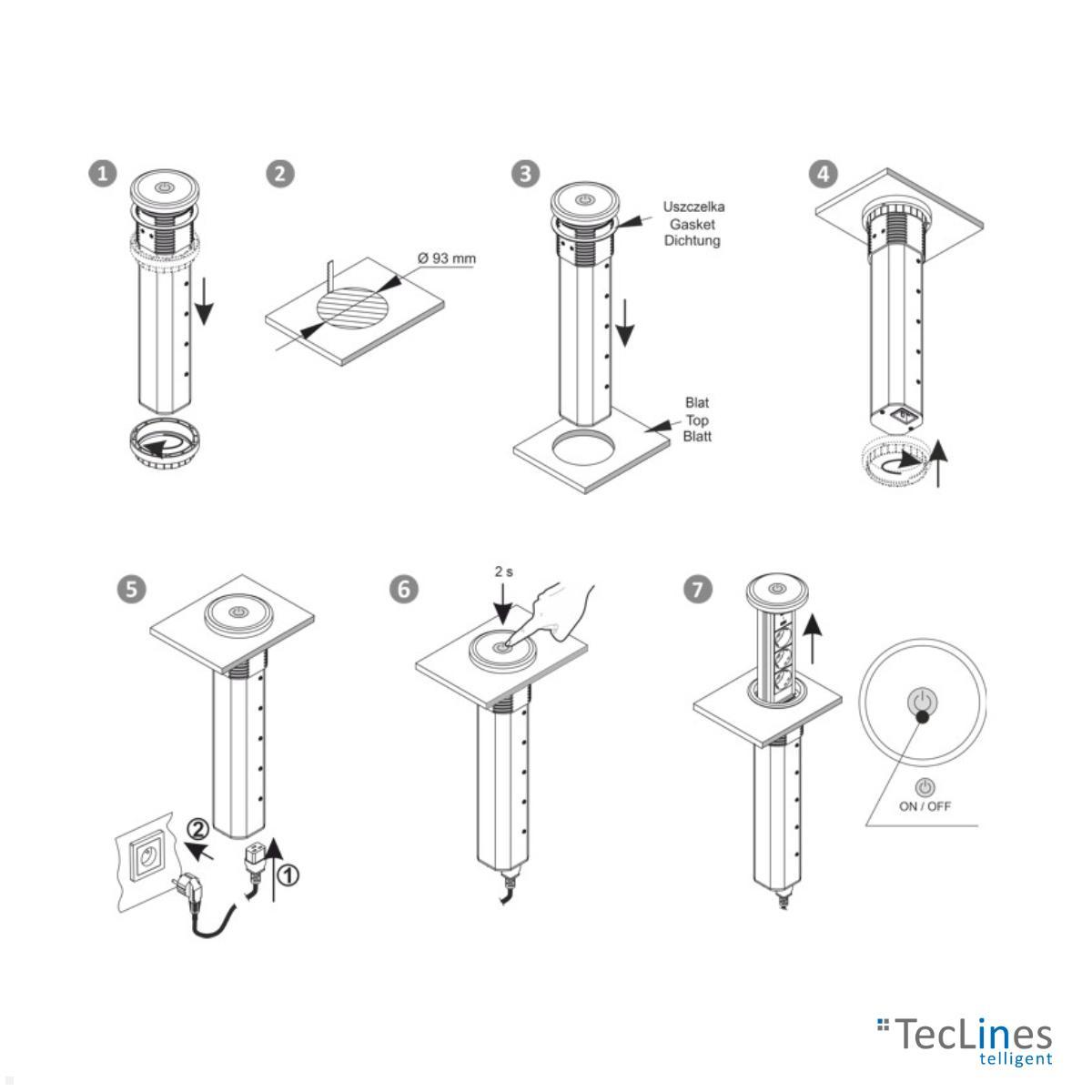

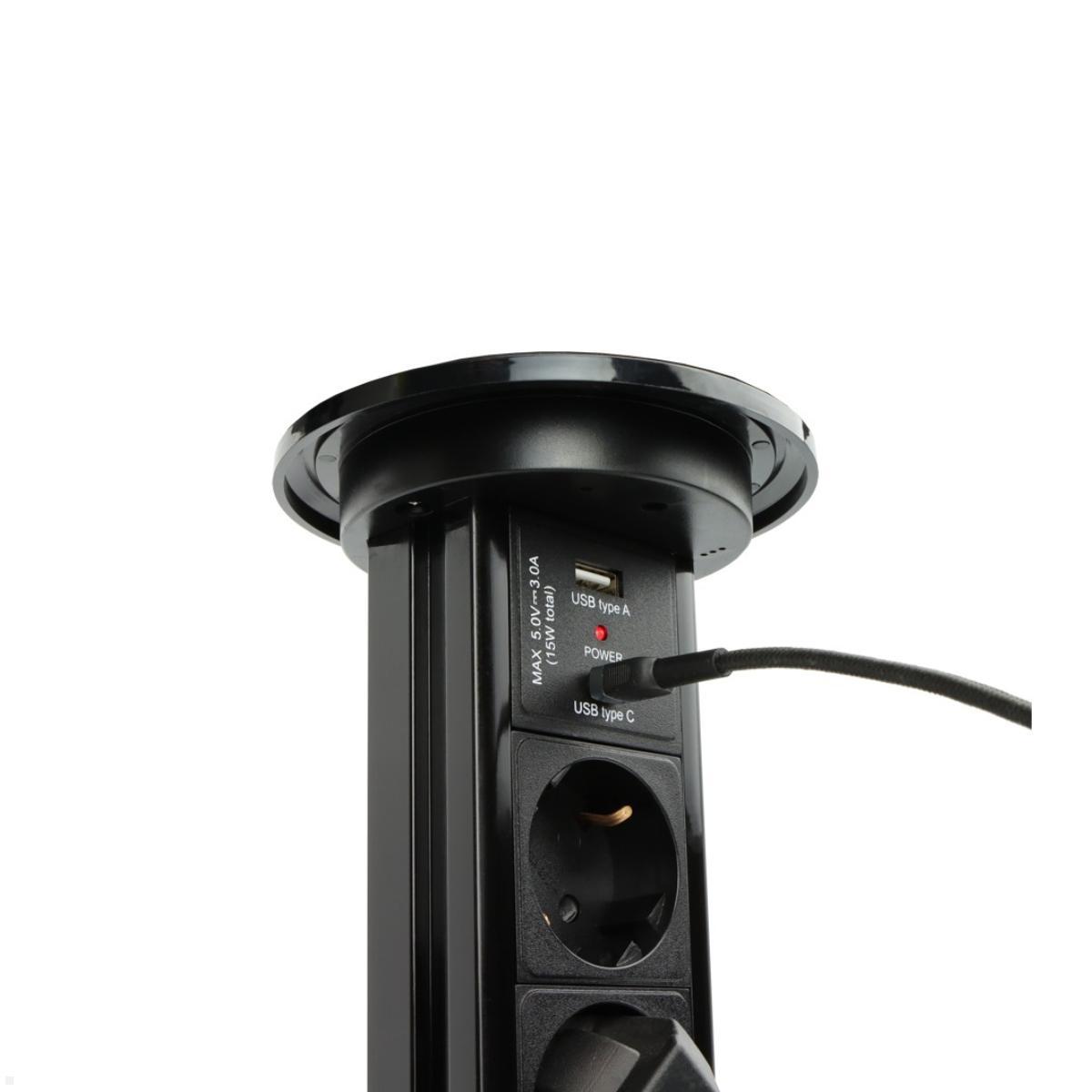

If the built-in socket extended, three safety sockets and USB A/C sockets emerge, which can be used as USB chargers. The installation of the automatically retractable socket strip is very easy. The TecLines TVS007B is installed in a table cutout with Ø 93mm and fastened to the table top with a ring from below. A 2m power cable is integrated into the 3-way socket strip.
Key features TecLines TVS007B 3x socket, USB A/C charger
- 3x safety socket (230V AC, max.16A)
- 1x USB-A connection type A, max. 16A. 5V DC/2,1A (total 10,5W)
- 1x USB-C connection type C, max. 16A. 5V DC/2,1A (total 10,5W)
- Automatically retractable / extendable
- Plate: 18-60 mm
- Material: aluminum, plastic
- Inlet diameter: 93 mm

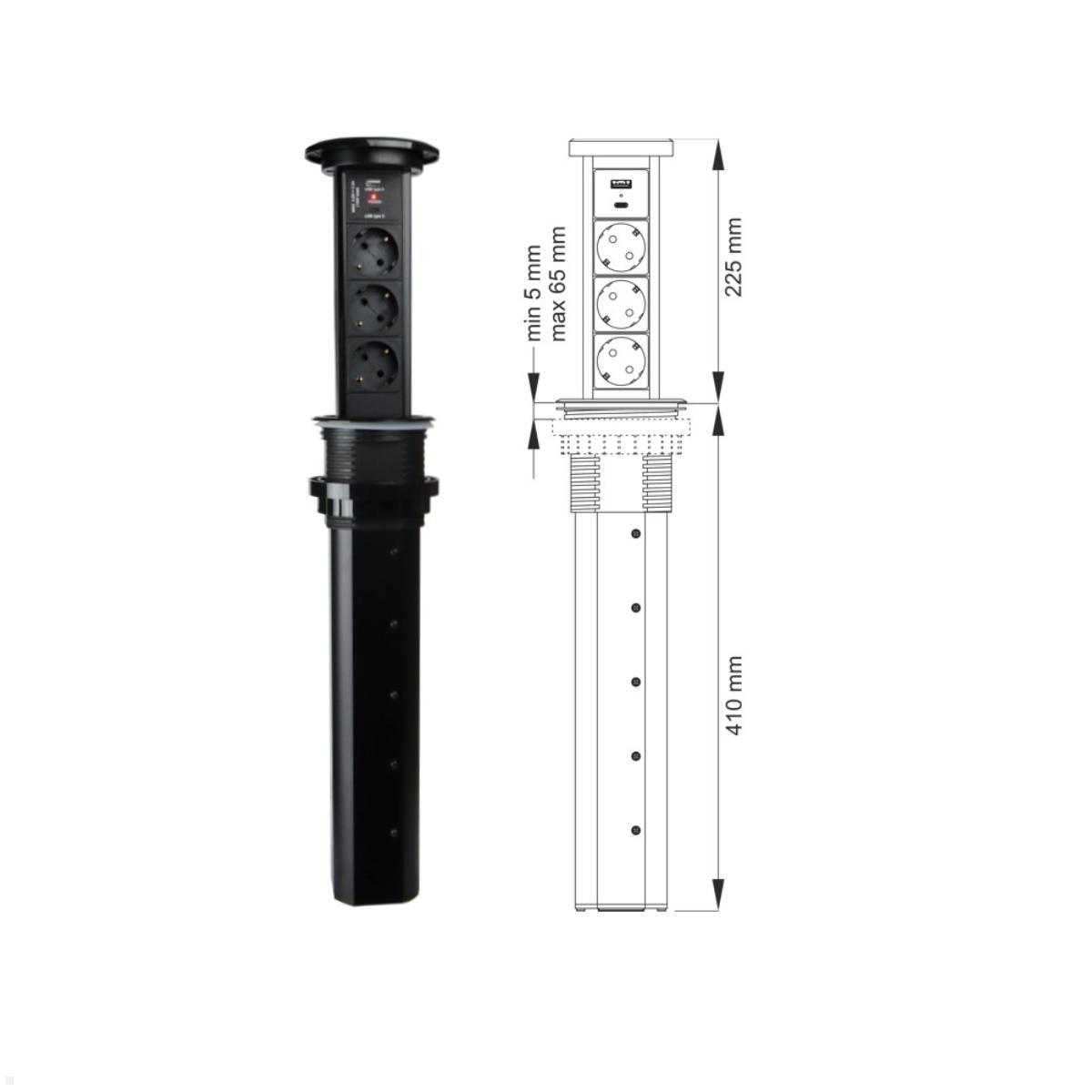

- Extension height from table: 228 mm
- Outer dimensions (extended): max. Ø 110 x 638 mm
- Voltage: 230V AC
- Power: 3600W
- Degree of protection: IP20

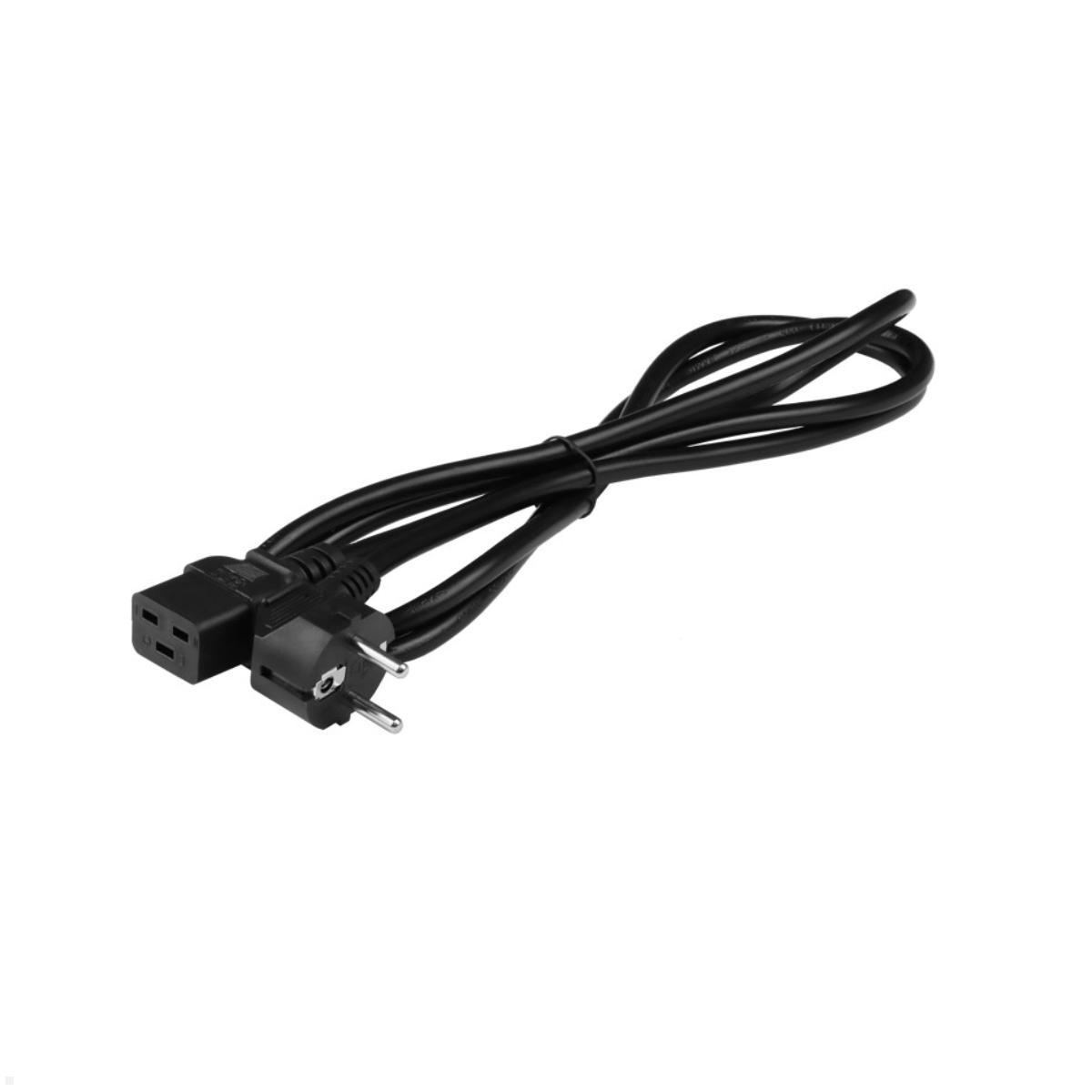

- Power cable: 2m with angled plug
- Finish: Black
| Product sheet: |  [pdf] |
|---|---|

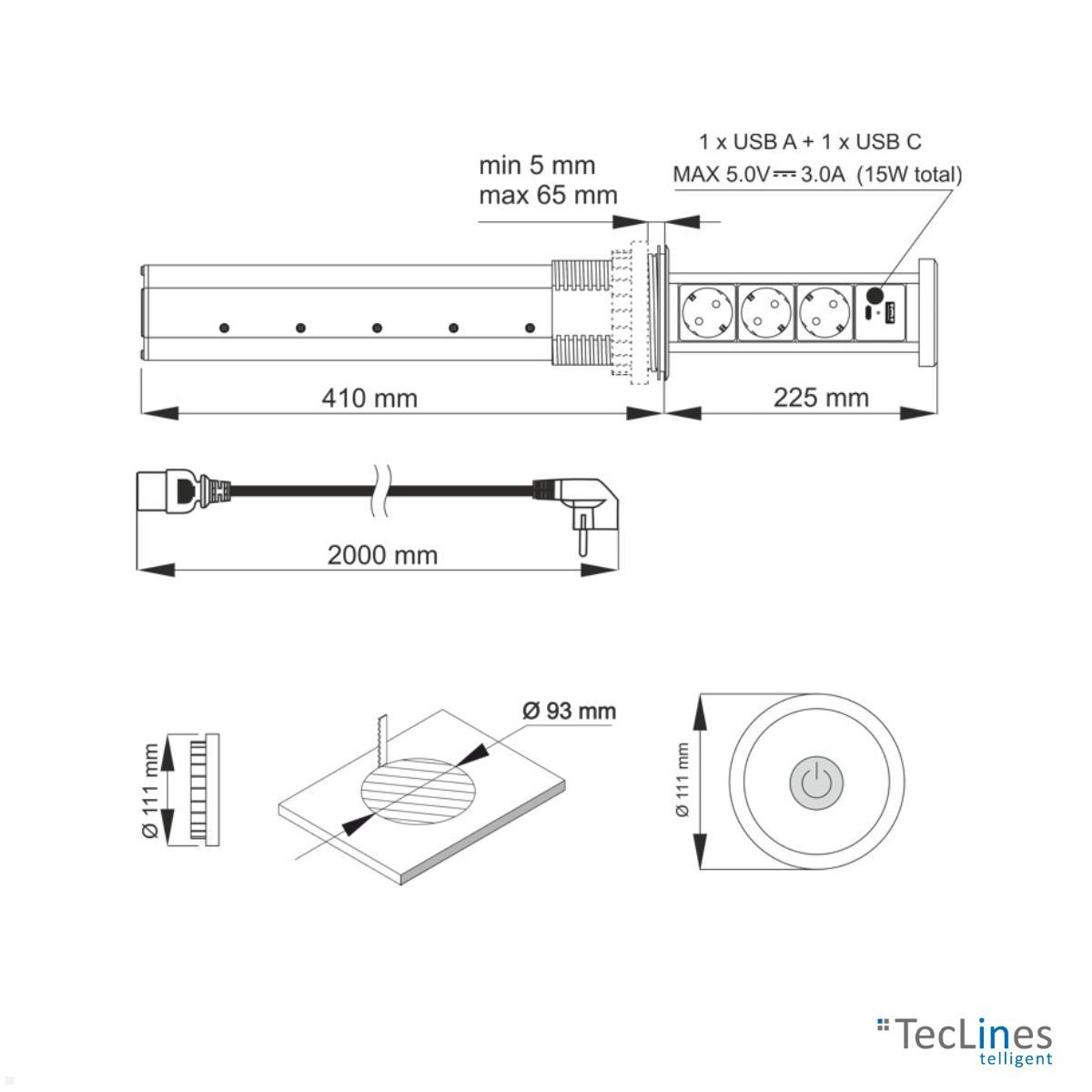

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 588 x 186 x 173 |
| Scope of delivery: | 1x socket strip including power cable |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / TecLines, Am Marienhof 8, 22880 Wedel, info@teclines.de |
| Number of sockets: | 3 |
| color: | Black |
| USB-Charger: | USB A/C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
