TecLines TVS006S retractable 3-way power strip with USB A/C, Qi, silver
The TecLines TVS006S power strip in silver with three power sockets and USB A/C connections automatically inserts into the table cut-out at the touch of a finger and also fully automatically ejects. Qi-compatible smartphones can also be charged inductively on the lid of the built-in socket. The practical multiple socket can be installed in tabletop thicknesses of 18 to 60 mm.
Retractable built-in power strip with USB A/C, Qi

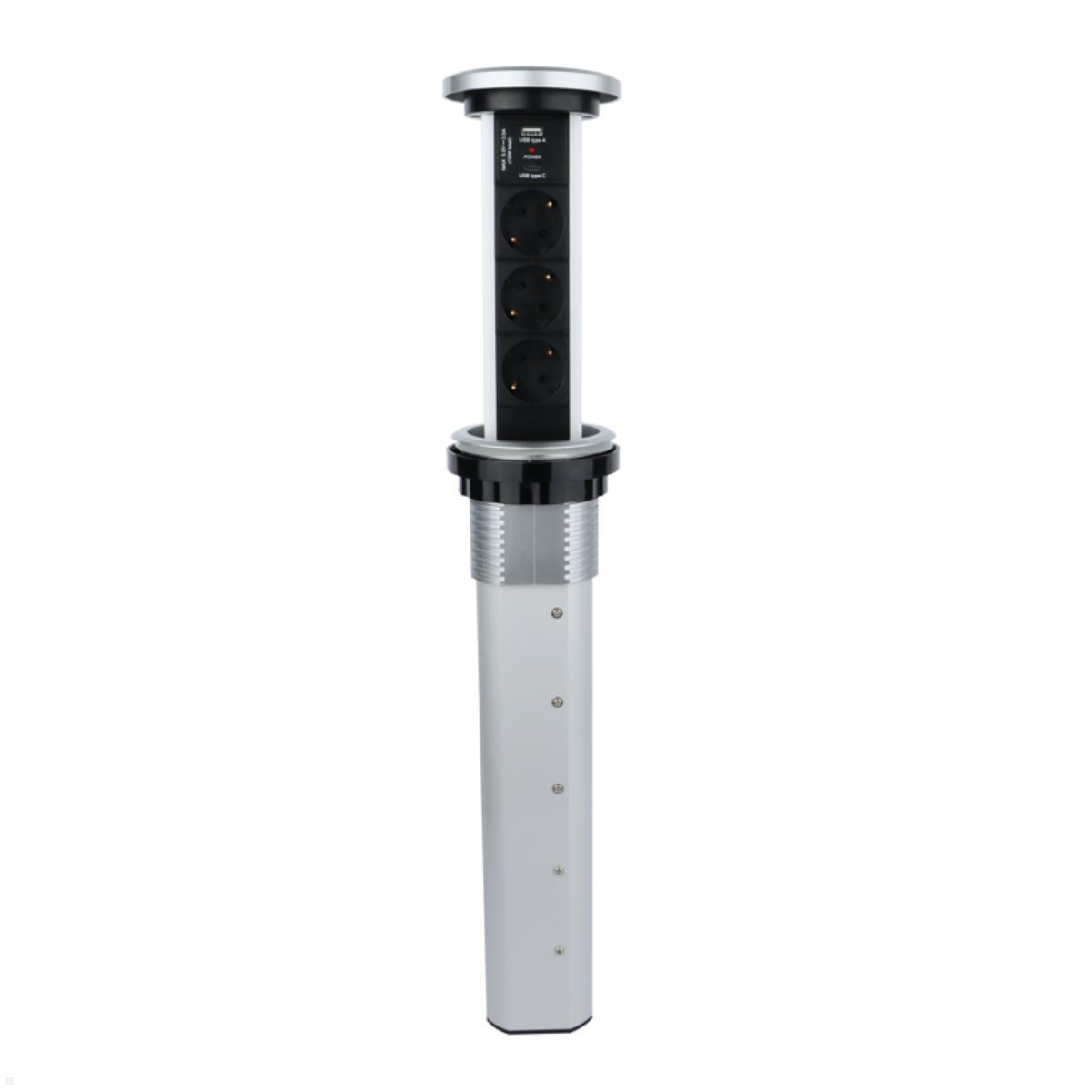

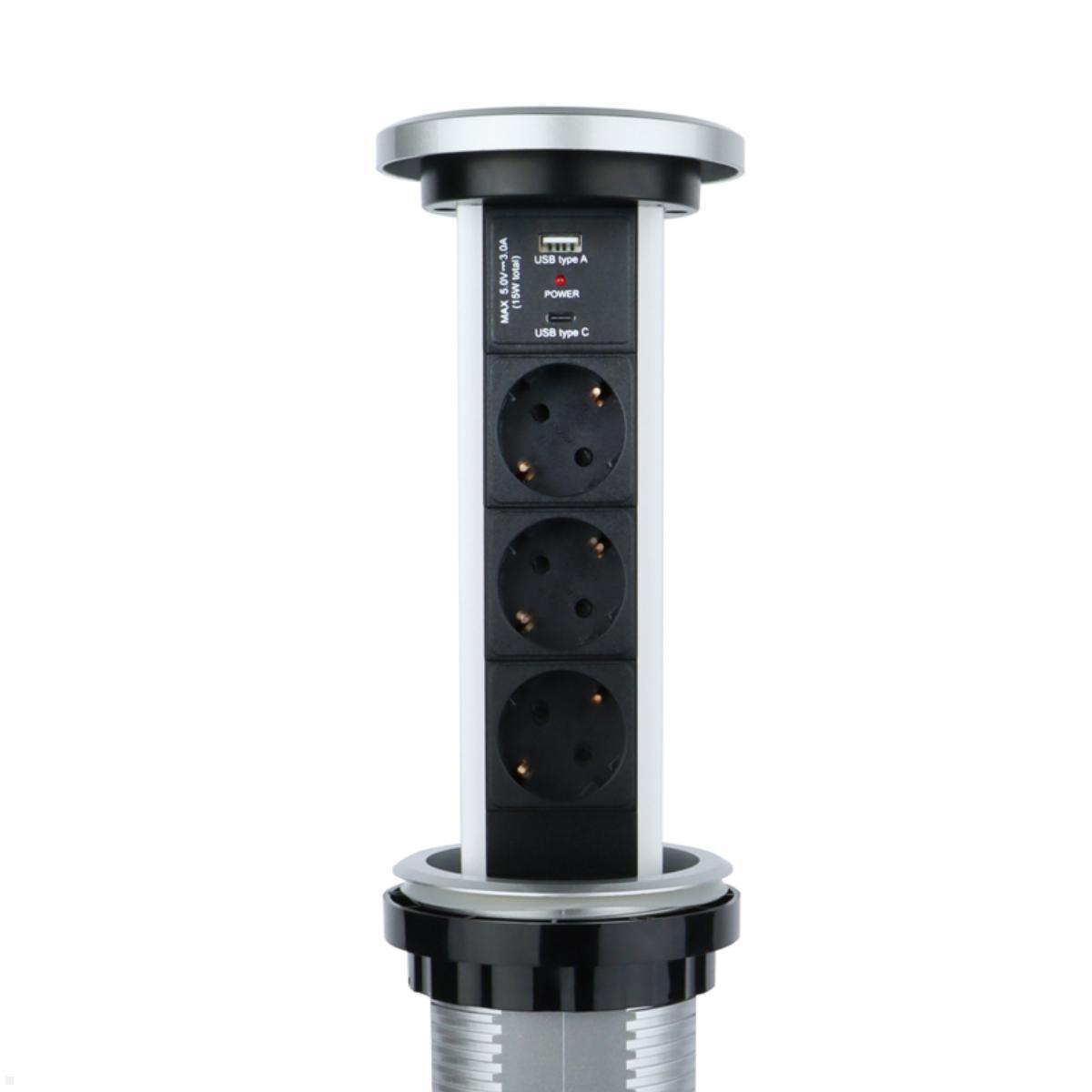

The TecLines TVS006S 3-fold power strip with USB and Qi charger is a true all-rounder in media technology! The silver multiple socket is designed for in-desk installation in tables, work surfaces or counters. By simply touching the switch symbol on the cover, the built-in socket outlet can be fully automatically retracted or extended. When extended, it reveals three earthed sockets and USB-A / USB-C ports that can be used as USB chargers.
Inductive charging on lid

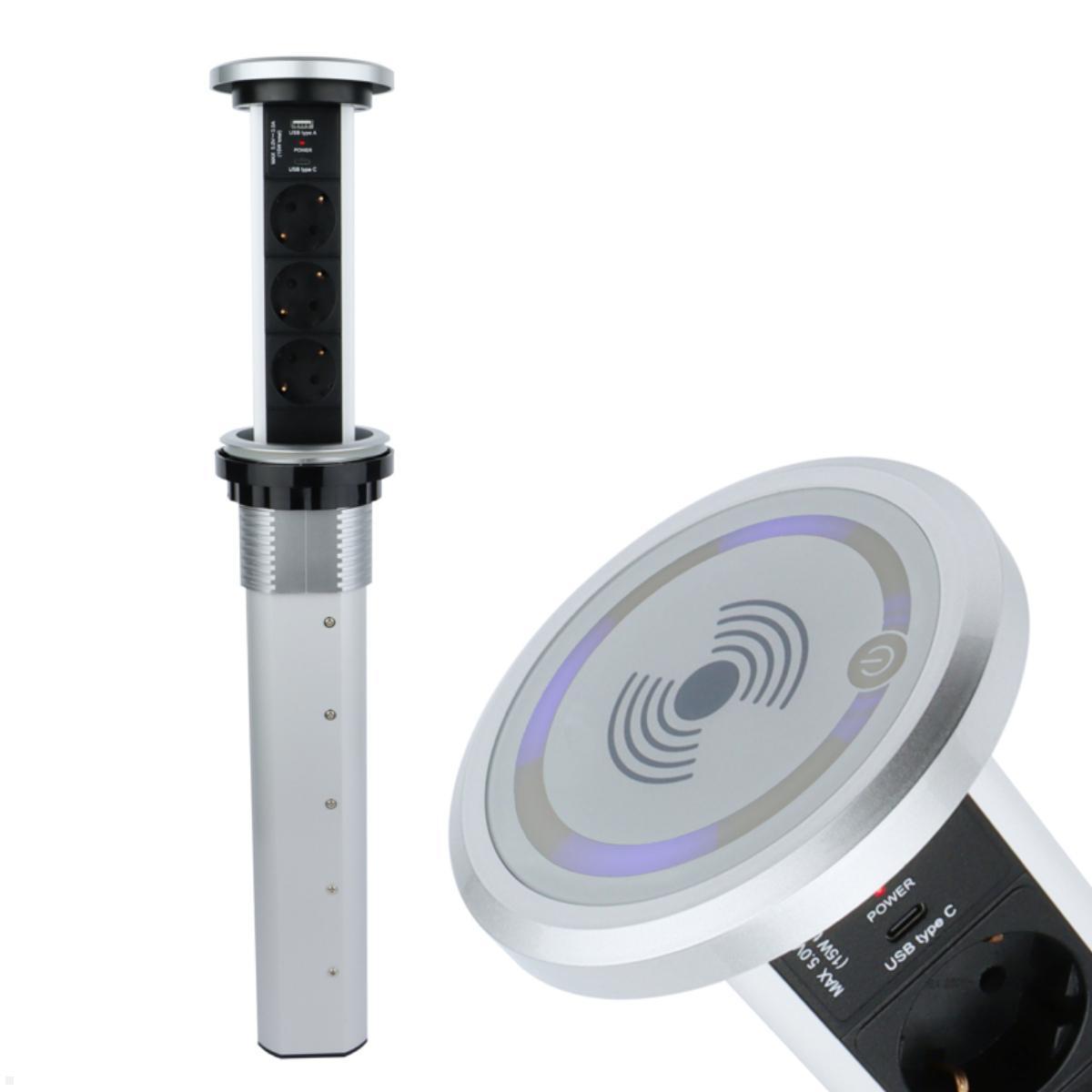

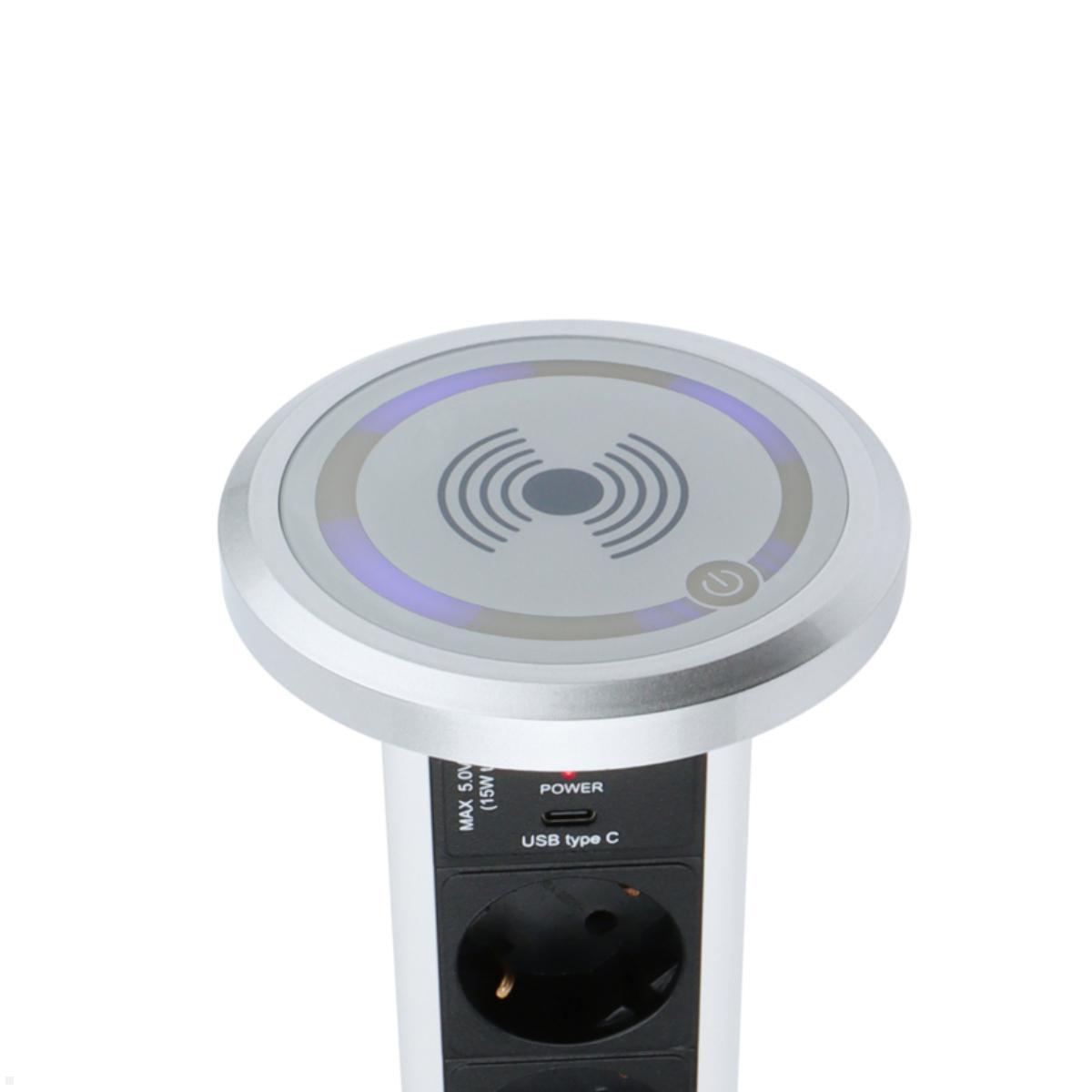

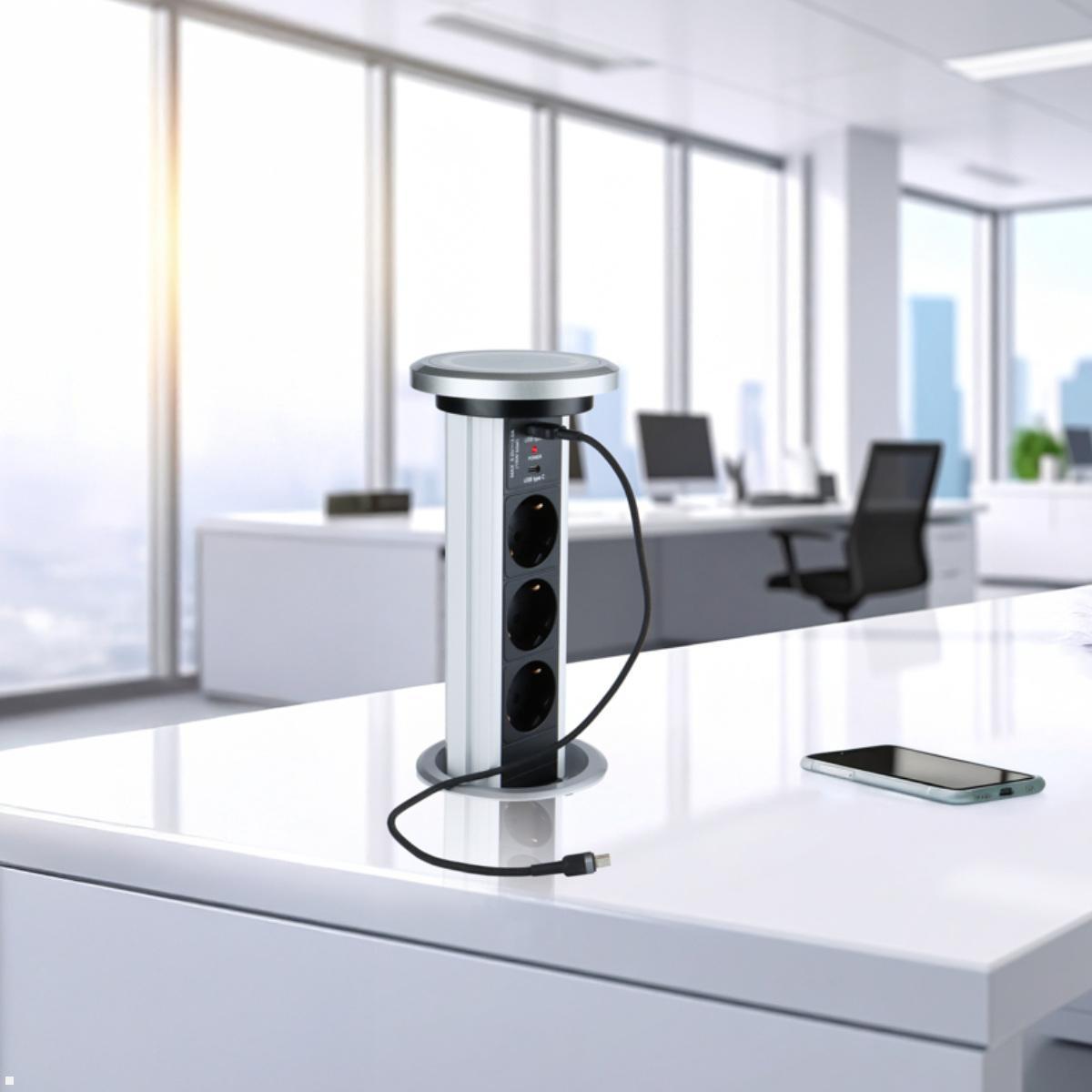

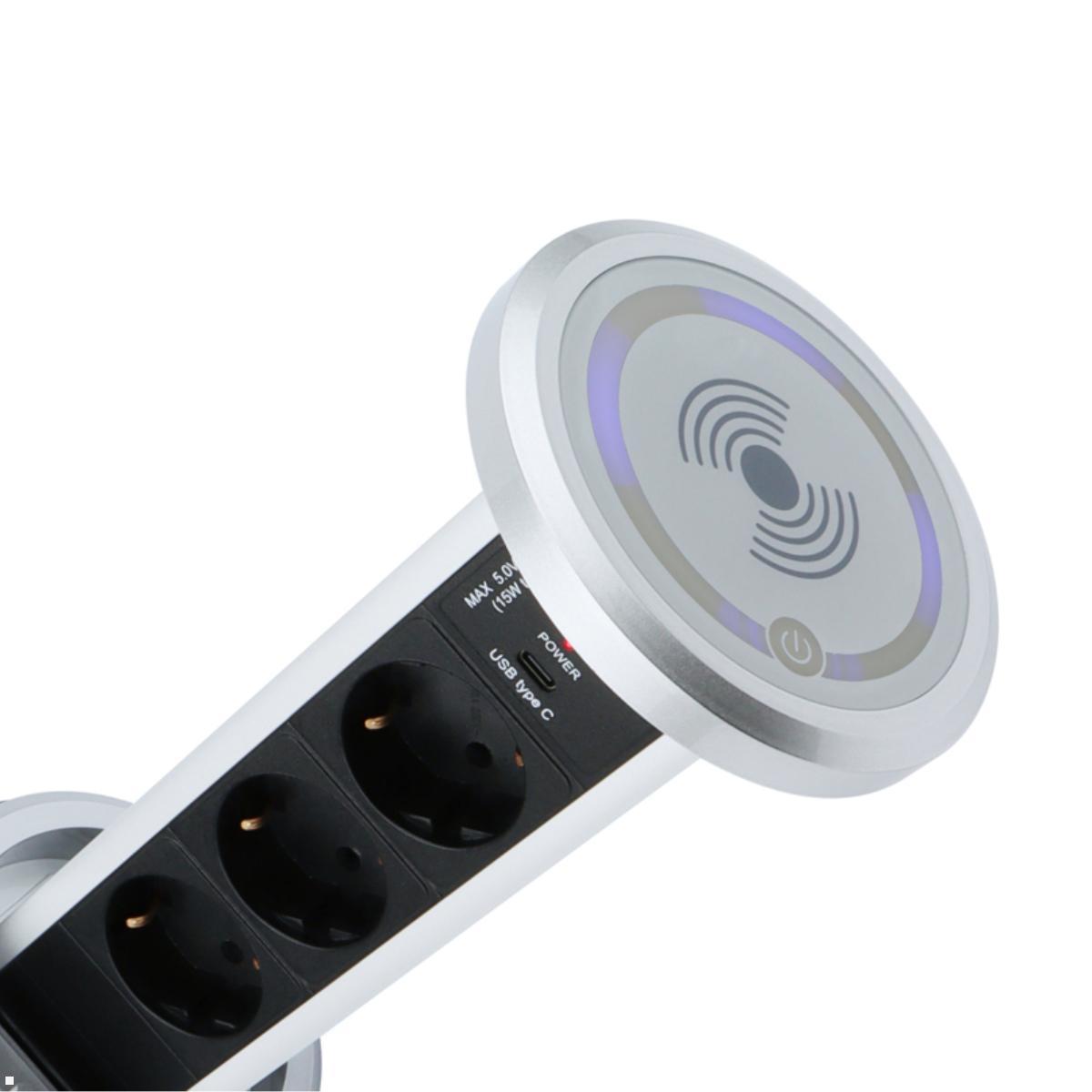

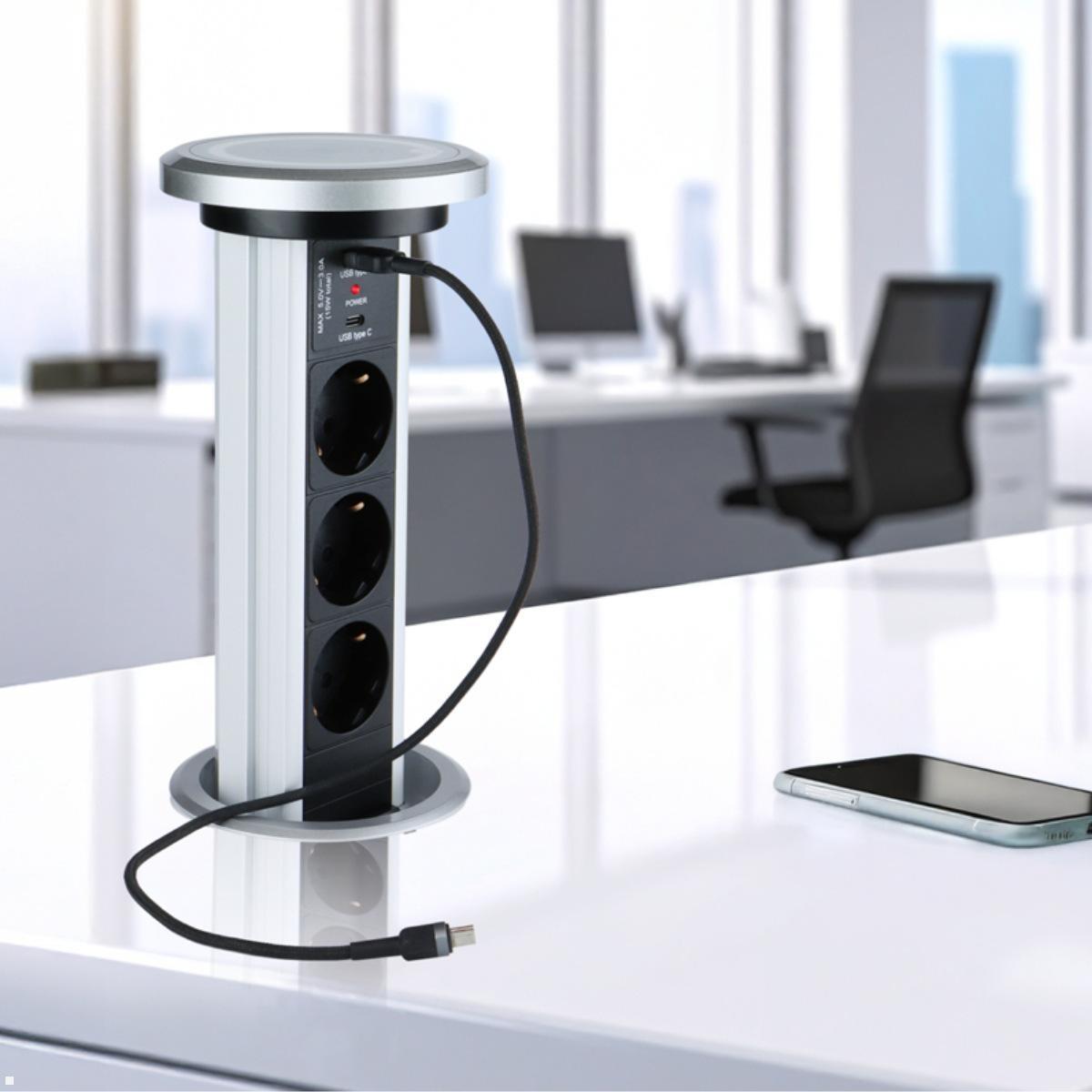

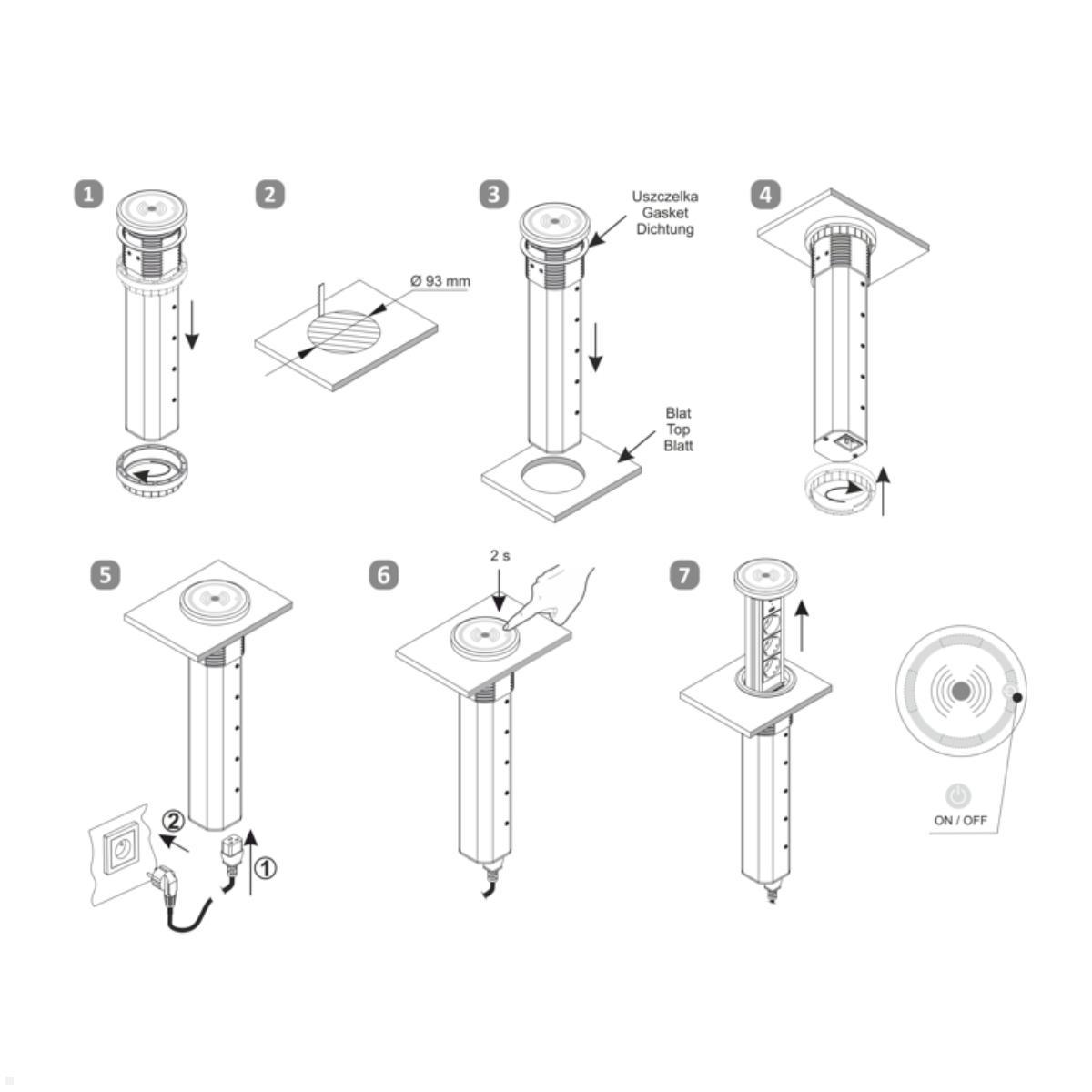

When retracted, the lid can be used as an induction charger / Qi charger to wirelessly charge Qi enabled smartphones. The installation of the retractable power strip is very simple. The TecLines TVS006S is inserted into a table cut-out of 93 mm and attached to the tabletop from below with a ring. A 2m power cable is integrated into the 3-way socket strip. Popular areas of use are B&üros, kitchens, conference and meeting rooms as well as in restaurants, at airports or at trade fairs.
Key features TecLines TVS006S 3x socket, USB A/C Charger
- 3x socket with earthing contact (230V AC, max. 16A)
- 1x USB-A connection type-A, max. 16A. 5V DC/2,1A (total 10,5W)
- 1x USB-C connection type-C, max. 16A. 5V DC/2,1A (total 10,5W)
- Lid as inductive charging station
- Automatically retractable / extendable
- Plate thickness: 18-60 mm
- Material: aluminium, plastic
- Inlet diameter: 93 mm

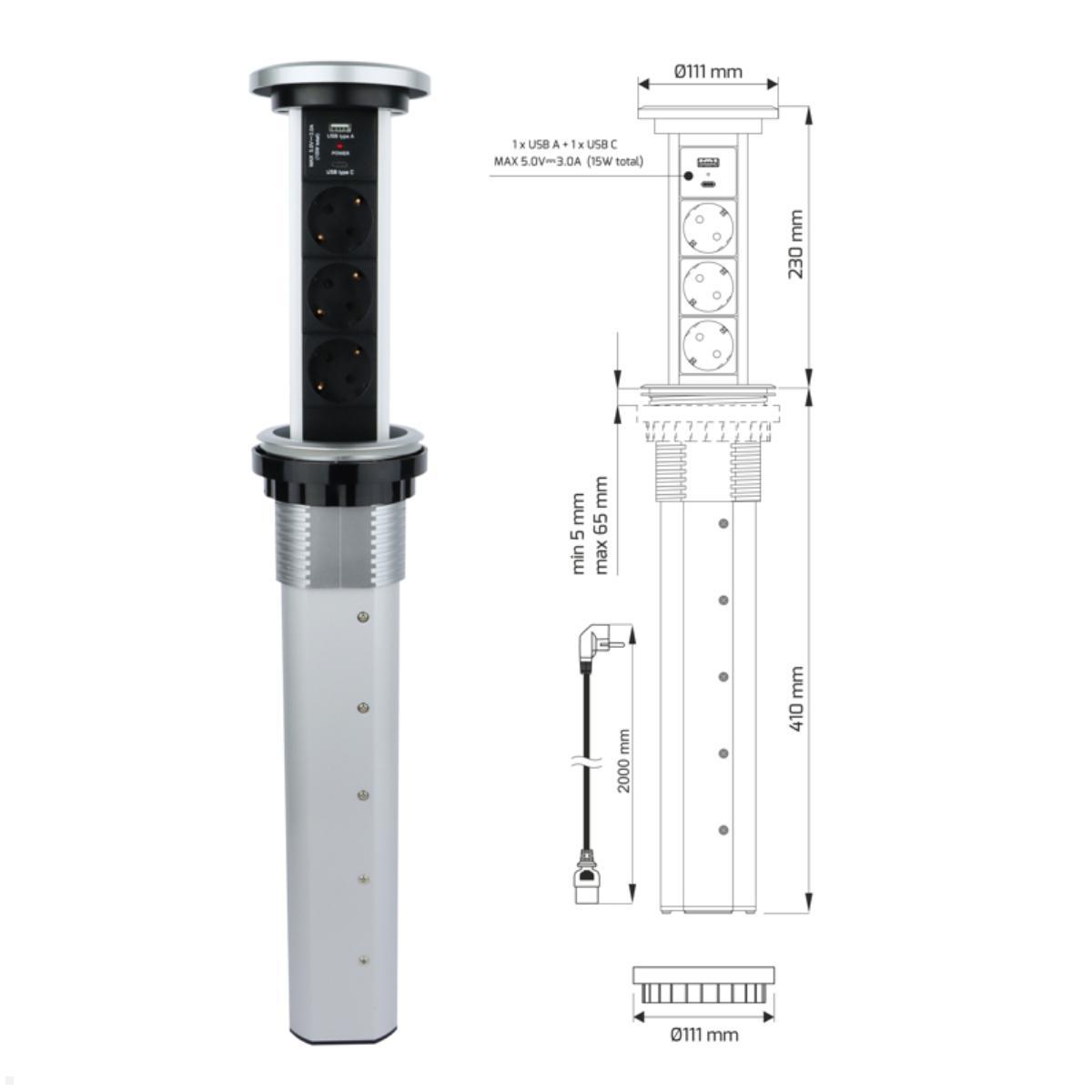

- Extension height from table: 228 mm
- External dimensions (extended): max. Ø 110 x 638 mm
- Voltage: 230V AC
- Power: 3600W
- Degree of protection: IP20
- Power cable: 2m with angled plug
- Finish: silver
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 588 x 186 x 173 |
| Scope of delivery: | 1x socket strip incl. power cable |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / TecLines, Am Marienhof 8, 22880 Wedel, info@teclines.de |
| Number of sockets: | 3 |
| color: | Silver |
| USB-Charger: | USB A/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
