TecLines TVS006B retractable 3-way power strip with USB A/C, Qi, black
The TecLines TVS006B power strip in black with three sockets and USB A/C connections automatically inserts into the table cut-out when the switch symbol is pressed with a finger and also exits fully automatically. Qi-compatible smartphones can also be charged inductively on the lid of the built-in socket. The practical multiple socket can be installed in tabletop thicknesses of 18 to 60 mm.
Retractable built-in power strip with USB A/C Qi

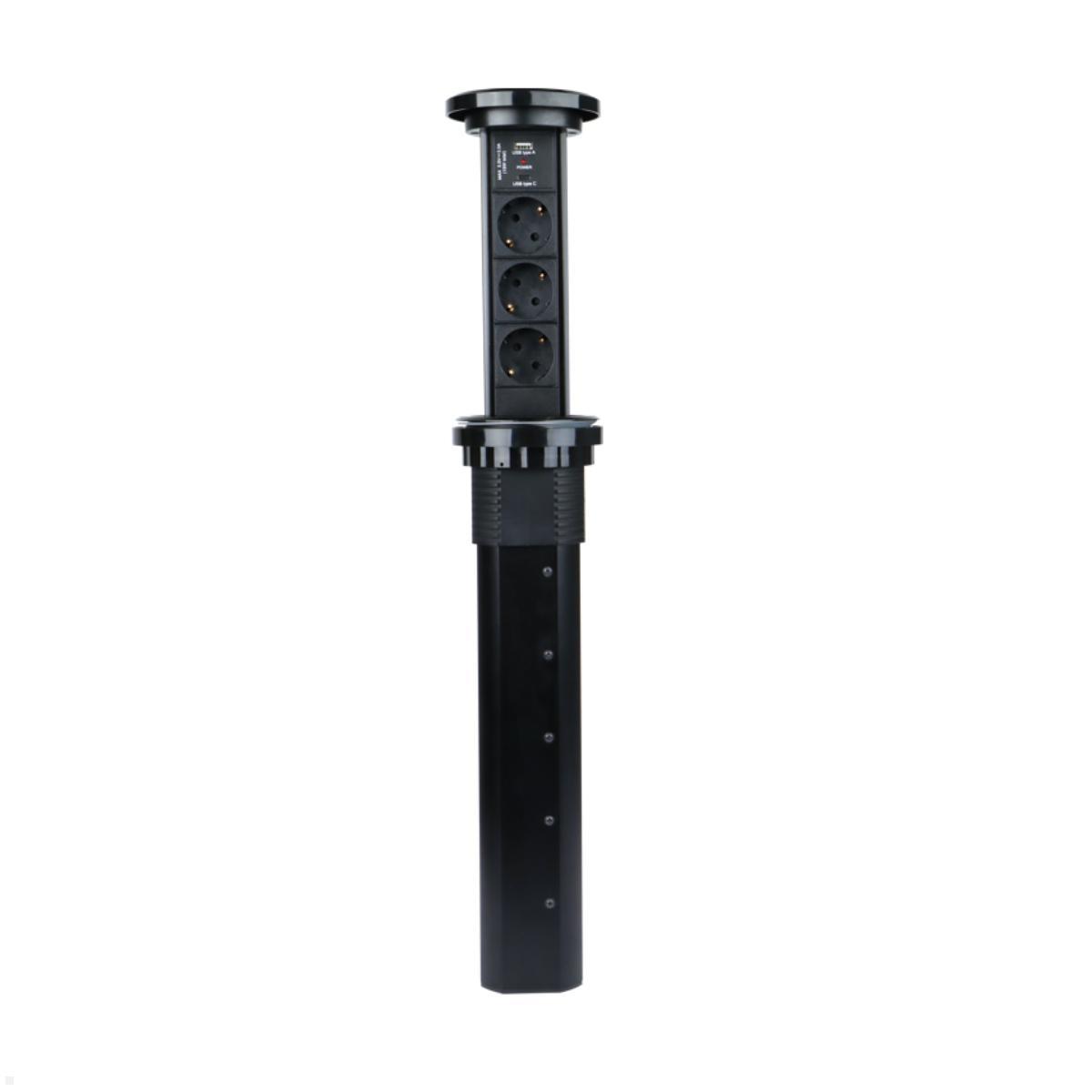

The TecLines TVS006B is a retractable built-in power strip with USB A/C ports and a Qi charger - a true multi-talent of media technology! The black multi-outlet is designed for installation in desks, workspaces or counters. By briefly touching the switch icon on the cover, the recessed outlet can be automatically recessed or extended. When extended, it reveals three grounded outlets and USB-A / USB-C ports that can be used as USB chargers.

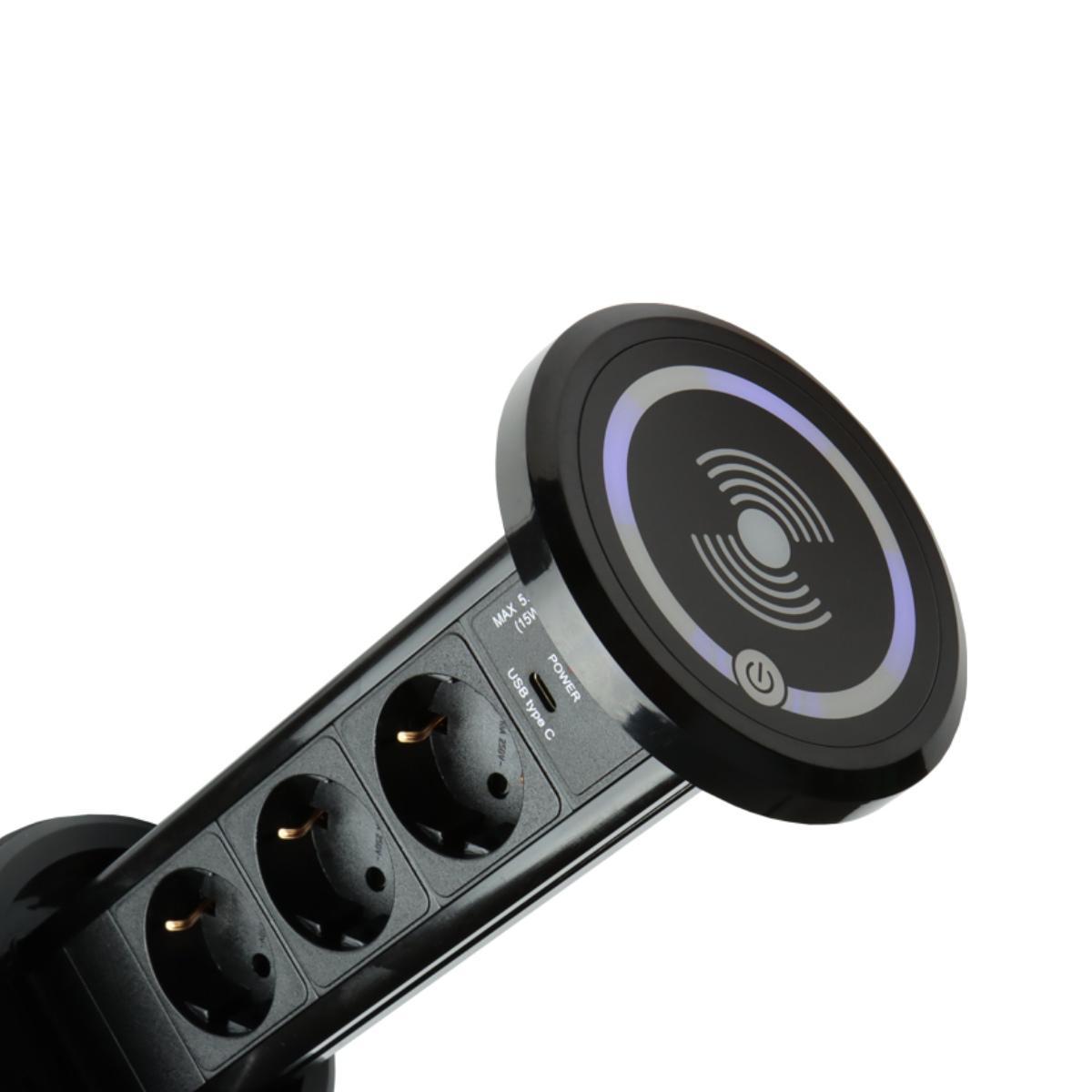

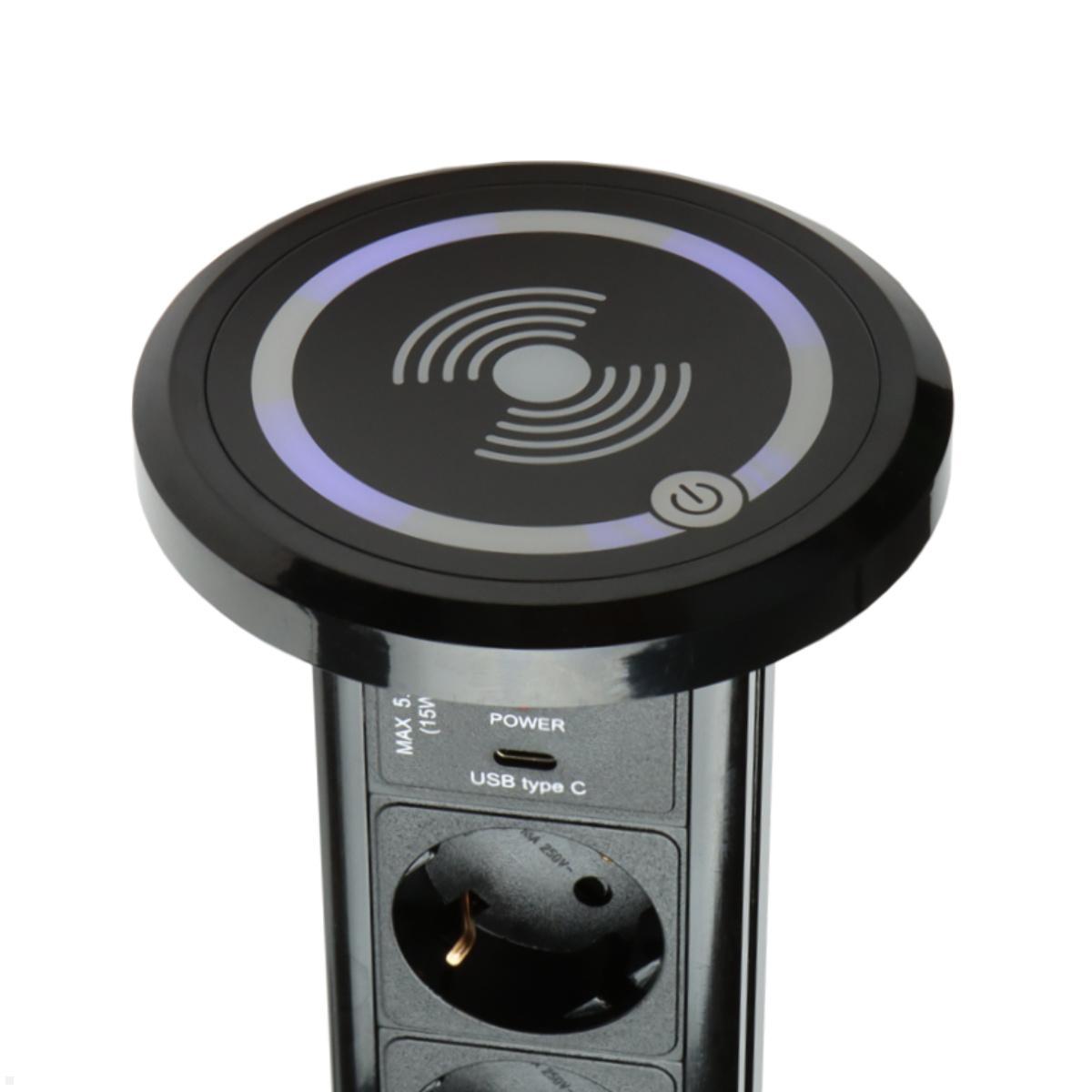

Inductive charging on lid

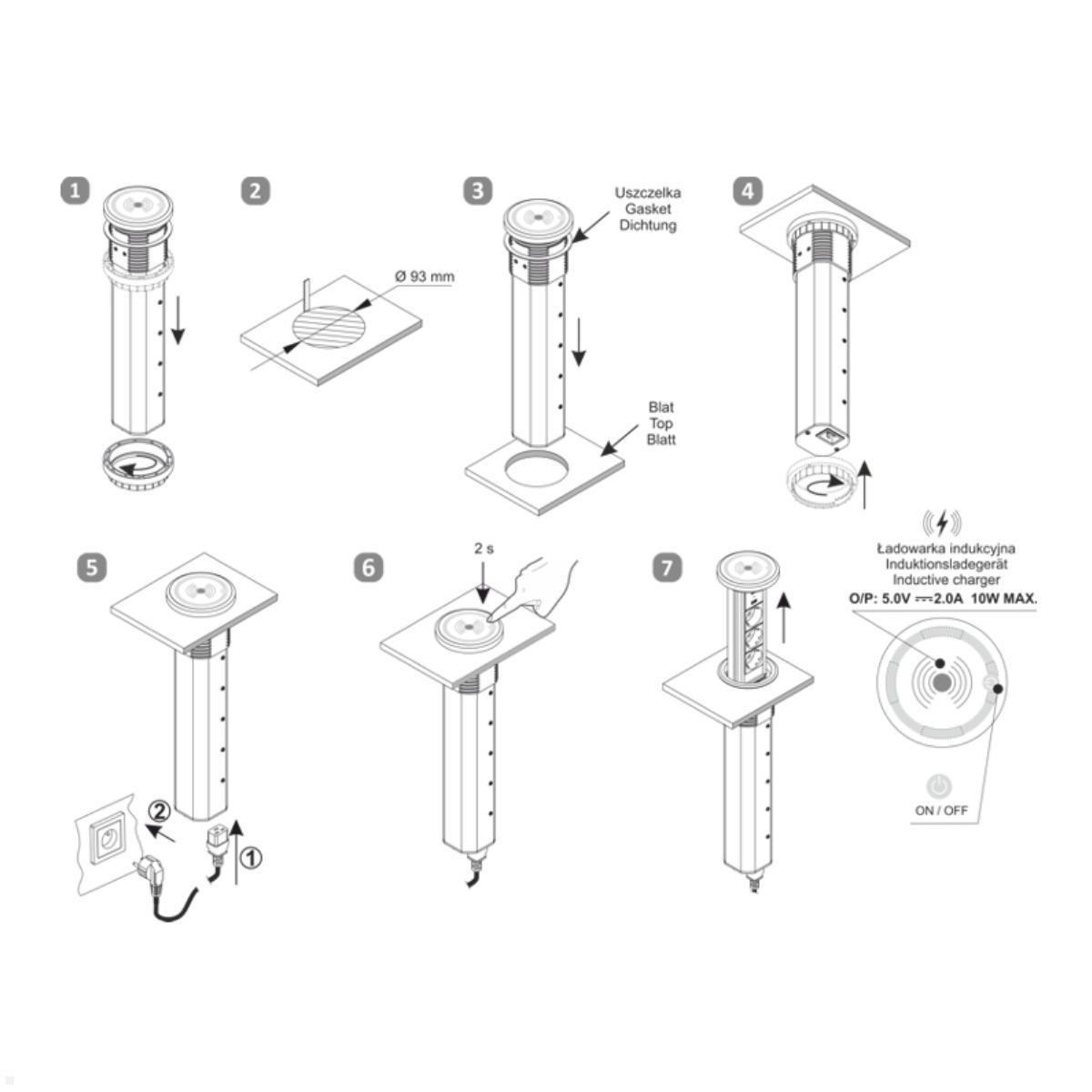

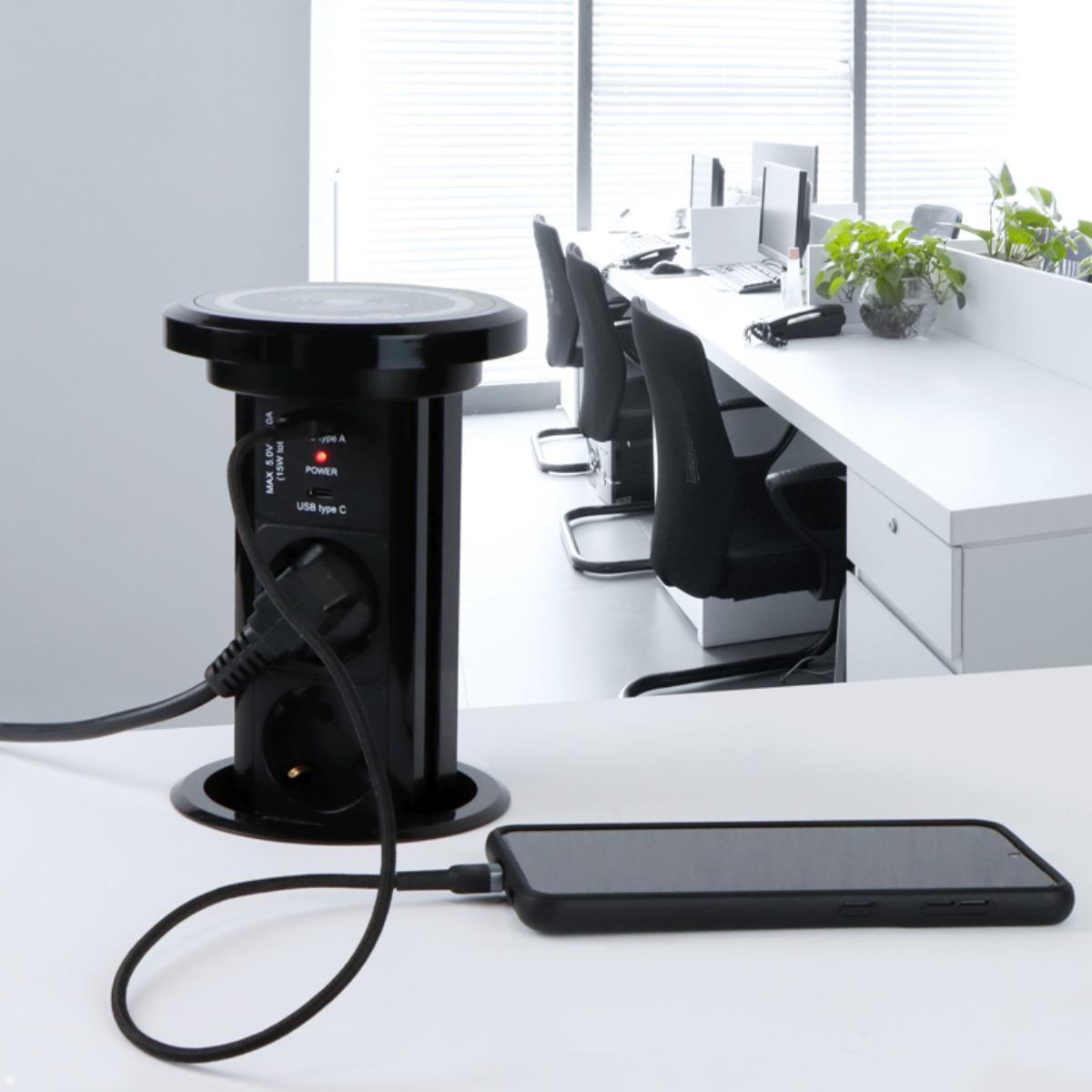

When the 3-way power strip is recessed into the table, the lid can be used as an inductive charger / Qi charger to wirelessly charge Qi enabled smartphones. The installation of the retractable socket strip is very simple. The TecLines TVS006B is inserted into a table cutout with Ø 93mm and attached to the tabletop from below with a ring. A 2m power cable is integrated at the built-in socket. Popular areas of use are offices, kitchens, conference and meeting rooms as well as in restaurants, at airports or at trade fairs.

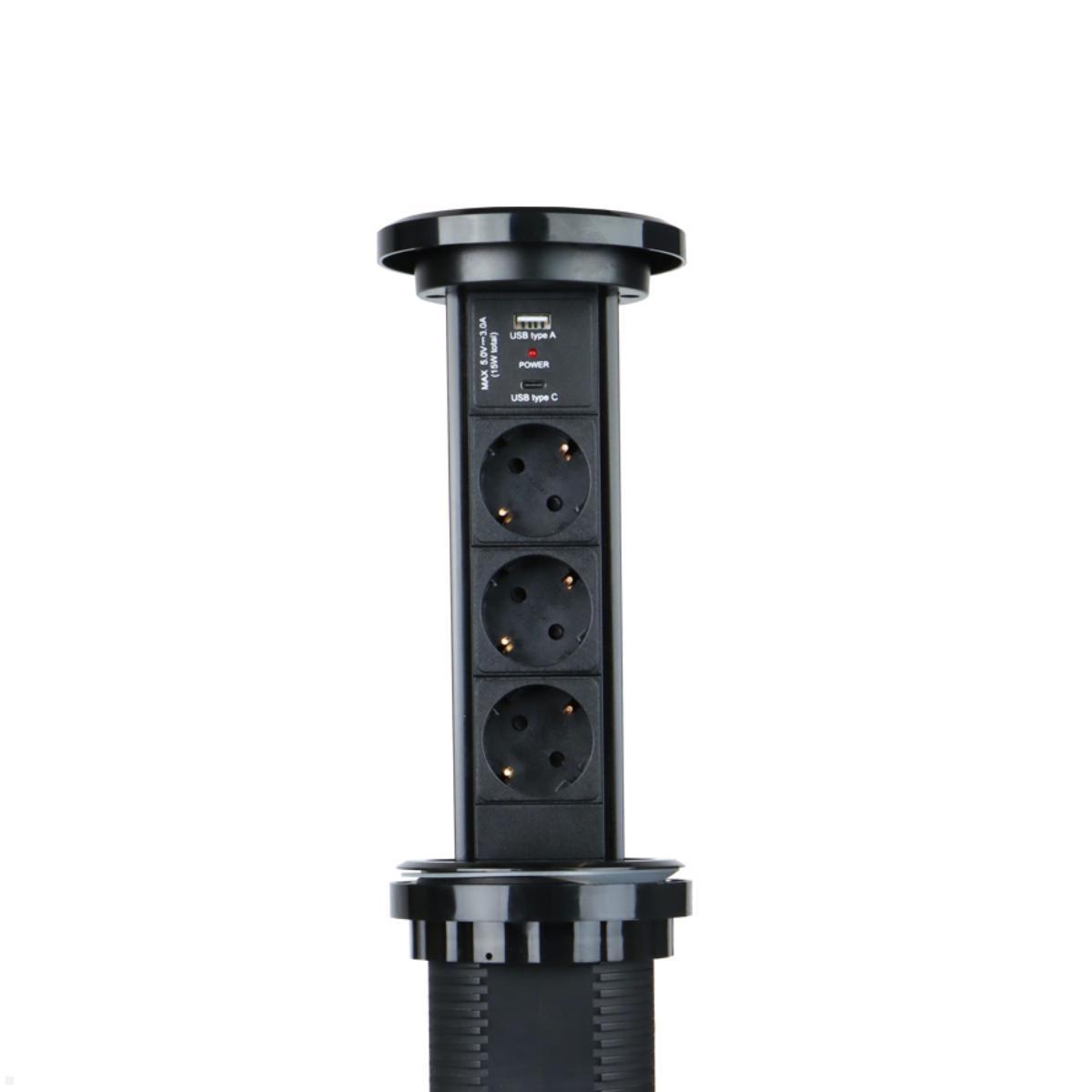

Key features TecLines TVS006B 3x power outlet, 2x USB charger
- 3x power socket outlets (230V AC, max. 16A)
- 1x USB connection type-A, max. 16A. 5V DC / 2.1A (total 10.5W)
- 1x USB connection type-A, max. 16A. 5V DC / 2.1A (total 10.5W)
- Lid as inductive charging station
- Automatically retractable / extendable
- Plate thickness: 18-60 mm
- Material: aluminum, plastic
- Inlet diameter: 93 mm

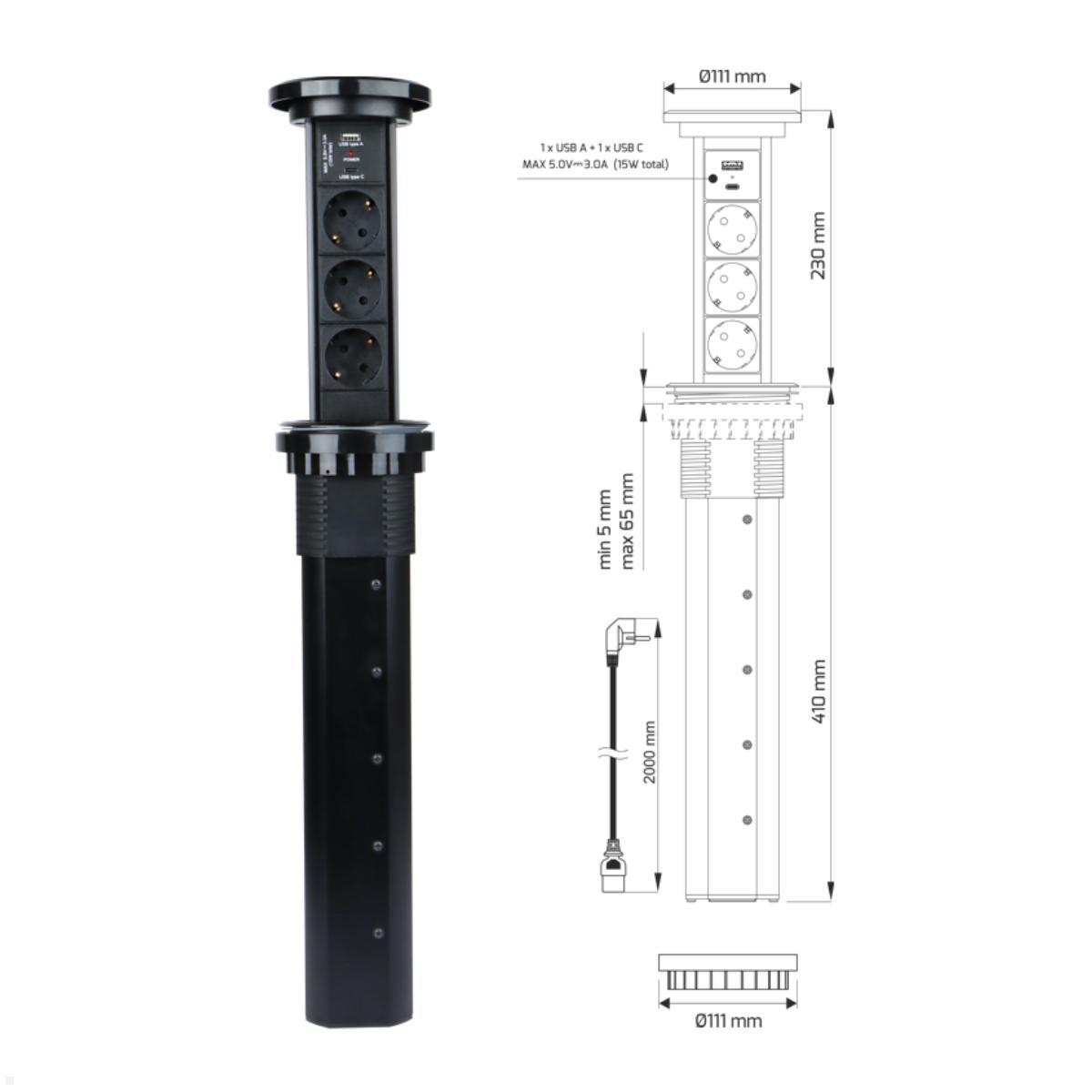

- Extension height from table: 228 mm
- Outer dimensions (extended): max. Ø 110 x 638 mm
- Voltage: 230V AC
- Power: 3600W
- Degree of protection: IP20
- Power cable: 2m with angled plug
- Finish: Black
| Product sheet: |  [pdf] |
|---|---|

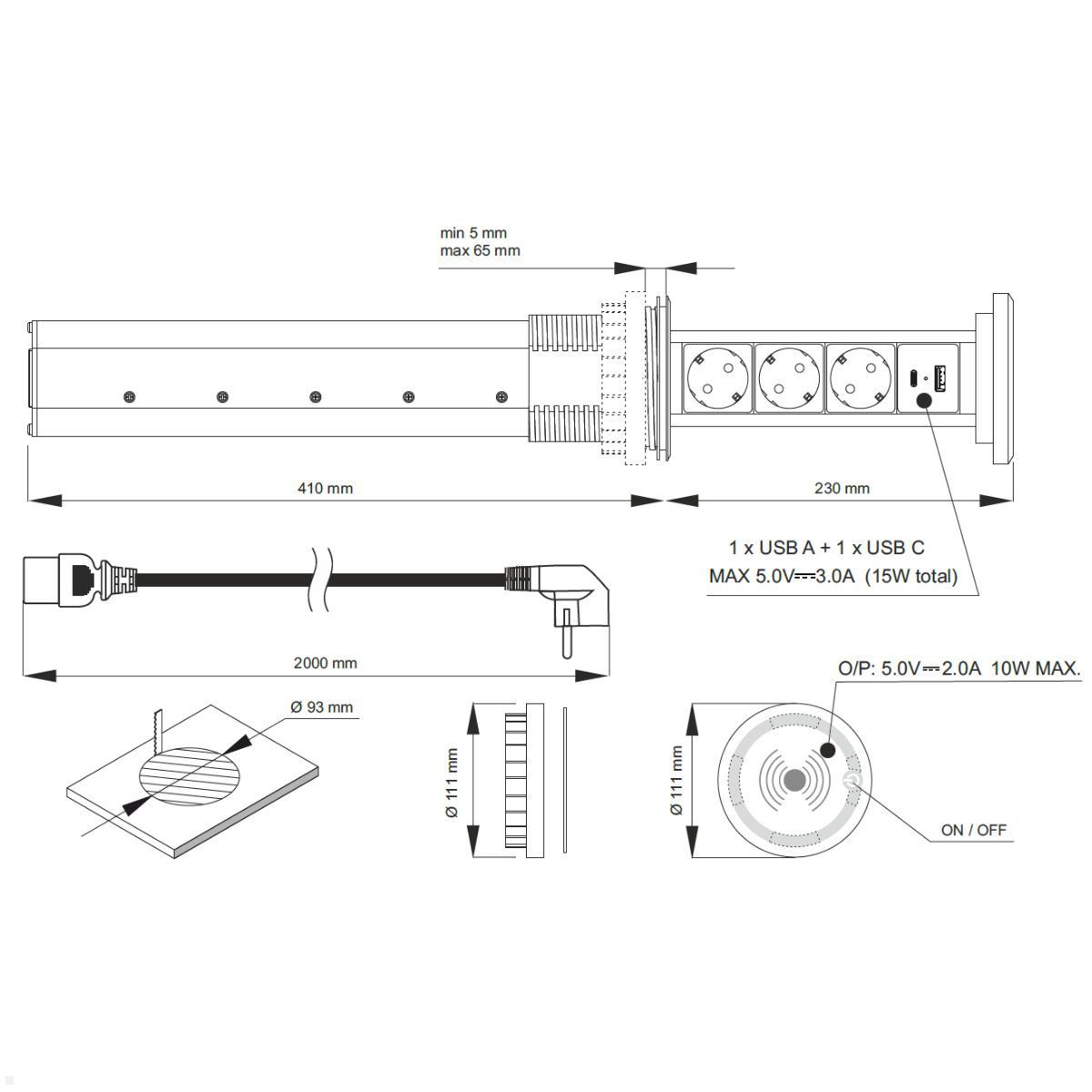

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 588 x 186 x 173 |
| Scope of delivery: | 1x socket strip including power cable |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / TecLines, Am Marienhof 8, 22880 Wedel, info@teclines.de |
| Number of sockets: | 3 |
| color: | Black |
| USB-Charger: | USB A/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
