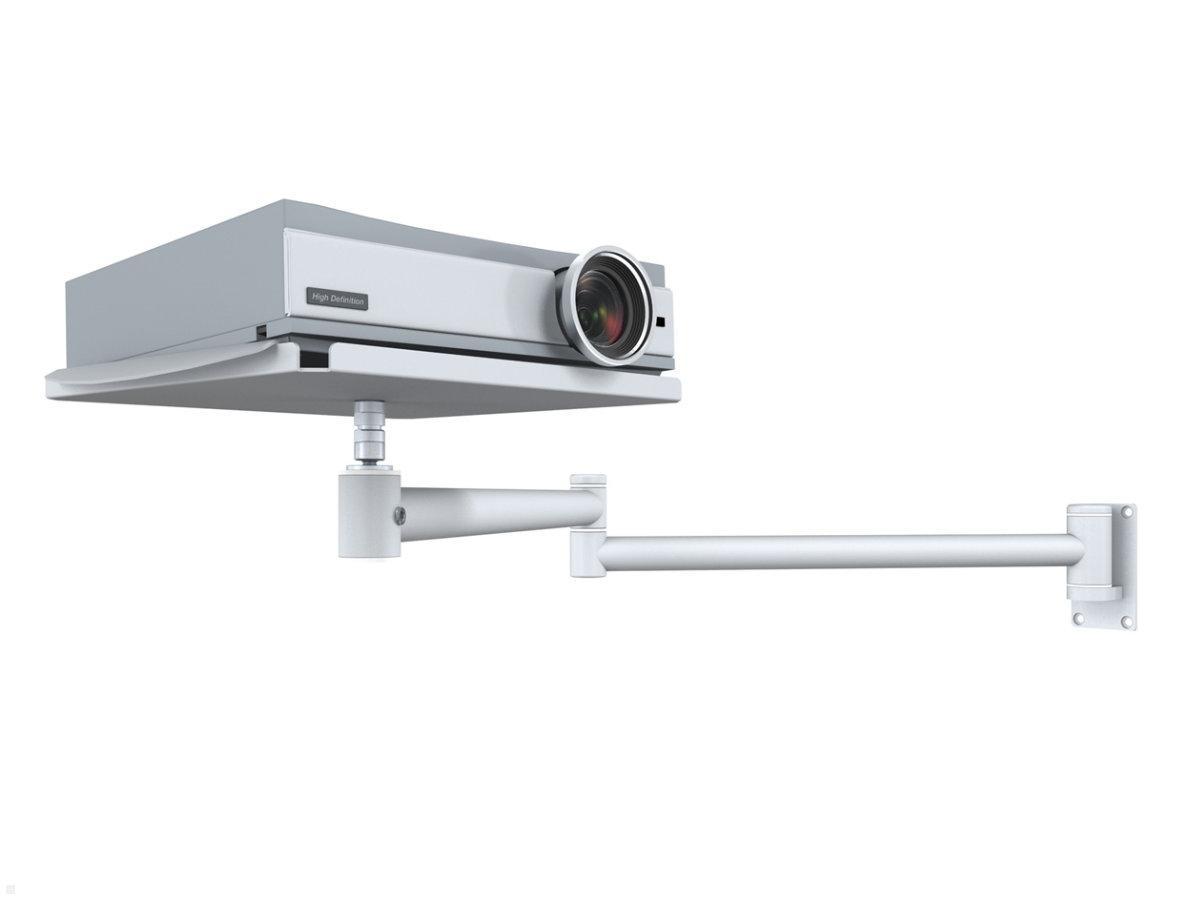

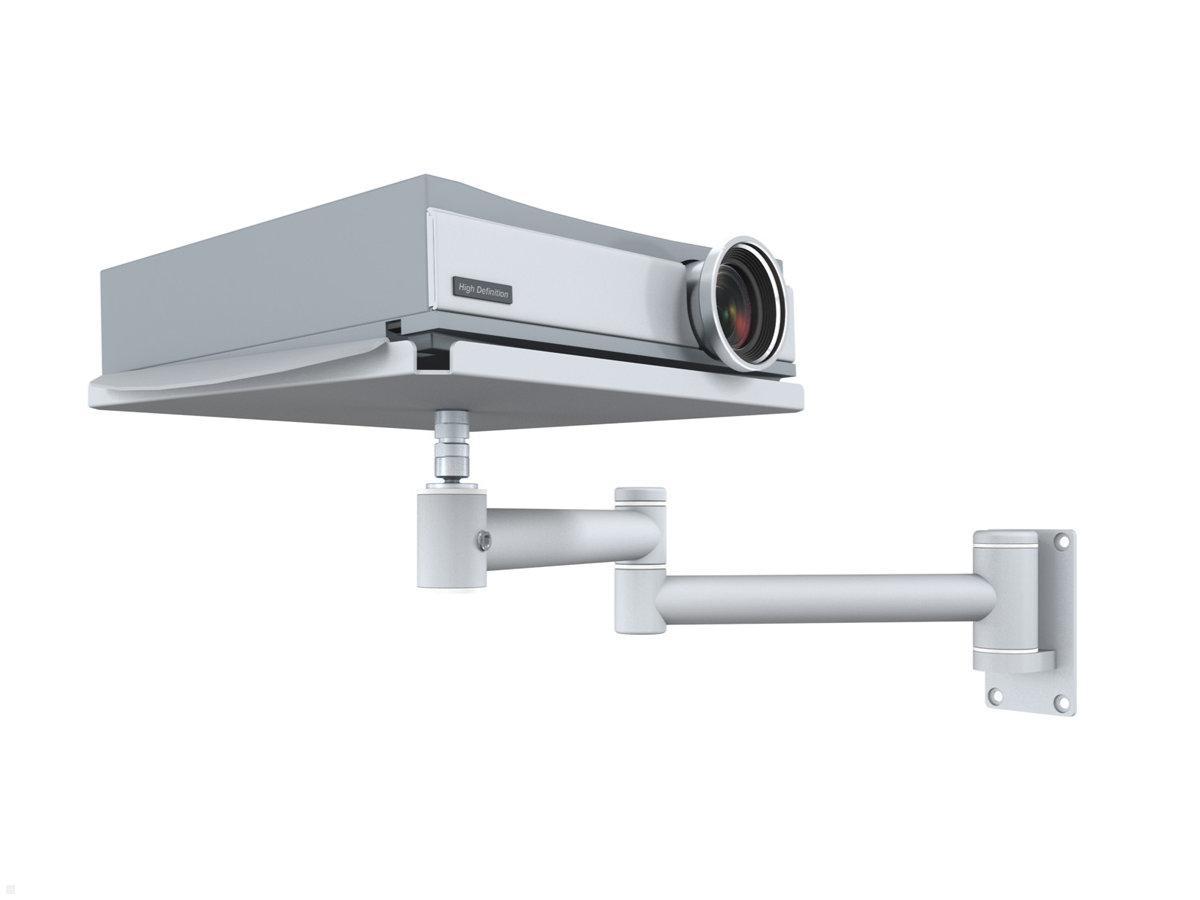

TecLines TBH001G beamer wall mount with swivel arm 2x 600 mm, grey
TecLines wall mount for beamers up to 20 kg in light grey
The TecLines beamer wall mount with swivel arm is suitable for heavy beamers or projectors with a maximum weight of 20 kg. Its swivel arm has a length of 2x 600 mm, so that the beamer mount can be adjusted to your needs at any time. The mount is made of solid steel with a high-quality powder coating.
Key features beamer mount
- Material: powder-coated steel
- Finish: light grey
- Mounting type: wall bracket
- Length of swivel arm: 600 & 600 mm (total 1200 mm)
- Tableau dimensions (WxD): 300 x 300 mm
- Tableau: rotates 360 degrees, incl. tilt mechanism and handle rail
- Capacity: 20 kg
Special design on request
With no extra price, we shorten the arm to your measurement. Other tableau dimensions are available on request.
| Product sheet: |  [pdf, 367 kb] |
|---|---|

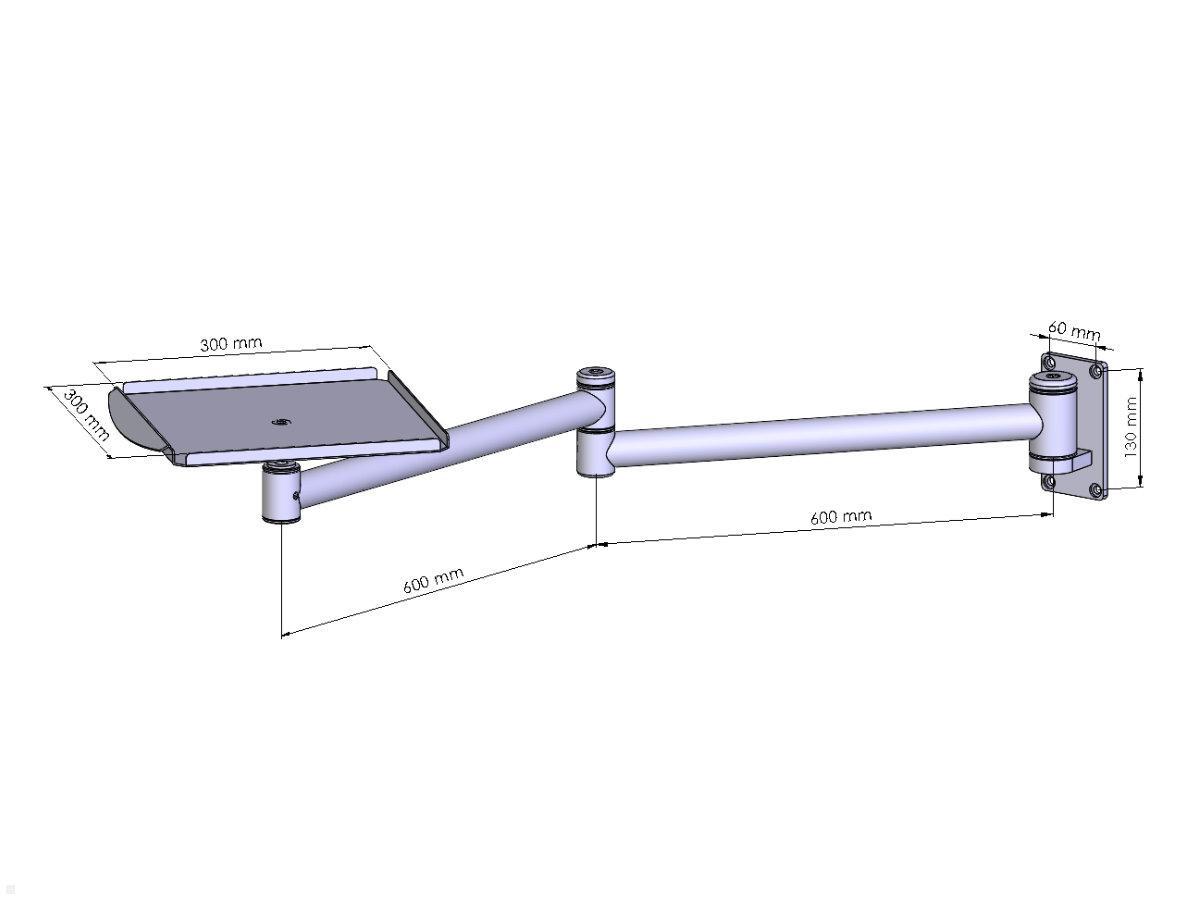

| Technical drawing: | [pdf, 37 kb] |
| Installation manual: | [pdf, 276 kb] |
| Capacity: | 20 kg |
| Swivelling range: | 180° + 360° + 360° |
| Distance of wall: | 1200 mm |
| Material: | Steel |
| Special features: | With no extra price, we shorten the arm to your measurement. Other tableau dimensions are available on request. |
| Suitable for: | Nearly every beamer |
| Contains installation material: | - |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / TecLines, Am Marienhof 8, 22880 Wedel, info@teclines.de |
| Mobility: | swivelling |
| Mounting type: | wall mount |
| color: | light grey |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
