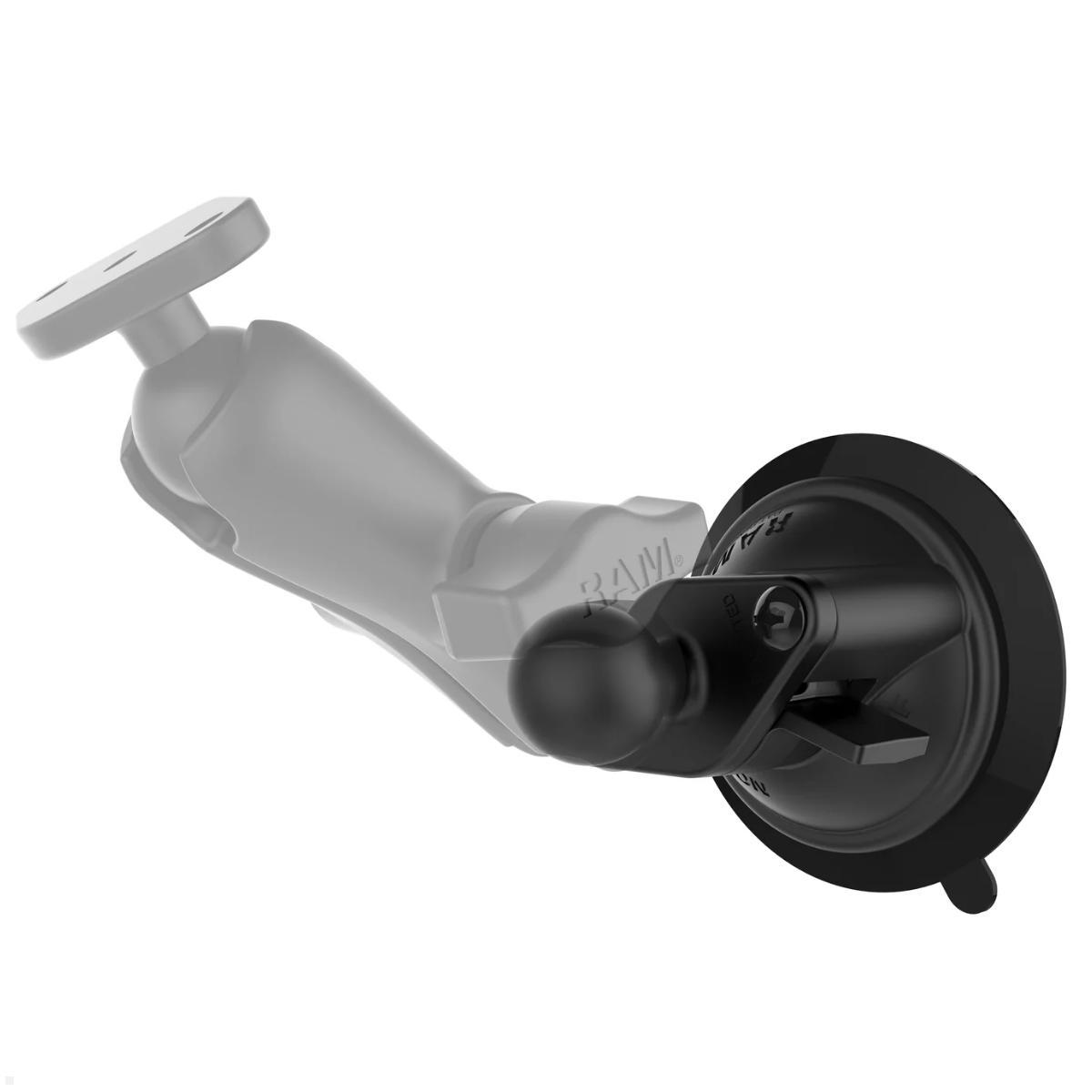

RAM Mounts twist lock suction cup base with B-ball (RAM-B-224-1U), black
Suction cup with diamond plate and B-ball

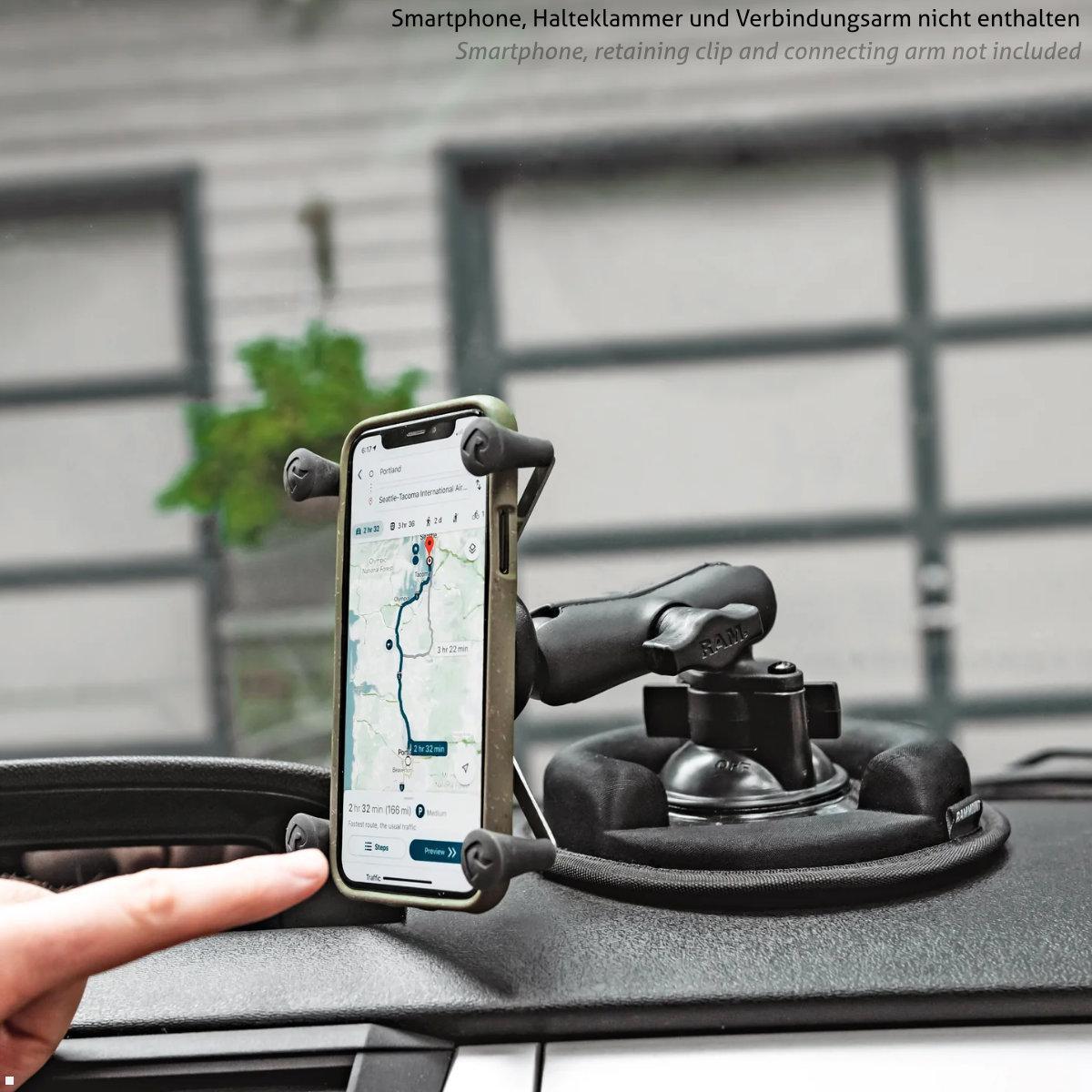

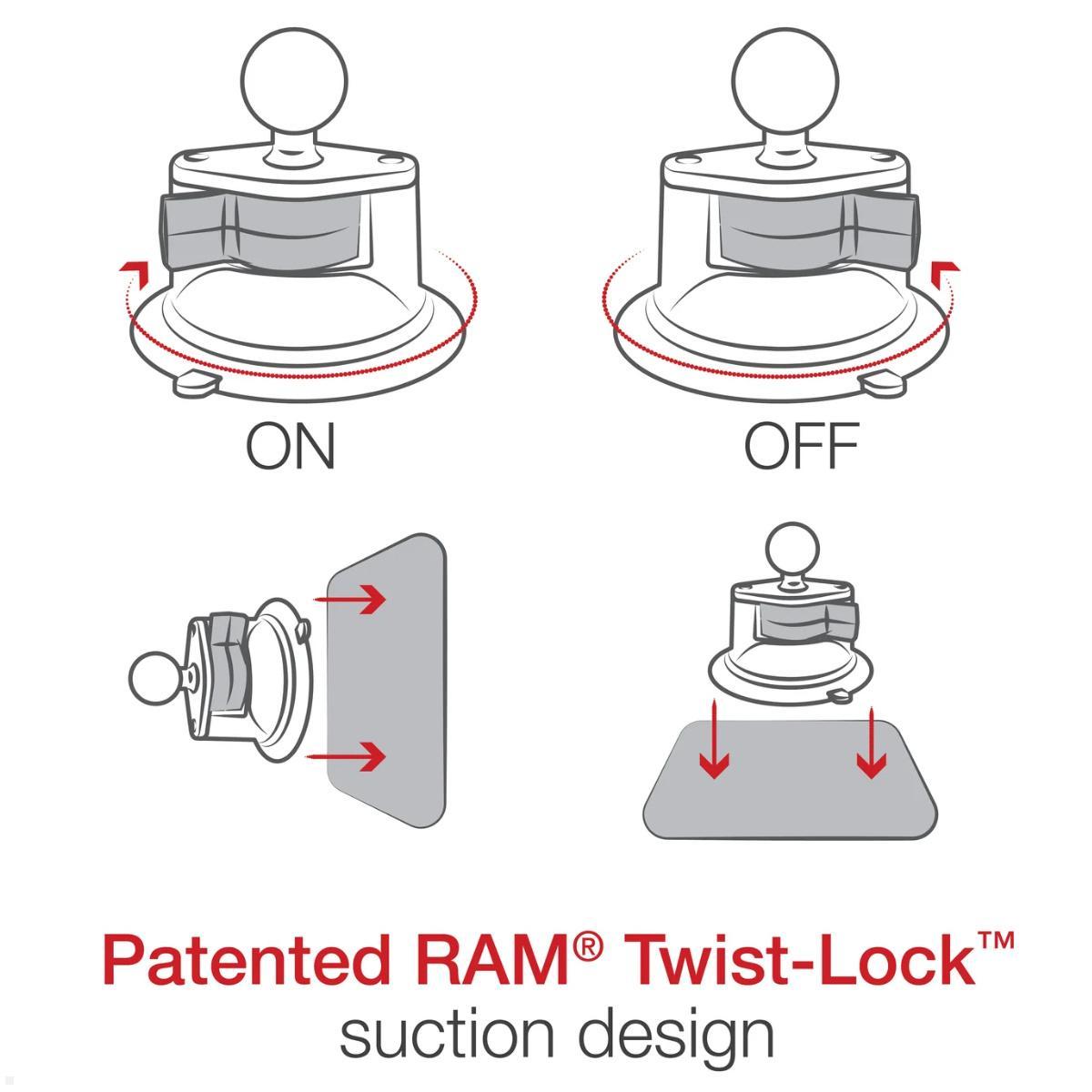

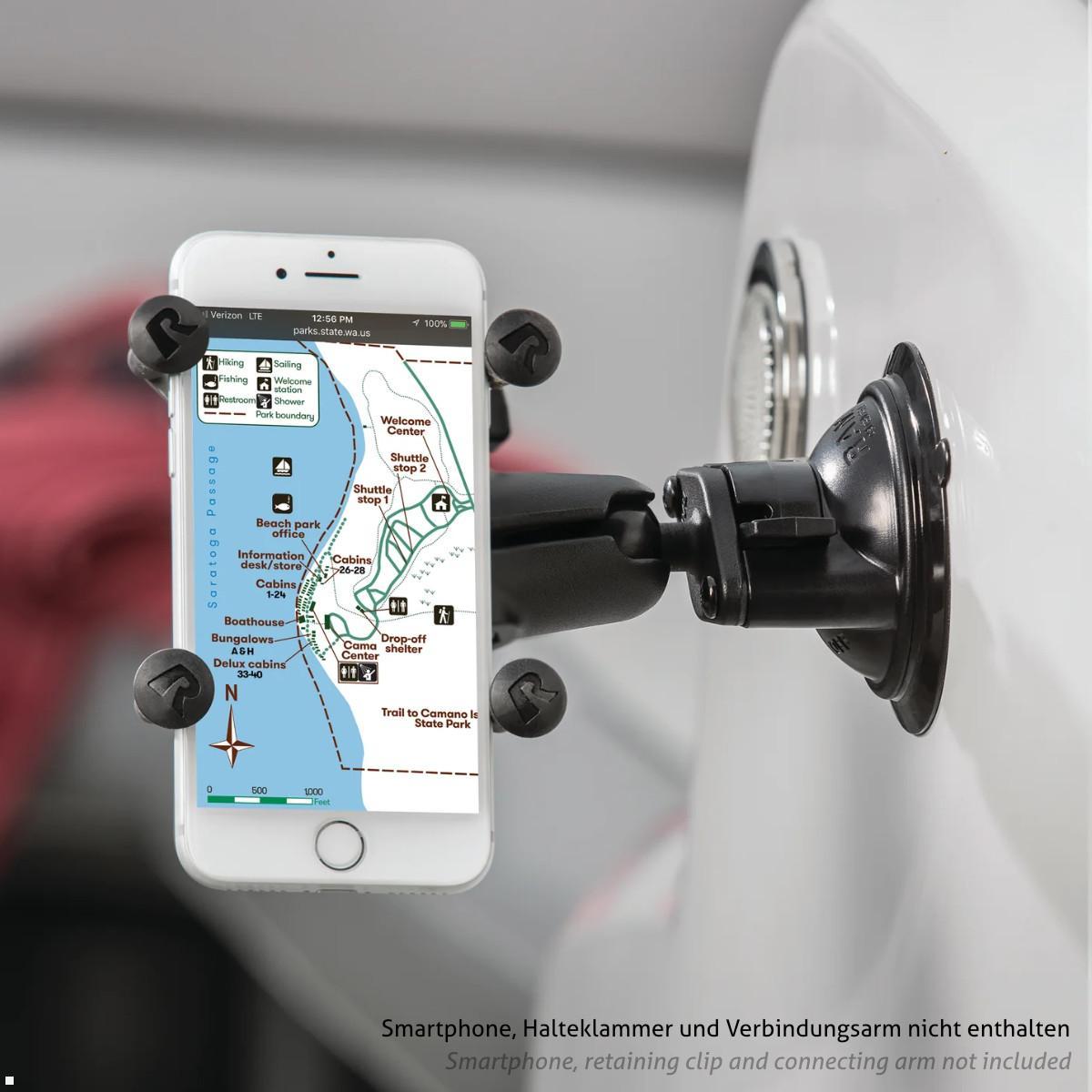

The sturdy RAM Mounts suction cup mount with practical twist lock provides a secure hold on smooth surfaces such as a windshield. It is combined with a Diamond base plate in trapezoidal shape, which has a B-ball with a diameter of 1 inch. Together with the connecting arm and device holder, the suction cup with Diamond plate and B-ball can be easily extended to form a complete vehicle mount. The modular RAM Mounts system offers a wide range of combination options with other components to create a customized tablet holder or smartphone mount for the car, for example.
Key features RAM Mounts suction cup mount (RAM-B-224-1U)
- Load capacity: 0.9 kg

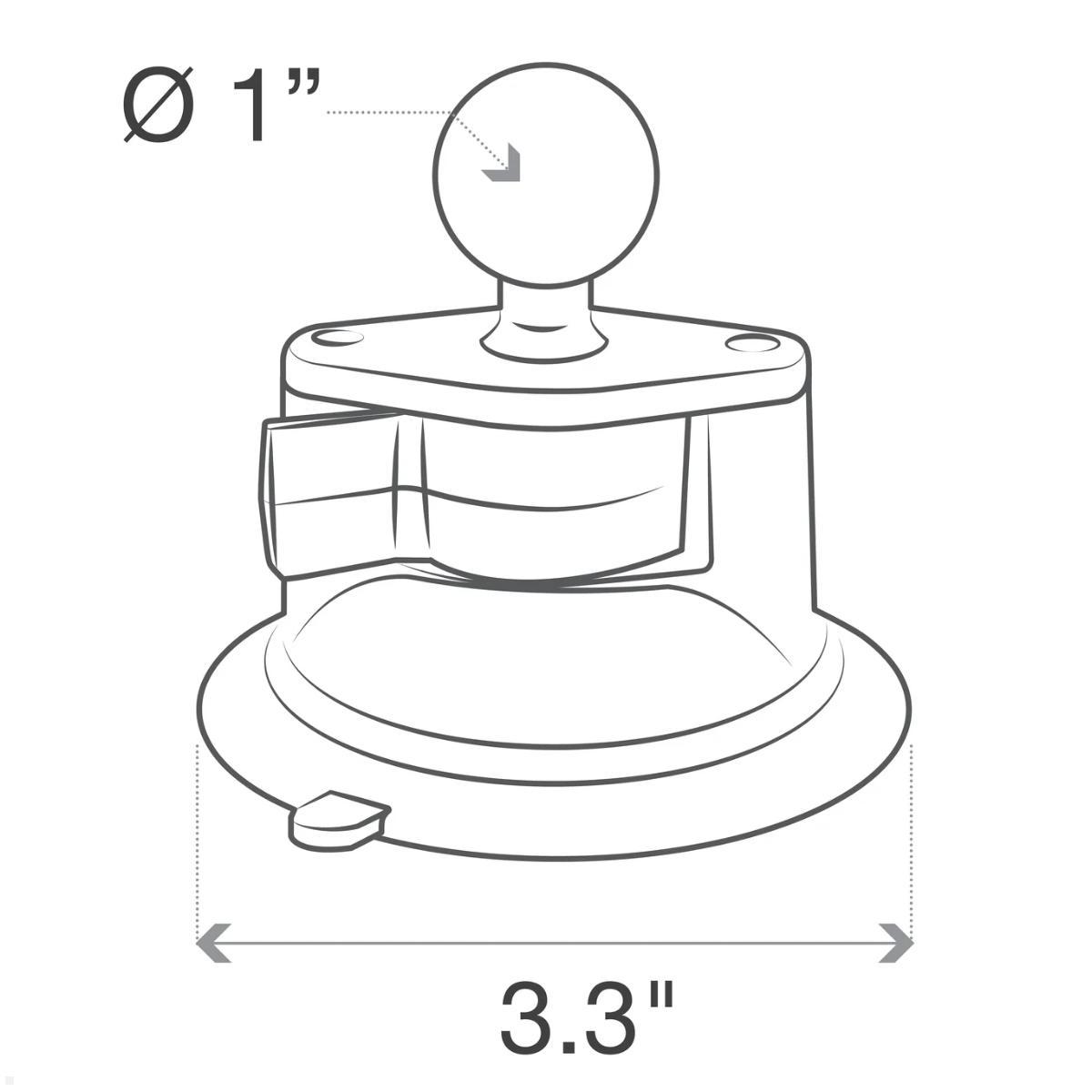

- Suction cup diameter: 83 mm
- Base plate dimensions (LxW): 61.72 x 33.27 mm
- Hole spacing base plate: 48.56 mm (each from the center of the hole)
- Ball size: B-ball (1 inch)
- Ball diameter: 25.4 mm
- Material: High-strength composite material with rubber suction base, powder-coated aluminum
- Color: Black
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 0,9 kg |
| Material: | High-strength composite material, rubber, powder-coated aluminum |
| Scope of delivery: | 1x suction foot base (RAP-224-1U) | 1x Diamond base plate with B-ball (RAM-B-238U) |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
16 October 2024 10:24
sitzt bombenfest
Sehr stabiler Saugfuß. Hatte vorher den etwas kleineren von RAM Mounts mit dem Drehverschluss, welcher leider nicht so eine optimale Ansaugkraft hatte und öfter unter dem Gewicht des iPhone 11 abging. Dieser Saugfuß hat einen größeren Teller und mit dem Flügelverschluss ist dieser wesentlich fester an der Scheibe. Würde ich wieder kaufen.
