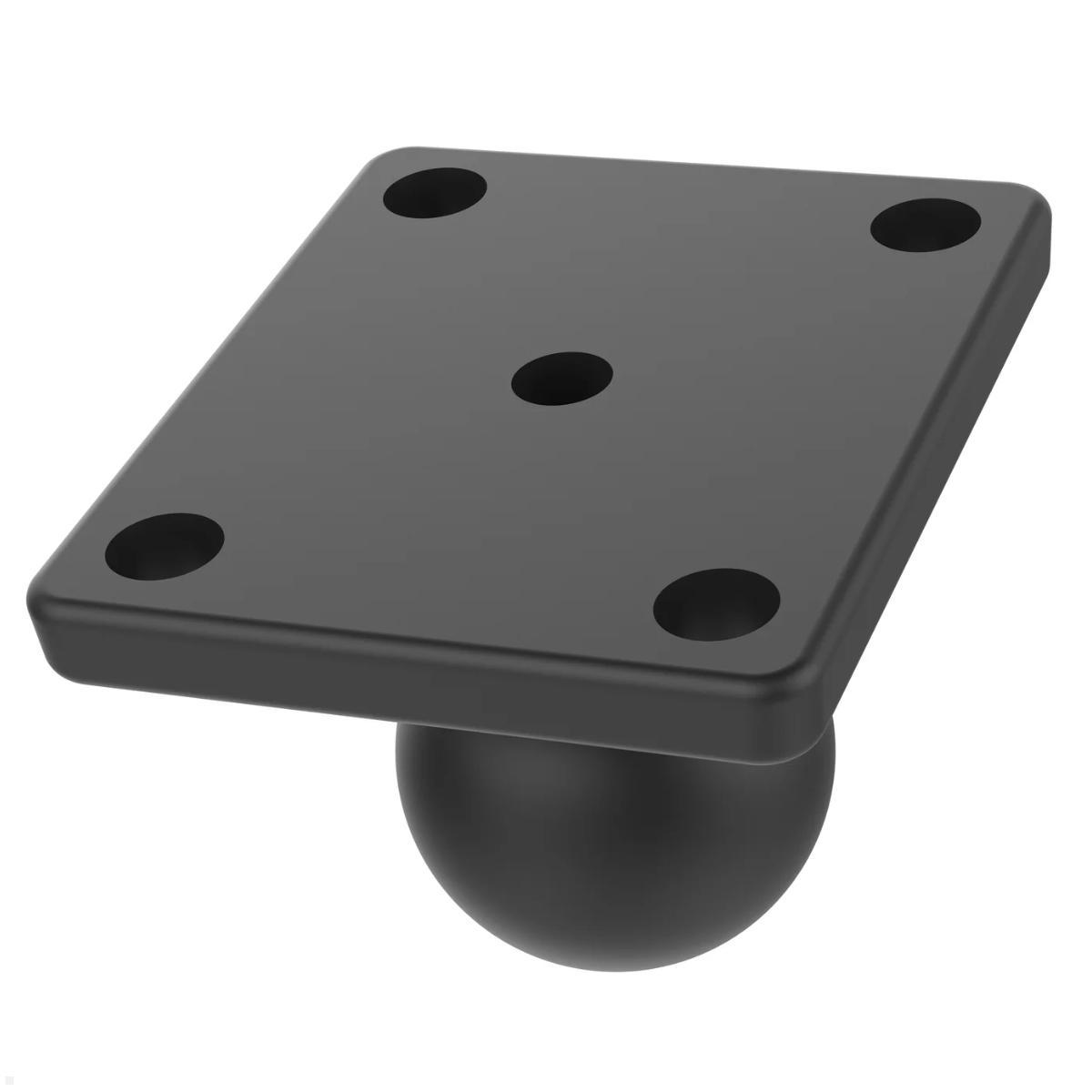

RAM Mounts square plate with B-ball (RAM-B-347U), black
AMPS base plate with B-ball
The RAM Mounts AMPS base plate with B-ball has the standardized AMPS hole pattern, which is particularly suitable for mounting mobile navigation devices for motorcycles. Thanks to the B-ball, the mounting plate can be easily extended with other RAM Mounts components such as the connecting arm and device holder to create a complete vehicle mount. The modular RAM Mounts system offers a wide range of possible combinations to create a customized motorcycle navigation holder.
Key features RAM Mounts square plate with B-ball (RAM-B-347U)
- AMPS hole pattern: 38.1 x 30.5 mm
- Hole diameter: 4 mm
- Base plate dimensions (LxWxH): 50.8 x 43.18 x 5 mm
- Load capacity: 0.9 kg
- Ball size: B-ball (1 inch)
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Compatible with:
- Garmin zumo 400 / 450 / 500 / 550 / 660
- TomTom Rider 2, TomTom Urban Rider
- Magellan Crossover GPS 2500T, Maestro 4000 / 4040 / 4050, RoadMate 300 / 360 / 500 / 500 Plus / 700 / 760 / 800 / 860T / 2000 / 2200T / 3000T / 3050T / 6000T
- Material: Aluminum, powder-coated
- Color: Black
| Product sheet: |  [pdf] |
|---|---|

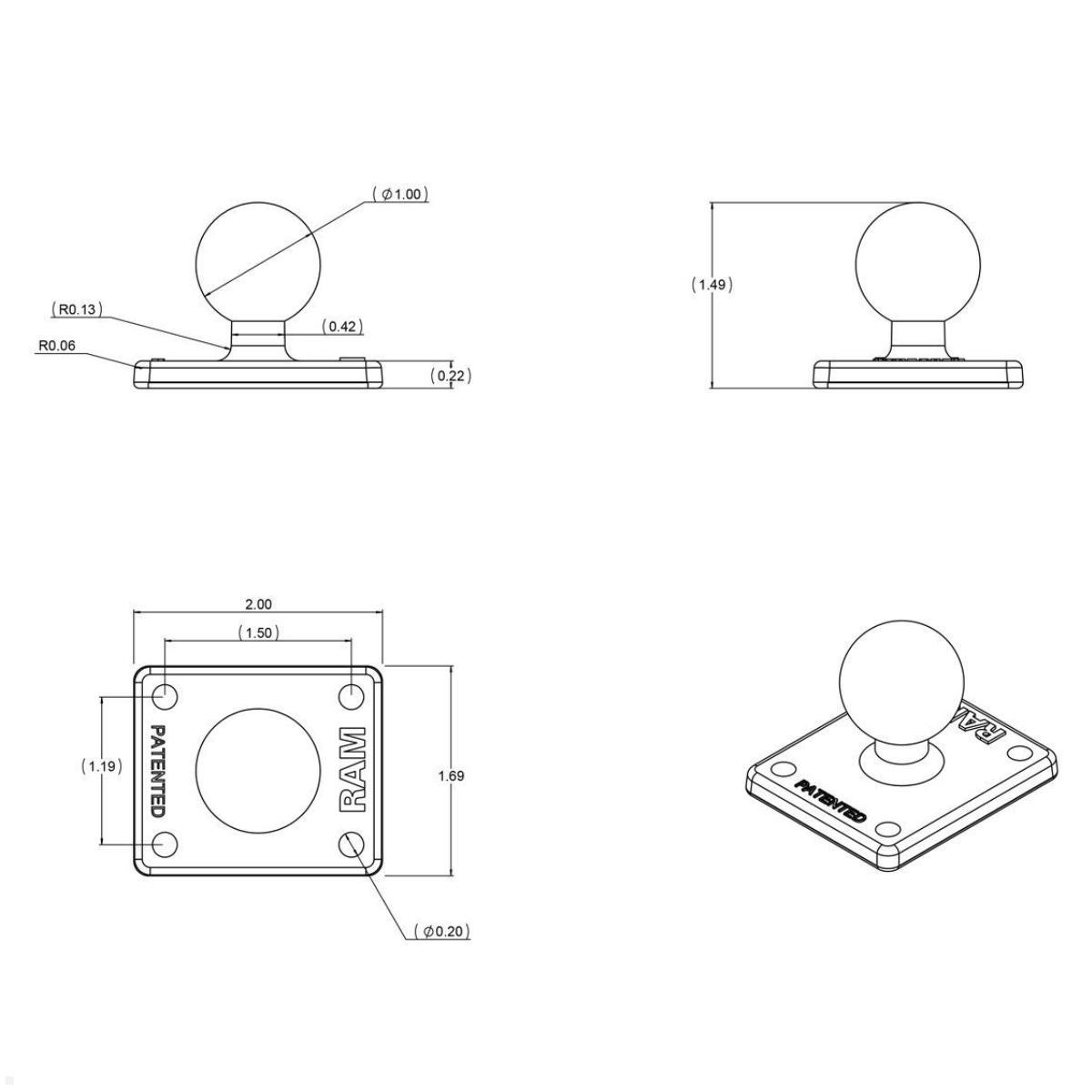

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Capacity: | 0,9 kg |
| Tilt: | - |
| Height range (mm): | - |
| Pivot: | - |
| Swivelling range: | - |
| Material: | Aluminum, powder-coated |
| Suitable for: | Für fast alle Notebookmodelle |
| Scope of delivery: | 1x AMPS plate with b-ball |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
