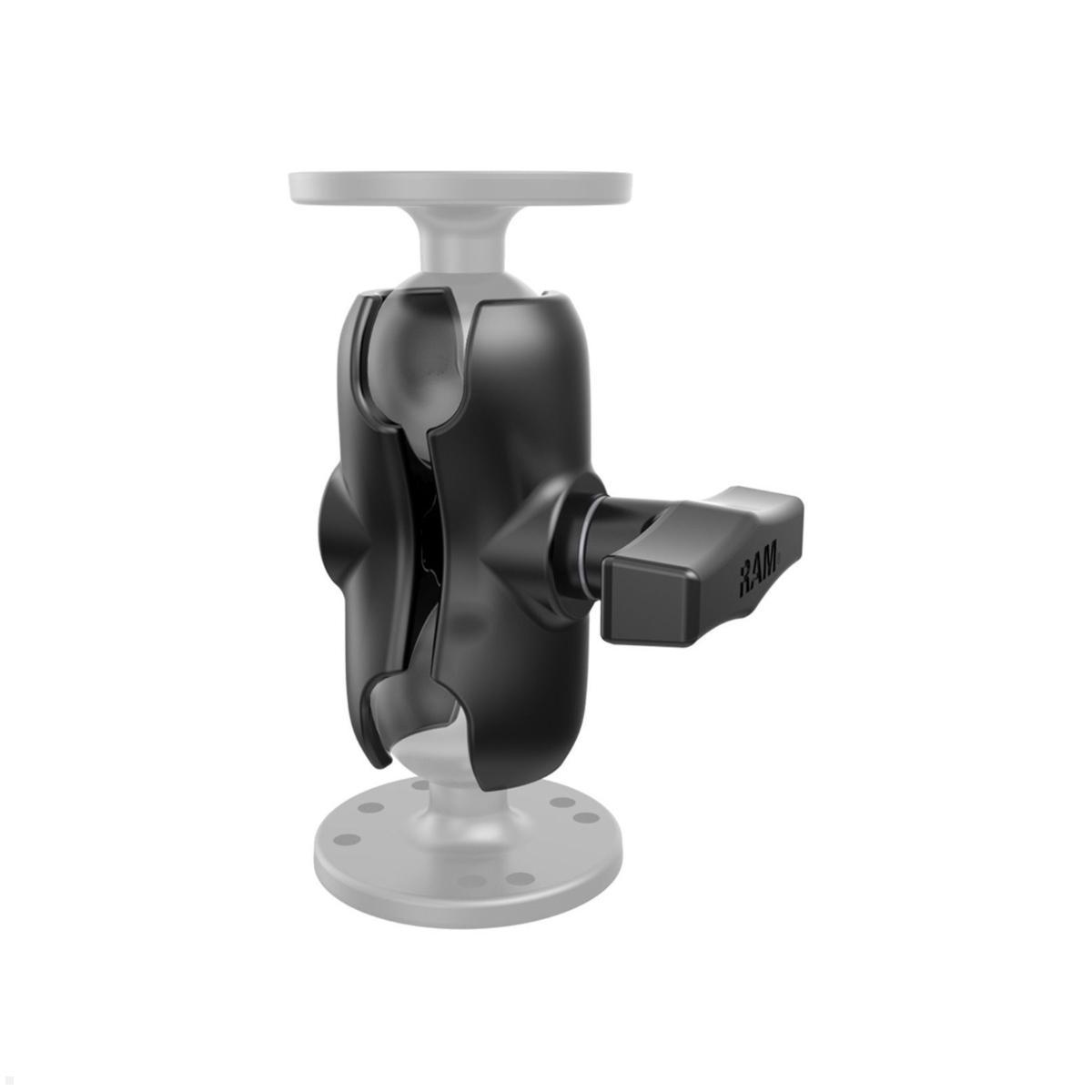

RAM Mounts connection arm short for C-Balls 1.5 inch (RAM-201U-B)
RAM Mounts connection arm
The short RAM Mounts connection arm RAM-201U-B has a total length of approx. 90 mm and is connected between two C-Balls mounted with 1.5 inch diameter each. The arm can be fixed with a twist lock once the final position has been found. Combine your personal RAM Mount Holder with RAM Mount Ball and, for example, RAM Mount Mobile Phone Holder.

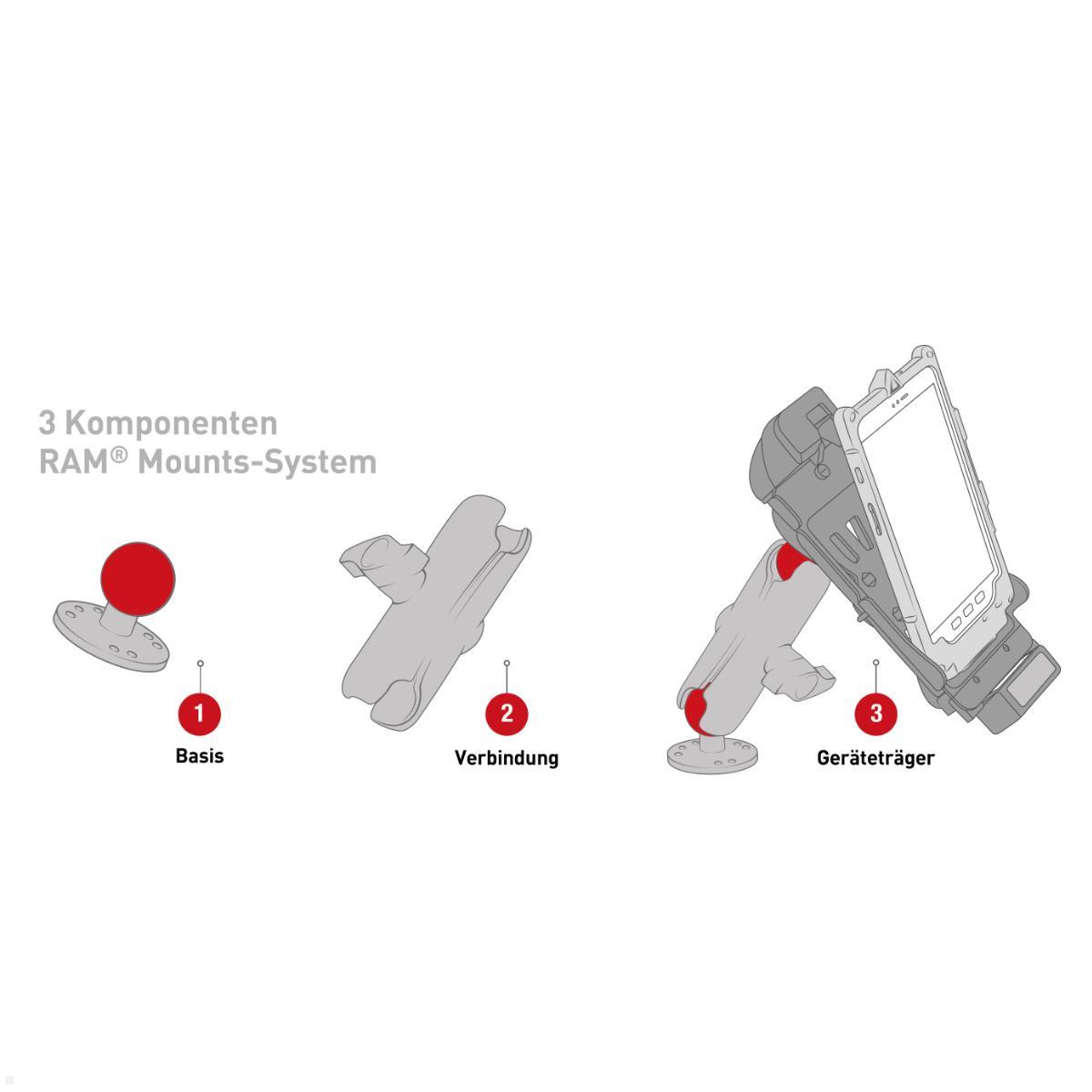

Combinable mounting solutions

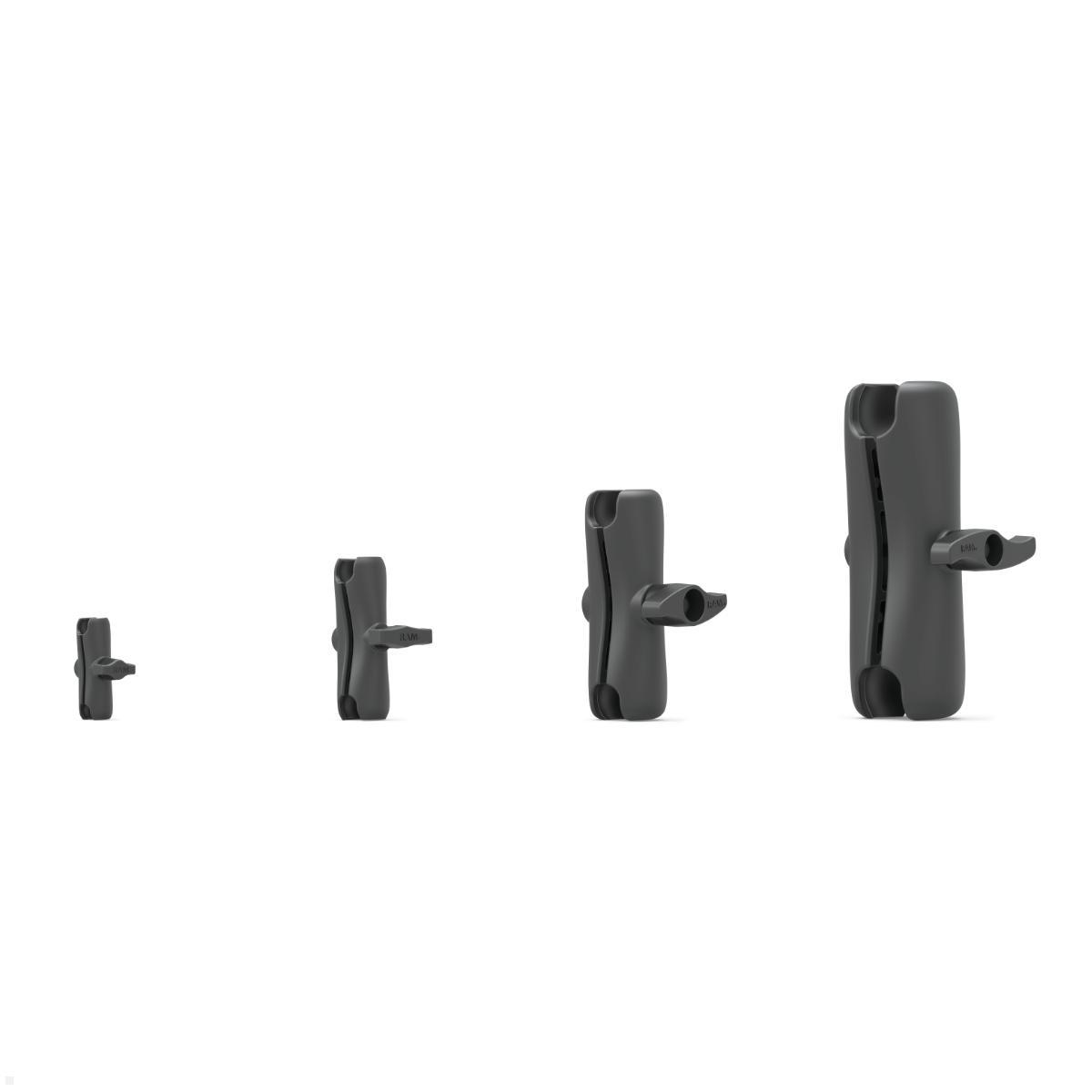

The connecting arms are available in different lengths for the C-ball plates. The connection arm is combined with a base plate and a device holder for a complete mount and is suitable for various mounting solutions, for example for the Apple iPad or others Tablets.
Key features RAM Mounts RAM-201U-B
- Material: aluminum, powder-coated
- Ball diameter: 38.1 mm for C -Ball 1.5 inch
- Length: 90.42 mm
- Base-to-Base Distance: 63.5 mm
- High-quality powder coating
- Colour: black RAL 9005
- Weight: approx. 231 g
- Load capacity: up to approx. 1.8 kg
| Product sheet: |  [pdf] |
|---|---|

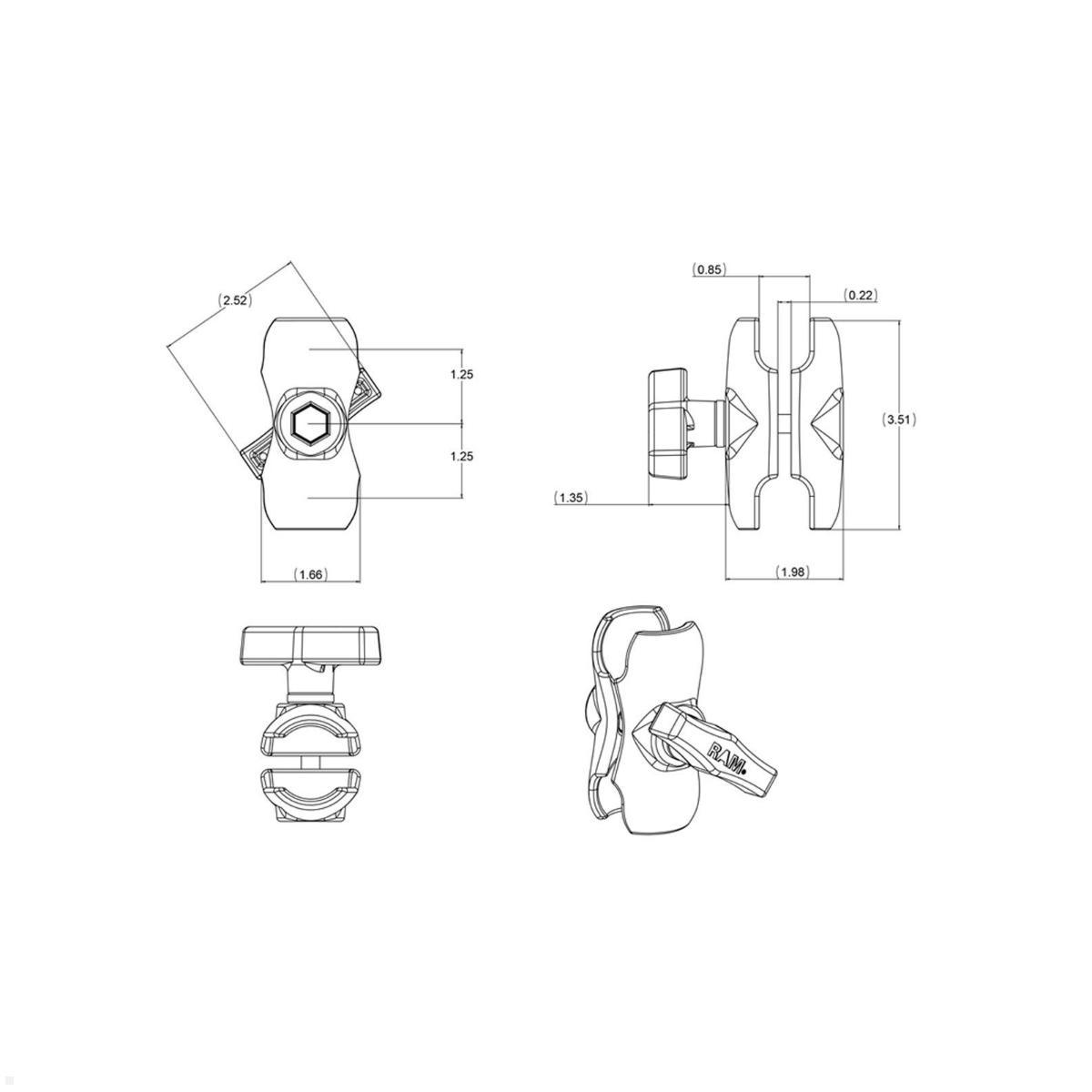

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Capacity: | 1,8 kg |
| Tilt: | - |
| Rotate: | - |
| Height range (mm): | - |
| Pivot: | - |
| Swivelling range: | - |
| Material: | Aluminum, powder-coated |
| Suitable for: | Für fast alle Notebookmodelle |
| Scope of delivery: | 1x link arm (RAM-201U-B) |
| Contains installation material: | - |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
