RAM Mounts base plate diamond (trapezium) with B-ball 1 inch (RAM-B-238U)
RAM Mounts Diamond base plate

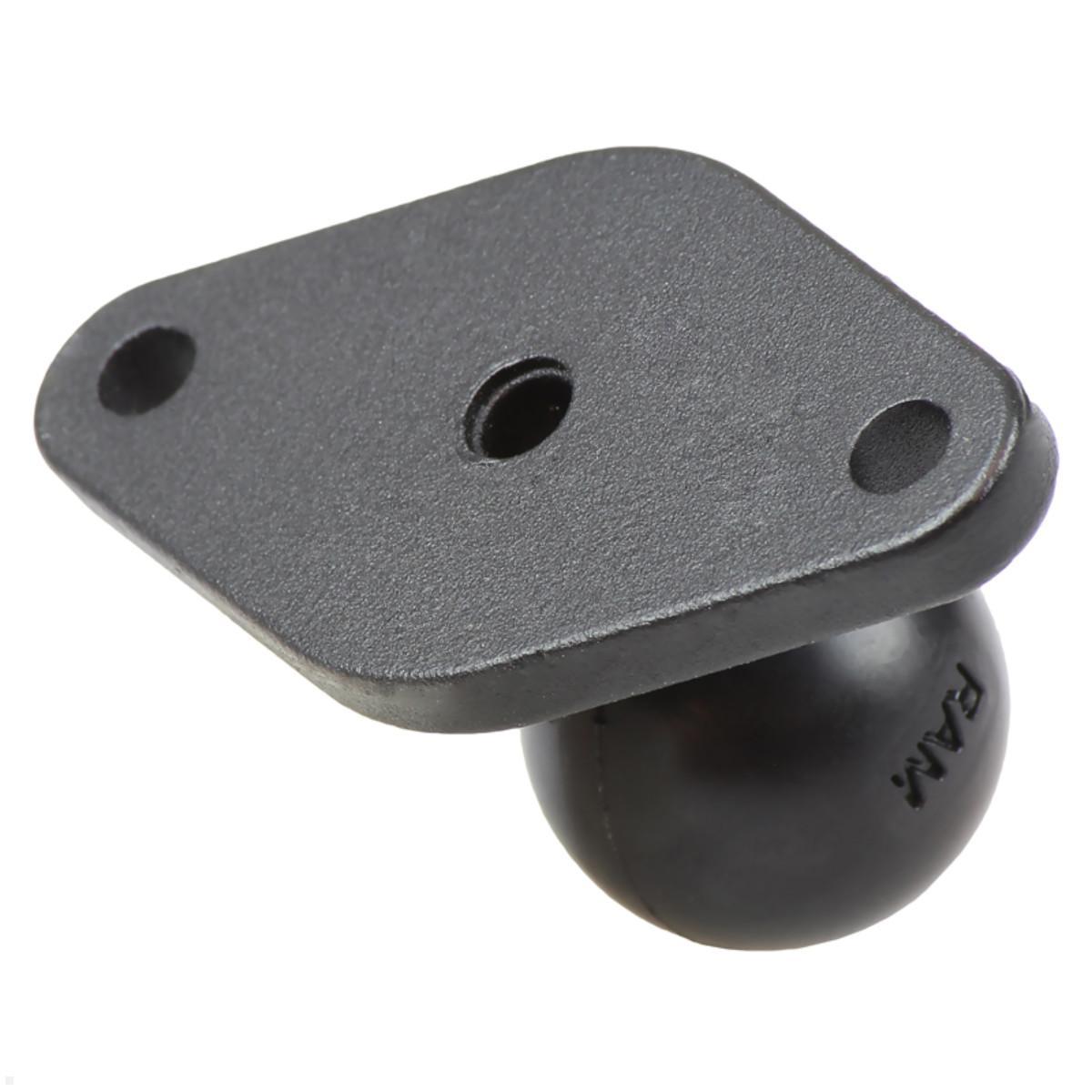

The RAM Mounts Diamond base plate in trapezoidal shape RAM-B-238U has a B-ball with a 1 inch diameter. The base plate is suitable for attachment to vertical or horizontal surfaces. RAM Mounts base plates form the basis for many mounting solutions. Combine your personal RAM Mount Holder with RAM Mount Ball and, for example, RAM Mount Mobile Phone Holder.
Mounting solutions

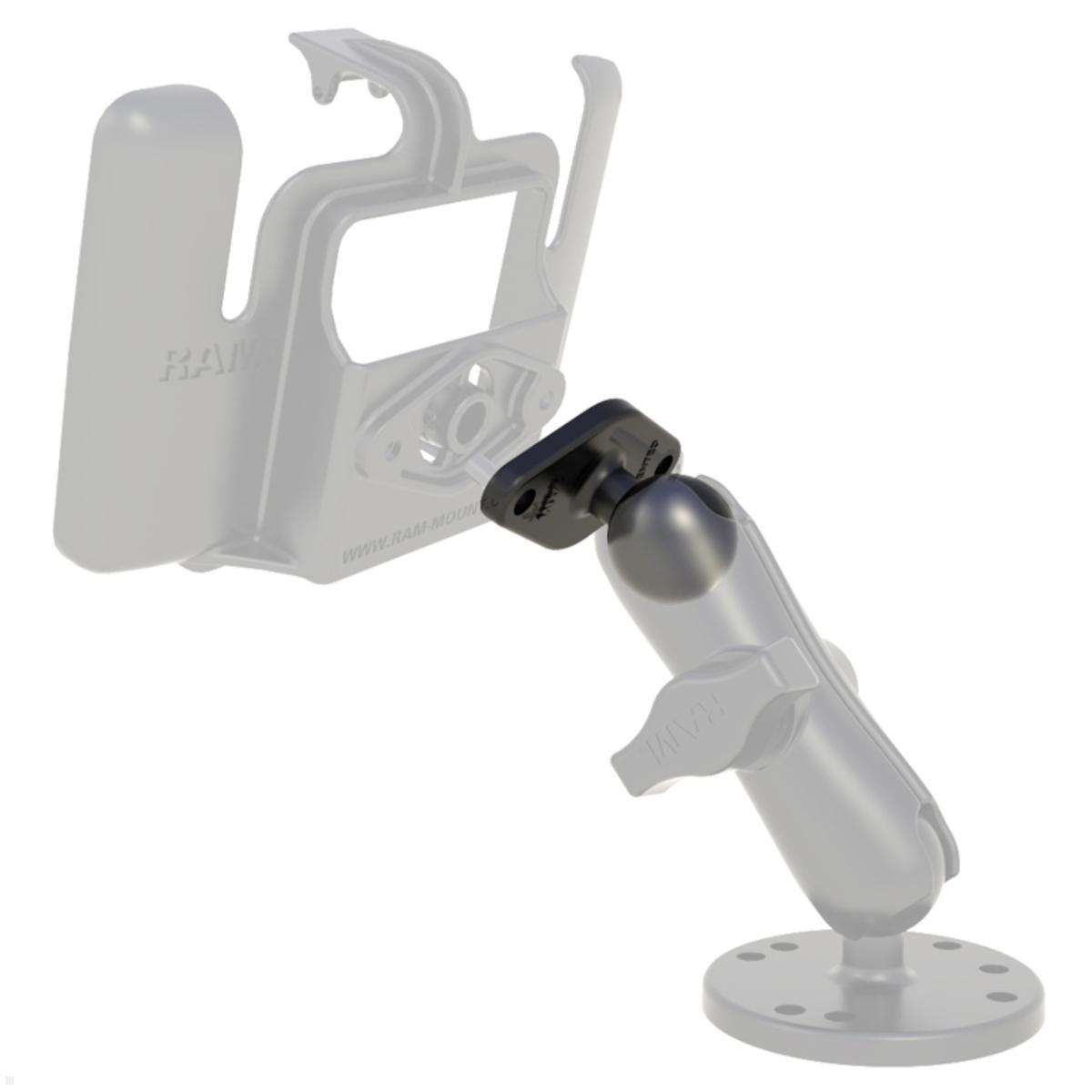

With the RAM Mount base plate with B-ball, different connection arms can be combined. The arms are available in several lengths. The connection arm is combined with a base plate and a device holder for a complete mount and is suitable for various mounting solutions, for example for the Apple iPad.
Key features RAM Mounts RAM-B-238U
- Material: aluminum, powder-coated
- Ball diameter: 25.4 mm
- B ball 1 inch
- Width: 33.27 mm
- Length: 61.72 mm
- Hole spacing: 48.56 mm (centre of hole)
- High-quality powder coating
- Colour: black RAL 9005
- Weight: approx. 45 g
- Load capacity: up to approx. 0.9 kg
| Product sheet: |  [pdf] |
|---|---|

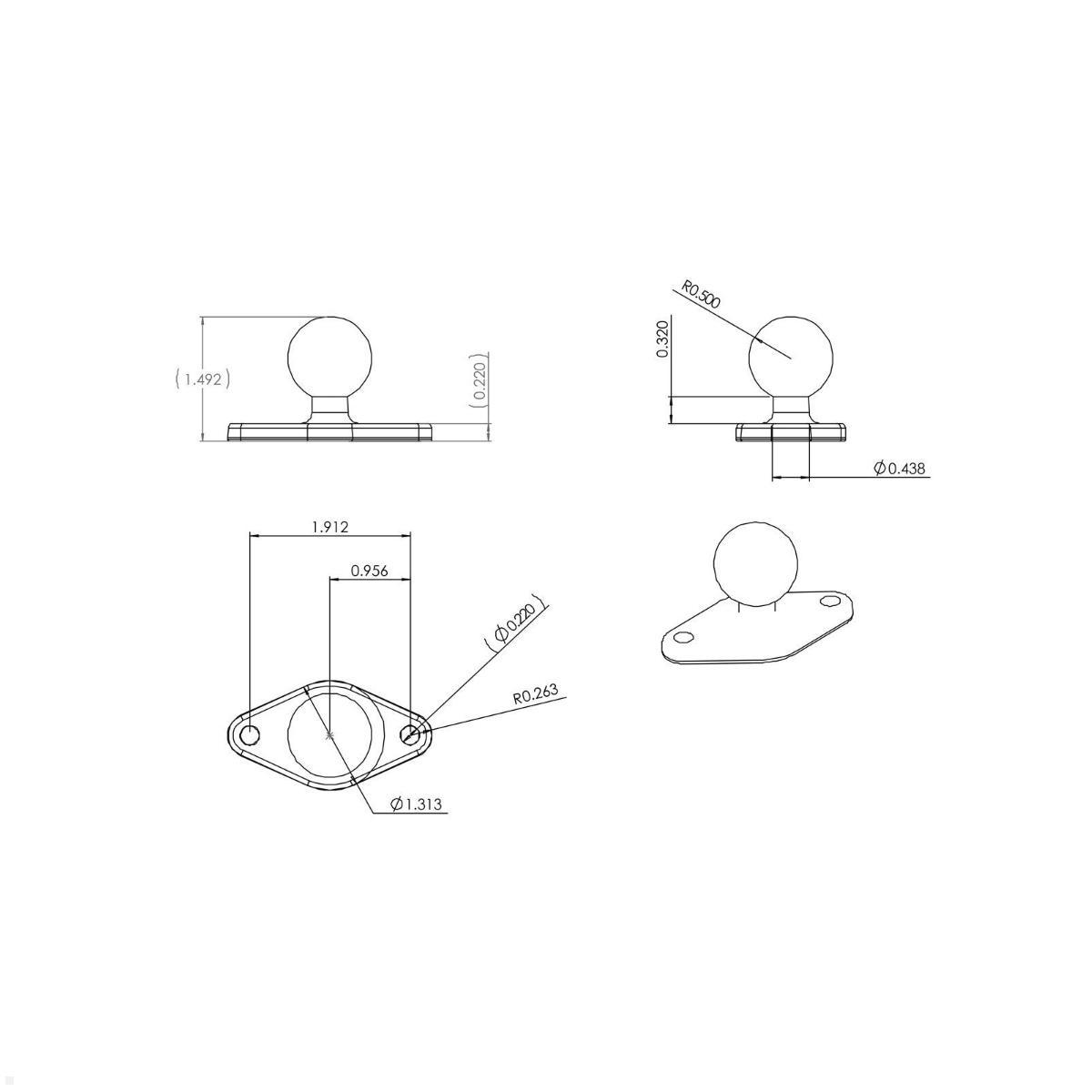

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Capacity: | 0,9 kg |
| Tilt: | - |
| Rotate: | - |
| Height range (mm): | - |
| Pivot: | - |
| Swivelling range: | - |
| Material: | Aluminum, powder-coated |
| Suitable for: | Für fast alle Notebookmodelle |
| Scope of delivery: | 1x diamond base plate in trapezoidal shape with B-ball (RAM-B-238U) |
| Contains installation material: | - |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
