Novus POS base connect 100 with scanner mount for Magellan 1100i
The compact Novus POS base connect 100 with barcode scanner mount can be easily attached to most tables in the checkout area. Thanks to the tiltable and rotatable connect joint, the column is extremely flexible. The connect plate is designed for the Magellan 1100i scanner.

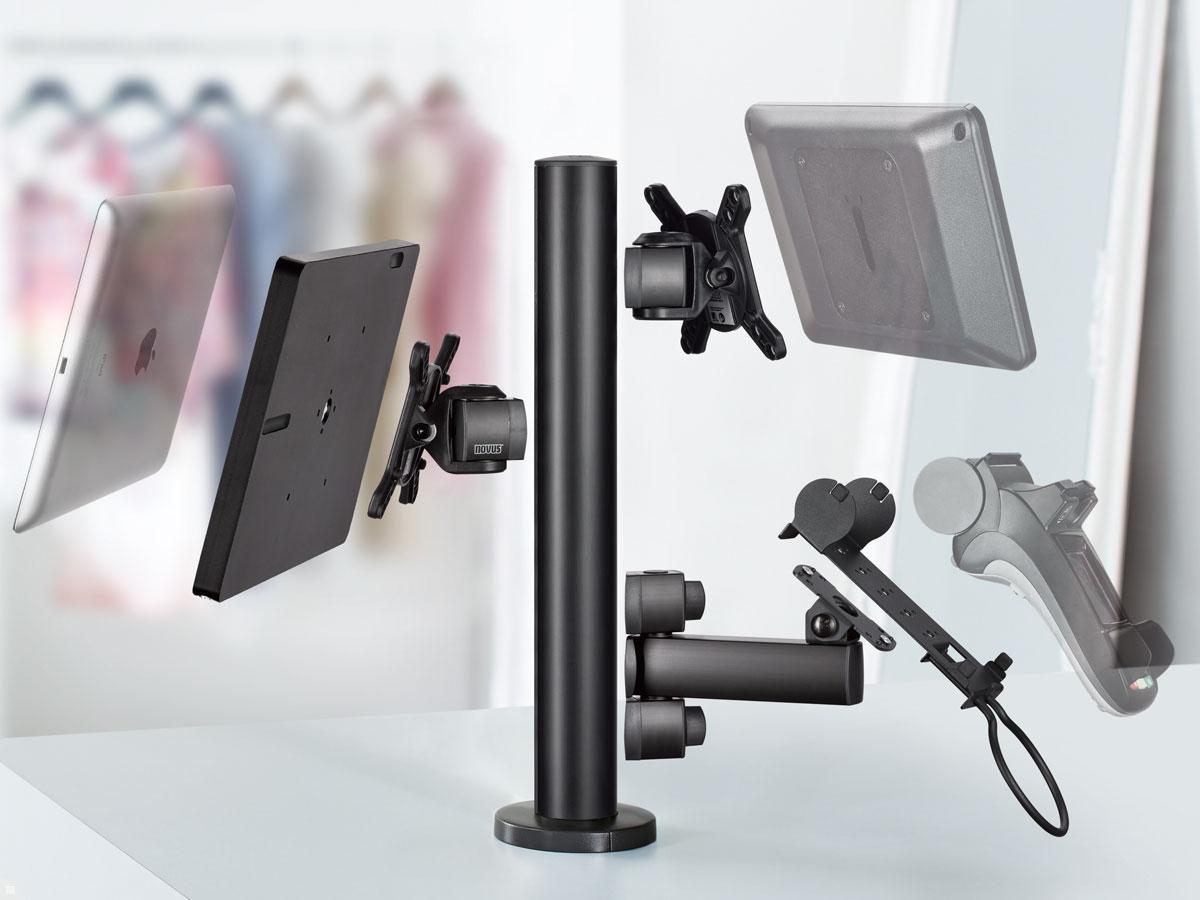

The products of the innovative Novus POS Solutions series significantly increase user-friendliness in the checkout area. The modular elements can be seamlessly integrated into various store environments and offer a wide range of individual customization options to optimize daily processes at the point of sale.
Barcode scanner mount for cash register systems
The Novus barcode scanner mount for cash register systems (005+1080+000) is particularly suitable for store areas with limited space. Its 100 mm high POS base connect column can be mounted on almost any table by means of screw-on or screw-through mounting. The connect plate is specially designed for the Magellan 1100i barcode scanner which can be easily screwed onto the connect plate. Rotatable and tiltable due to the connect joint, the plate allows for flexibility at the point of sale. Furthermore, the stand column is equipped with two practical slots through which device cables can be routed along the entire length of the column. The cover brushes ensure clean cable management.
Key features Novus POS base connect 100 with scanner mounting plate for Orbit MS 7120
- Finish: anthracite
- Material column: aluminum
- Material connect plate: high-quality metal, powdered in anthracite

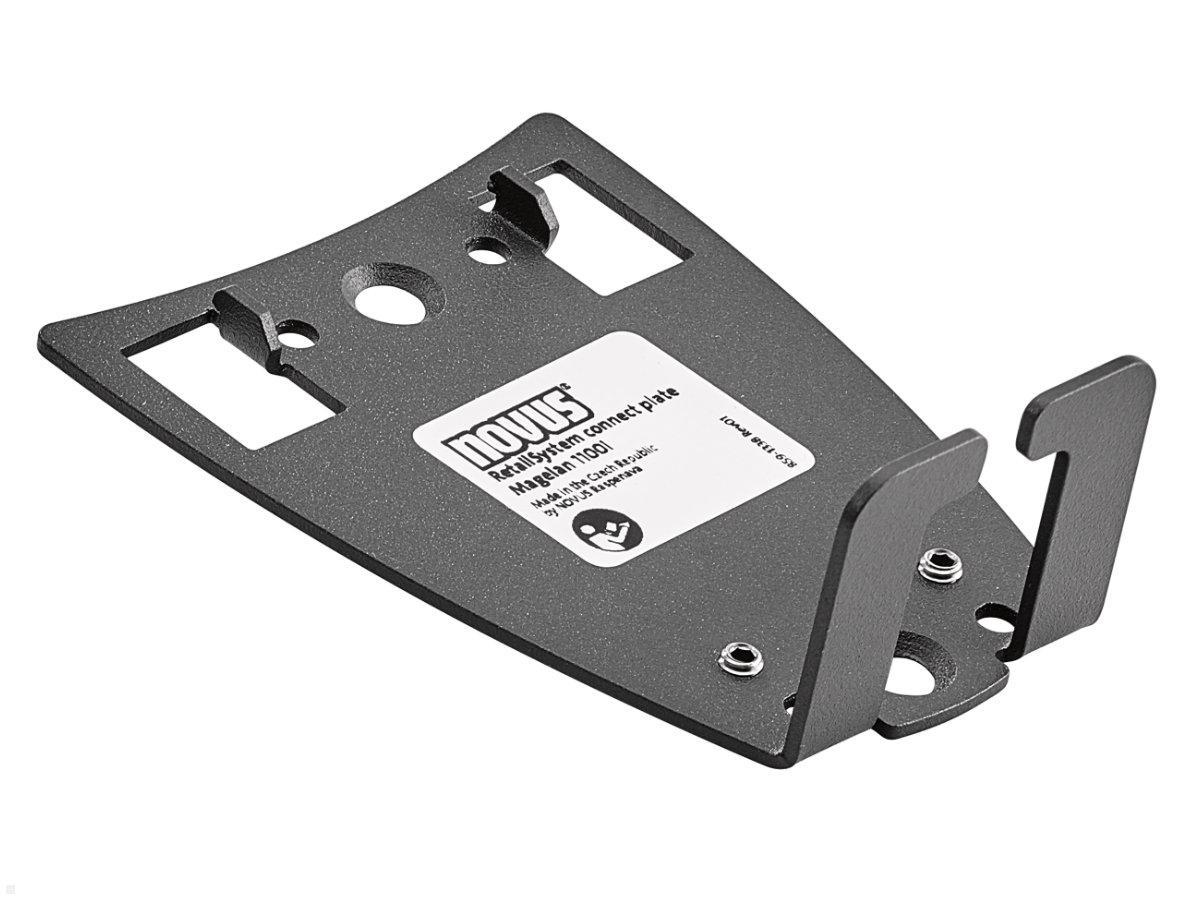

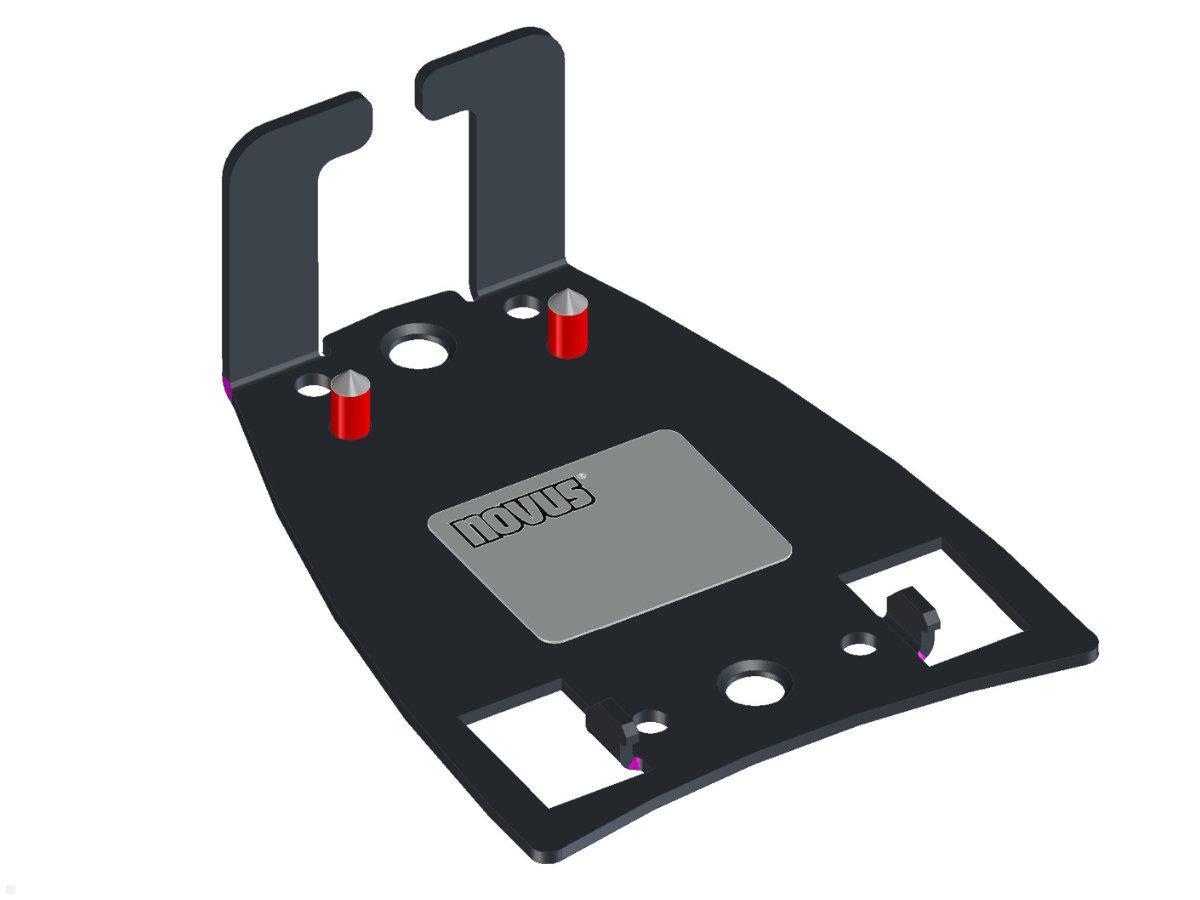

- Connect plate for barcode scanner Datalogic Magellan 1100i
- Tiltable: 70°
- Rotatable: 360 degrees
- Base diameter: 51 mm
- Column length: 100 mm
- Table top thickness: <70 mm

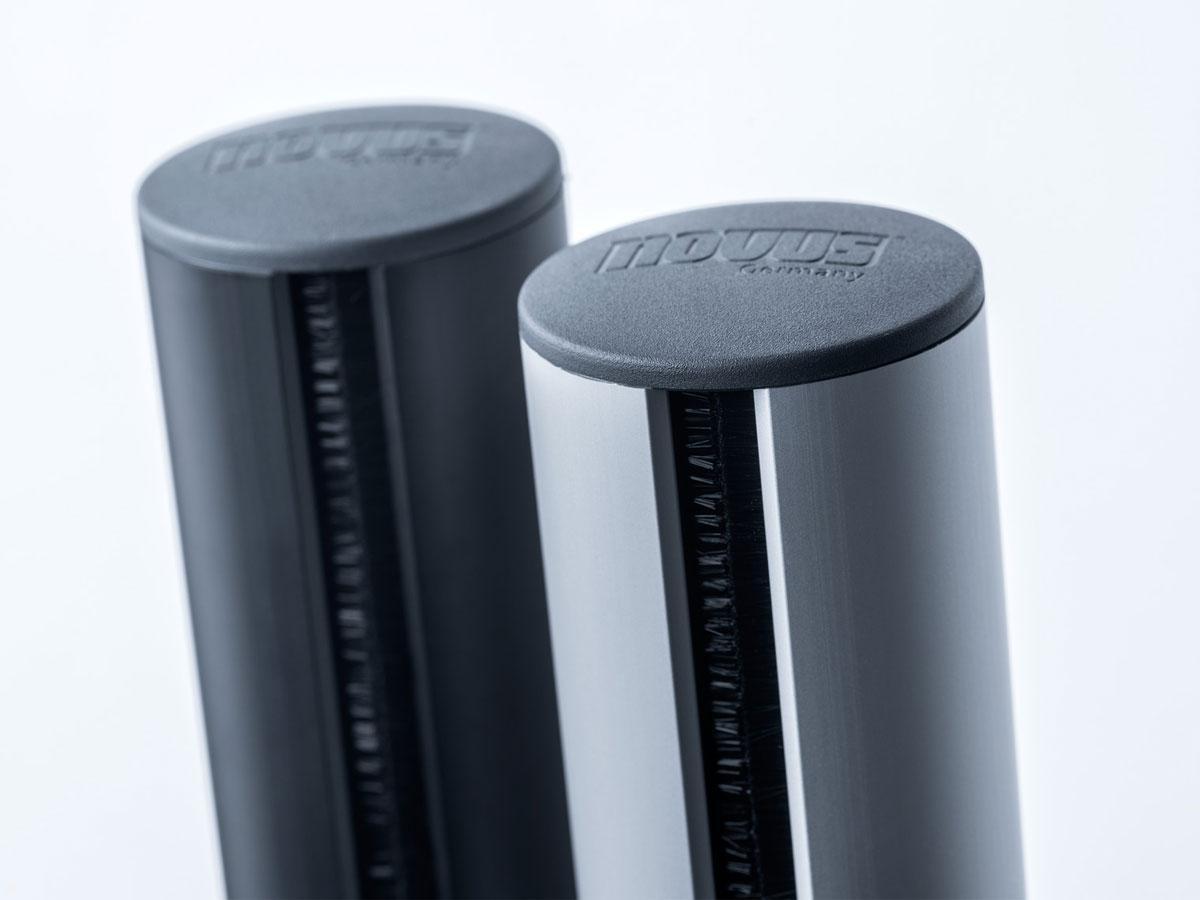

- 2 slots with cover brushes for clean cable routing

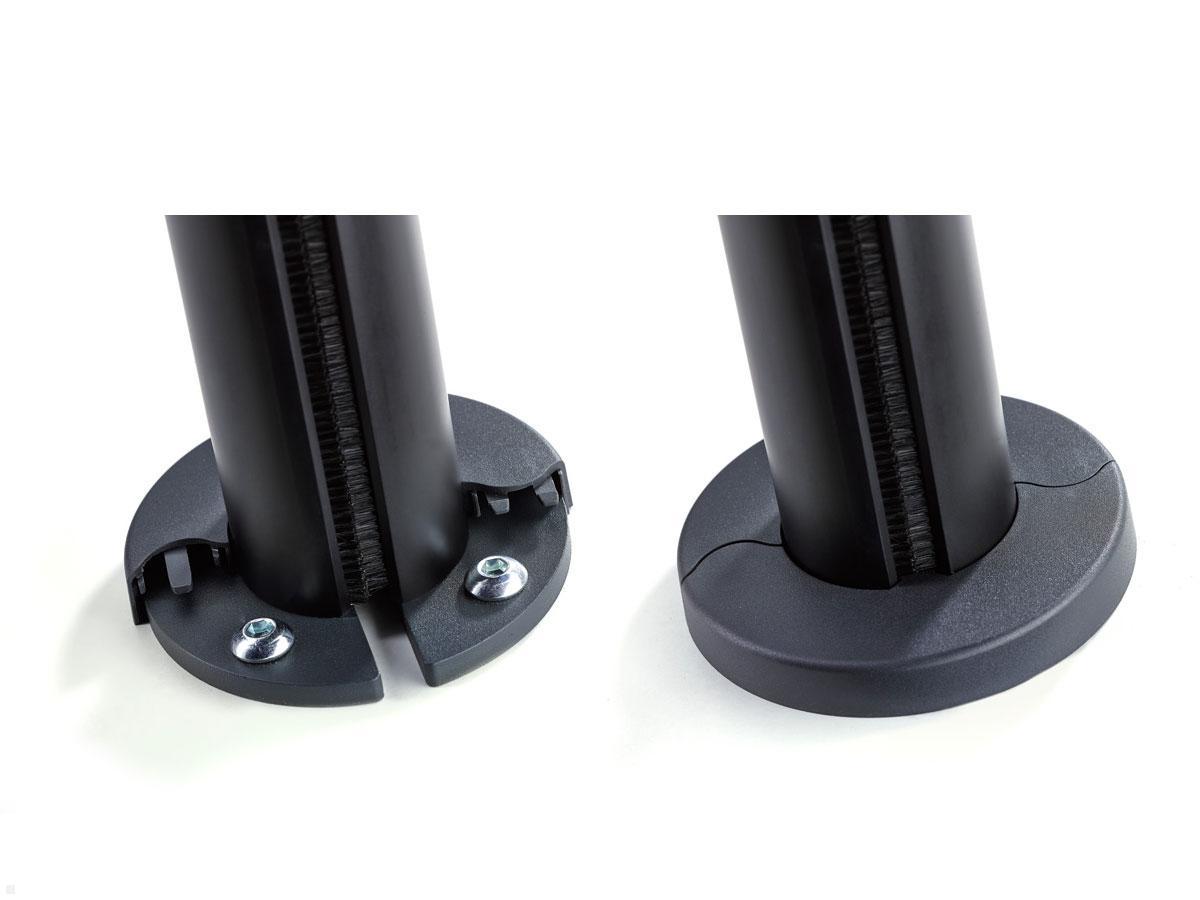

- 2-in-1 mounting option with screw-on and screw-through attachment
- Load capacity: max. 10 kg
Novus POS column with scanner mount (005+1080+000) consisting of:
- 1x Novus POS base connect 100 (851+1045+000), anthracite
- 1x Novus POS connect plate scanner Magellan 1100i (851+0035+003)
| Product sheet: |  [pdf, 271 kb] |
|---|---|

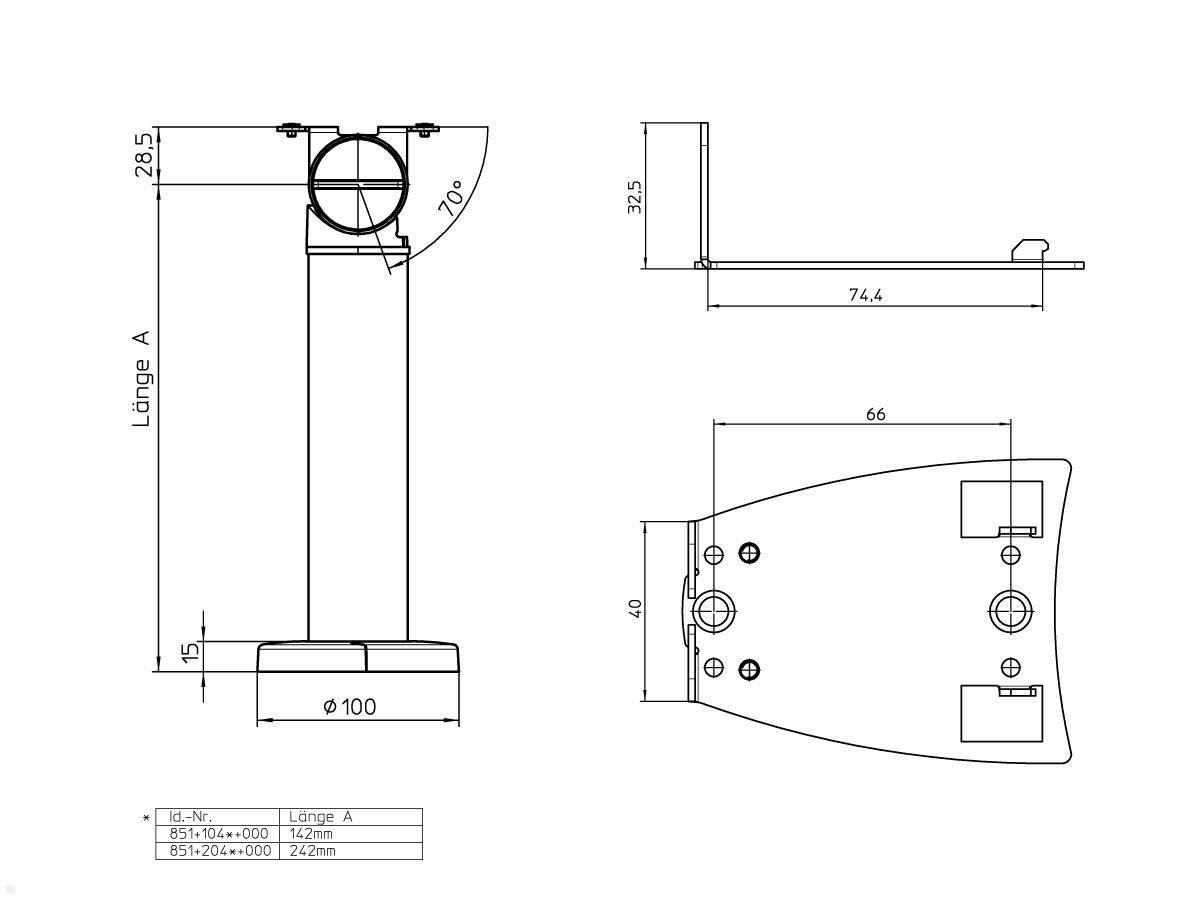

| Technical drawing: | [pdf, 147 kb] |
| Installation manual: | [pdf, 201 kb] |
| Capacity: | 10 kg |
| Tilt: | 70 Grad |
| Rotate: | 360° |
| Thickness of table (mm): | max. 70 mm |
| Material: | aluminum |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Warranty: | 2 years |
| Mobility: | swivelling, tilting |
| Mounting type: | desk - drill screw fastening |
| Theft-proof: | No |
| color: | Anthracite |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
