Novus POS base connect 100 with EC terminal universal adapter
Universal EC device table mount

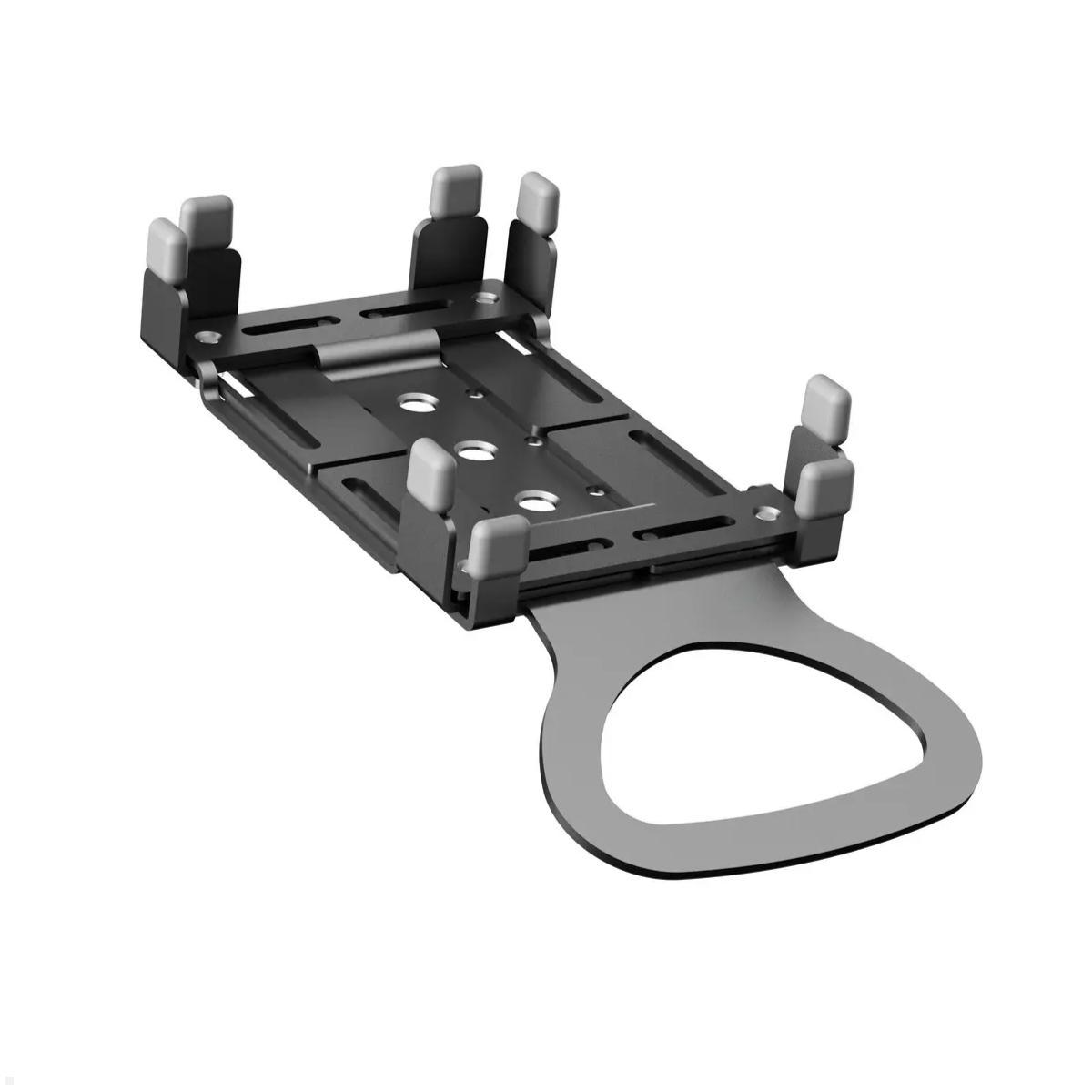

The Universal EC device table mount from the Novus POS Solutions line is suitable for holding a variety of popular cash terminals. Attached to a convenient column, the EC terminal can be mounted on tables in the point-of-sale area via screw-on or screw-through mounting. The connect plate for mounting the EC device has a practical grip ring. Together with the tiltable and rotatable connect joint on the column, the terminal can thus be flexibly aligned at any time. Two grooves on the column ensure ideal cable management by elegantly hiding the device cables behind the cover brushes.
Key features Novus POS EC terminal universal mount (013+1080+000)
- Universal connect plate for common EC cash terminal devices
- Min. - max. width EC device: 69 - 105 mm
- Min. - max. length EC device: 113,5 - 198 mm
- Load capacity: 10 kg
- Practical hand grip ring for aligning the EC-Cash device
- Height column: 142 mm
- Diameter column: 51 mm
- Diameter base: 100.6 mm
- Tilt: 70 degrees
- Rotate: 360°
- Table mounting by screw-on or screw-through attachment
- Integrated cable management (2 grooves with cover brushes)
- Incl. 2 cable clamps
- Material column: aluminum
- Material connect plate: metal with powder coating
- Color: anthracite
| Product sheet: |  [pdf] |
|---|---|

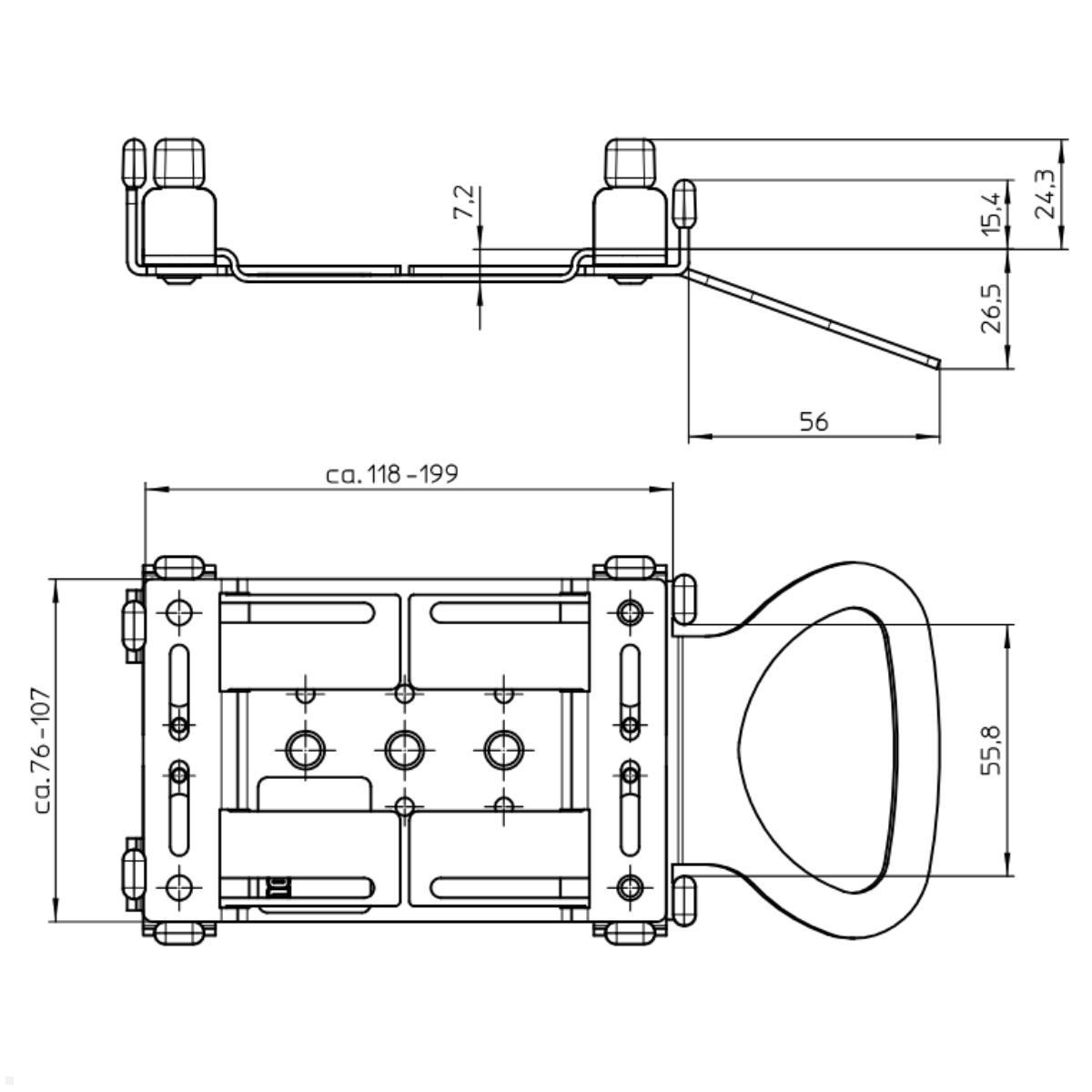

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 10 kg |
| Tilt: | 70° |
| Rotate: | 360° |
| Thickness of table (mm): | max. 70 |
| Material: | Aluminium |
| Suitable for: | EC devices up to 198x105 mm |
| Scope of delivery: | 1x EC device universal adapter | 1x POS base connect 100 column |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Warranty: | 2 years |
| Mobility: | swivelling, tilting |
| Mounting type: | desk - drill screw fastening |
| Theft-proof: | No |
| color: | Anthracite |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
21 December 2023 14:30
Verlässlicher Halt für mein EC-Gerät im Kiosk!
Irgendwann kommt man auch als Kioskbetreiber nicht mehr um ein Kartenlesegerät herum. Dieser Halter sitzt sehr stabil und lässt sich leicht bewegen - mehr brauche ich im Laden nicht. Insgesamt strahlt die Säule Qualität und Stabilität aus.
