POS monitor holder

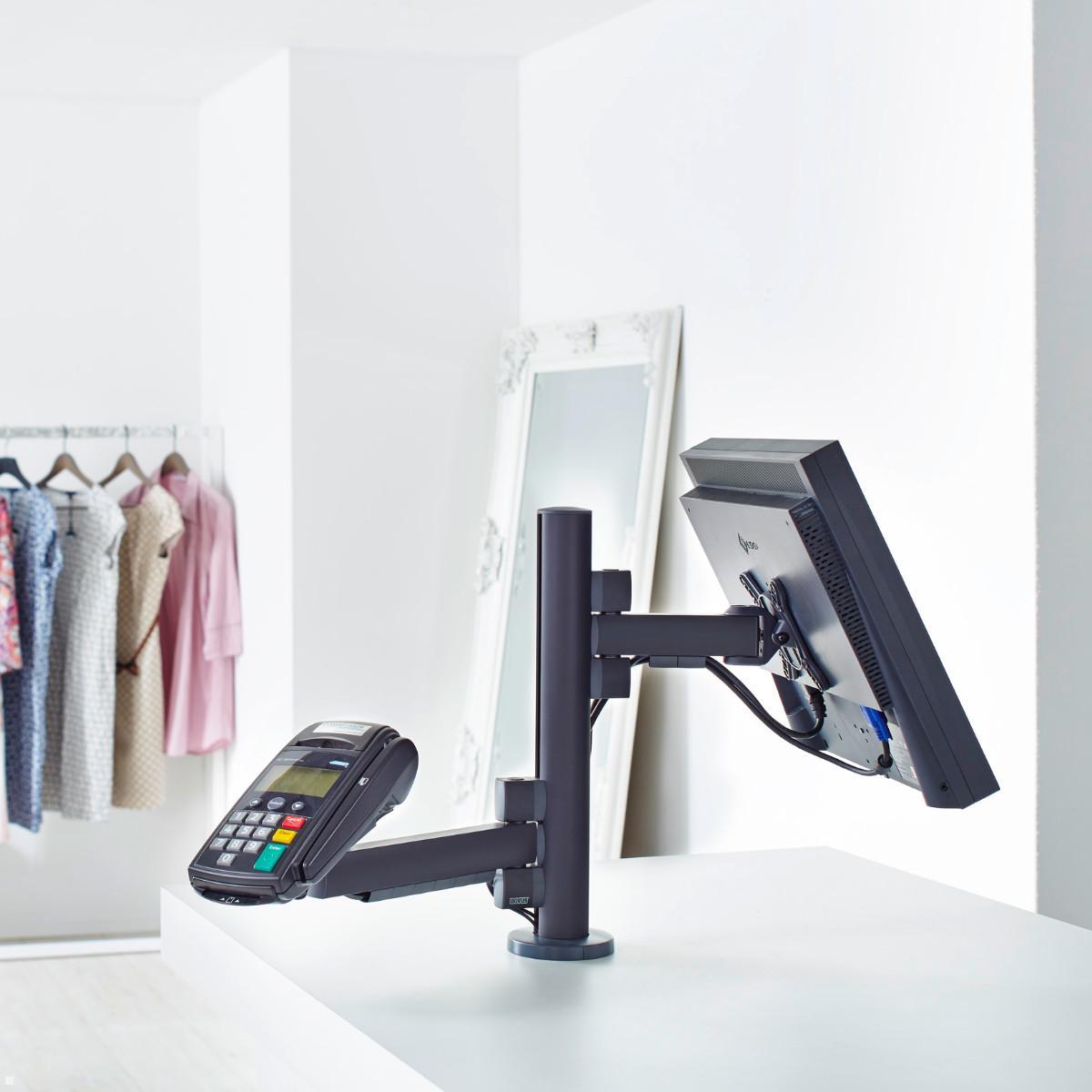

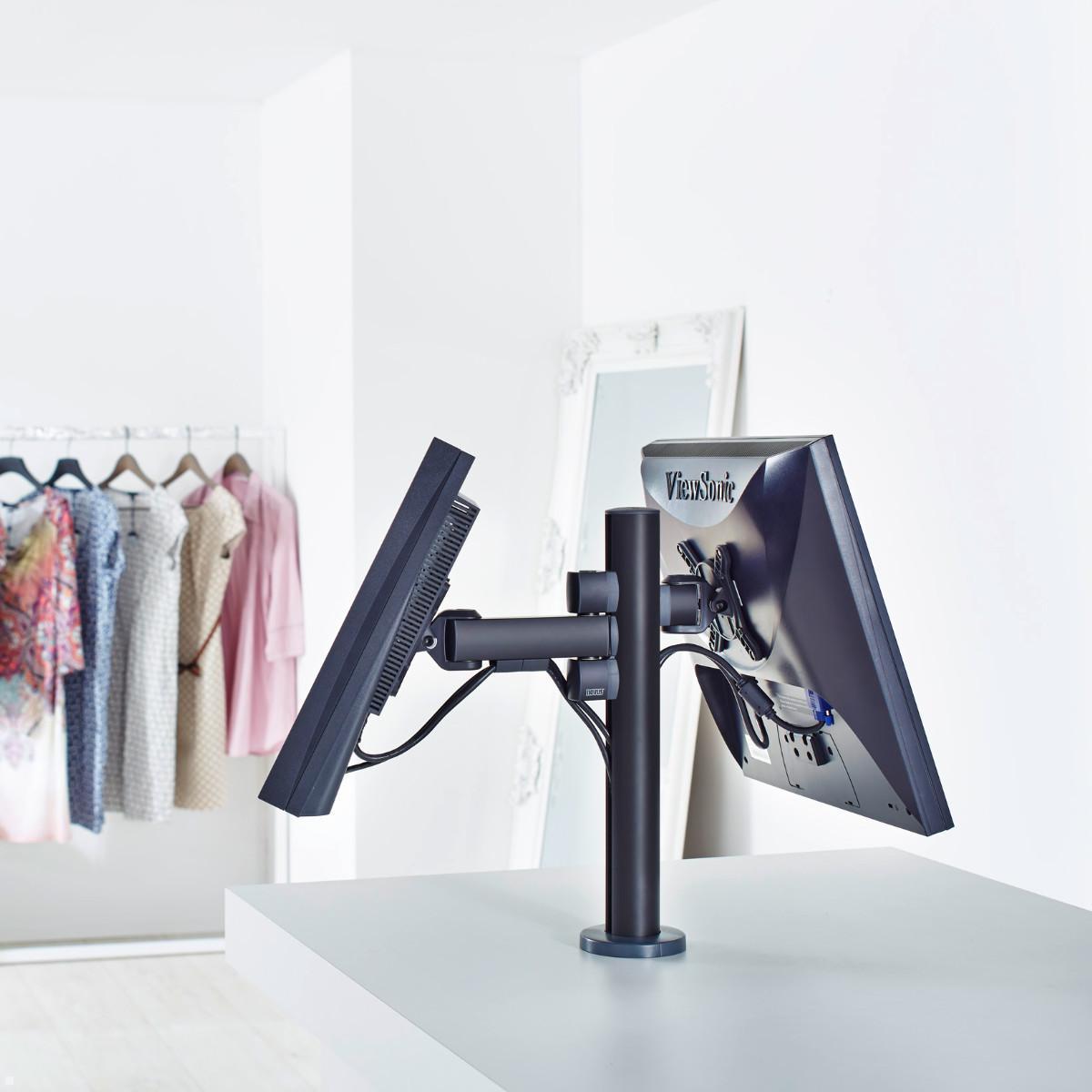

With the POS Solutions series, Novus offers a retail system that can be modularly adapted to different needs at the point of sale and scores with a variety of individual expansion options. The POS monitor holder M 120 is used to attach screens in the checkout area and is designed for use with a Novus POS base column, which is available separately. The monitor can be tilted up and down on the mount as well as swiveled 90 degrees to the left and right. The integrated cable management on the swivel arm ensures clean cable routing. The maximum load capacity of the monitor mount is 10 kg.
Key features Novus POS support arm M 120, anthracite (852+2005+001)
- For mounting monitors / displays at the point of sale
- VESA mount: 75x75 mm
- Capacity: 10 kg
- Length of swivel arm: 120 mm
- Tilt: +/- 40°
- Swivel: +/- 90°
- Material: aluminum
- Integrated cable management
- Mandatory supplement is a Novus POS base column (not included)
- Warranty: 2 years
- Finish: anthracite
Does your display fit the monitor mount?
We would be happy to check whether your monitor is suitable for this Novus POS M 120 monitor mount. Just tell us your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and if not, we will contact you.

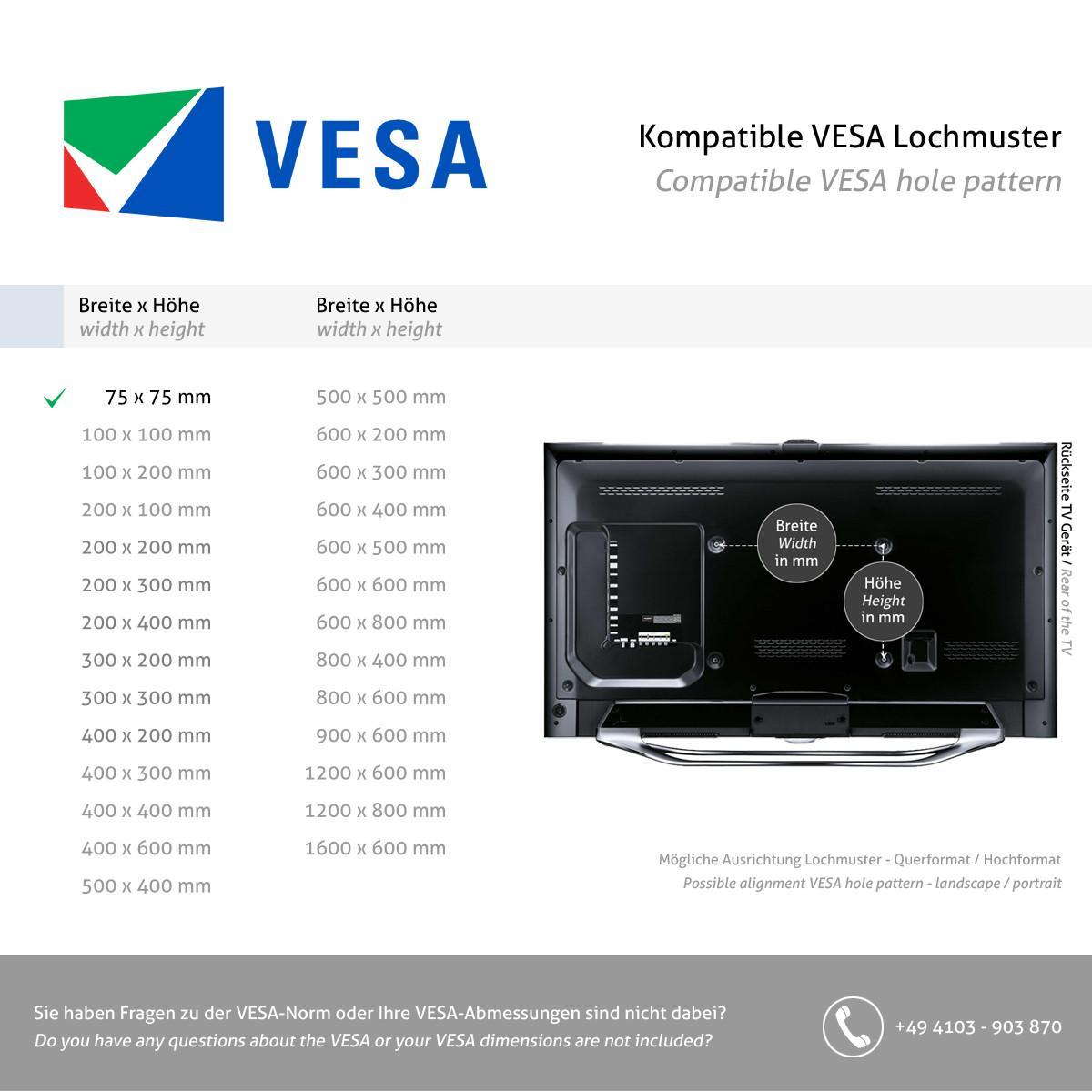

VESA Standard - Learn more about the VESA standard of monitor mounts!
Product sheet: | [pdf] |
---|---|

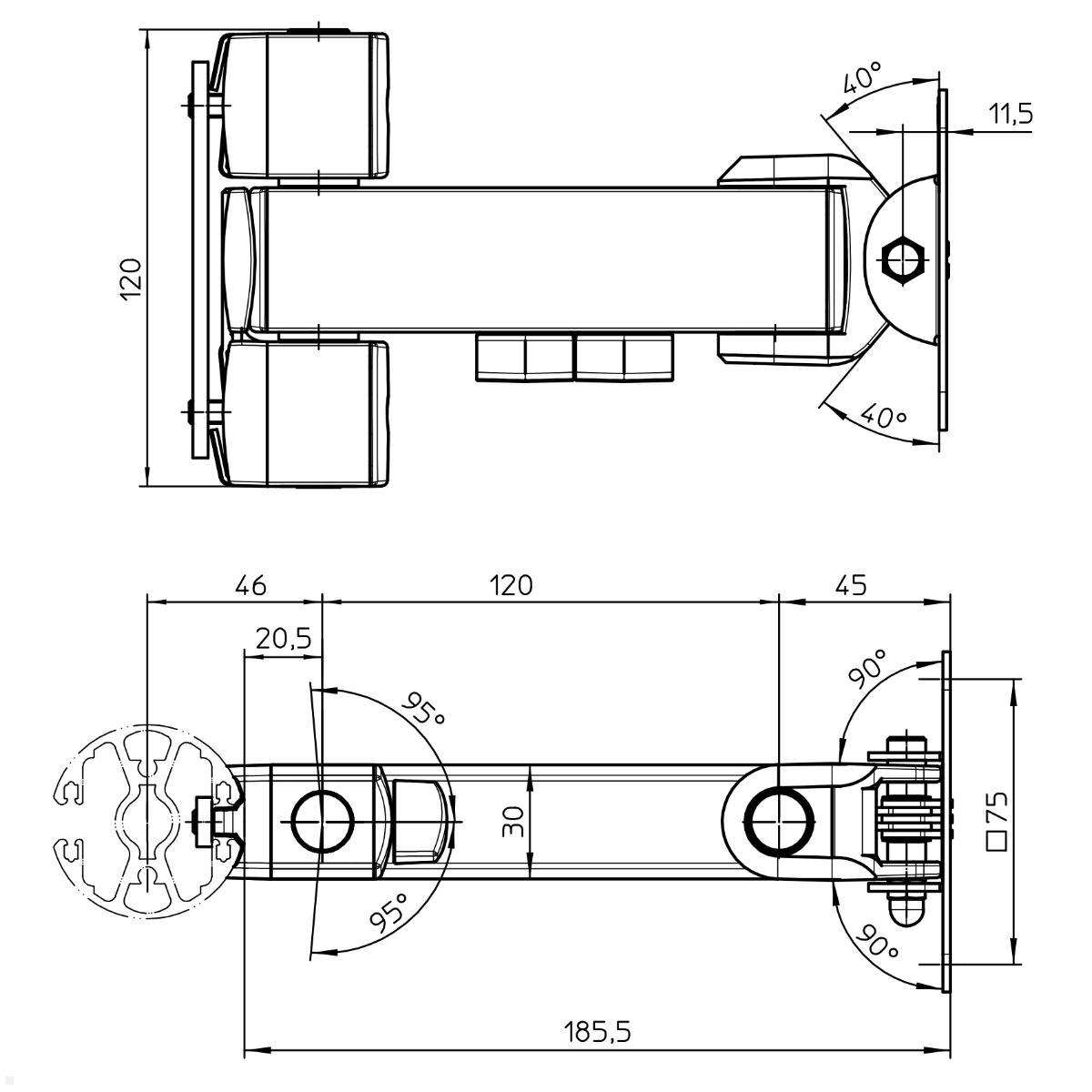

Technical drawing: | [pdf] |
Installation manual: | [pdf] |
Capacity: | 10 kg |
Tilt: | +/- 40° |
Swivelling range: | +/- 90° |
Length of the swivel arm: | 120 mm |
Material: | aluminum |
Depth of the bracket: | 185,5 mm |
VESA Standard: | 75x75 mm (www.vesa-standard.com) |
Packaging dimensions (LxWxH in mm): | 310 x 260 x 120 |
Scope of delivery: | 1x Novus POS arm M 120 |
Contains installation material: | + |
Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
Warranty: | 2 years |
Mobility: | swivelling, tilting |
Theft-proof: | Nein |
color: | Black |
VESA (in mm): | VESA 75x75 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
