Novus Dual Monitor Holder TSS Column 845 Table Clamp with Folding Arm III
The Novus multi-station set TSS screen mount for 2 monitors (015+0328+000) is a double monitor mount consisting of the Novus TSS column 845 with table clamp HD heavy duty and two monitor arms Novus TSS folding arm III - The Novus bestseller for the ergonomically correct use of flat screens at the workplace.
Dual monitor holder for screens one above the other
The combination of the Novus TSS column 845 with table clamp HD and two monitor arms Novus TSS folding arm III make this Novus TSS monitor table mount 015+0328+000 an asset to any workplace. With multiple adjustment options, the TSS monitor mount is one of Novus' ergonomic gems. The bestseller promises a perfect hold and practical operation at a small price. Thanks to the desk clamp, the desk remains undamaged without having to drill a hole to attach the column. With NOVUS QuickRelease for quick and easy monitor change without tools. The Dual Monitor Holder for screens one above the other comes with removable clamping handles for anti-theft protection.
Kea features Dual Monitor Holder (015+0328+000)
Novus TSS column 845 table clamp HD
- Suitable for all TSS support elements
- Aluminum column with four grooves
- HD - Heavy Duty: High load capacity
- Column diameter: 51 mm
- Column length: 845 mm
- Suitable for table top thickness 12-60 mm
- Dimensions TSS table clamp HD (H x W): 126 x 120 mm
- Delivery includes two cable clamps
- Finish: silver

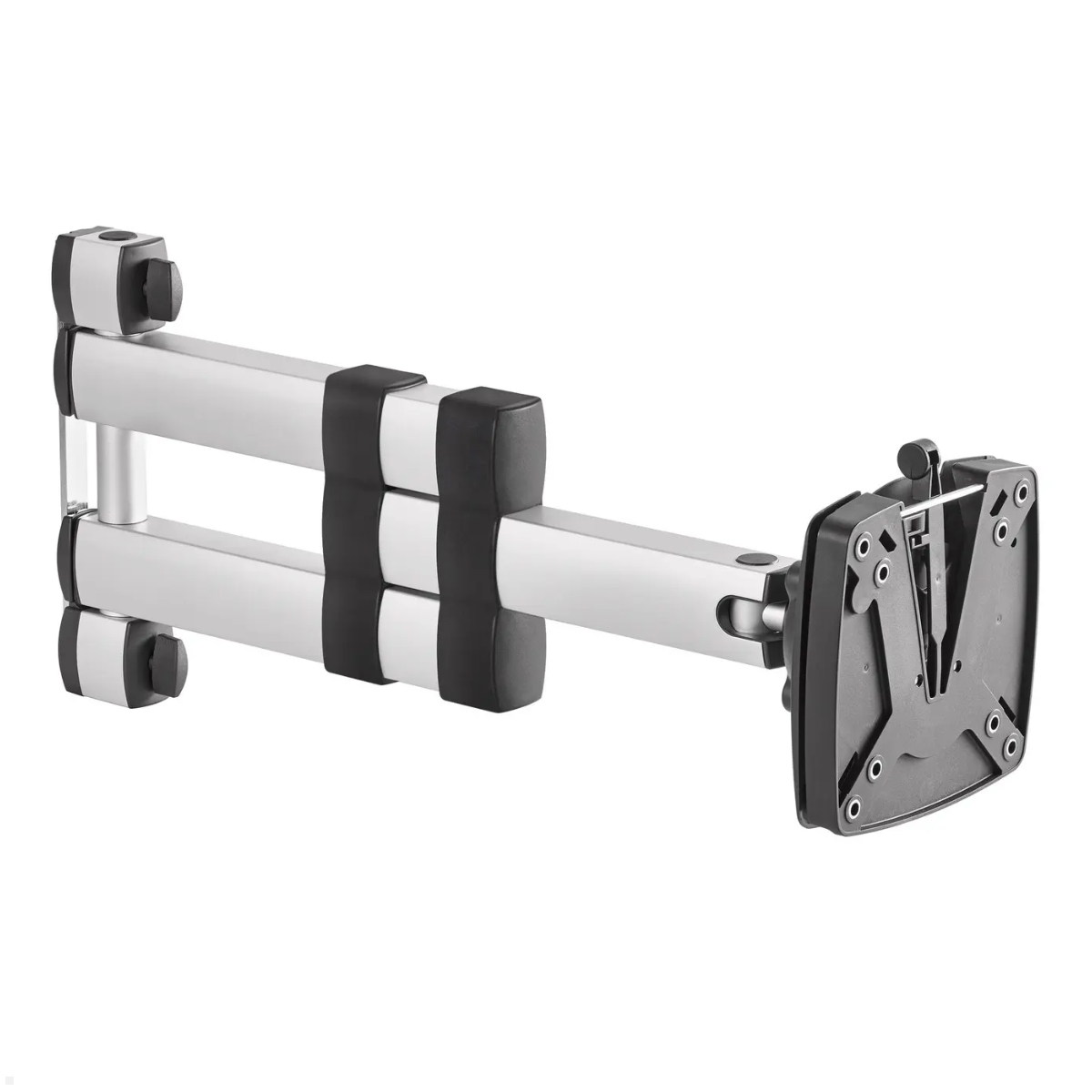

Novus bracket TSS folding arm III
- Load capacity: 15 kg
- Reach: 505 mm
- Tilt: +/- 45 degrees
- Pivoting range: 360 degrees
- Height adjustable: stepless
- VESA mount adapter plate: 75x75mm and 100x100mm
- The device can be swiveled to both sides and has 105 mm reach
- Tested according to the equipment and product safety law
- Ball joint for flexible and precise positioning of the monitor
- With NOVUS QuickRelease for quick and easy monitor change without tools
Does your monitor fit the Novus TSS Dual monitor mount (015+0328+000) desk mount?
We would be happy to check whether your monitors (display, TV, LED, LCD, plasma, TFT, screen) are suitable for this Novus TSS Dual monitor holder (015+0328+000). Just tell us your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you whether the monitor fits and if not, we will contact you.
VESA Standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 15 kg / monitor |
| Tilt: | +/- 45° |
| Height range (mm): | 840 mm |
| Swivelling range: | 360° |
| Length of the swivel arm: | 505 mm |
| Screen size: | max. 35" |
| Thickness of table (mm): | 12 - 60 mm |
| Special features: | Removable clamping handles for theft protection |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Warranty: | 5 years |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 2 monitors one above the other |
| Theft-proof: | No |
| color: | Silver/Anthracite |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
