MonLines MLS007B myTVLift built-in TV lift 37-65 inch, 842 mm stroke
Electric built-in TV lift

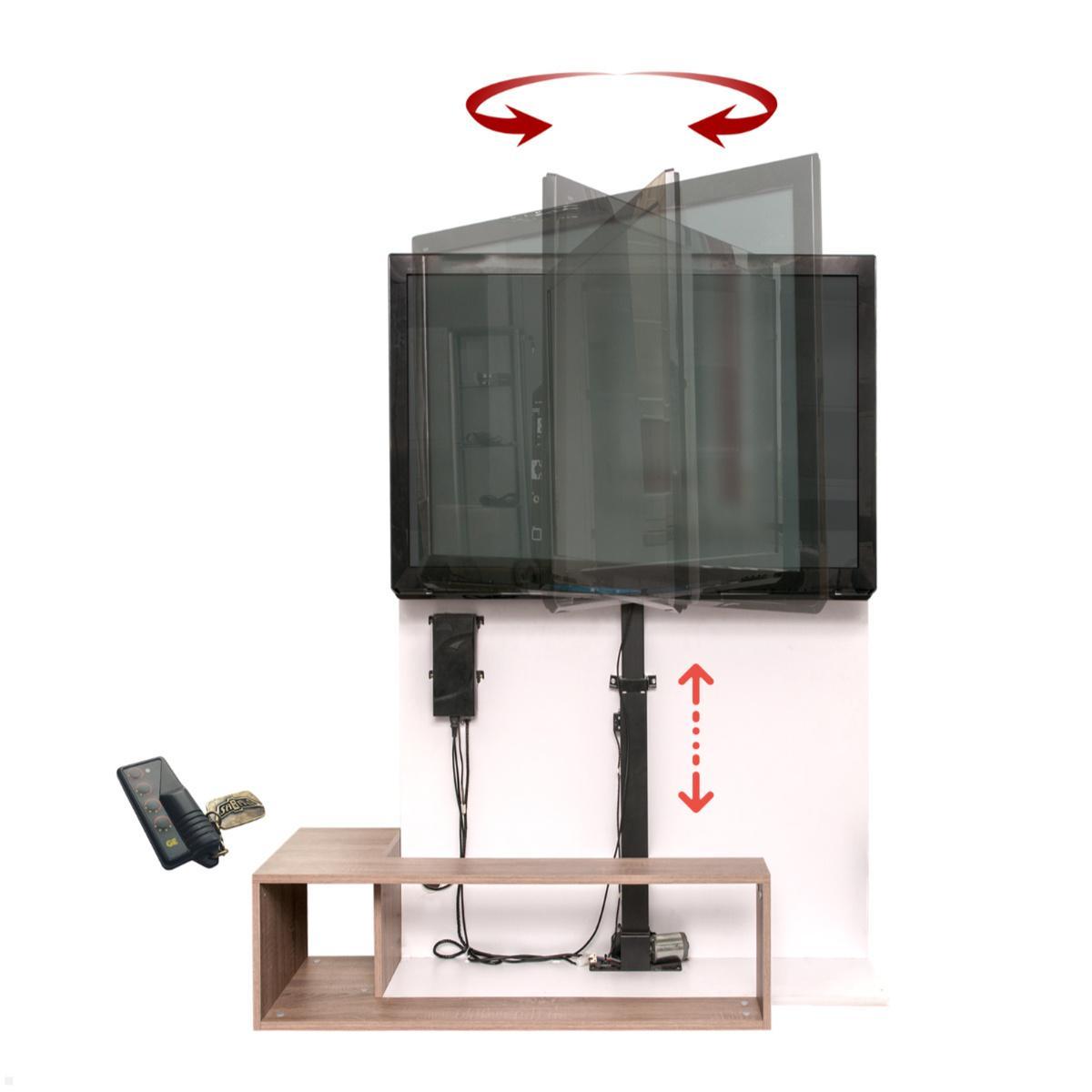

The electric built-in TV lift from MonLines is suitable for TVs with a size of 37" to 65 inches and a maximum weight of 50 kg and can be lowered into a piece of furniture such as a cabinet, chest of drawers or sideboard. At the touch of a button on the supplied remote control, the screen extends to a height of up to 166 cm. When extended, the motorized TV lift can swivel 225° to the right and 90° to the left. Preferred positions can be easily saved. Thanks to the anti-collision function, the TV is protected from possible damage: If there is an obstacle in the way, the myTVLift automatically stops moving. There is also a separate socket on the lift for the TV's power connection. When the TV lift is retracted, the TV is simultaneously disconnected from the power supply for additional safety. The integrated cable management ensures tidy, neat cable routing inside the TV lift.
As an additional option, the MonLines MLS008 WiFi adapter is available, which allows the myTVLift to be controlled via smartphone or Smart Home applications such as Amazon Alexa and Google Home.
Height-adjustable, motorized monitor mount
In addition to the living room, ideal areas of application for the myTVLift are, for example, trade fairs, conference rooms, universities and schools or congress centers and convention centers. The monitor can be integrated into the furniture by installing the TV Lift and is thus suitable for presentations, training purposes or workshops, among other things.
Key features MonLines myTVLift MLS007B, 842 mm stroke
- Screen sizes: 37", 38", 40", 42", 43", 46", 47", 48", 49", 50", 52", 55", 58", 60", 63", 65 inch
- Load capacity: 50 kg
- VESA mount: 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 400x600, 500x400, 500x500, 600x200, 600x300, 600x400, 600x500, 600x600 mm

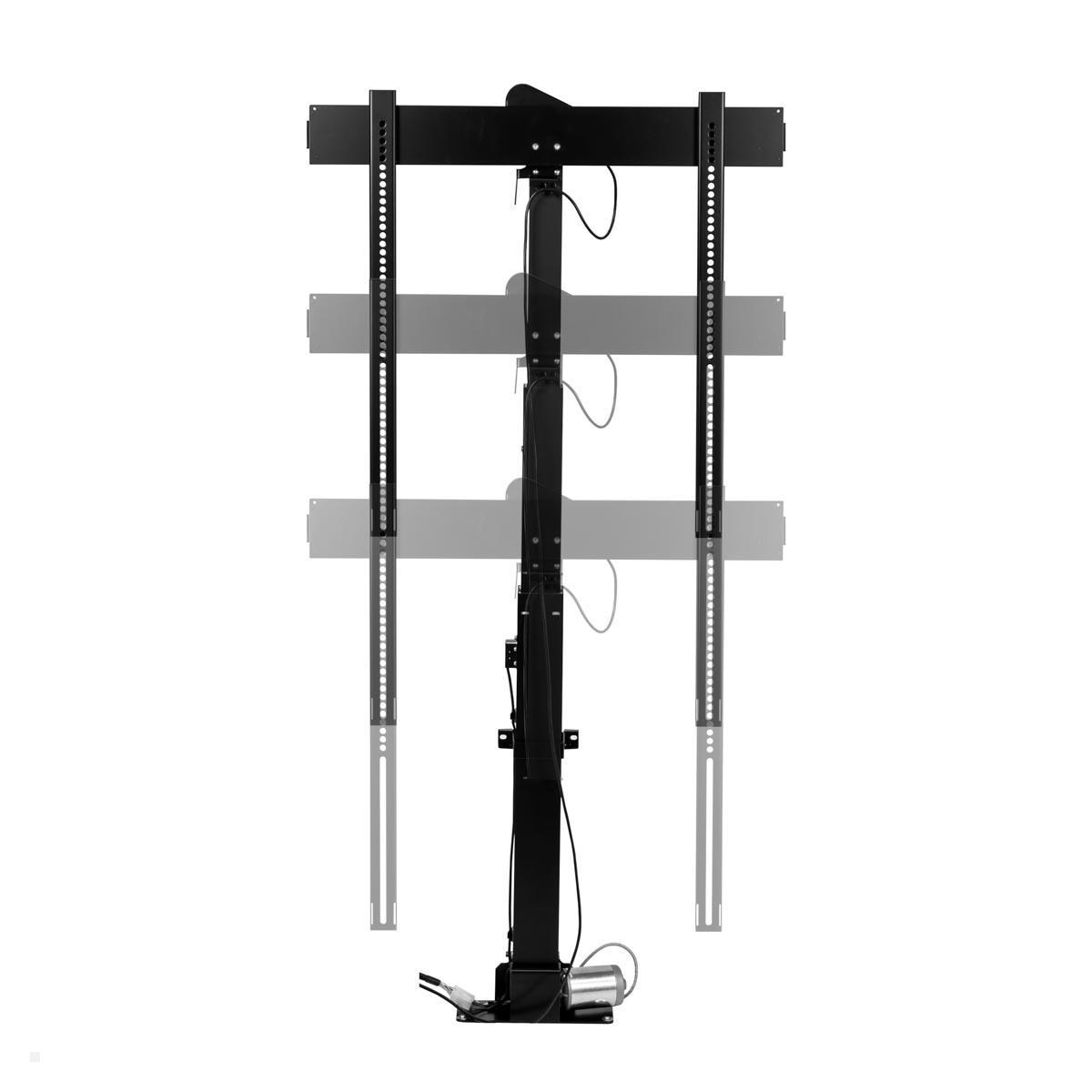

- Stroke: 842 mm
- Height-adjustable: 823 - 1665 mm
- Installation depth: 112 mm

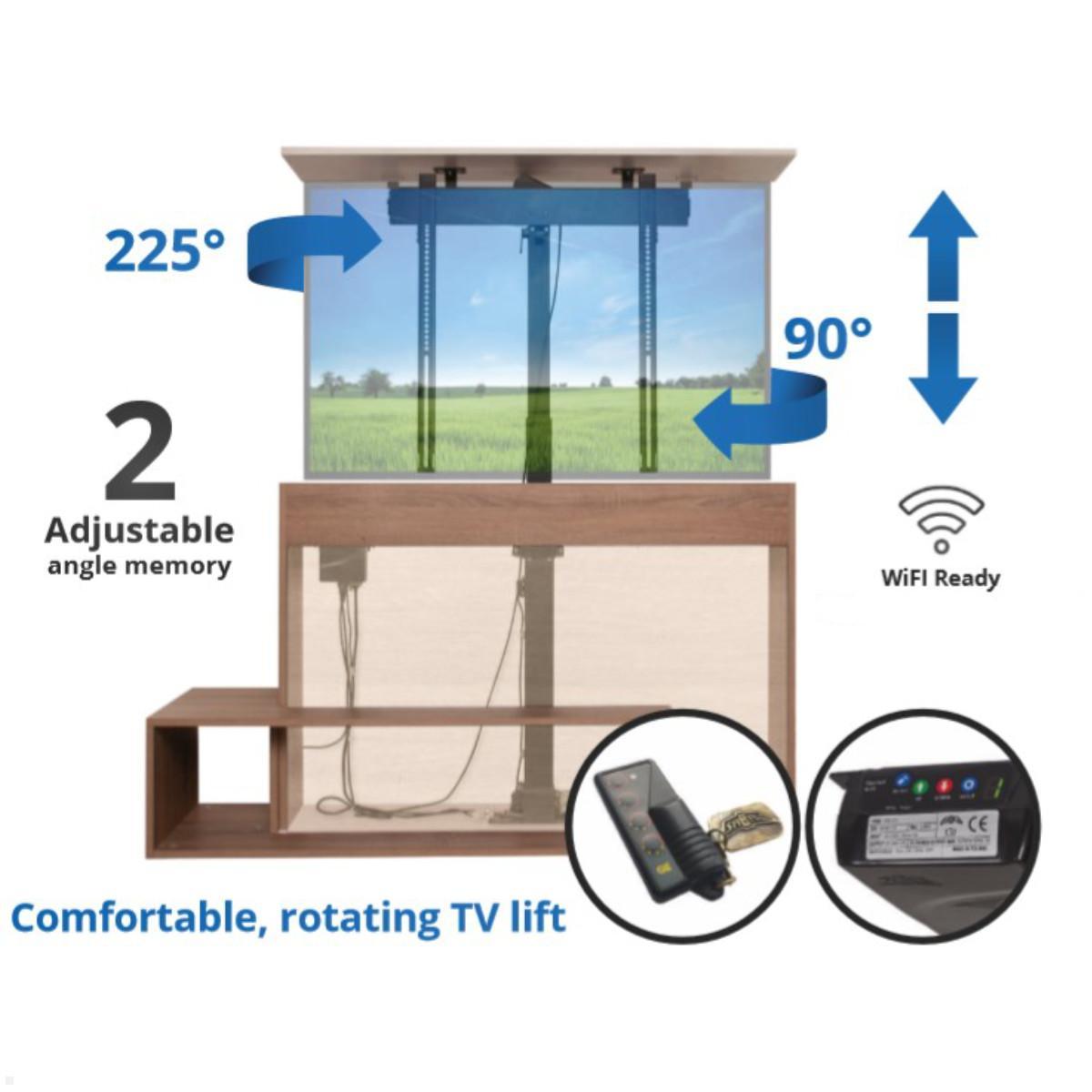

- Electrically rotatable when extended (225° right, 90° left)
- Preferred positions can be saved

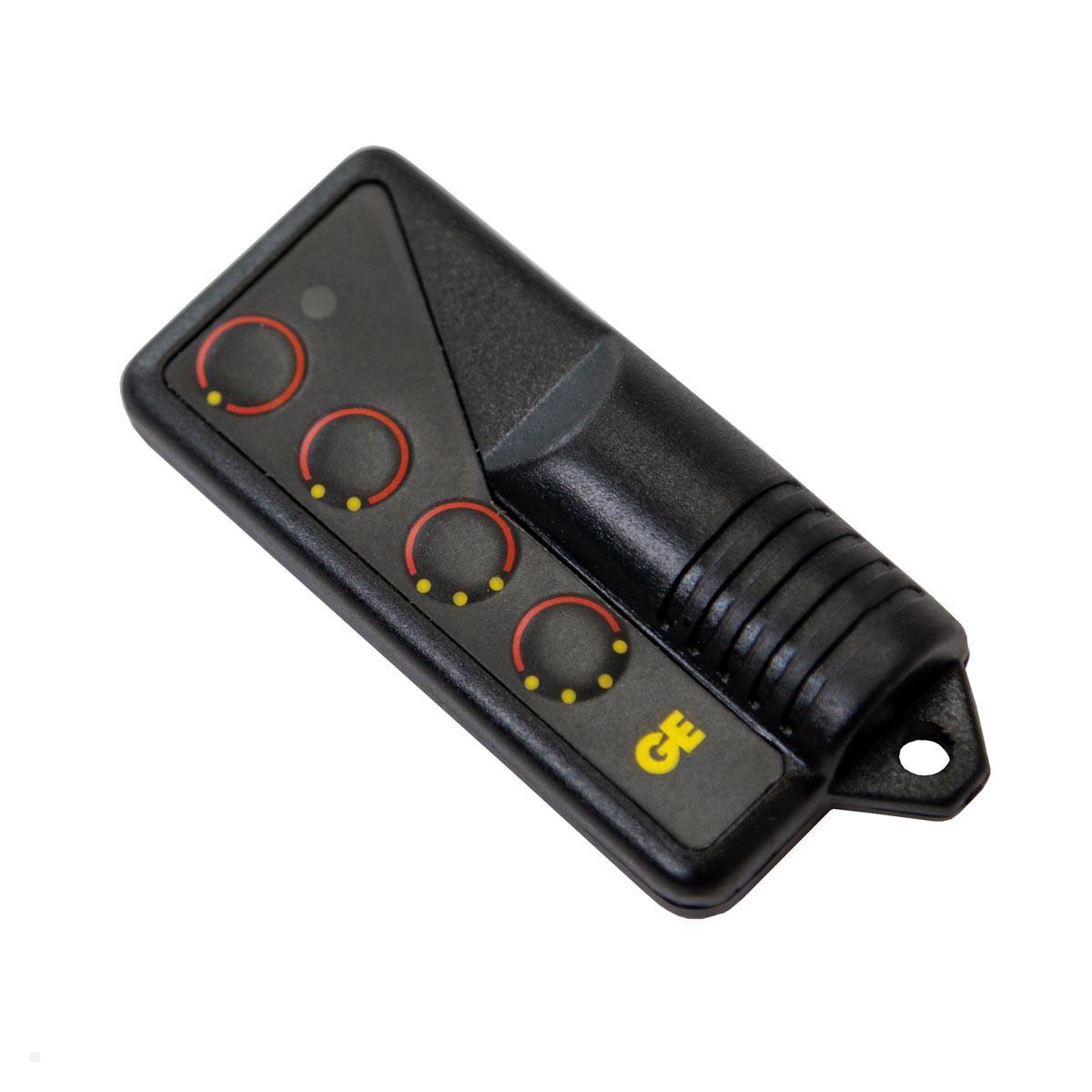

- Incl. remote control
- Remote control range: approx. 15 m
- Optionally available: Monlines MLS008 WiFi adapter for Smartphone / Smart Home control

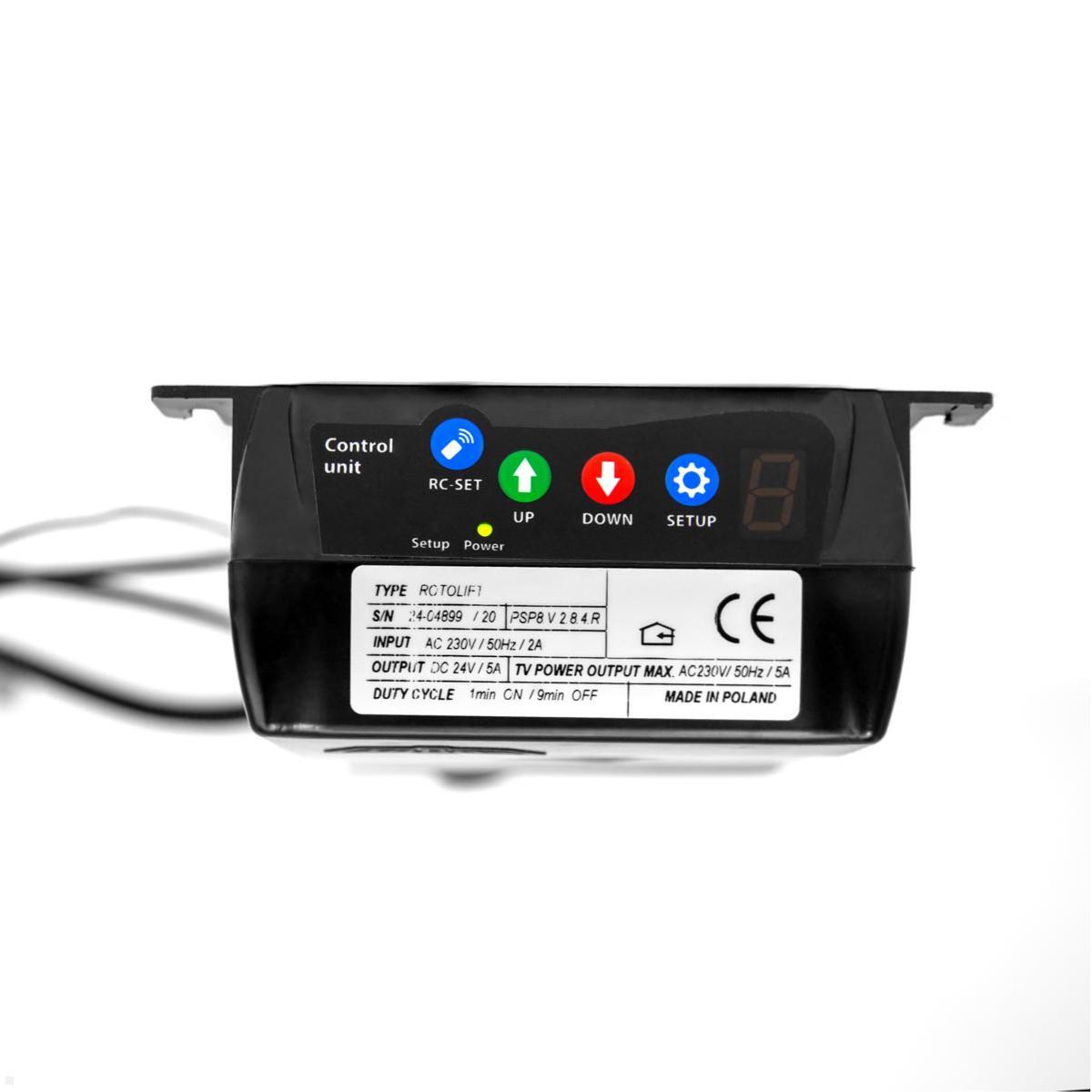

- Power supply: 230 V, 50 Hz, 2A
- Max. TV power output: 230 V, 50 Hz, 5 A
- Additional power cord for directly connecting the TV set to the myTVLift
- Automatic disconnection of the TV from the power when retracted
- Incl. overheating protection and anti-collision function
- Integrated cable management
- Finish: black
Does your TV fit the TV Lift?
We will be happy to check whether your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this MonLines myTVLift MLS007B. Just tell us your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you if the TV fits and if not, we will contact you.

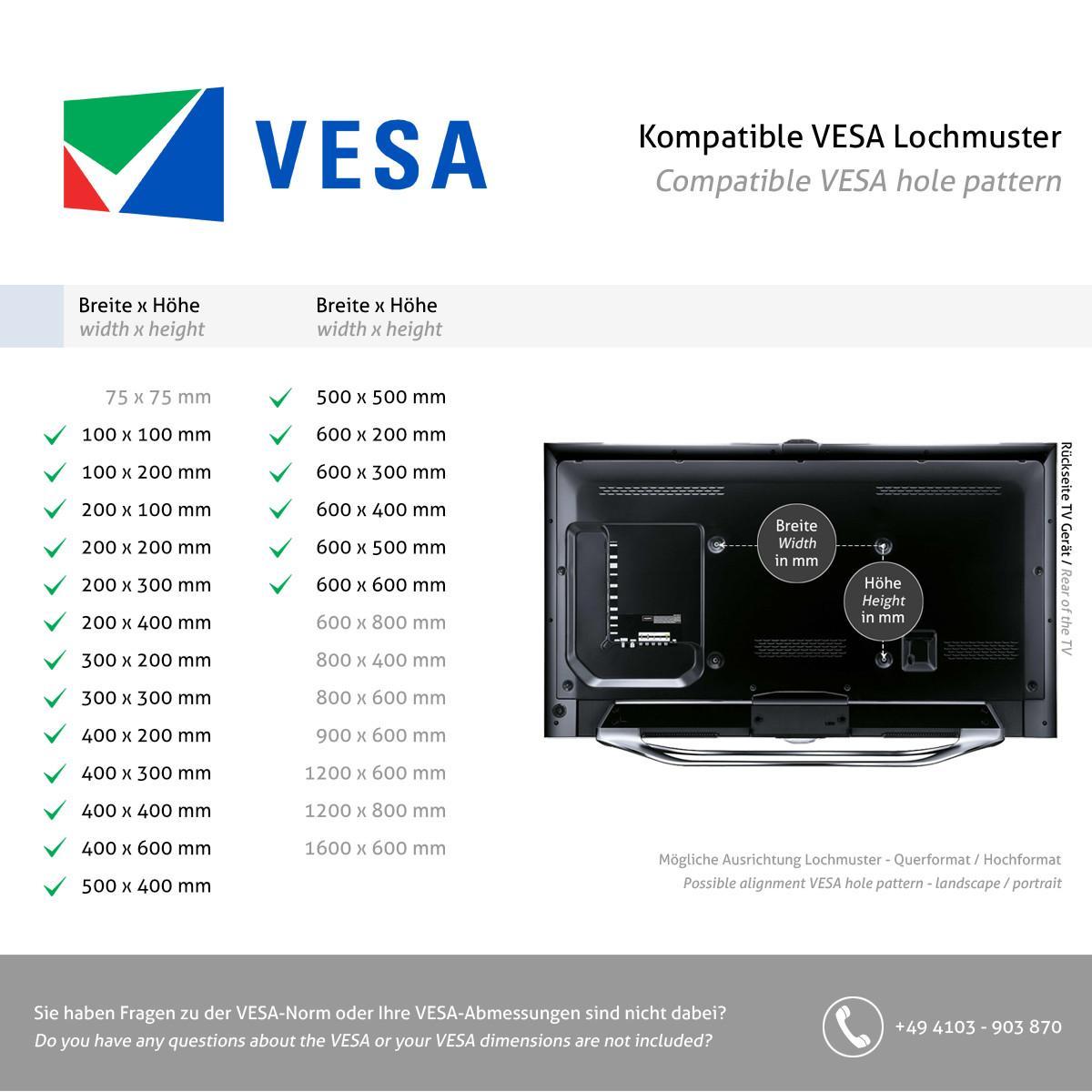

VESA standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

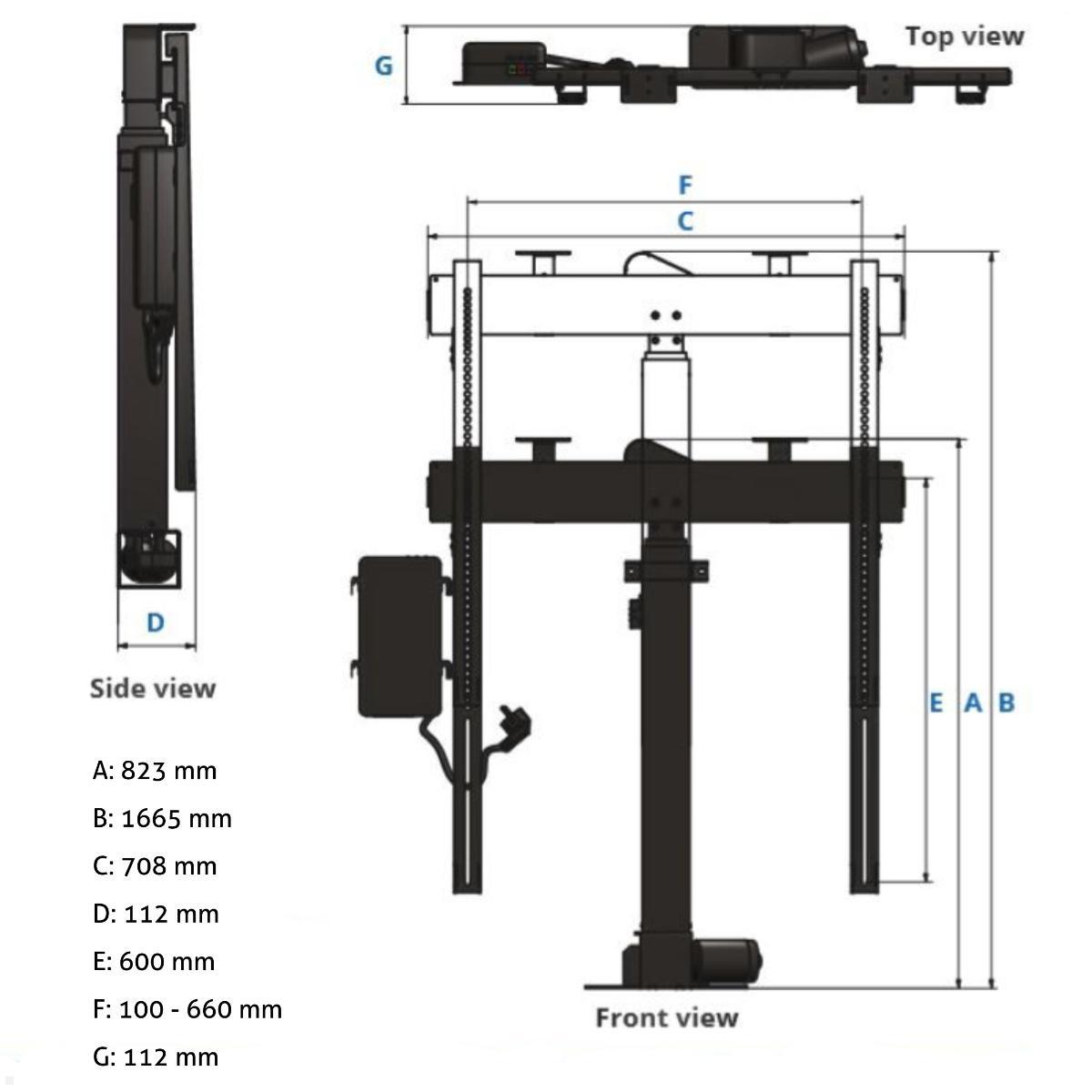

| Technical drawing: | [pdf] |
| Installation manual: | [pdf - German] |
| Capacity: | 50 kg |
| Tilt: | - |
| Height range (mm): | 842 |
| Swivelling range: | 225° rechts / 90° links |
| Screen size: | 37 - 65" |
| Depth of the bracket: | 112 mm |
| VESA Standard: | 100x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 500x500, 600x400, 600x600 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 850 x 350 x 170 |

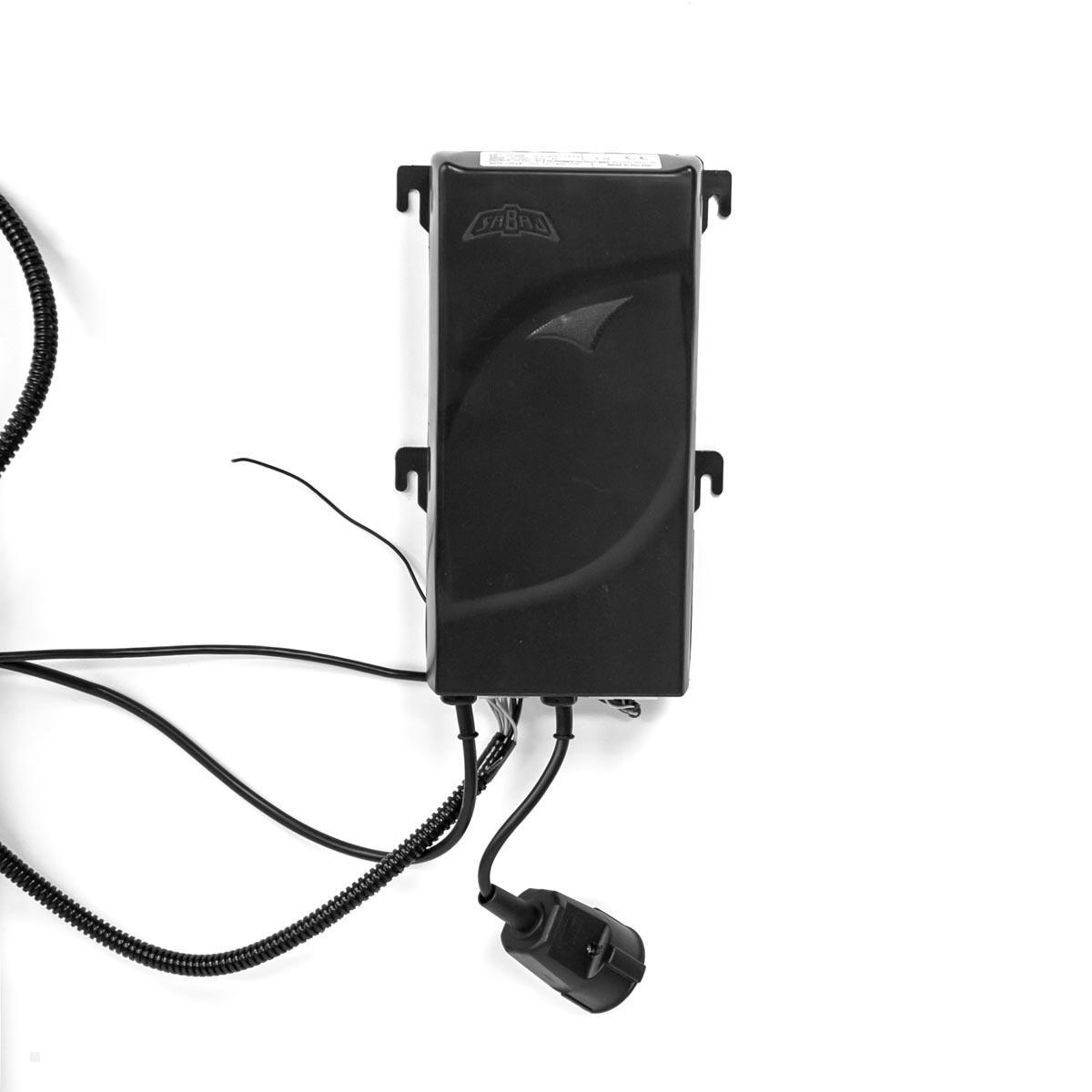

| Scope of delivery: | myTVLift MLS007B, control box, remote control, mounting hardware |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch |
| Mobility: | electrical, swivelling |
| Mounting type: | Lift |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 100x200, VESA 200x100, VESA 200x200, VESA 200x300, VESA 200x400, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 400x600, VESA 500x400, VESA 500x500, VESA 600x200, VESA 600x300, VESA 600x400, VESA 600x500, VESA 600x600 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
