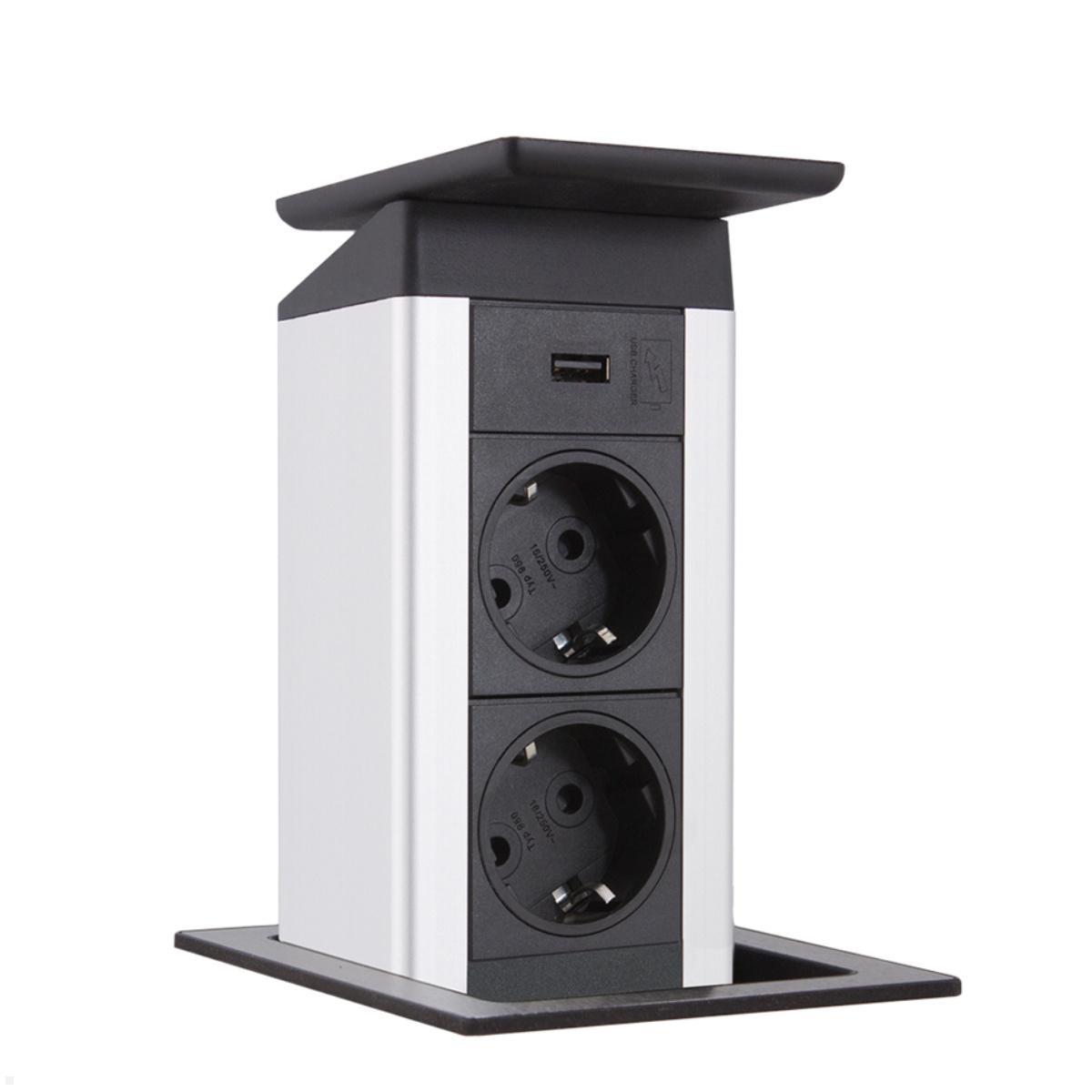

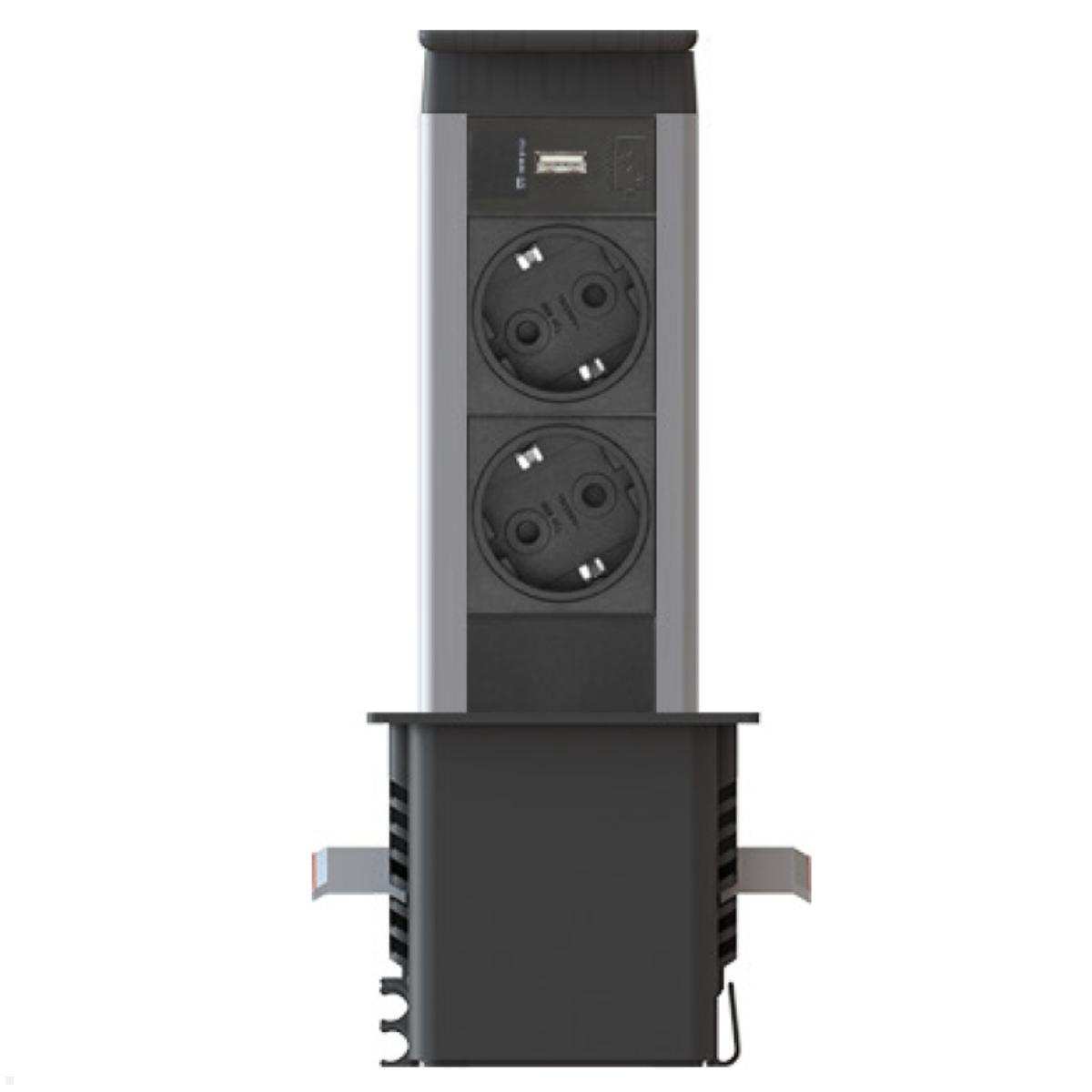

EVOline Port Push Cuisine 2-way built-in socket, 1x USB, silver/stainless steel
The EVOline Port Push Cuisine double built-in socket with USB charger in black/silver/stainless steel can be lowered into the worktop with the touch of a finger and removed when required. Even when in use, EVOline Port Push sinks flush into the table top and only reveals the power, data and multimedia cables.
Built-in socket table

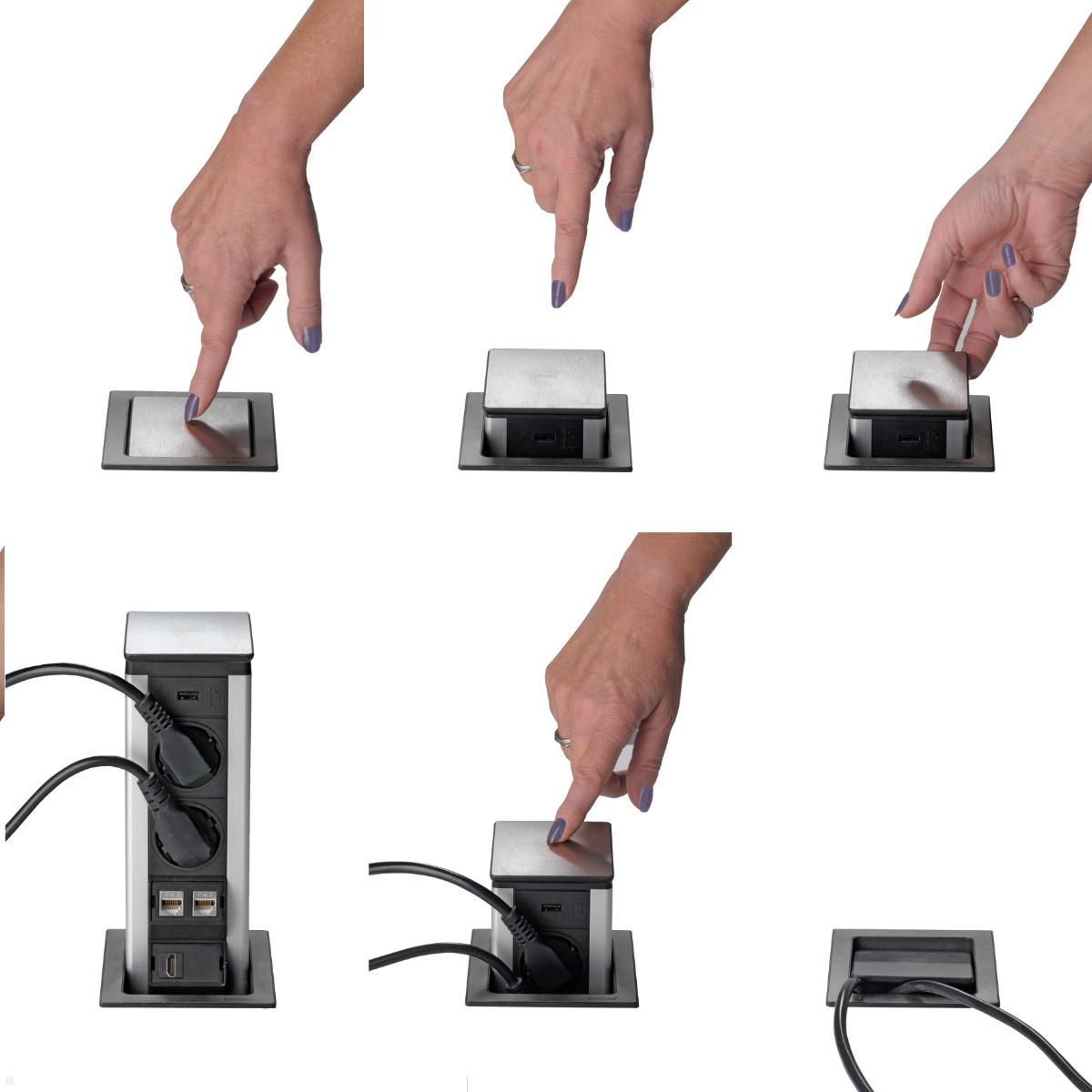

The EVOline Port Push Cuisine 2-way power strip with USB is an intelligent solution for access to socket strips and connections directly on the work surface. Its push-to-open function allows for effortless opening with just the touch of a finger. This mechanism gently pulls out the multi-socket underneath to make all connections conveniently within reach. Its integration is flexible because the frame and cover are flush with the surface and can even be installed flush with the surface. In addition, the Port Push has a USB charger port, which makes it possible to charge mobile devices directly on the work surface. This elegant mechanism allows the retractable table socket to be discreetly integrated into the kitchen, furniture or worktops. With a thickness capacity of 10 to 50 mm for panels, this retractable built-in socket offers a versatile application. Its rocker lid not only contributes to the elegant look, but also functions as a practical cable outlet, making it easier to connect power and data cables.
Key features EVOline multiple power strip:
- 2x VDE socket 60°
- 1x USB charger 5 V, type A 2.1 A
- 16 A, with touch protection, 230V
- Protection class: IP40
- Rocker cover and sleeve: plastic, painted black
- For installation in table tops 10 mm to max. 50 mm thick

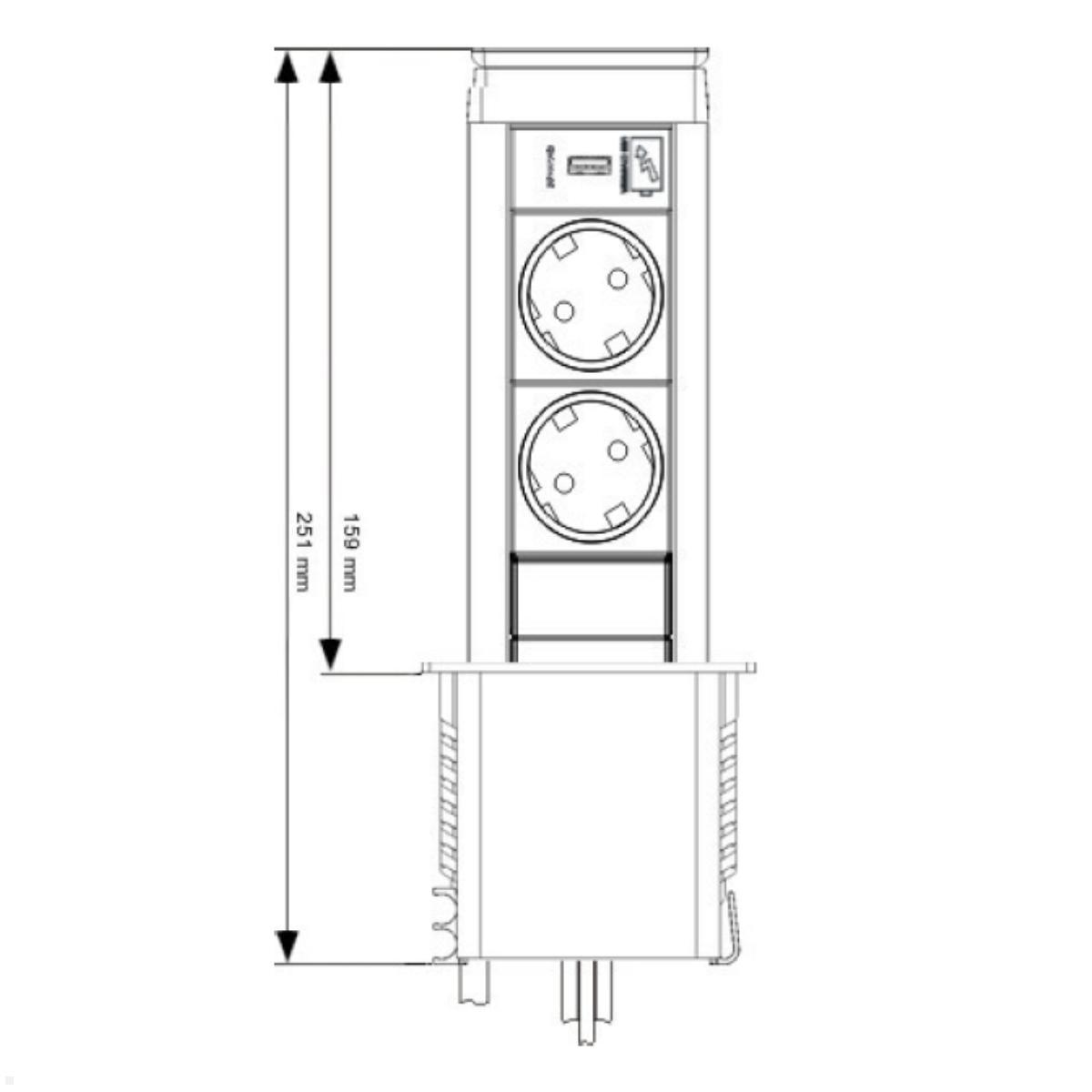

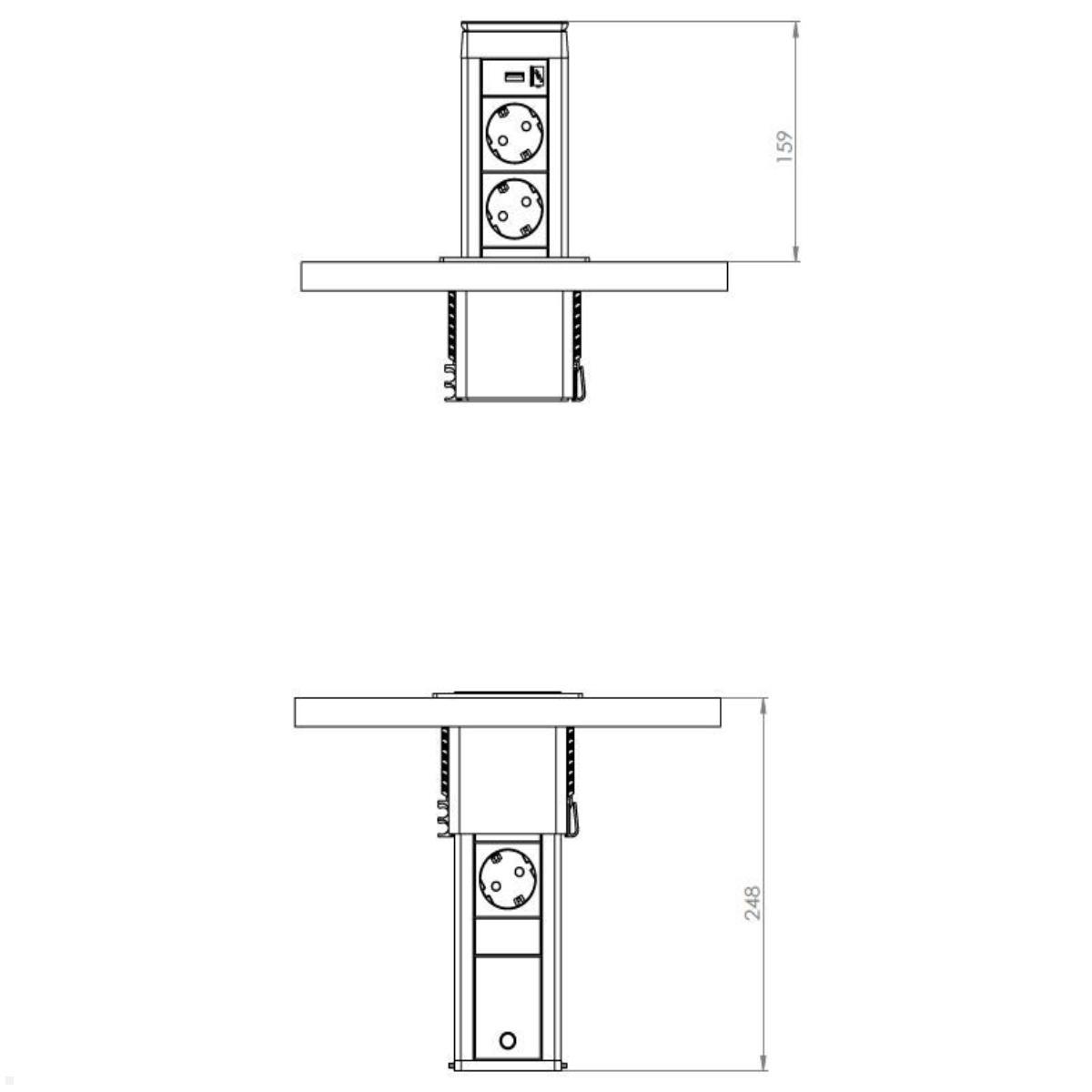

- Height of socket strip extended: 159 mm
- Black connection cable with ferrules: 2.5 m
- Angle plug is included
- Mounting type: built-in
- Sockets: black
- Profile: silver anodized
- Cover and frame: stainless steel
- Material: Plastic
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Suitable for: | Table thickness: max. 50 mm |
| Scope of delivery: | 1x built-in socket |
| Contains installation material: | + |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| Number of sockets: | 2 |
| color: | Silver |
| USB-Charger: | USB A/A |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
13 February 2024 15:59
Push it real good!
Diese EVOline Port Push Cuisine Einbausteckdose ist einfach genial! Mit ihrem schicken Design und der praktischen USB-Schnittstelle bringt sie Schwung in meine Küche. Mit einem Fingerdruck gleitet die Steckdosenleiste elegant heraus bzw. verschwindet aus der Sicht.. Ein Must-Have für jede moderne Küche! Jamal J.
