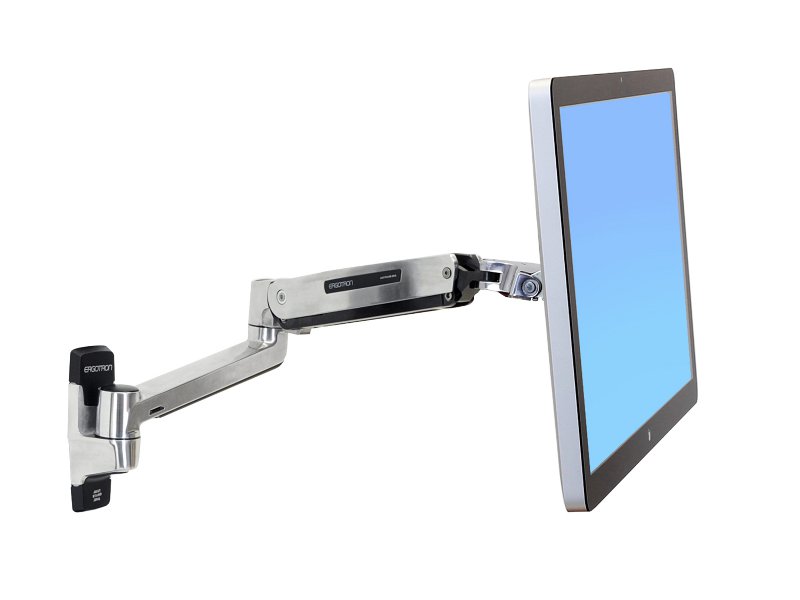

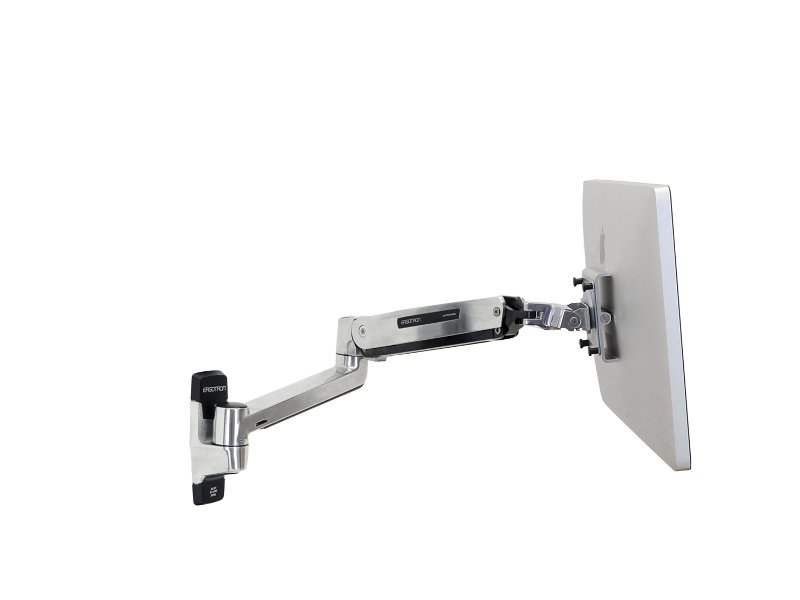

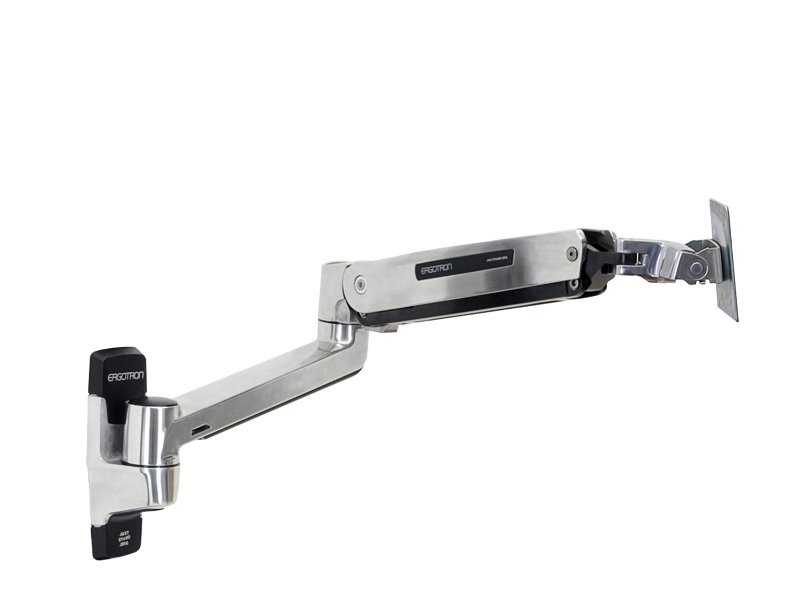

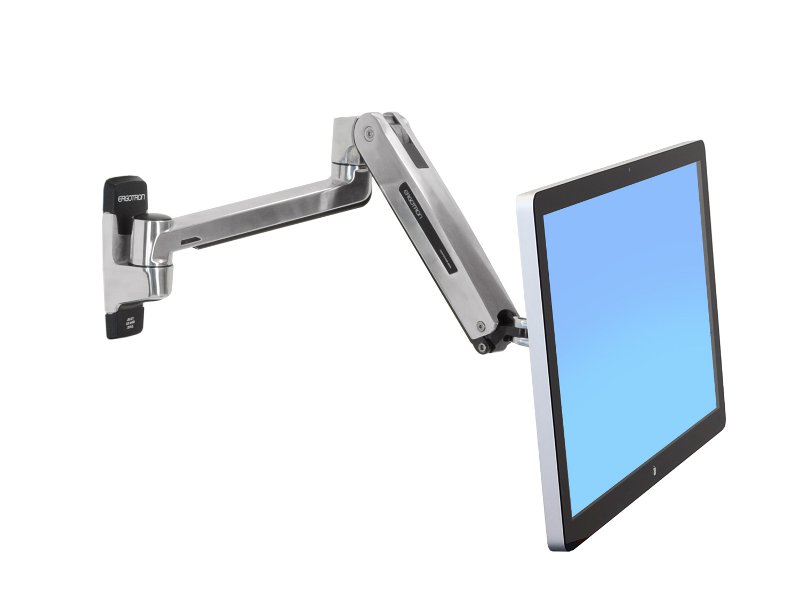

Ergotron LX HD Sit-Stand Wall Mount LCD Arm (45-383-026)
The versatile Ergotron LX HD Sit-Stand Wall Mount LCD Arm (45-383-026) can be used in a variety of applications: accommodates large monitors, mid-sized TVs and all-in-one computers weighing up to 30 lbs (13.6 kg). The Ergotron LX provides unparalleled range of motion, being able to accommodate a user’s sitting or standing posture.
Ergotron LX HD Sit-Stand Wall Bracket LCD Arm (45-383-026)
This versatile arm can be used in a variety of applications: accommodates large monitors, mid-sized TVs and all-in-one computers weighing up to 30 lbs (13.6 kg). The Ergotron LX provides unparalleled range of motion, being able to accommodate a user’s sitting or standing posture—features 20 inches (51 cm) of vertical adjustment and 62 inches (157 cm) of side-to-side adjustment.
Benefits Ergotron LX HD LCD-Arm for wall mounting 45-383-026
- 20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display
- Extends LCD up to 33" (84 cm); push your display out of the way when not in use
- Increase viewing comfort—help reduce eye, back and neck strain
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Patented CF™ motion technology provides premium ease-of-use adjustment
- Cable management clips on the under side of the arm route and hide cords
- Ideal for space-constrained spaces—folds to within 4.5" (12 cm) of back of desk in storage position
- Secure installation—locking connections between arm, extension and base
Key Features Ergotron LX HD Sit-Stand Wall Mount LCD Arm (45.383.026)
- Polished Aluminium
- Includes LX HD sit-stand arm, extension, wall-mount base, VESA brackets
- Display size: ≤ 46"
- Weight capacity: 14-30 Ibs (6,3-13,6 kg)
- Product weight: 13,5 Ibs (6,1 kg)
- Tilt: -5°/+75°

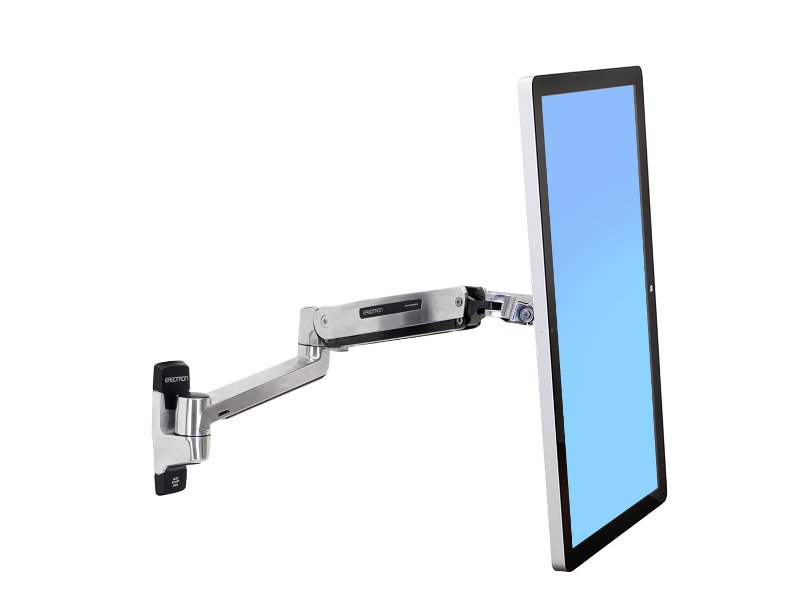

- Rotation: 90°
- Lift: 20" (51 cm)
- Pan: 360°
- VESA-Standard: 75x75, 100x100, 200x100, 200x200 mm
- Warranty: 10 years
Does your monitor or display suit?
We are pleased to check if your monitor or display suits this deskbase. Just transfer us your monitor model at the end of the order (model-number) in the comments. We will check then if your monitor is suitable and if not, we will contact you.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 701 kb] |
|---|---|
| Technical drawing: | [pdf, 463 kb] |
| Installation manual: | [pdf, 3,7 MB] |
| Capacity: | 13,6 kg |
| Tilt: | 80° |
| Rotate: | 90° |
| Height range (mm): | 508 mm |
| Pivot: | 90° |
| Swivelling range: | 360° |
| Screen size: | 15 - 46" |
| Material: | Aluminium |
| Special features: | 20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display |
| VESA Standard: | 75x75, 100x100, 200x100, 200x200 mm MIS-E (www.vesa-standard.de) |
| Contains installation material: | + |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Warranty: | 10 years |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Silver/Anthracite |
| VESA (in mm): | VESA 75x75, VESA 100x100, VESA 200x100, VESA 200x200 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
