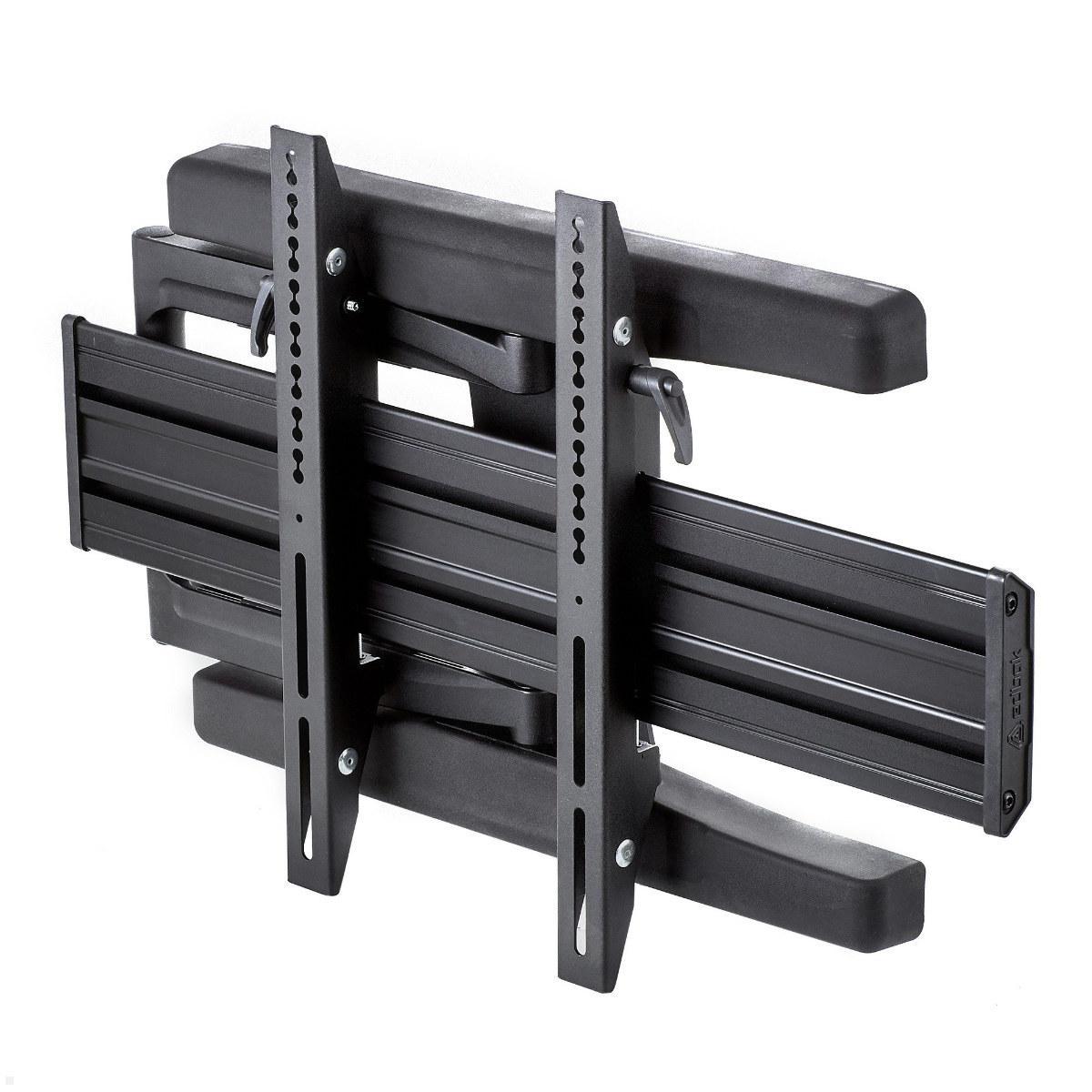

Edbak VSM653 swivelling TV wall mount 49 - 65 inch, black
The black Edbak VSM653 swivelling TV wall mount is an ideal choice for screen sizes ranging from 49 to 65 inches, with a maximum weight capacity of 36 kg. With its VESA standard hole pattern spanning from 100x100 to 600x400 mm and clear installation instructions, setting it up is swift and straightforward.
TV wall mount with swivel arm

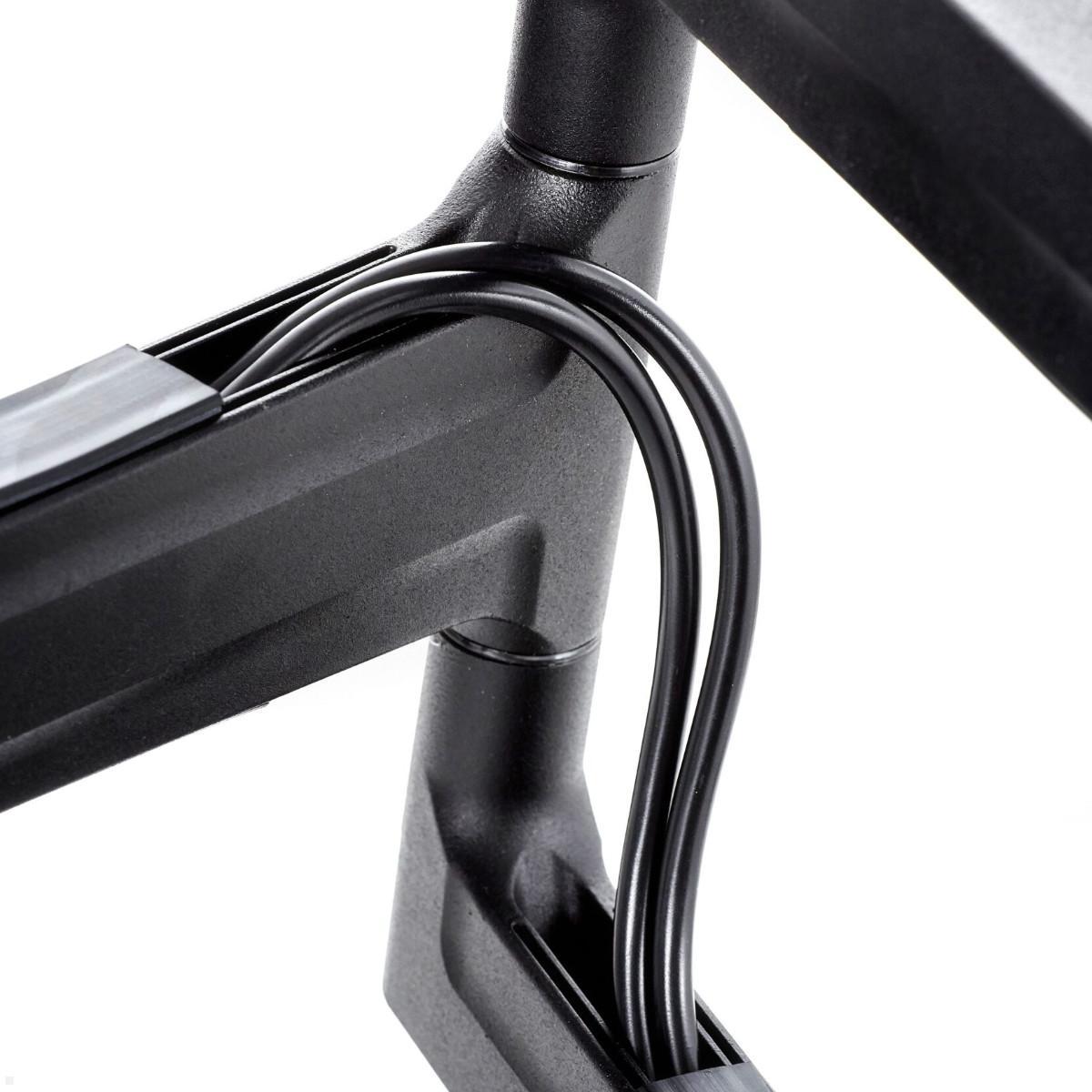

The VSM series TV wall mount with a swivel arm from Edbak is an excellent addition to any living room. Featuring a swivel arm offering a range of up to 700 mm, this versatile TV wall mount provides optimal support for large LED and OLED televisions ranging from 49 to 65 inches in screen size. Compatible with VESA mounts from 100x100 to 600x400 mm, it can be attached directly or used with a VESA adapter. Installation is simple, and the integrated cable guide ensures tidy cable management. With a swivel angle of 90° to both the right and left, as well as a tilt angle of +11°, the VSM653 allows users to adjust the screen according to their preferences, greatly enhancing viewing comfort.
Key features Edbak VSM653 TV wall mount with swivel arm, black
- Screen sizes: 49 - 65 inch
- Load capacity: Max. 36 kg
- Own weight: 15.6 kg
- Dimensions (LxWxH): 720 x 700 x 455 mm
- Swivel: 180° (+ 90° / - 90°)
- Tilt: + 11°
- VESA mount: 100x100 to 600x400 mm
- Wall distance: Min. 100 mm
- Wall distance: Max. 700 mm
- High-quality powder coating
- Colour: Black
Does your screen or display fit the VESA mount?
Please feel free to provide us with the model details (manufacturer + model no.) of your monitor in the comments section during the ordering process. We'll gladly verify whether it's compatible with the edbak VSM653 flatscreen monitor wall mount. If it doesn't fit the monitor mount, we'll reach out to you promptly to discuss alternative options
VESA standard - more about VESA!
| Product sheet: |  [pdf] |
|---|---|

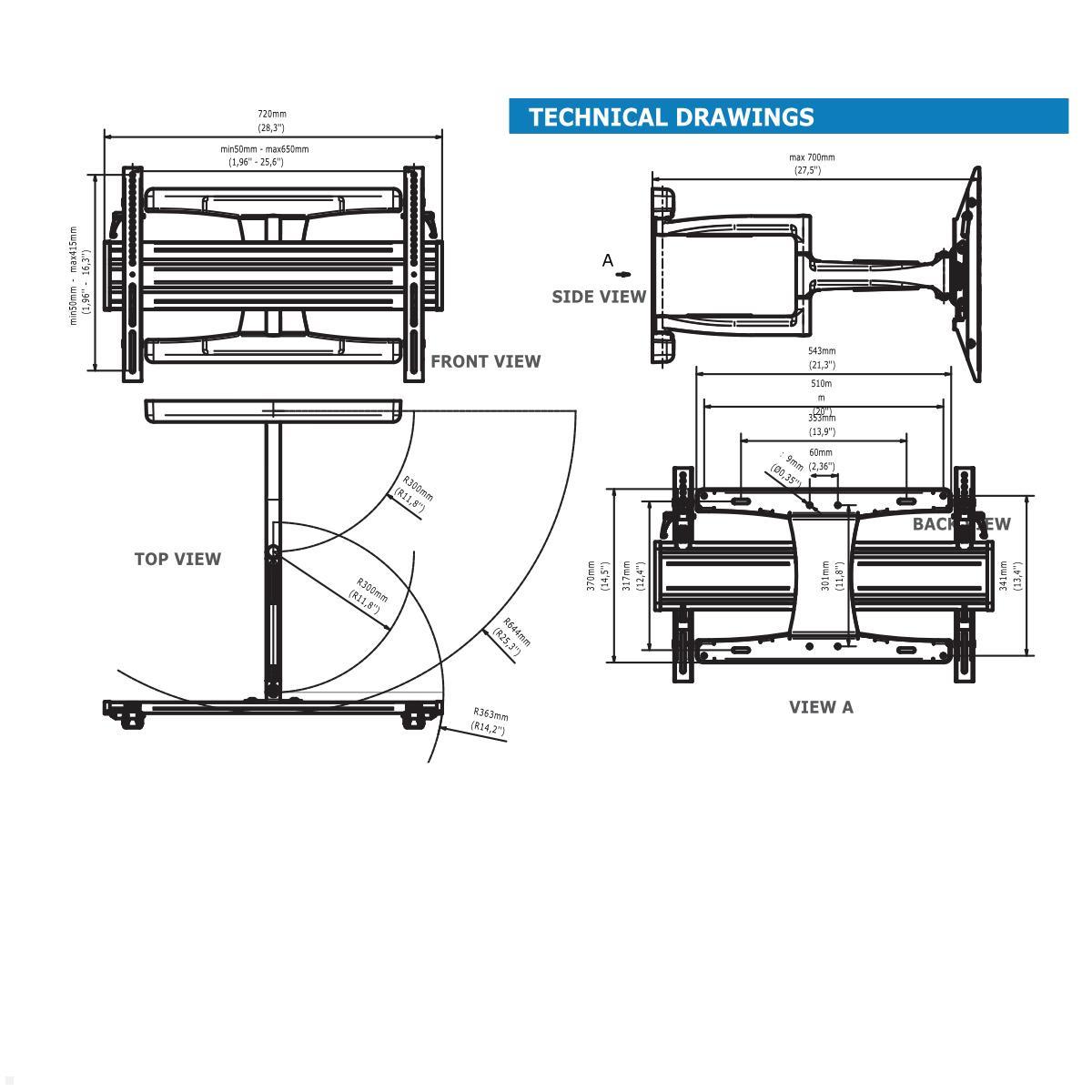

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 36 kg |
| Tilt: | + 11° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 100 - 700 mm |
| Screen size: | 49 - 65" |
| Material: | steel / aluminium |
| VESA Standard: | 100x100 to 600x400 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 760 x 390 x 100 |
| Scope of delivery: | 1x VSM653 TV wall mount |
| Contains installation material: | + |
| Manufacturer/Importer: | EDBAK Sp. z o.o., Piotrowice 186, 23-107 Strzyżewice, Poland, info@edbak.pl |
| Inch size: | 49 inch, 50 inch, 52 inch, 55 inch, 57 Zoll, 58 inch, 60 inch, 63 inch, 65 inch |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 100x200, VESA 200x100, VESA 200x200, VESA 200x300, VESA 200x400, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 500x400, VESA 500x500, VESA 600x200, VESA 600x300, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
