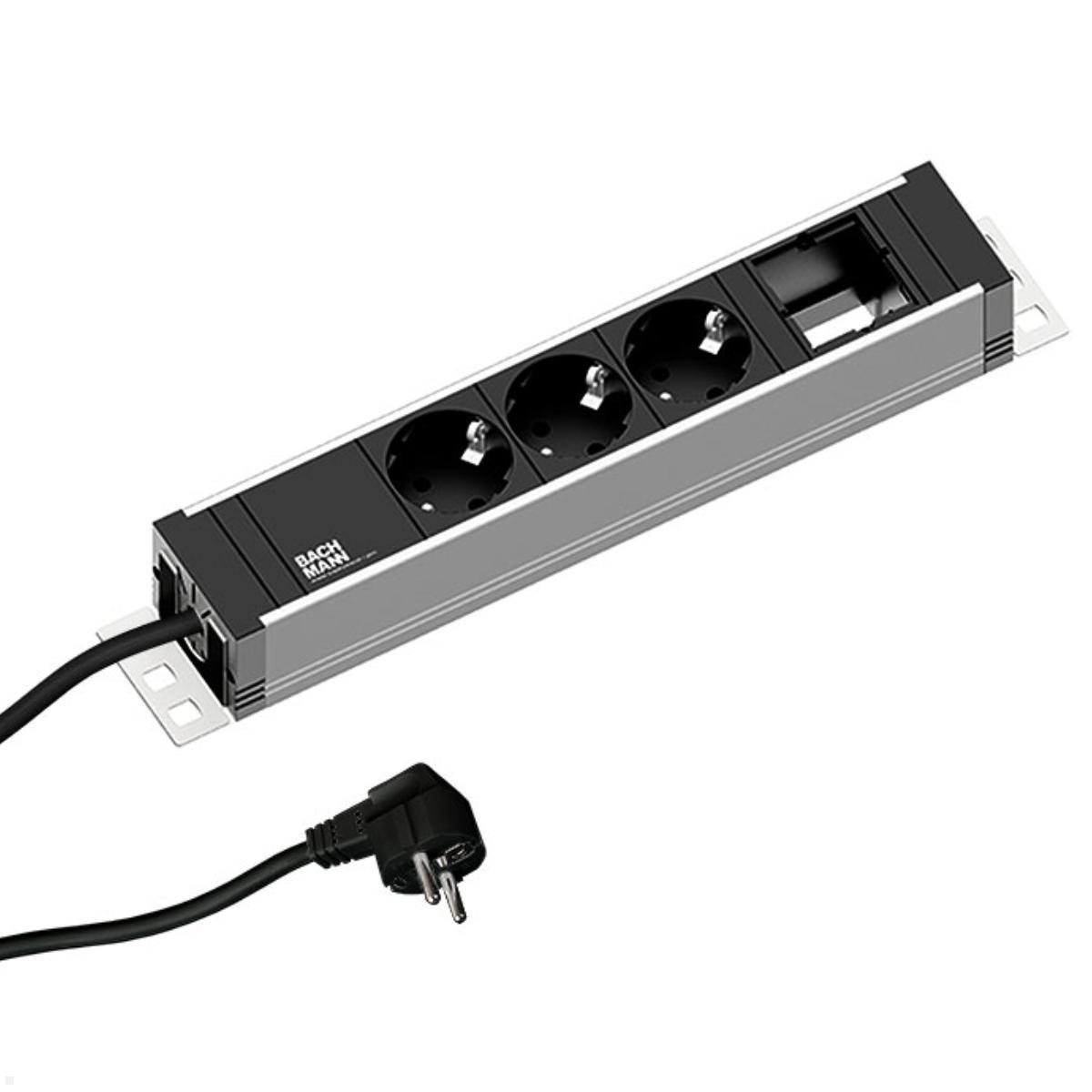

Bachmann UNIVERSAL power strip 3x socket outlet 1x CAT6A 1x HDMI (922.0111HC)
Socket strip with LAN and HDMI
The Bachmann UNIVERSAL socket strip is the ideal solution for power, media and data supply at work and conference tables. Thanks to its minimalist design, it not only offers maximum functionality, but also ensures undisturbed legroom under the table, even when installed close to the edge. The multiple socket outlet comes as a pre-configured unit, which is equipped with a CAT6A LAN (RJ45) keystone module for high-speed Internet connections and an HDMI (4K) keystone module in addition to the 3 power connections. This makes the strip particularly suitable for modern workstations where seamless integration of networks and media devices is required. Thanks to its robust frame construction and metal mounting brackets, the Internet socket is particularly easy to install and can be mounted in various positions and degrees. The 3 m long power connection cable with angled plug ensures flexible positioning of the socket strip with LAN and HDMI.
Key features Bachmann UNIVERSAL 3x socket outlet 1x CAT6A LAN 1x HDMI
- 3x socket outlet with earthing contact with child protection, black, rotated by 35°
- 1x CAT6A LAN socket / socket
- Front / rear: RJ45 socket shielded
- Data transmission rate: 10 Gbit/s
- 1x HDMI 2.0 socket / socket
- Transmission: up to a resolution of 3840x2160 (UHD / 4K) possible
- Gold-plated contacts
- Power input: 3.0 m H05VV-F3G1.5mm² with angled plug 90 degrees
- Incl. mounting brackets
- Suitable for T-EASY conference table
- Protection class: IP20

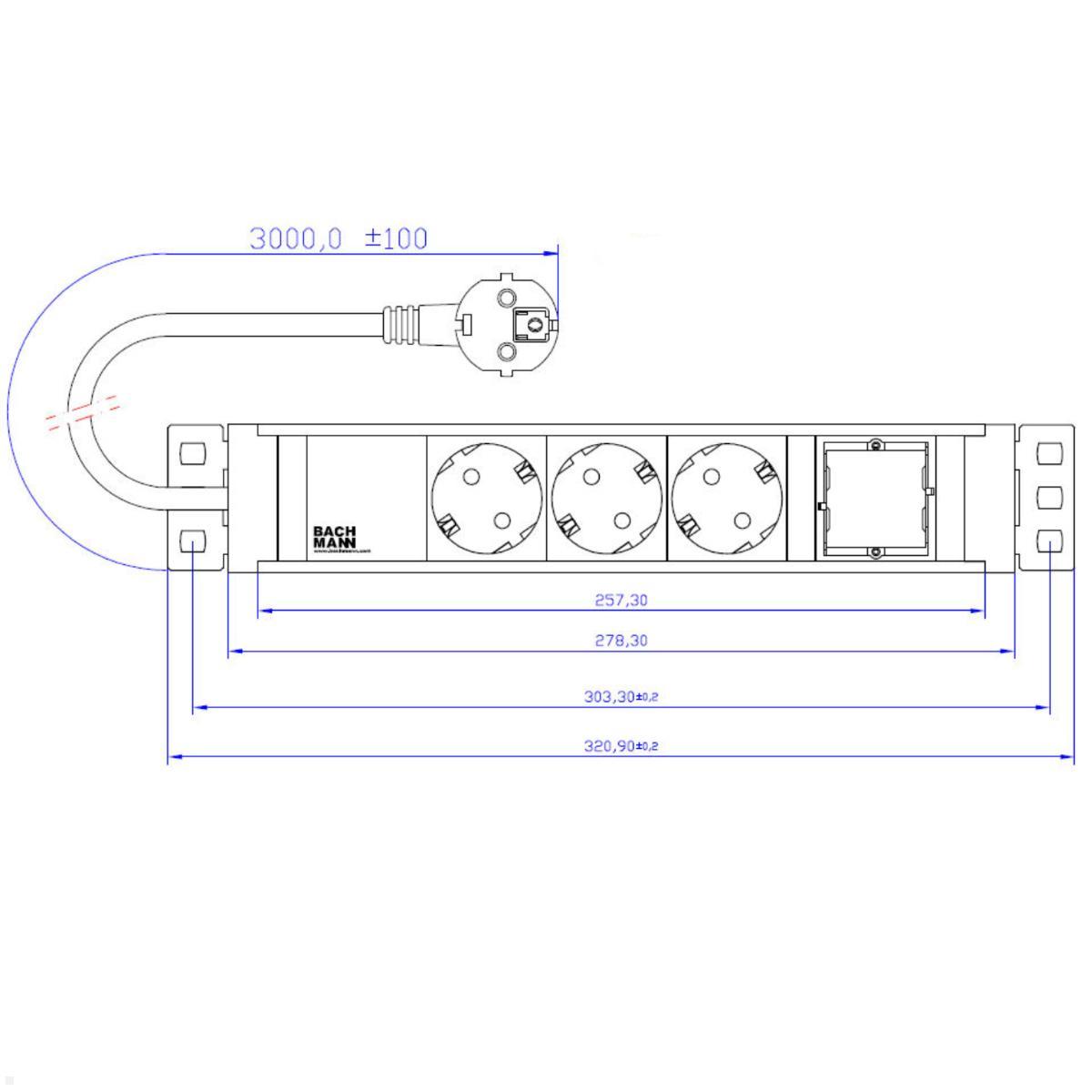

- Dimensions (WxHxD): 320.9 x 43.7 x 52.4 mm
- Color: silver / anthracite
- Article consisting of:
- 1x UNIVERSAL socket strip

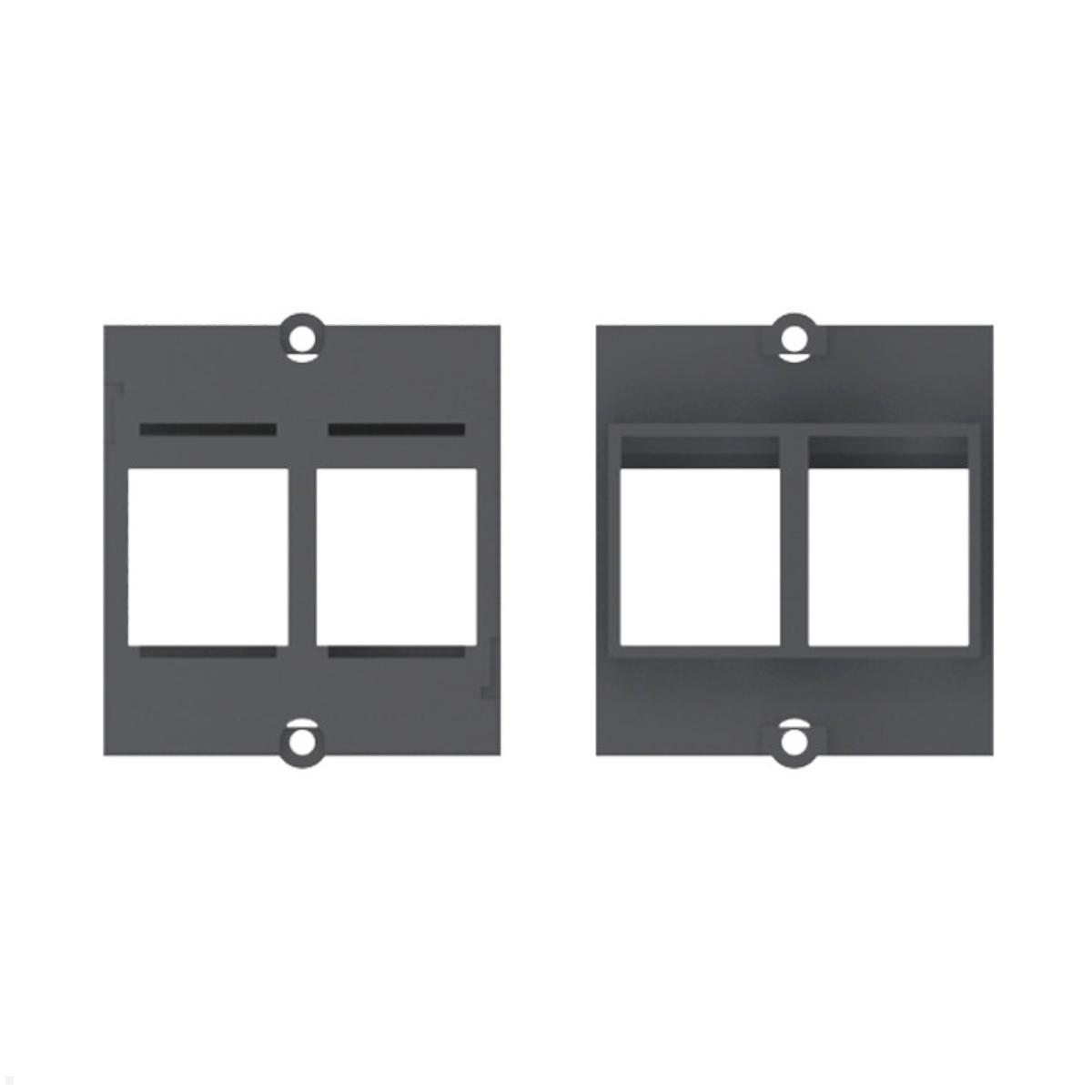

- 1x Keystone frame (2-fold mounting)

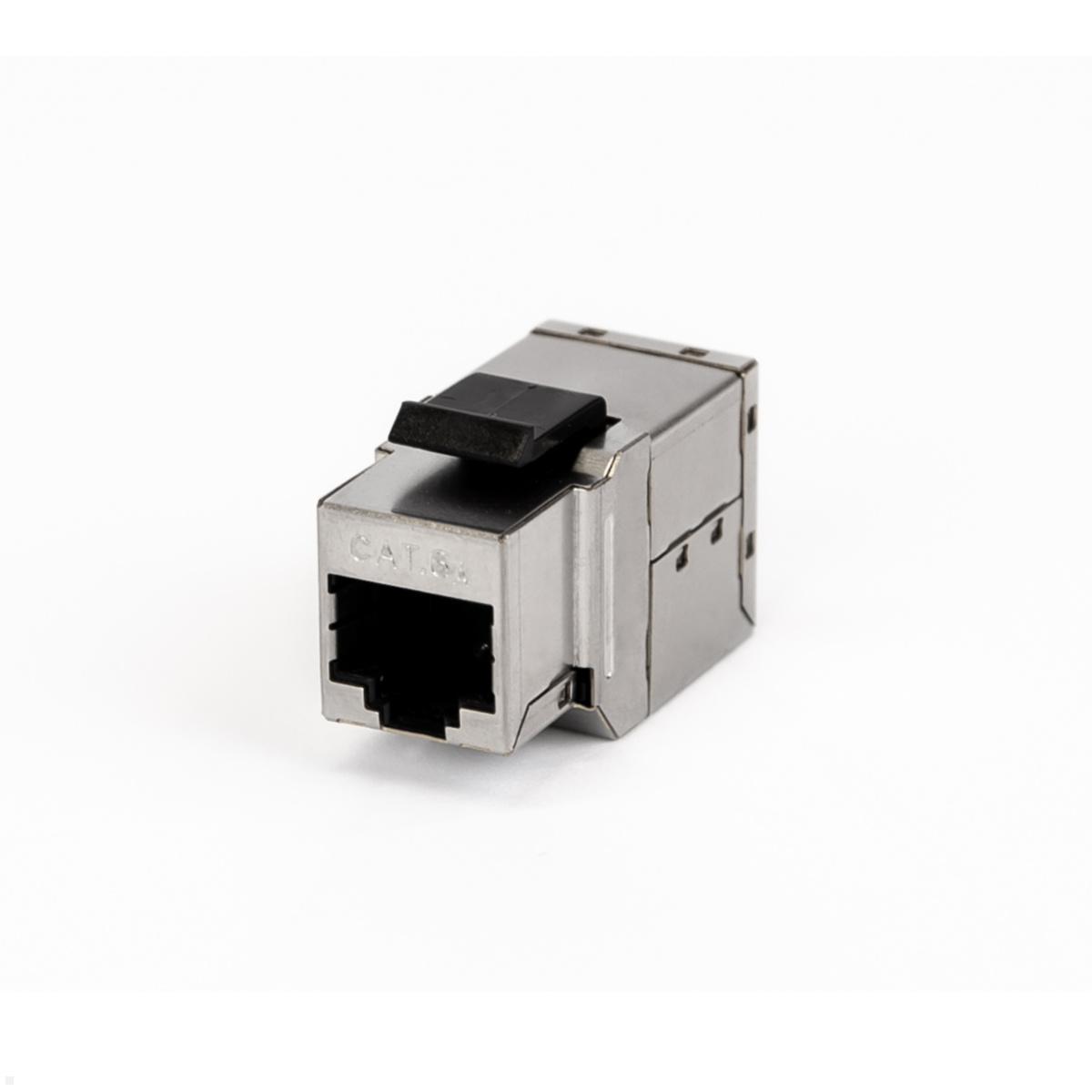

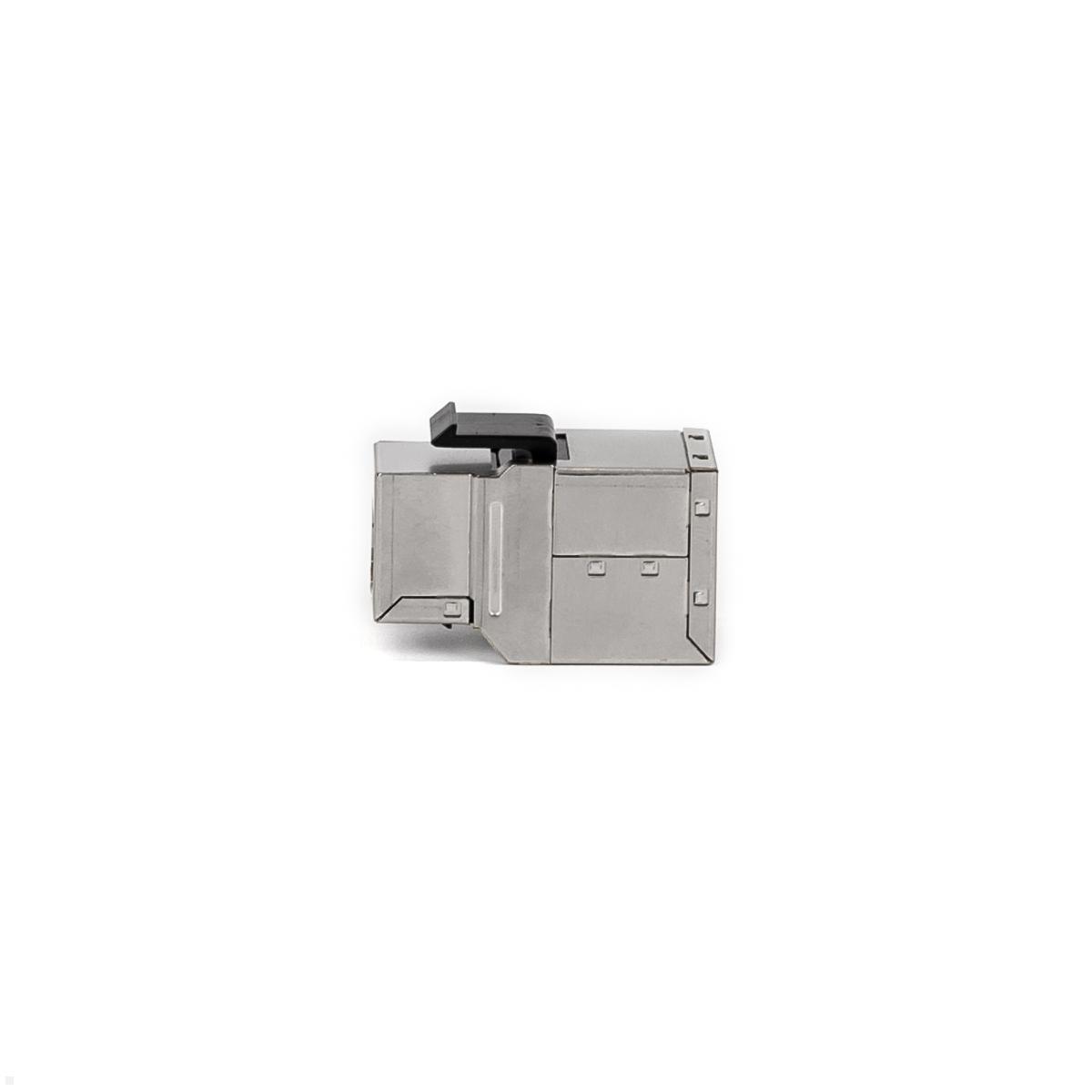

- 1x CAT6A LAN Keystone module

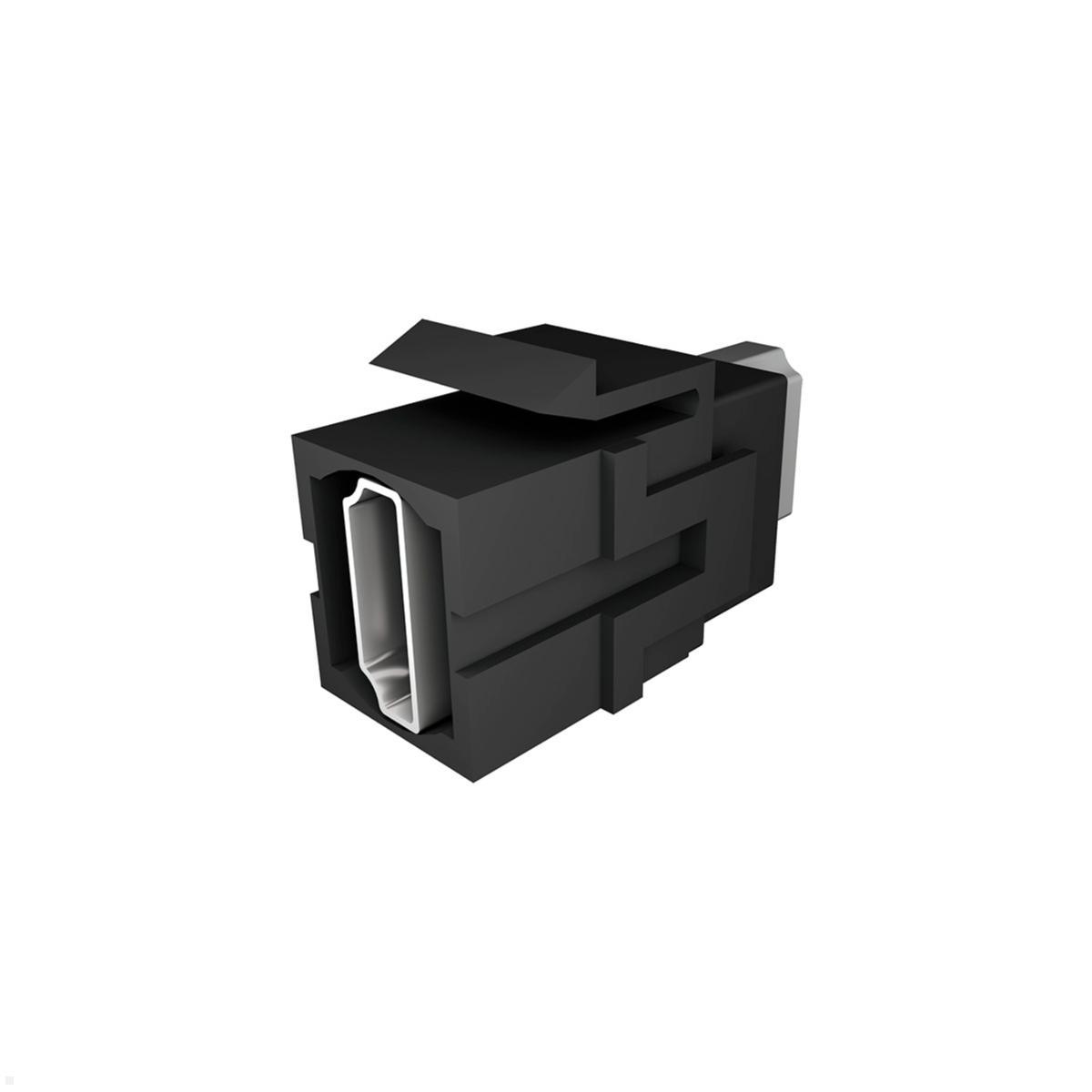

- 1x HDMI 2.0 Keystone module
| Product sheet: |  [pdf] |
|---|---|

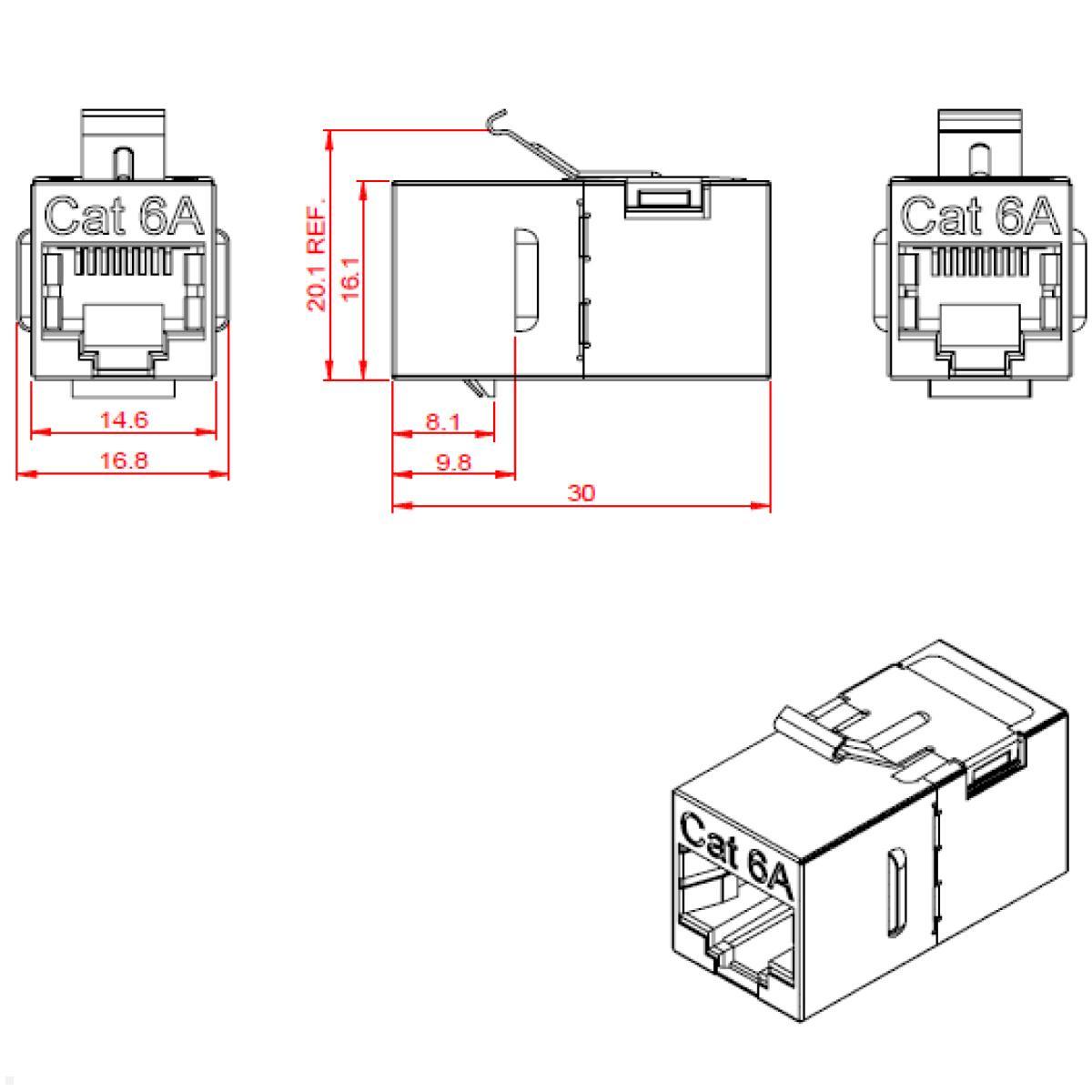

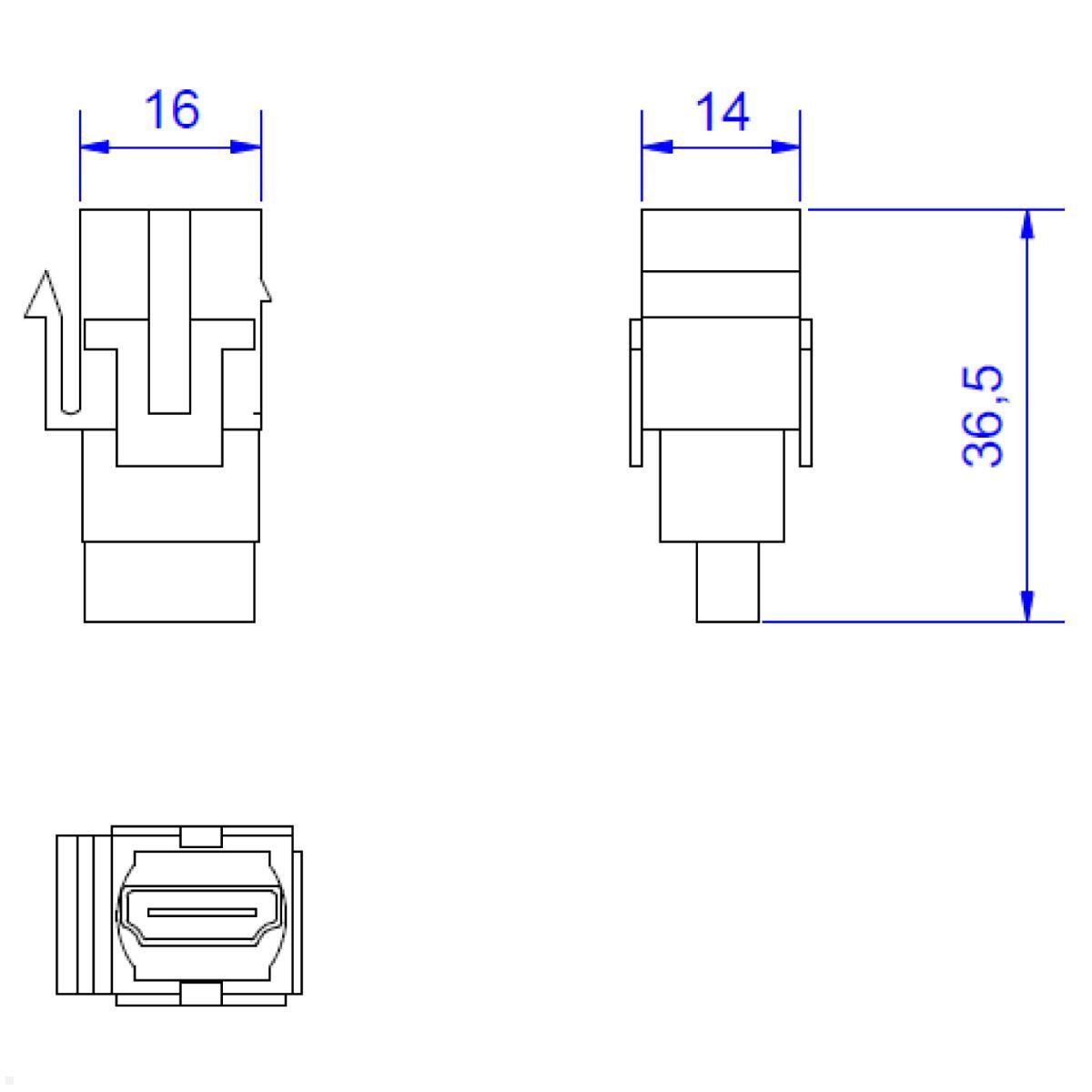

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1x UNIVERSAL socket strip | 2x mounting bracket | 1x Keystone frame | 1x CAT6A Keystone module | 1x HDMI Keystone module |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 3 |
| Overvoltage protection: | No |
| color: | Silver/Anthracite |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
