Bachmann PIX 1x USB Double-Charger (926.020)

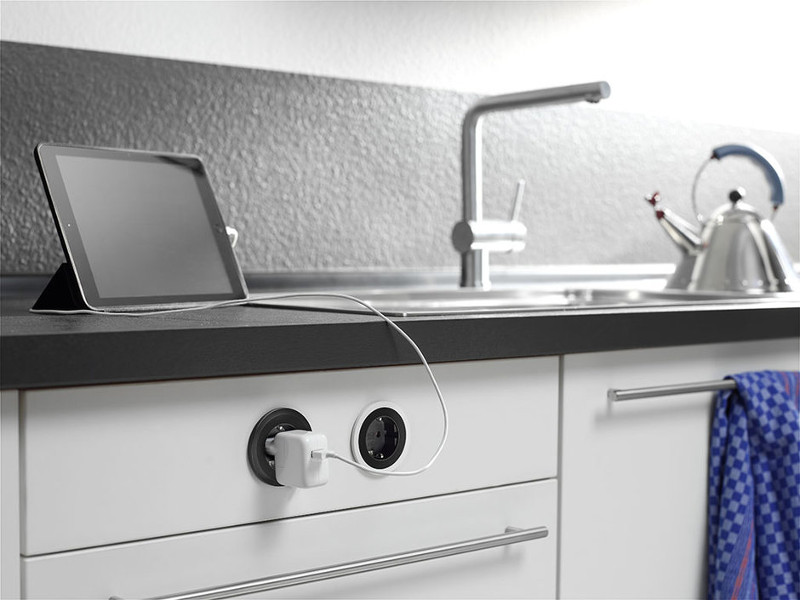

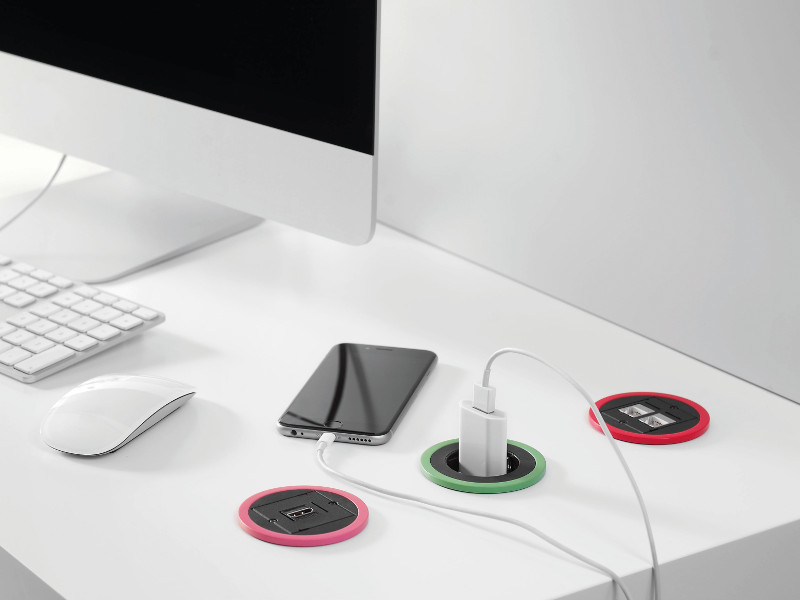

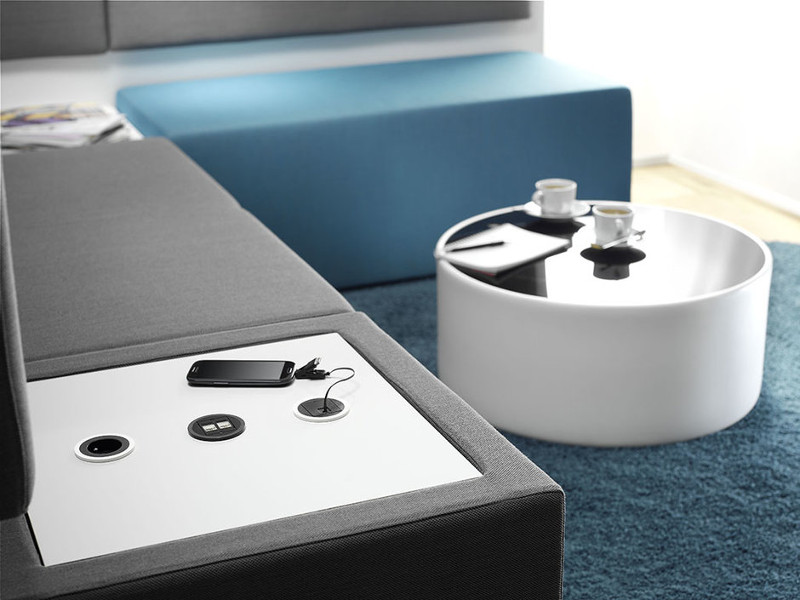

The Bachmann 926.020 PIX USB Double-Charger with 0.2m GST18 supply leads with its small installation depth of approx. 45 mm a space-saving installation directly from above or front, which is also possible afterwards. Whether on the desk in the office, in the kitchen, in the bathroom, in the lounge element, in the wall or in other living environments, PIX offers a connecting world that can be individually designed.
Bachmann PIX built-in 1x USB Double Charger 926.020
Whether on the desk in the office, in the kitchen, in the bathroom, in the lounge element, in the wall or in other living environments, the PIX built-in socket offers a connection world that can be designed individually. The PIX design series comprises a collection of filigree round plug sockets and connection units that can be used at will. With its round, flat shape and the minimalist appearance, PIX 926.020 brings the design requirements to the point.

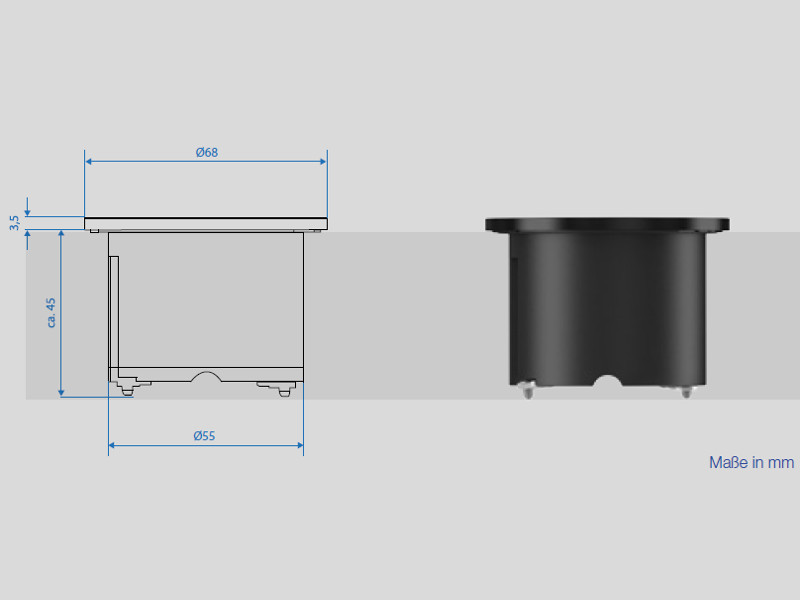

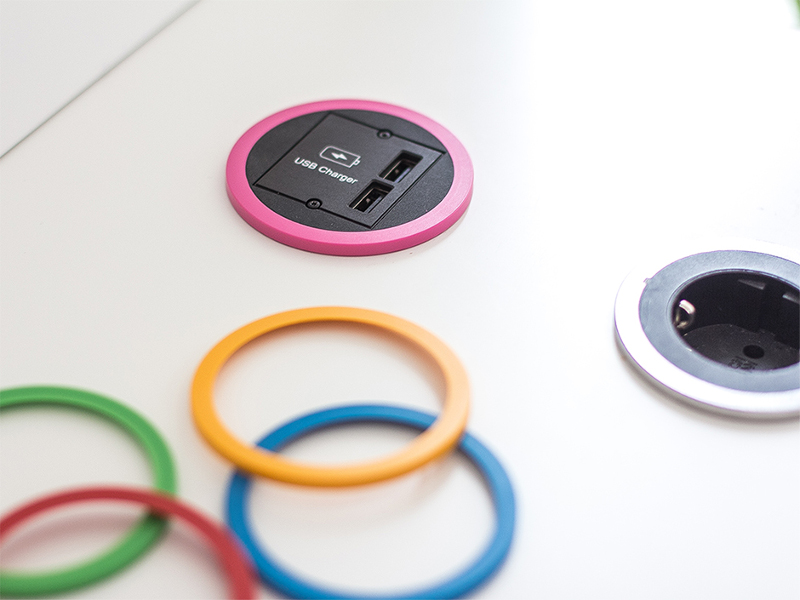

Individually or in combination, the decorative rings can be chosen and exchanged in different colors. For Bachmann PIX 926.020, an elegant, swiveling lid, which protects against dust and dirt, is available as an option and can also be added at a later date. The compact design (HxØ: approx. 50 x 68 mm) and low installation depth (approx. 45 mm) ensure a space-saving installation directly from the top or front, which is also possible at a later date.
Key features Bachmann PIX 1x USB Double-Charger (926.020):
- 1x USB Double-Charger
- Input voltage: 250 V
- Output: 5 V DC / max. 2,4 A
- Front: 2 x USB-A connector
- Rear: GST18i3 plug with approx. 0.2 m cable
- Charging Specifications: Apple Devices fast charging, Samsung Galaxy Tab Devices fast charging, BC1.2 Charging Specification
- Housing plastic black
- Mounted decorative ring black similar to RAL9005
- With white decorative ring similar to RAL9010
- Scope of delivery: Only socket, cover sets and colored trim rings can be ordered separately!
Benefits Bachmann PIX socket at a glance:
- Can be integrated on its own or in combination
- Interchangeable, coloured decorative rings
- Low installation depth (approx. 45 mm)
- Table thickness: 10 - 40 mm
- With swivel-mounted cover as an option
- Simple mounting from above, retroitting possible too
| Product sheet: |  [pdf, 138 kb] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| USB-Charger: | USB A/A |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
