Bachmann Mini Port Replicator with USB-C PD 100W 2x USB-A (917.229)
The Bachmann 917.229 CM Mini Port Replicator allows you to work wirelessly on your desk. Thanks to the all-in-one supply, it bundles your internet connection, power supply and your screen connection in one place and is clearly integrated into your Bachmann connection panel. The port replicator is connected to your laptop via a separately available USB-C connection cable.
Port Replicator Mini Bachmann

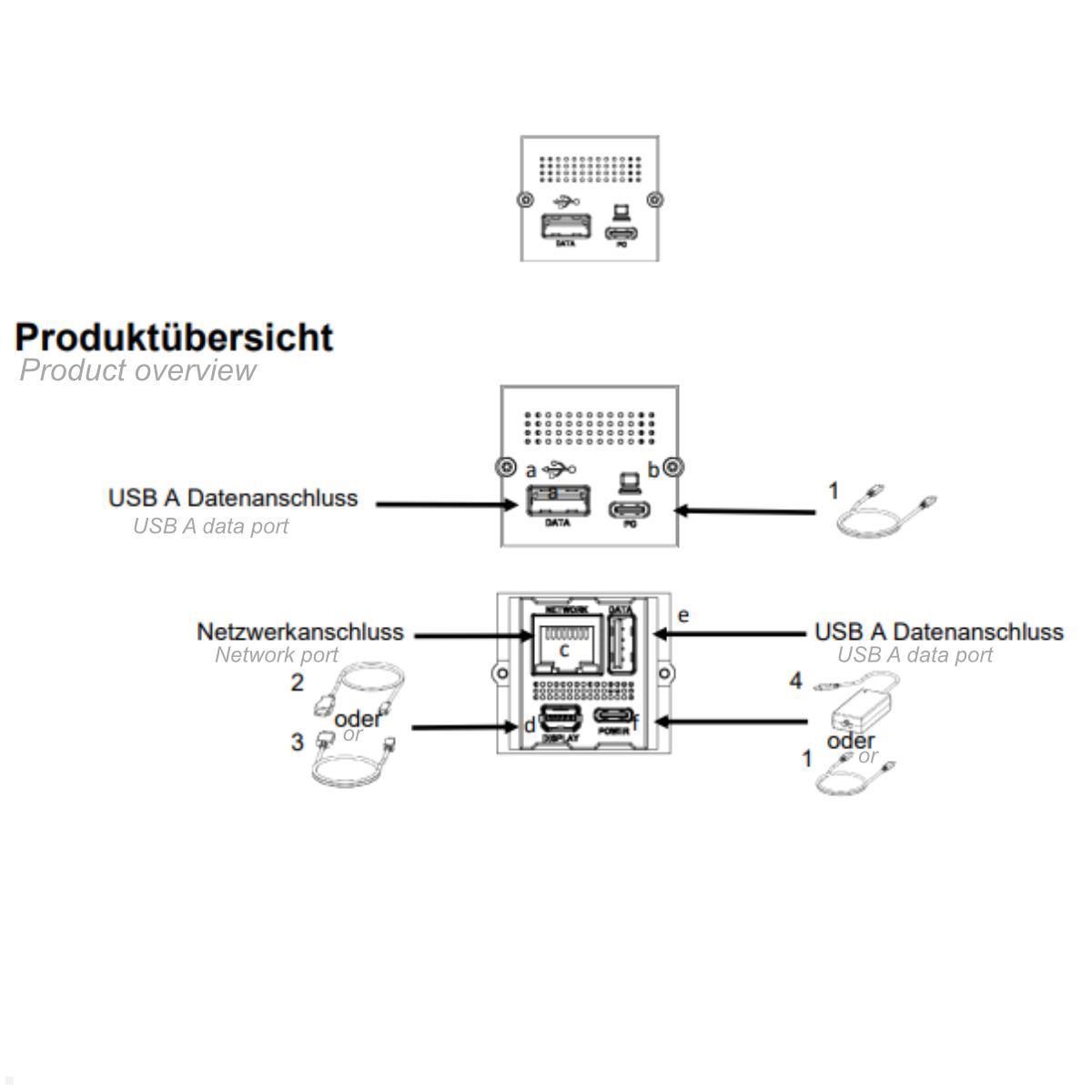

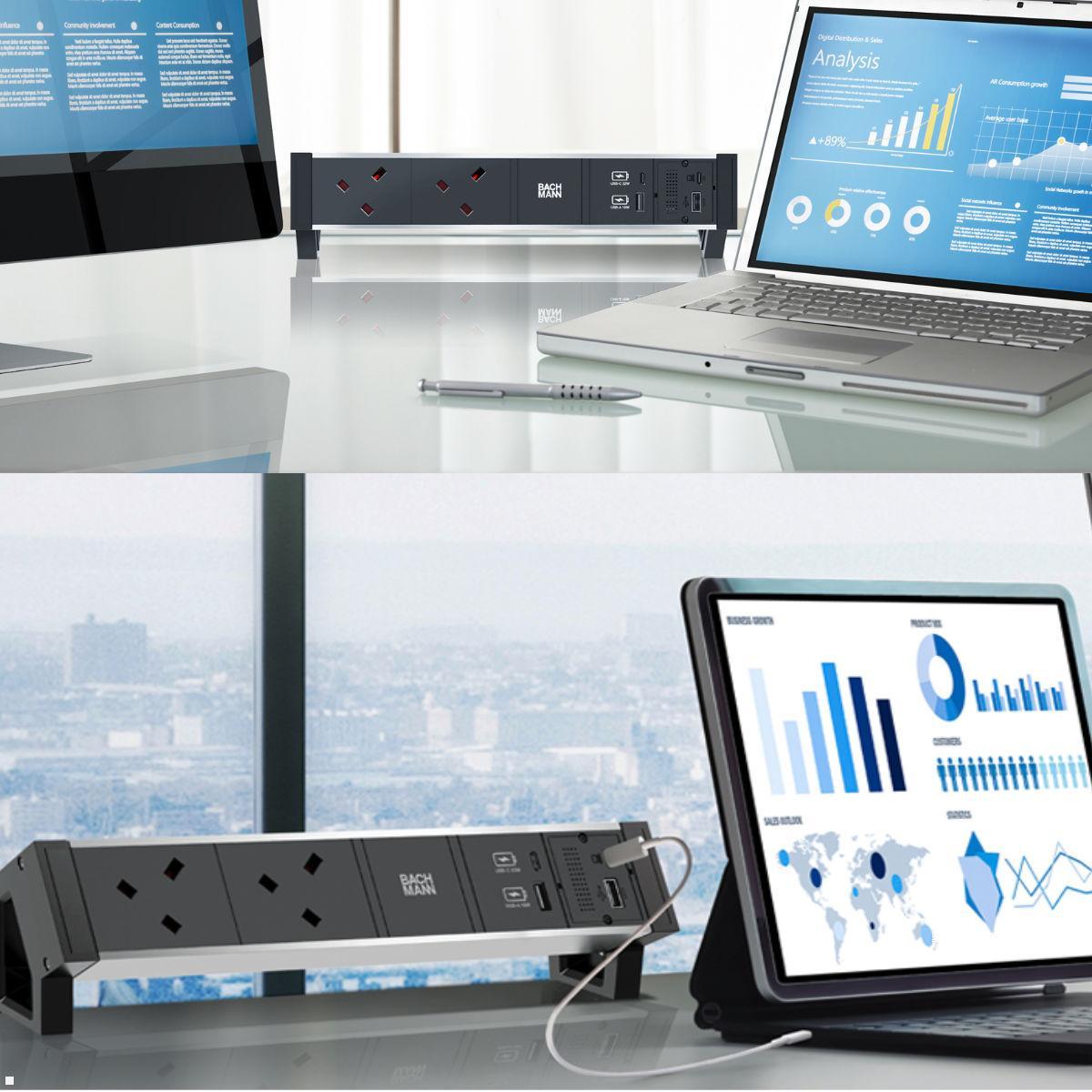

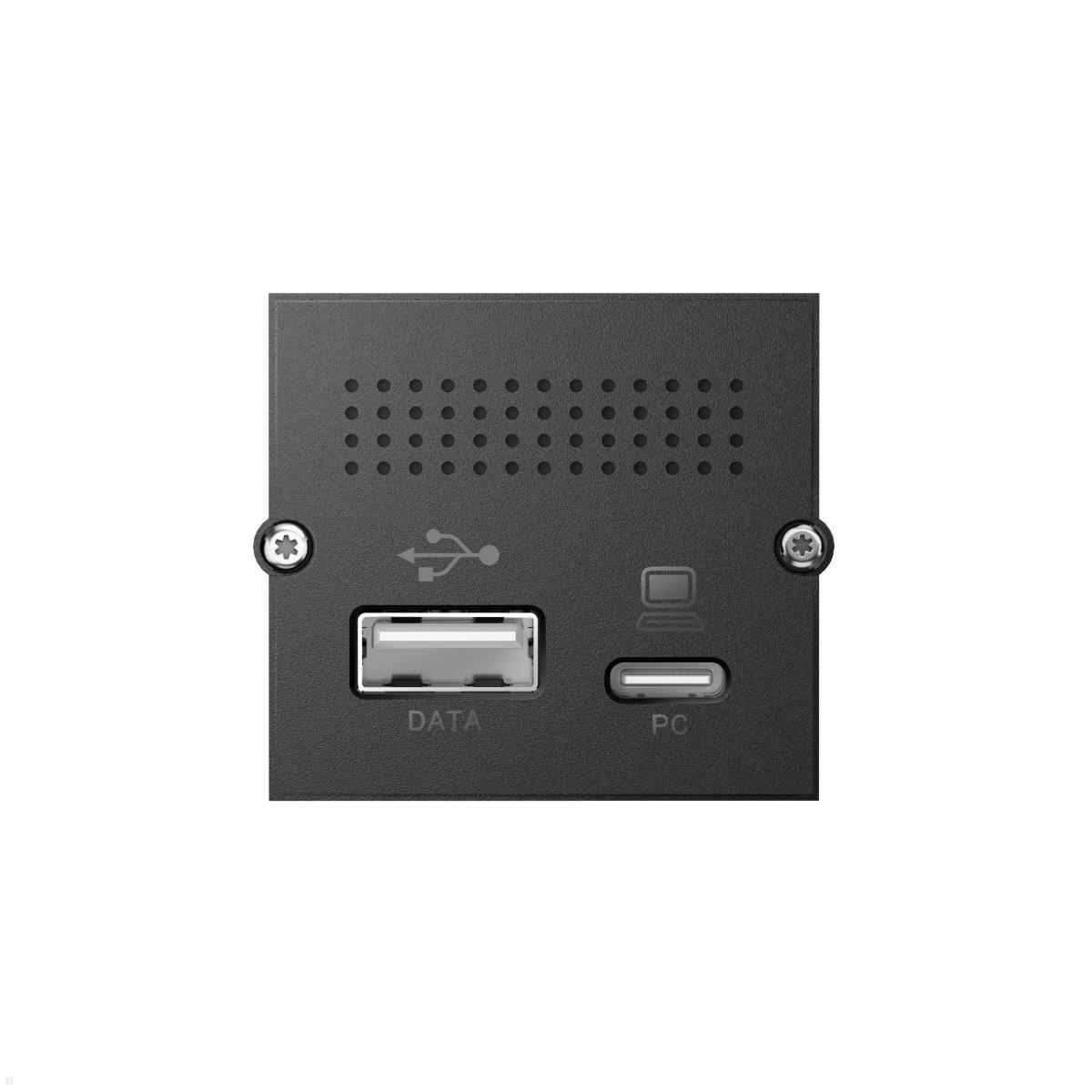

The Bachmann CM Mini Port Replicator (917.229 ) connects your USB-C enabled notebook to your displays, devices and wired networks. It integrates neatly into your Bachmann connection panel and bundles everything that a notebook needs, whether it's an internet connection, power supply or monitor connection, so the entire arrangement of the desk can be used with just one cable. The Mini Replicator can be integrated into almost all Bachmann connector panels. It is connected to the laptop via USB-C, so the laptop is powered, projected onto a screen and connected to the Internet. On the back of the port are the Mini Display Port, USB-A and network connections. A total of two USB-A ports are available for additional devices such as a mouse or headset. The whole system works Plug&Play. It is ideally suited for open-plan offices, individual offices, for huddle rooms or meeting areas and communal areas. In particular, it facilitates the use of a desk by changing users as part of Desk Sharing.
Key features:
- USB Type C PD 2.0 up to 100 W (20 Vcd/3.0 A)
- 2 x USB Type A data (5 V 500 mA max)
- Mini Display Port 1.2 (UHD 3840 x 2160 @ 60 Hz )
- Ethernet 100 Mbps RJ45 socket
- Power input USB type C up to 100 W

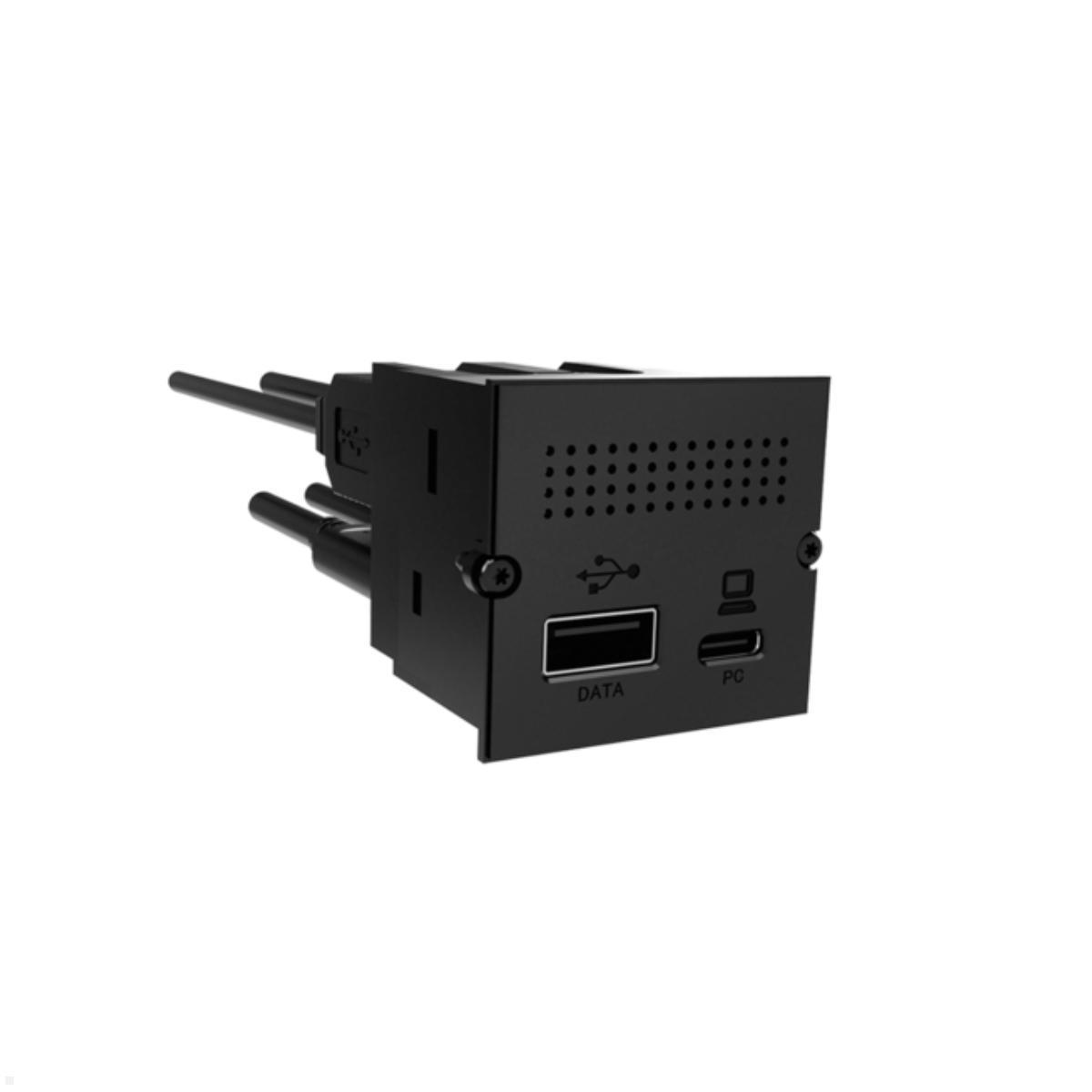

- Dimensions Mini Port Replicator: 3.7 cm x 4.1 cm

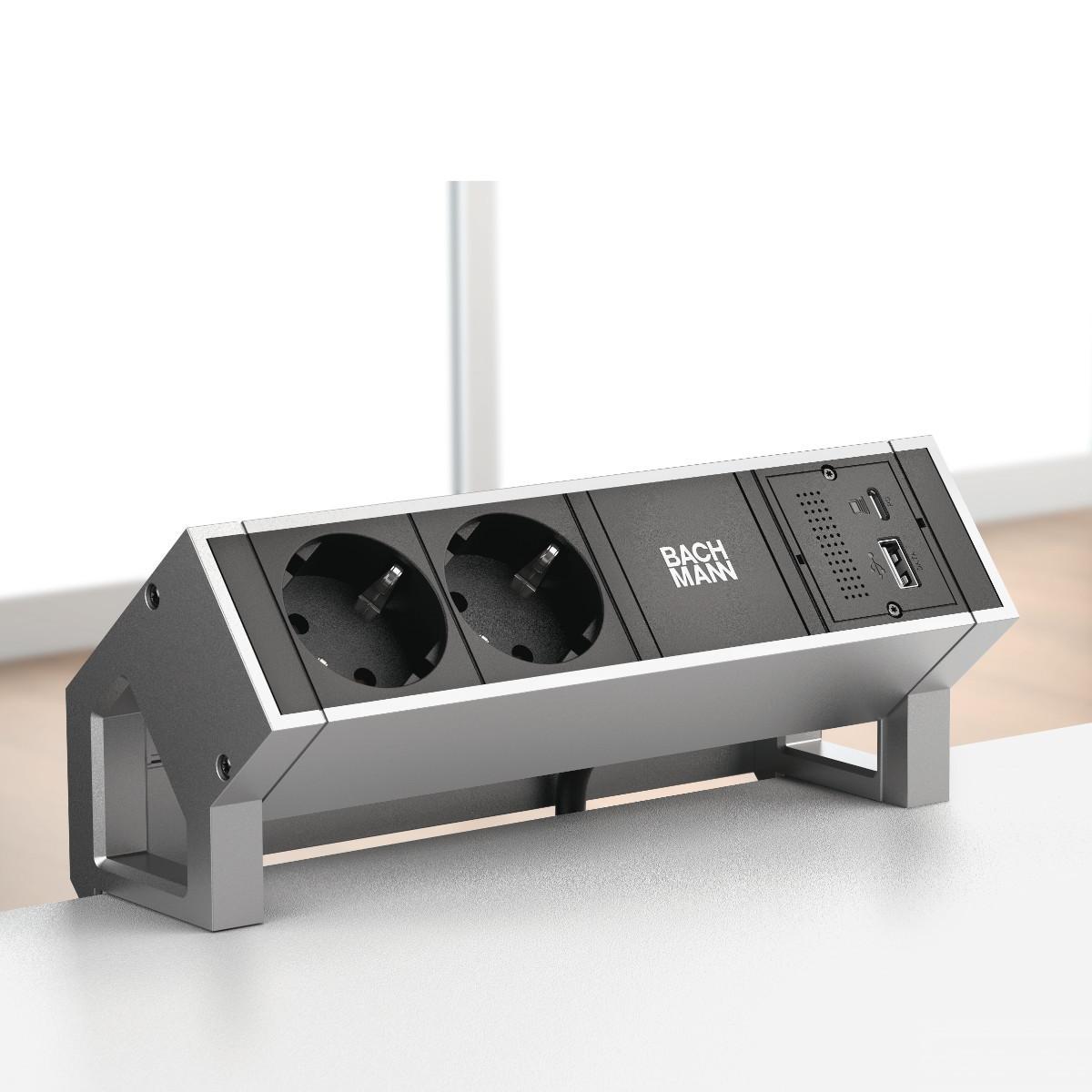

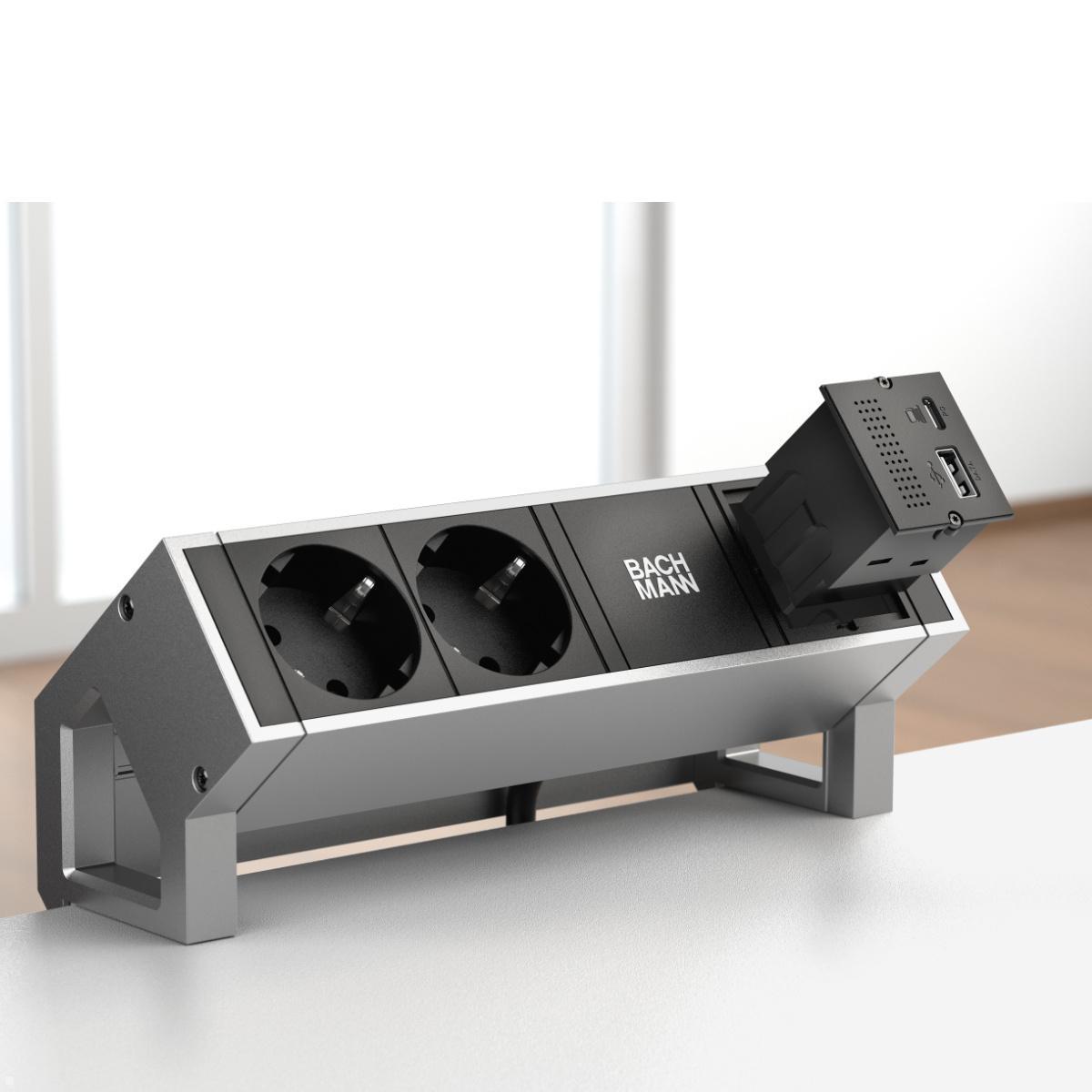

- Can be integrated into almost all Bachmann desk connection panels (e.g. Desk2, PIX, POWER FRAME and Coni Duo)
- Accessories such as connection cable, charging adapter and adapter cable are not included in the scope of delivery.
- Incl. 2 screws and assembly instructions
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 150x100x100 |
| Scope of delivery: | CM Mini Port Replicator + Screws + Assembly Instructions |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| USB-Charger: | USB A/C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
