Bachmann MINI PIX Socket outlet with CAT6A jack/jack shielded
The Bachmann MINI PIX socket with CAT6A socket/socket (shielded) is an optimal solution for individual Clean Desk uses. The built-in version combined with a CAT6A socket is practical and compact for video, audio and network connections.
Bachmann MINI PIX Socket outlet with CAT6A shielded

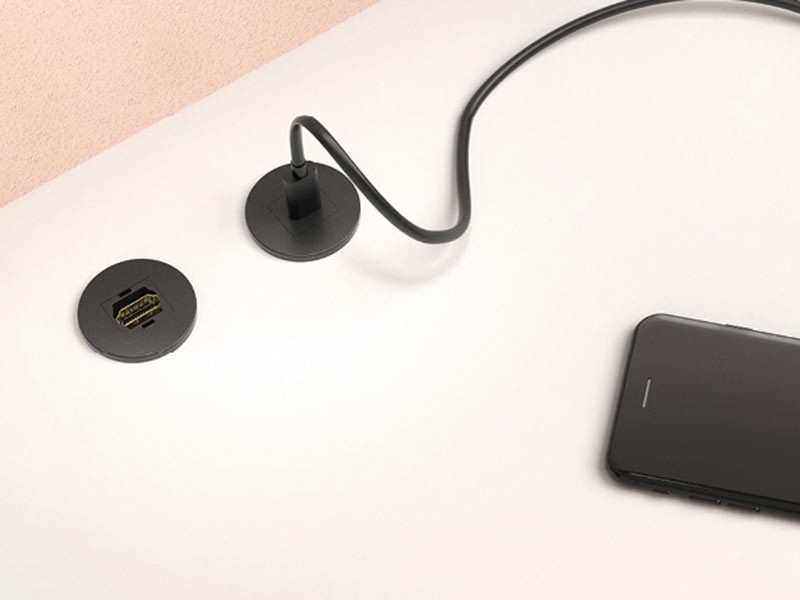

Bachmann MINI PIX is a real highlight not only for offices with Clean Desk concept! The small installation solution provides connections in a discreet manner. The built-in solution is particularly suitable for offices, recording studios, at home or in lounges to unobtrusive to lead media or data connections on the table and cable can easily plug in because of the compact installation dimension. The installation itself is child's play because the MINI PIX can be easily inserted into any 28 mm borehole.
MINI PIX combined with CAT6A
Ingeniously simple connection: The CAT6A Keystone module offers many improvements to today's standard. The CAT6A module is ideally suited for bringing office workstations, conference rooms, entrance areas, exhibition halls, hotels or private desks to a high technical level.
Key features Bachmann built-in socket

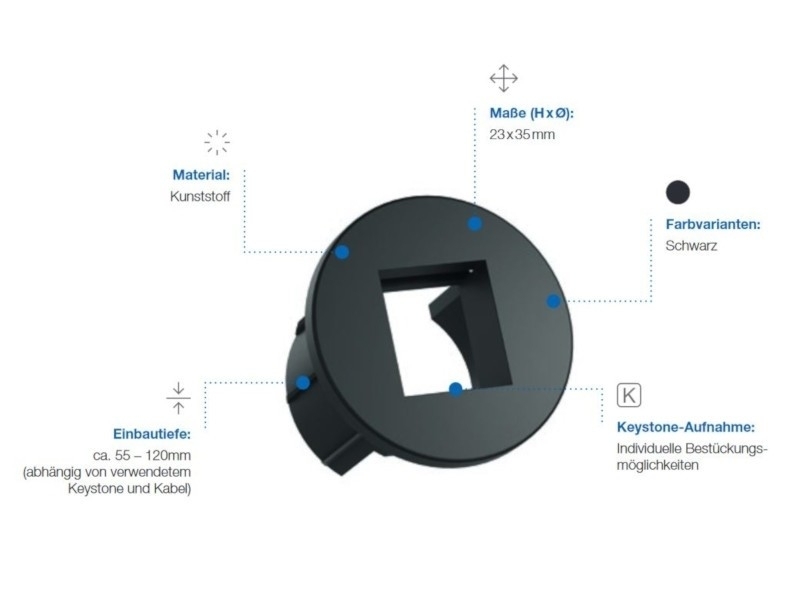

- Dimensions (HxØ): 23x35 mm
- Installation depth: approx. 35 mm
- Material MINI PIX: plastic

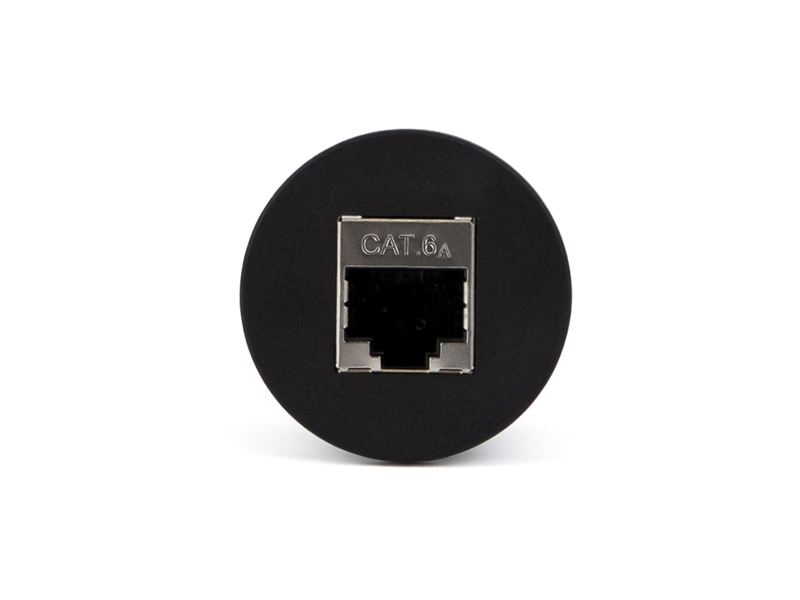

- Front: RJ45 socket
- Rear: RJ45 socket
- Shielded
- Article supports the Power over Ethernet (PoE) connection
- Article consists of:

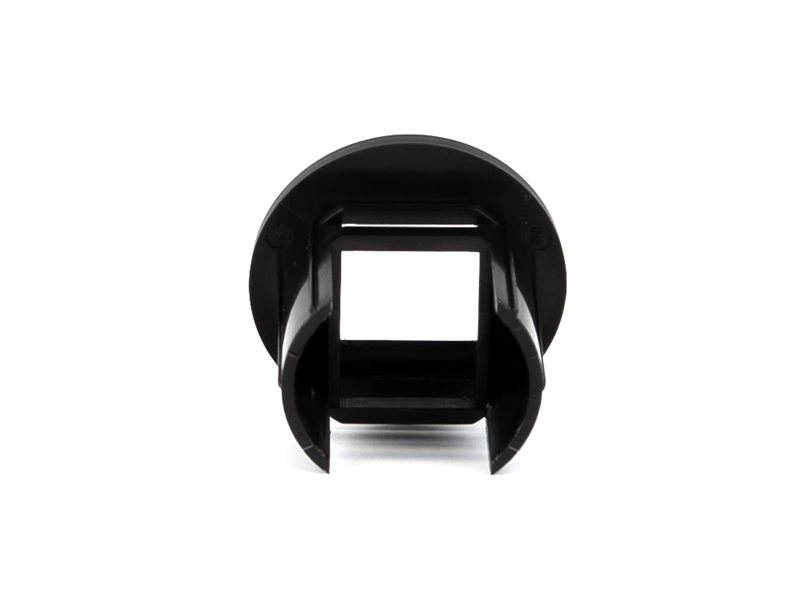

Bachmann MINI PIX 1x Custom Module (942.000)
Bachmann CAT6A Keystone Module socket/socket shielded (940.083)
| Product sheet: |  [pdf, 357 kb] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf, 382 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver/Black |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
