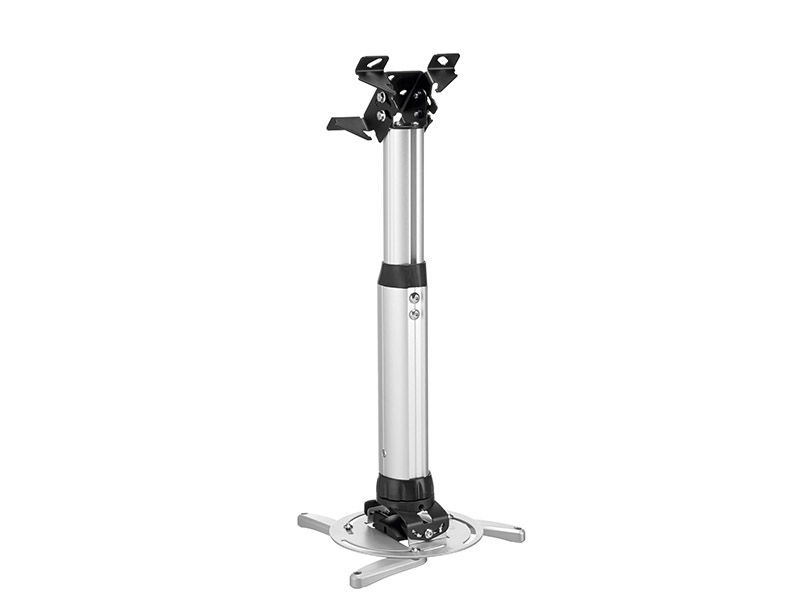

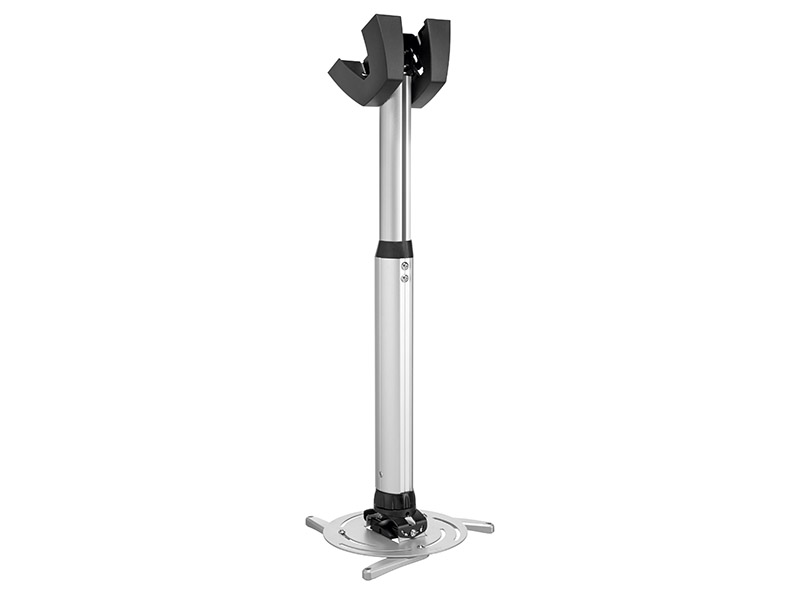

Vogels PPC 2555 projector ceiling mount 550-850mm 25kg, silver
The Vogels PPC 2555 projector ceiling mount is specially designed for the new generation projectors up to 25kg. These Vogel's beamer mounts come with variable height adjustment from 550 to 850mm.
Vogels PPC 2555 projector ceiling mount 550-850mm 25kg, silver
The Vogel's PPC 2555 projector mount is specially designed for the new generation projectors up to 25 kg. This projector interface is equipped with a unique fine tune adjustability for precise alignment with the projection surface. Once aligned, the projector stays in position. Additional fixation features are provided to secure the desired position.
The Vogels height adjustable projector ceiling mount kits can be used when the height of the ceiling is not known or when flexibility is wanted. The CIS® Cable Inlay System runs the full length of the pole and even allows for cable routing after installation. The Vogels CIS® offers sufficient space for all cables required and enables you to hide all the cables in a matter of seconds
Technical details Vogel's PPC2555 beamer ceiling mount
- Turn: 360°
- Tilt: 15°
- Max. weight: 25kg
- Min. distance to ceiling: 550mm
- Max. distance to ceiling: 850mm
- Beamer mount range Ø 30-410mm
- Adjustable height
- Easy mounting on the ceiling and the beamer
- Ceiling plate suitable for inclined and flat ceilings
- Cover included for false ceilings
- Fine tune adjustability
| Product sheet: |  [pdf, 78 kb] |
|---|---|

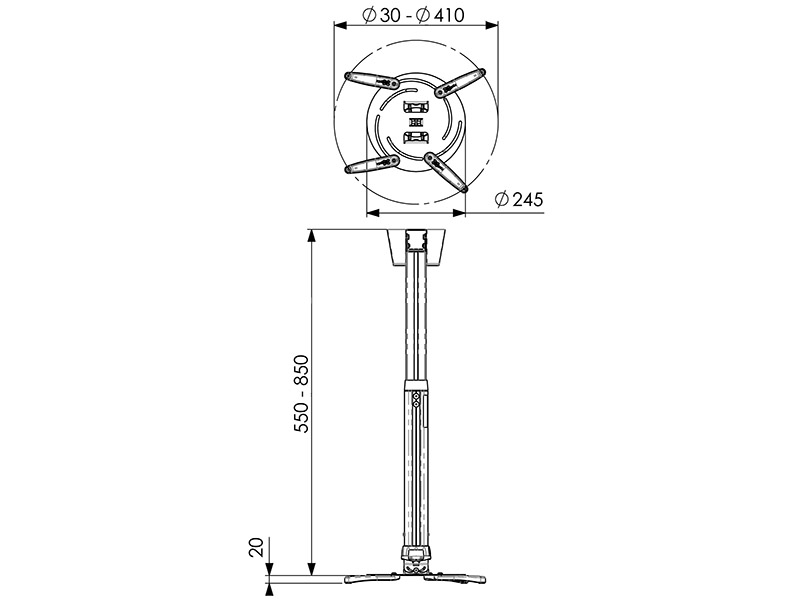

| Technical drawing: | [pdf, 108 kb] |
| Installation manual: | [pdf, 425 kb] |
| Capacity: | 25kg |
| Tilt: | 15° |
| Rotate: | 360° |
| Height range (mm): | 550-850mm |
| Swivelling range: | - |
| Packaging dimensions (LxWxH in mm): | 568 x 266 x 145 |
| Contains installation material: | + |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Warranty: | 5 years |
| Ceiling distance in m: | < 1m |
| Mounting type: | Ceiling mount |
| color: | Silver |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
