Vogels ELITE TVM 5405 flat TV wall mount 32 - 77 inch, black
The Vogel's TVM 5405 flat TV wall mount in black is suitable for TV / monitor sizes from 32 inch - 77 inch and supports a weight of up to 75 kg. With a VESA standard hole pattern from 100x100 to 400x400 mm and an integrated spirit level, mounting is quick and easy.
Flat TV wall mount

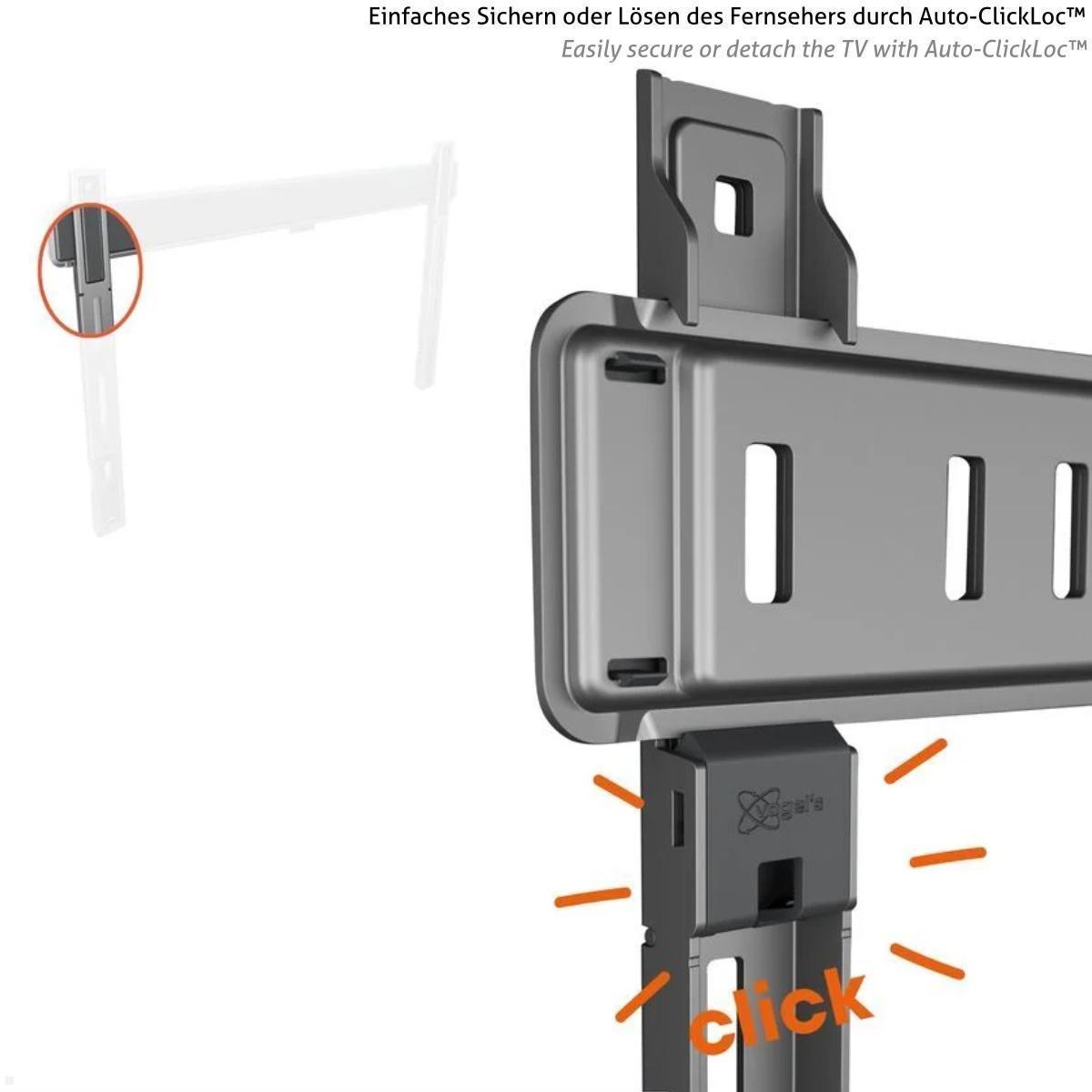

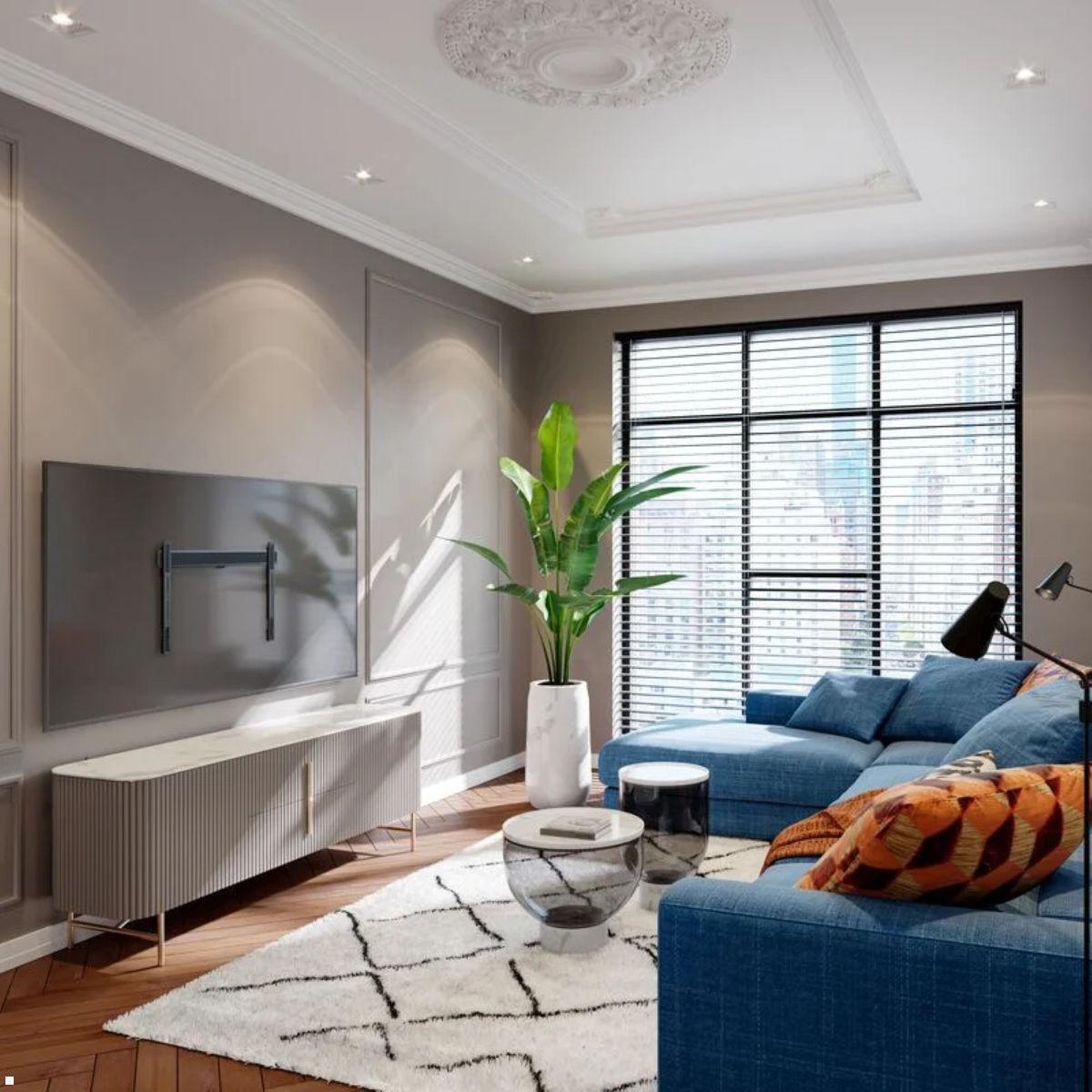

The TV bracket is perfect for use in the living room, entrance areas, restaurants, shop windows or shops. The flat TV wall mount TVM 5405 from the ELITE series is an extremely flat mounting solution for large LED and OLED TVs with a wall distance of 1.5 cm. TVs with a screen size of 32" to 77" and a VESA mount of 100x100 to 400x400 mm can be attached to the flat TV wall mount. The installation of the ELITE TV wall holder is very simple. The scope of delivery includes a drilling template, screws and spacers, and the TV wall mount itself has a built-in spirit level. The free DrillRight AR app makes drilling easier and the first drill holes can be marked effortlessly. The wall mount is equipped with the ClickLoc™ security system. This system locks the TV securely to the wall mount with an audible click. Integrated cable clips ensure neat cable management. The Vogels ELITE TVM 5405 TV mount is TÜV certified and therefore meets the highest safety standards.
Technical details Vogel's ELITE TVM 5405 flat TV wall mount
- Finish: Black
- Screen size: 32 inch - 77 inch
- Load capacity: 75 kg
- Min. wall distance: 15 mm

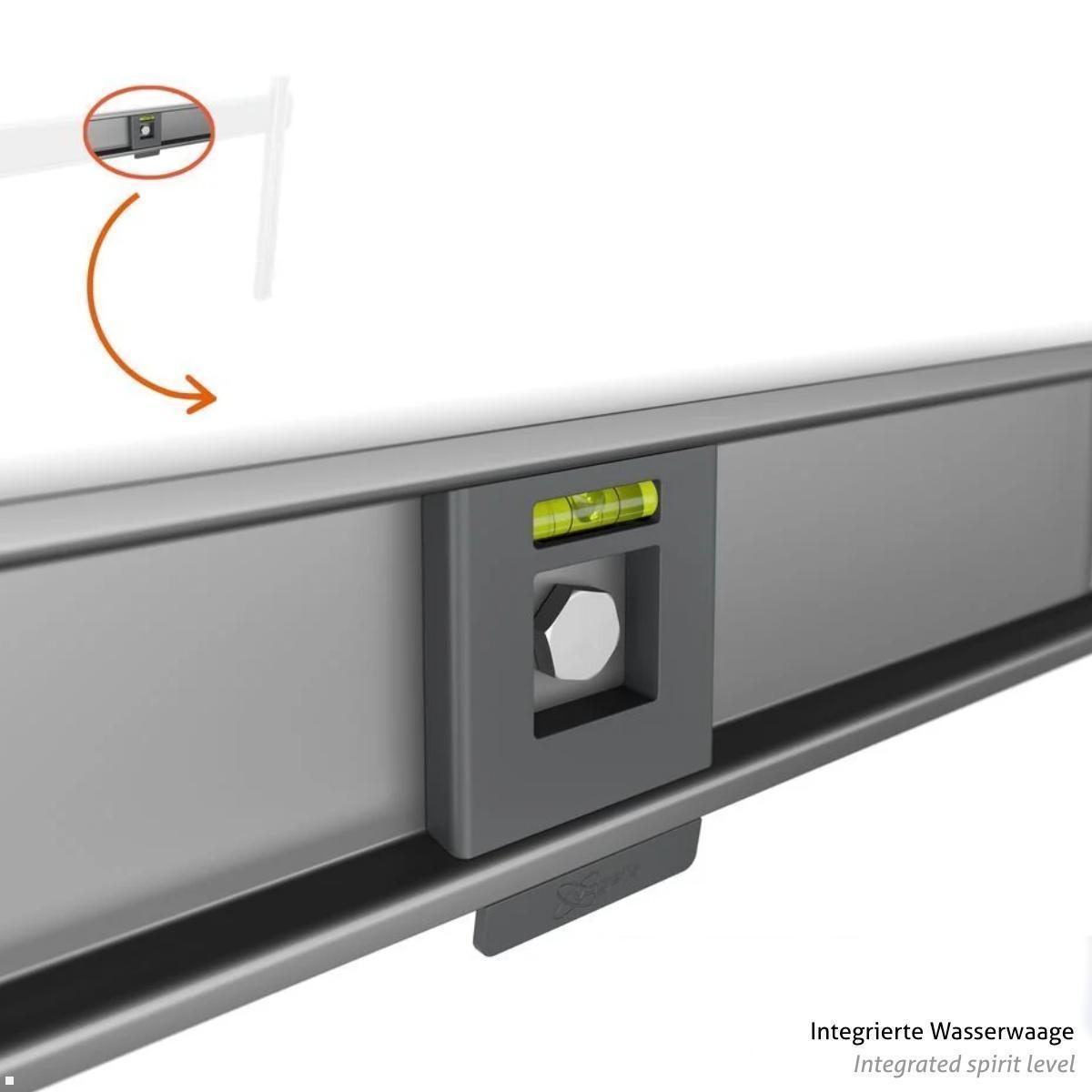

- Including integrated spirit level
- Mounting type: Wall mount

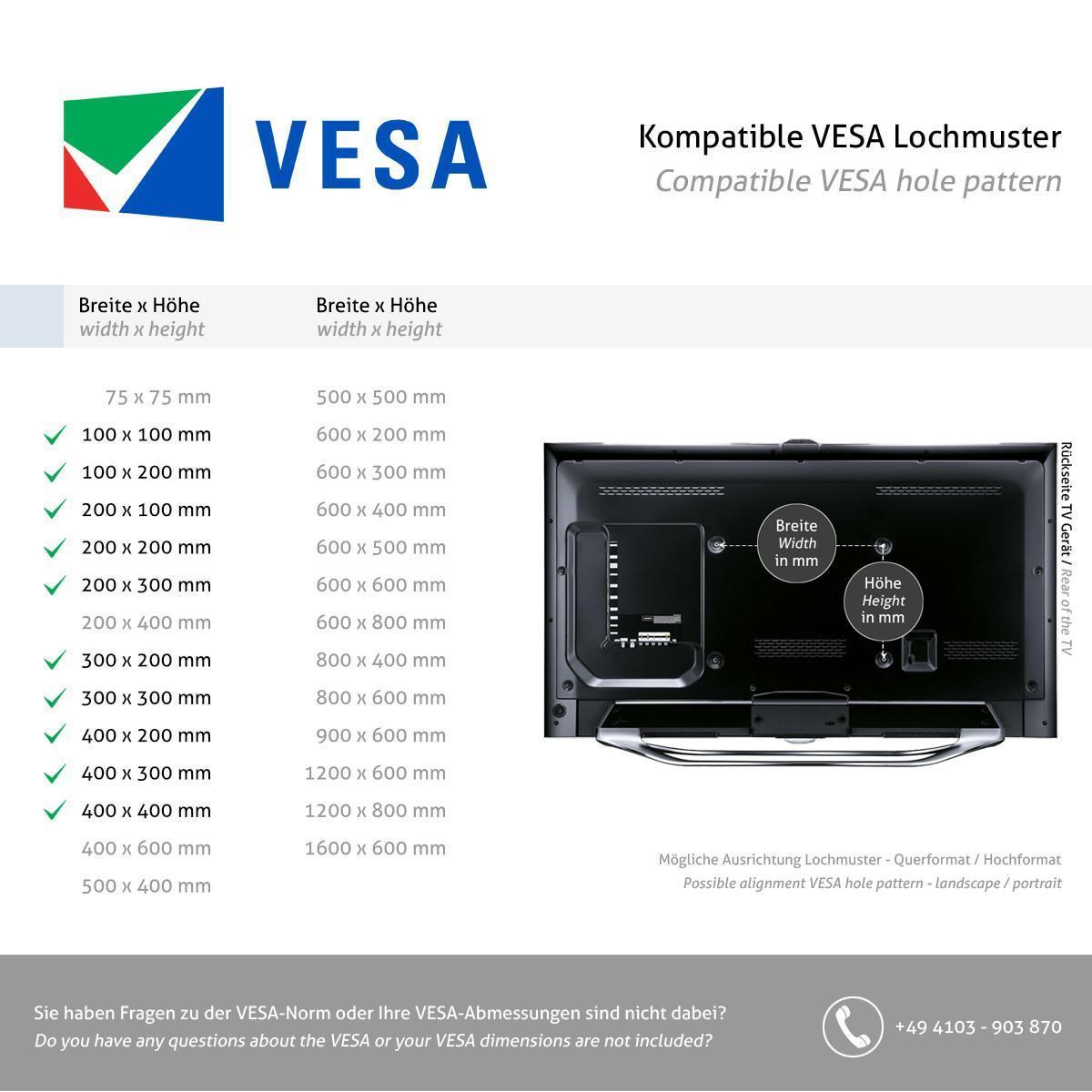

- VESA mount : 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 400x200, 400x300, 400x400 mm
- TÜV certified
- Warranty: 15 years
Does your TV or monitor fit the Vogels ELITE TVM 5405 mount?
We would be happy to check whether your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this Vogels TVM 5405 TV wall mount in black. Simply tell us your model (manufacturer + model no.) in the comments field at the end of the ordering process. We will then check for you whether the monitor fits and if not, we will contact you.
VESA standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

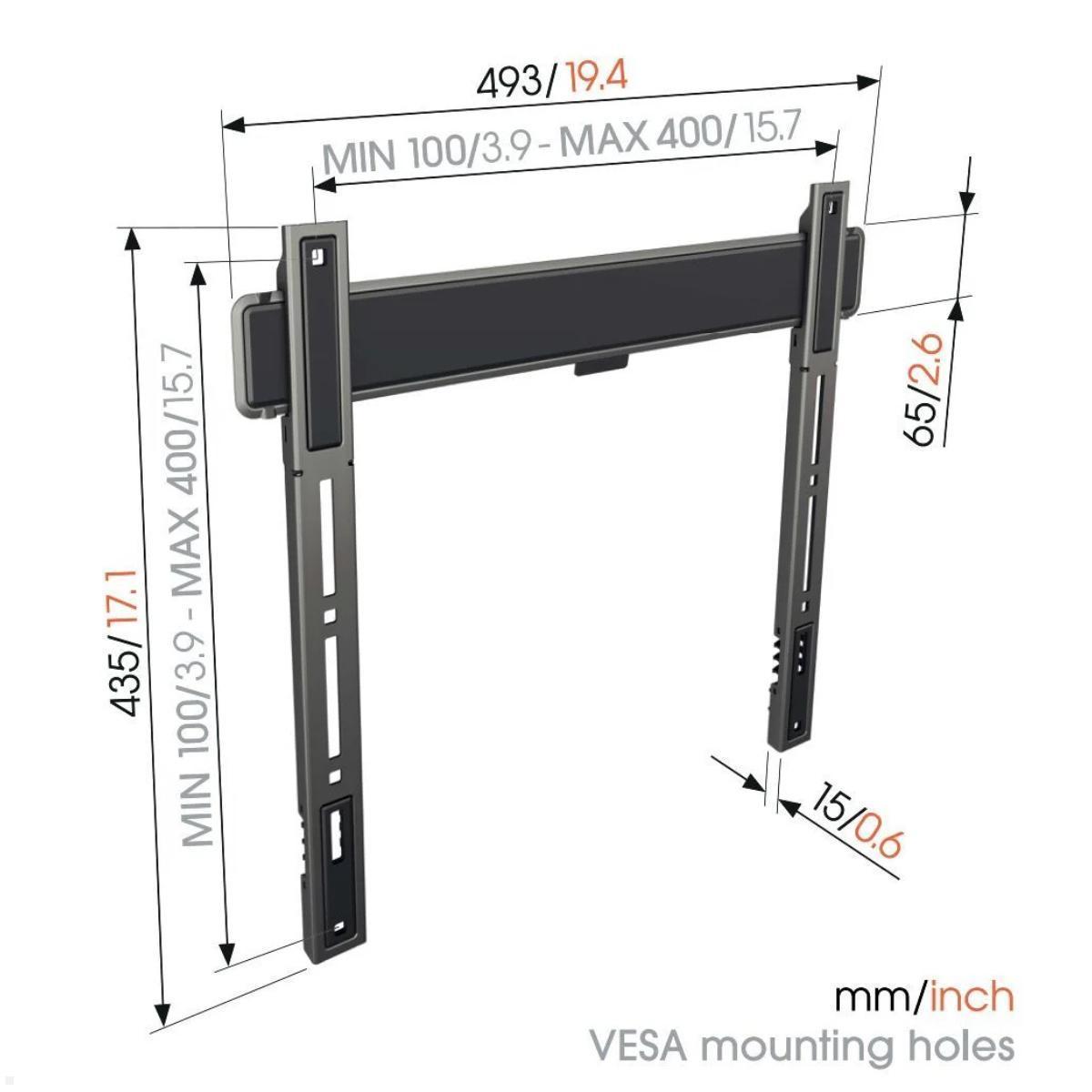

| Technical drawing: | [pdf] |
| Installation manual: | [pdf - German] |
| Capacity: | 75 kg |
| Screen size: | 32 - 77" |
| Depth of the bracket: | 15 mm |
| VESA Standard: | 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 400x200, 400x300, 400x400 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 590 x 95 x 55 |

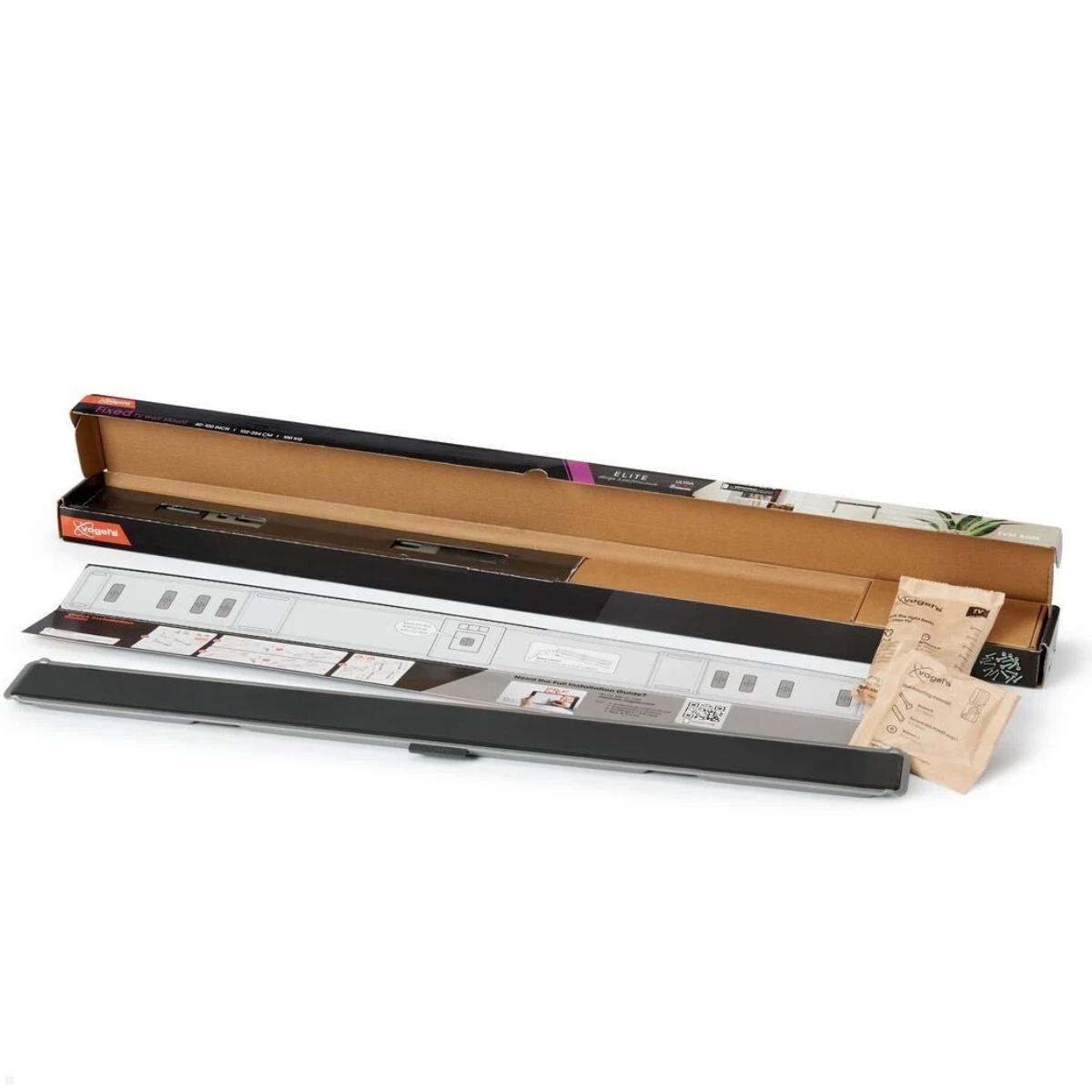

| Scope of delivery: | 1x Vogels ELITE TVM 5405 wall bracket | wall mounting kit | spirit level | drilling template |
| Contains installation material: | + |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Warranty: | 15 years |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch |
| Mobility: | fixed |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 100x200, VESA 200x100, VESA 200x200, VESA 200x300, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
