Vogels Connect-it PUC 2715 - 150 cm column for floor mounting, silver

Column for Vogels TV floor mounts

The Column for Vogels TV floor mounts from the PUC 27 series forms the connection between the display adapter and the base plate . The Vogels PUC 2715S pedestal in silver is 150 cm long and is part of the Connect-it system. The stanchions are equipped with multiple cable routing and can be combined with all Connect-it accessories. They can be used as a dual pole construction with an appropriate base plate and are also back-to-back for the use of screens as a dual mount to use. The Floor Columns are ideally suited for small to extra-large screens and support a total weight of up to 160 kg.

For a complete floor mount, combine this column/profile/tube with a base plate or trolley frame:

• PFF 7020 (base plate)
• PFF 7040 (base plate back to back)
• PFF 7030 (floor plate for double rod construction)
• PFF 7060 (floor mounting plate, permanent)
• PFT 8520 (carriage frame)
• PFT 8530 (carriage frame for double rod construction)

and Connect-it adapters as VESA mount:

• PFB 34xx display adapter bar and
• PFS display Adapter strips (depending on display size).

Key features Vogels Connect-it PUC 2715S

• Colour: silver
• Material: aluminum

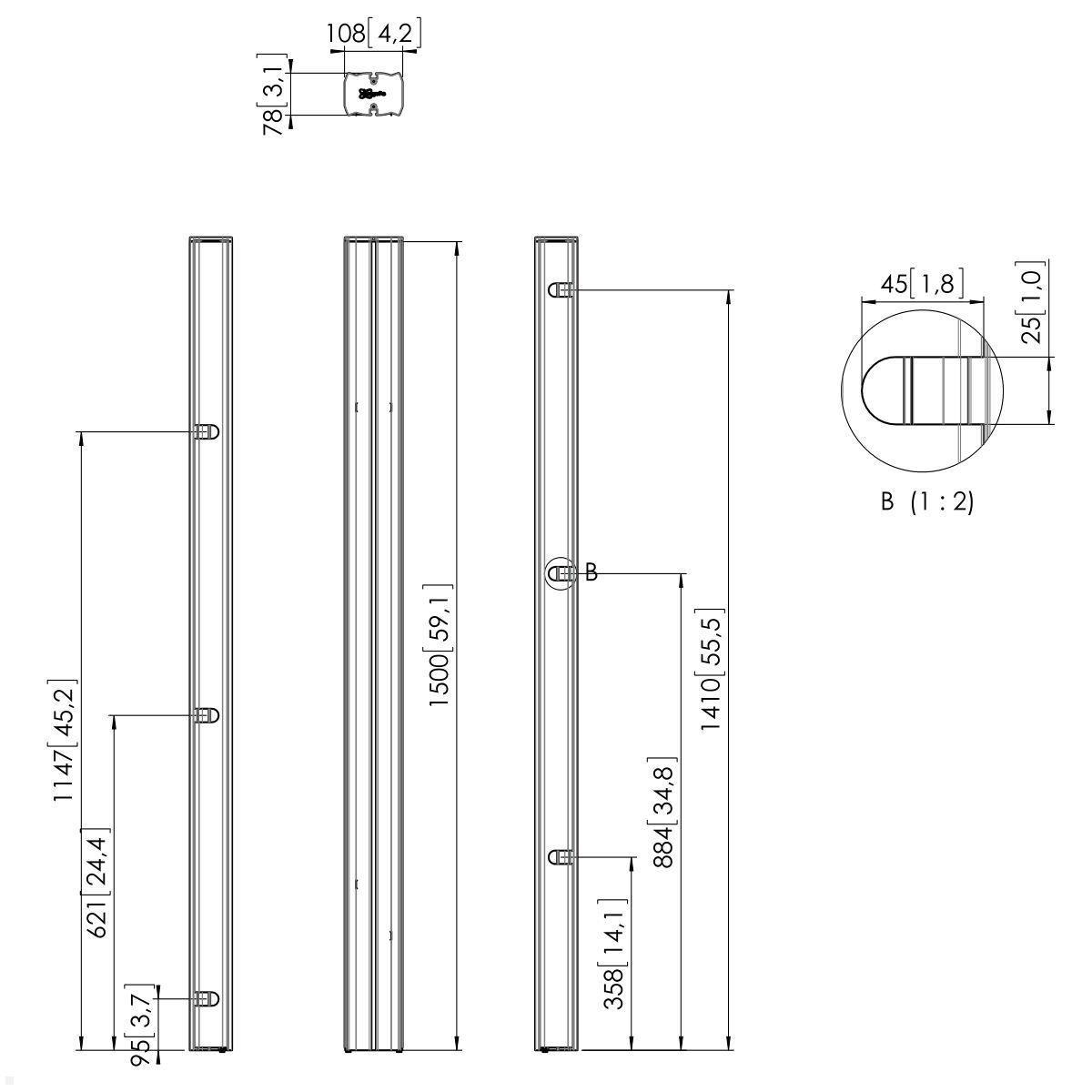

• Dimensions: 1500 x 108 x 78 mm
• Max weight load: 160 kg
• Warranty: 5 years

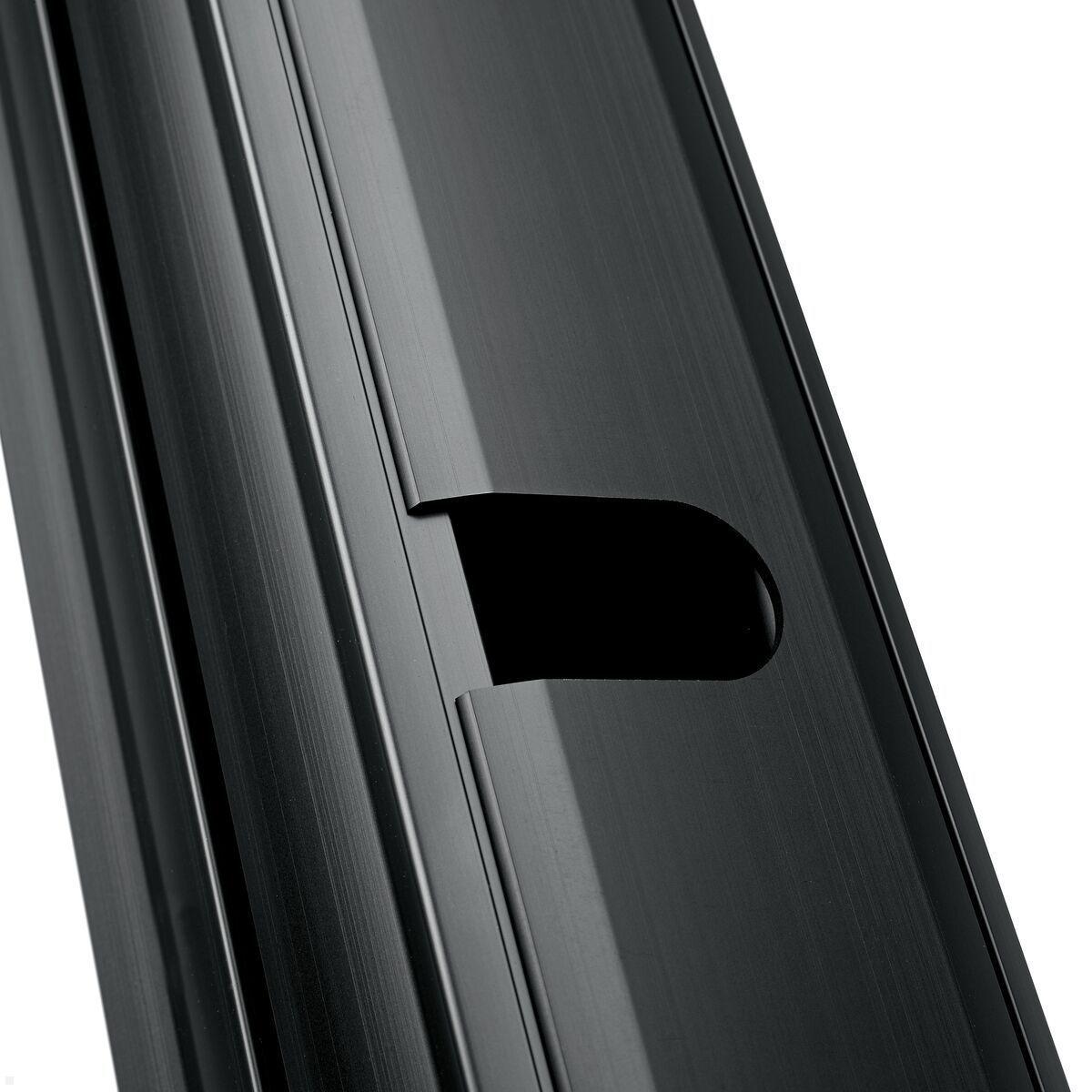

• Multiple cable routing surround (CIS®)
• Screens can be back-to-back

Does your monitor or display fit the Vogels Connect it system?

We would be happy to check whether your monitor is suitable for this ceiling mount from the Connect-it series and which products can be combined. Simply send us your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you whether the monitor or the display fits the monitor mount and if not, we will contact you.
