Vogels Connect-it CT242211B TV ceiling mount up to 32 inch, black
TV ceiling mount with 360 degree swivel function
The complete set in black consists of the ceiling adapter PUC 1045, a column of 2200 mm length (can be shortened) PUC 2422 and the VESA mount PFI 3015. The Vogels monitor mount CT242211B can be swivelled, tilted and is suitable for flat ceilings or roof slopes of up to 90 degrees. The TV ceiling mount with 360 degree swivel function can also be mounted on suspended ceilings and is designed for small to medium sized screens. The VESA mount has a tilt function that can be adjusted in steps: 0, 10 or 20 degrees and is suitable for screens from 10 - 32 inches. What is special about this ceiling mount? Thanks to the round shape of the profiles, the entire system can be rotated 360° and the aluminium columns can be shortened to the required height before installation. Thanks to the innovative mounting slot, accessories can even be added after installation. In addition, the PUC 24 series is equipped with a CIS® cable management system so you can quickly and effortlessly make all unsightly cables disappear.
Key Features Vogels ceiling mount CT242211B
- Colour: Black
- Monitor size: 10 - 32 inch
- Load capacity: 30 kg
- Max. Distance to ceiling: 2409 mm
- Tiltable: VESA adapter up to 20 degrees, ceiling adapter up to 90 degrees
- Rotatable: column in ceiling adapter up to 360 degrees
- VESA mount standard: 50x50, 75x75 and 100x100 mm
- Orientation: portrait or landscape
- Levelling function: 3 degrees horizontal after installation
- Cable management (CIS)
- Warranty: 5 years
Does your display fit the ceiling mount?
We would be happy to check whether your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this CT242211B monitor mount. Simply tell us your model (manufacturer + model no.) in the comments field at the end of the order process. We will then check for you whether the monitor fits and if not, we will contact you.

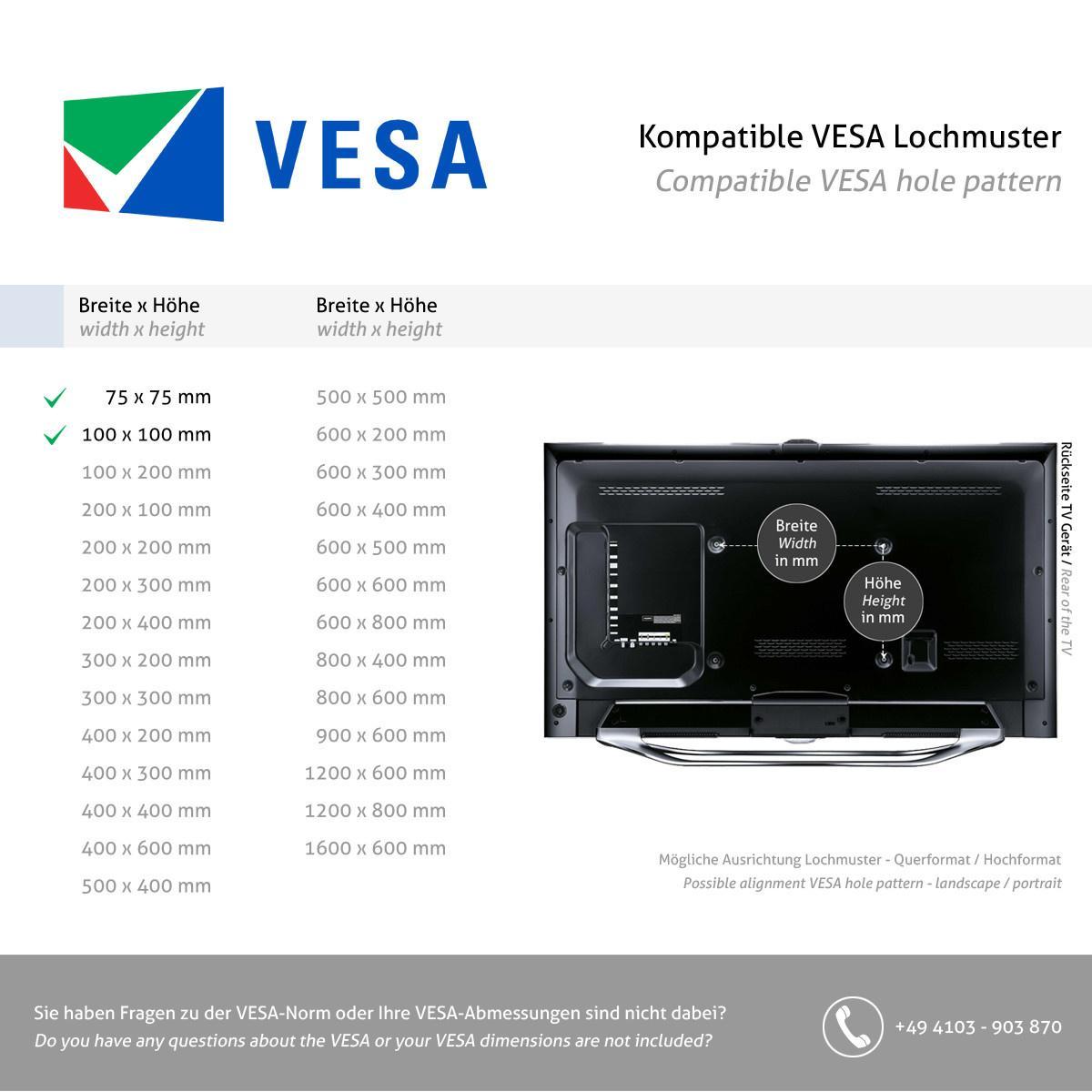

Learn more about the VESA standard for monitor holders here.
| Product sheet: |  [pdf] |
|---|---|

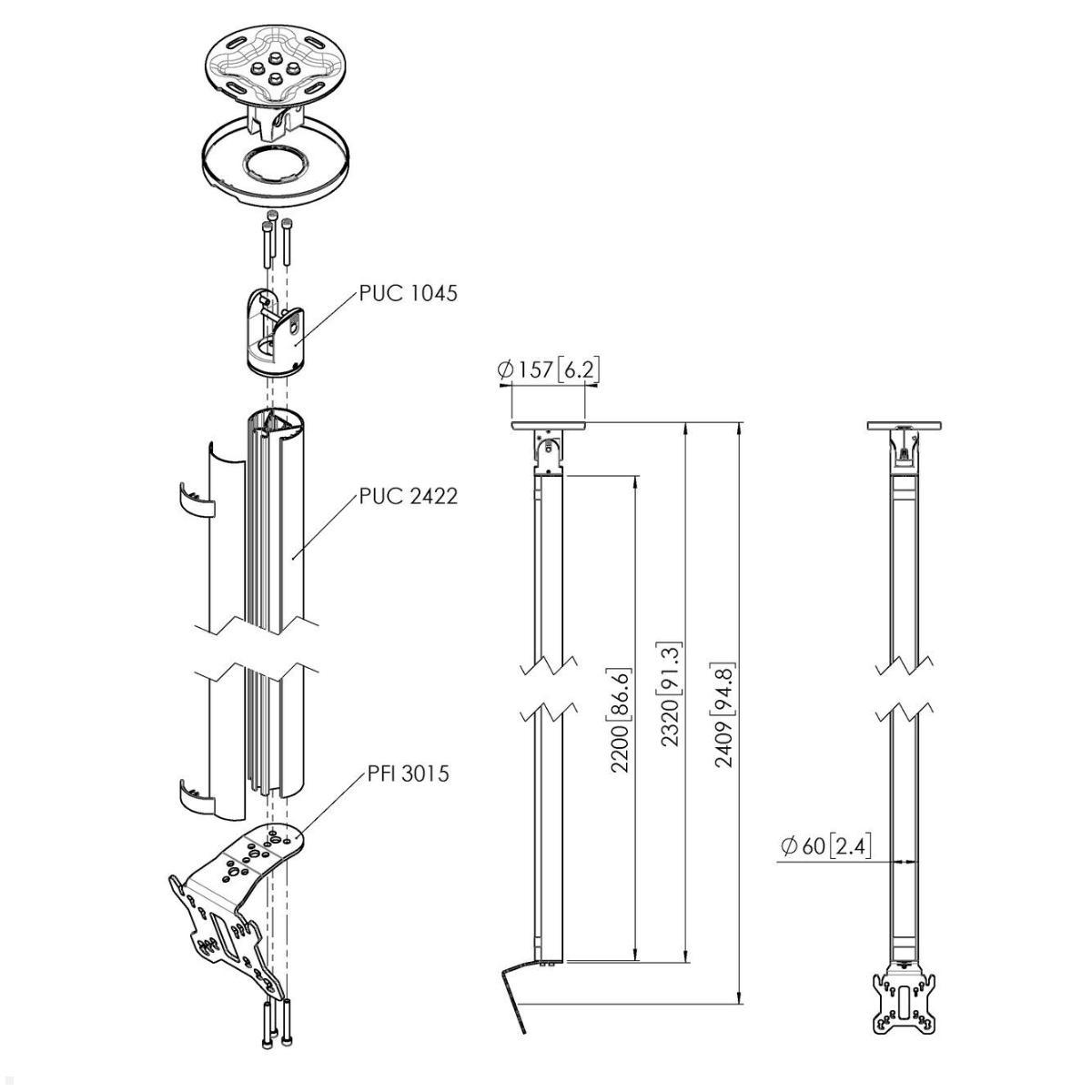

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 30 kg |
| Tilt: | 20° Vesa Adapter / 90° Deckenadapter |
| Rotate: | 360° |
| Screen size: | 10 - 32" |
| Material: | Steel, aluminium |
| Special features: | Column can be shortened |
| Ceiling distance: | 2409 mm |
| VESA Standard: | 50x50, 75x75, 100x100 mm (www.vesa-standard.com) |
| Accessories: | Vogels PFA 9038 |
| Packaging dimensions (LxWxH in mm): | 260 x 170 x 89 | 2229 x 70 x 70 | 254 x 152 x 133 |
| Scope of delivery: | PUC 1045, PUC 2422B, PFI 3015, installation material |
| Contains installation material: | + |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Warranty: | 5 years |
| Ceiling distance in m: | < 3m |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch |
| Mobility: | swivelling, tilting |
| Mounting type: | Ceiling mount, Pitched roof |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Black |
| VESA (in mm): | VESA 50x50, VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
