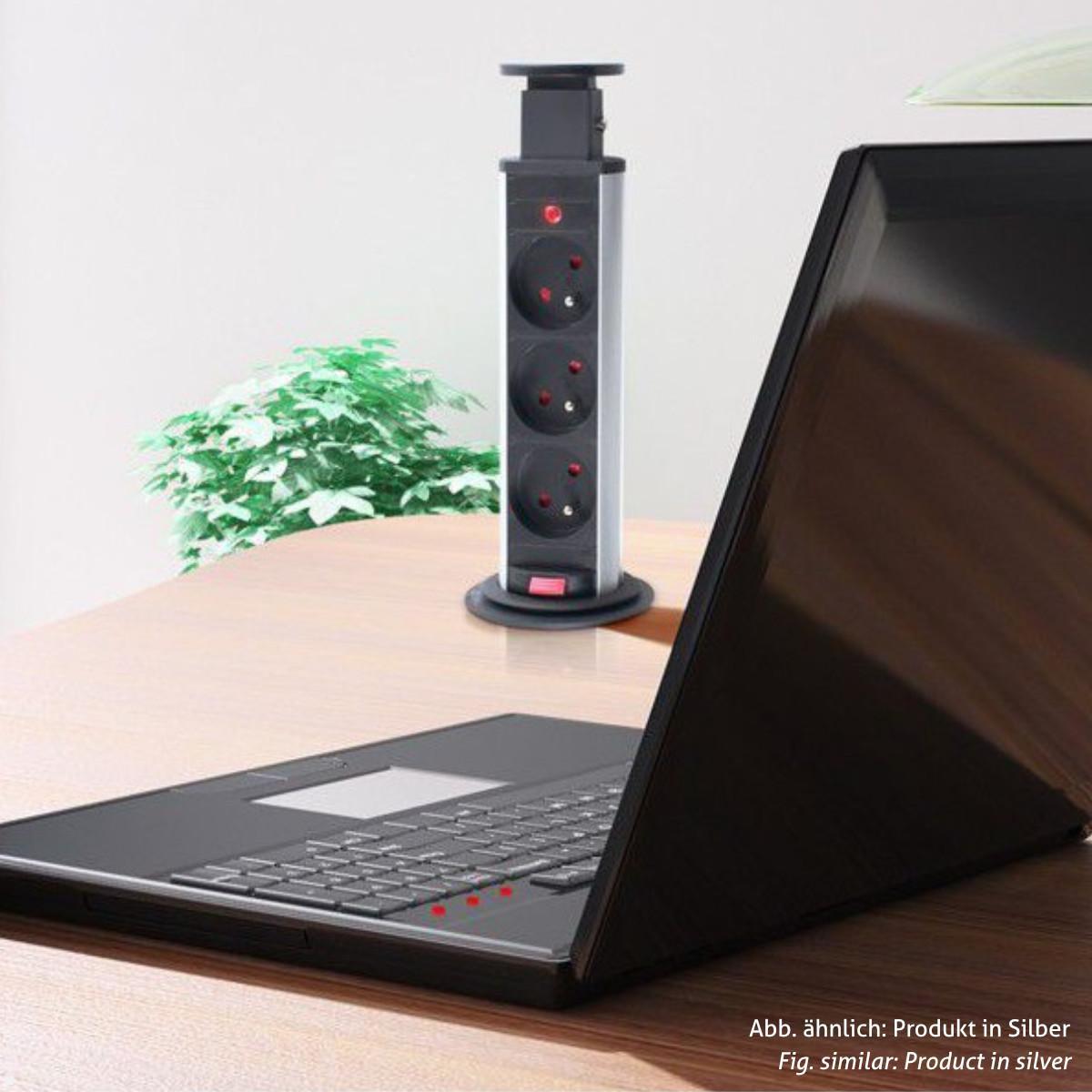

TecLines TVS008E retractable 3-way socket strip, stainless steel
The TecLines TVS008E built-in socket strip in stainless steel design with three sockets can be inserted into a table cutout with Ø 60mm and also pulled out. The practical multiple socket can be installed in table top thicknesses from 18 to 52 mm.
Retractable built-in power strip

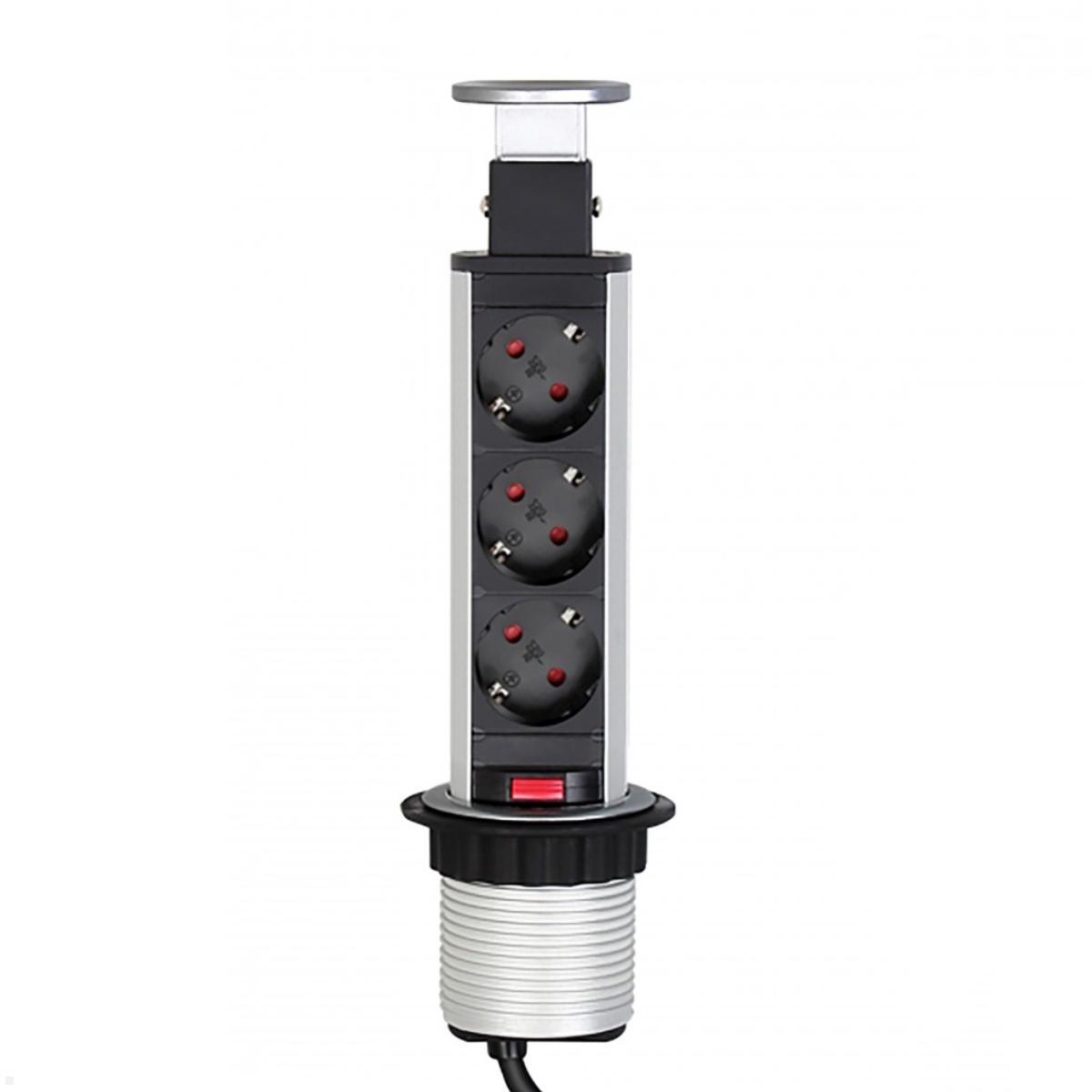

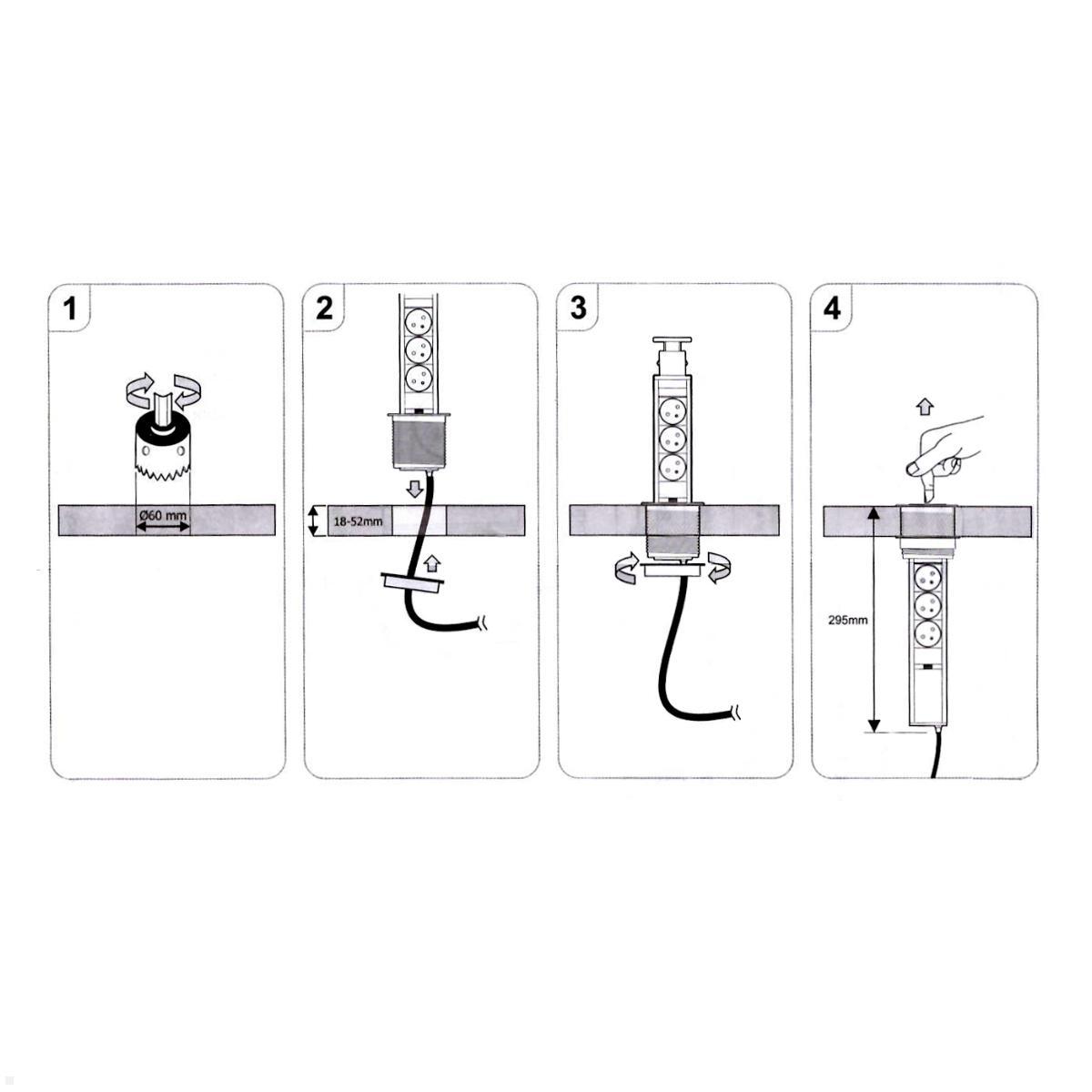

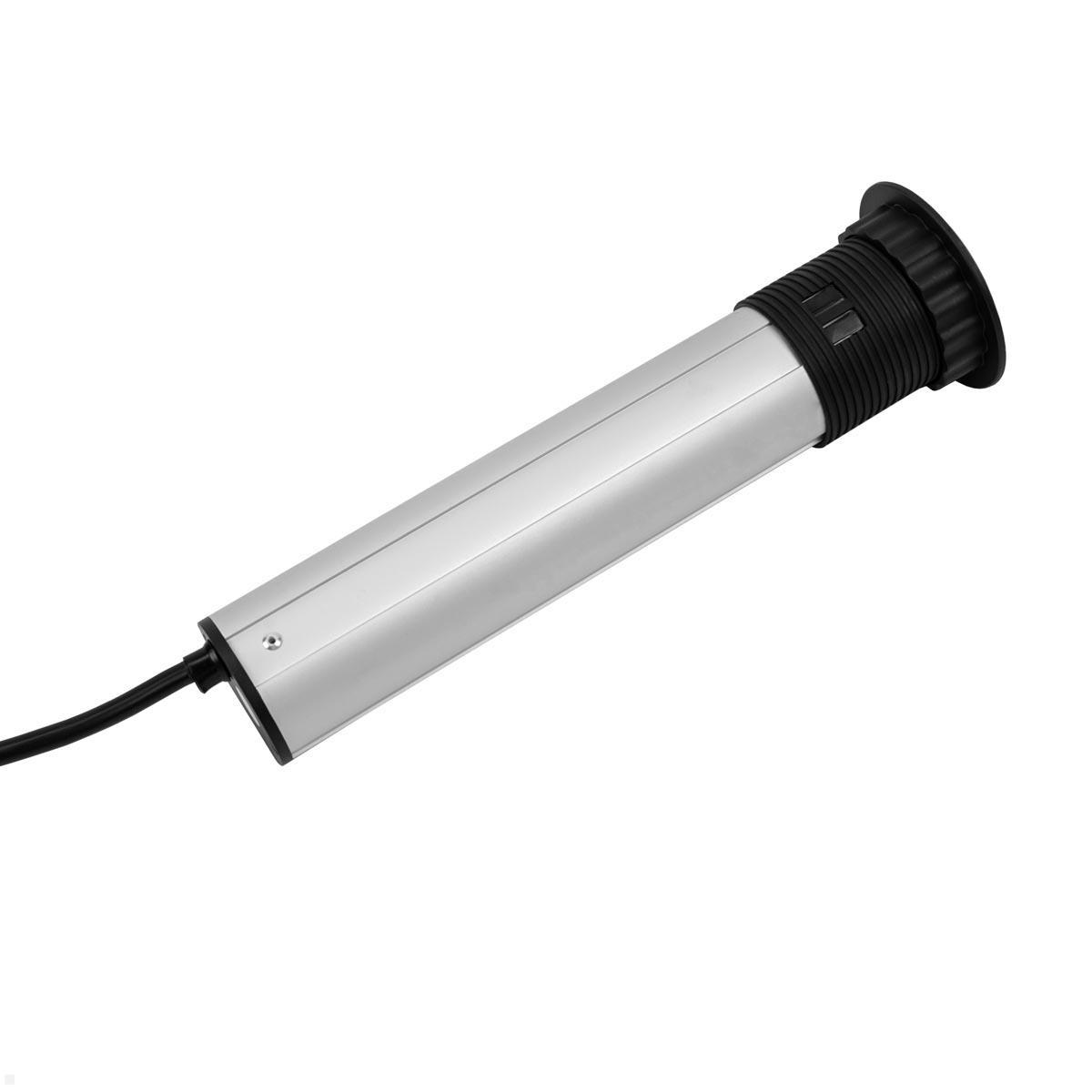

The TecLines TVS008E 3-way power strip is a manually extractable or retractable built-in power strip. The multiple socket in high-quality stainless steel design is designed for installation in desks, work surfaces or counters. The installation of the built-in socket strip is very easy. The TecLines TVS008E is inserted into a table cutout with a diameter of 60mm and attached to the table top with a ring from below. A 1.8m power cable is integrated into the built-in socket. Popular areas of application are offices, kitchens, conference and meeting rooms as well as in restaurants, at airports or at trade fairs.
Key features TecLines TVS008E 3x built-in socket
- 3x safety socket (230V AC, max. 16A)

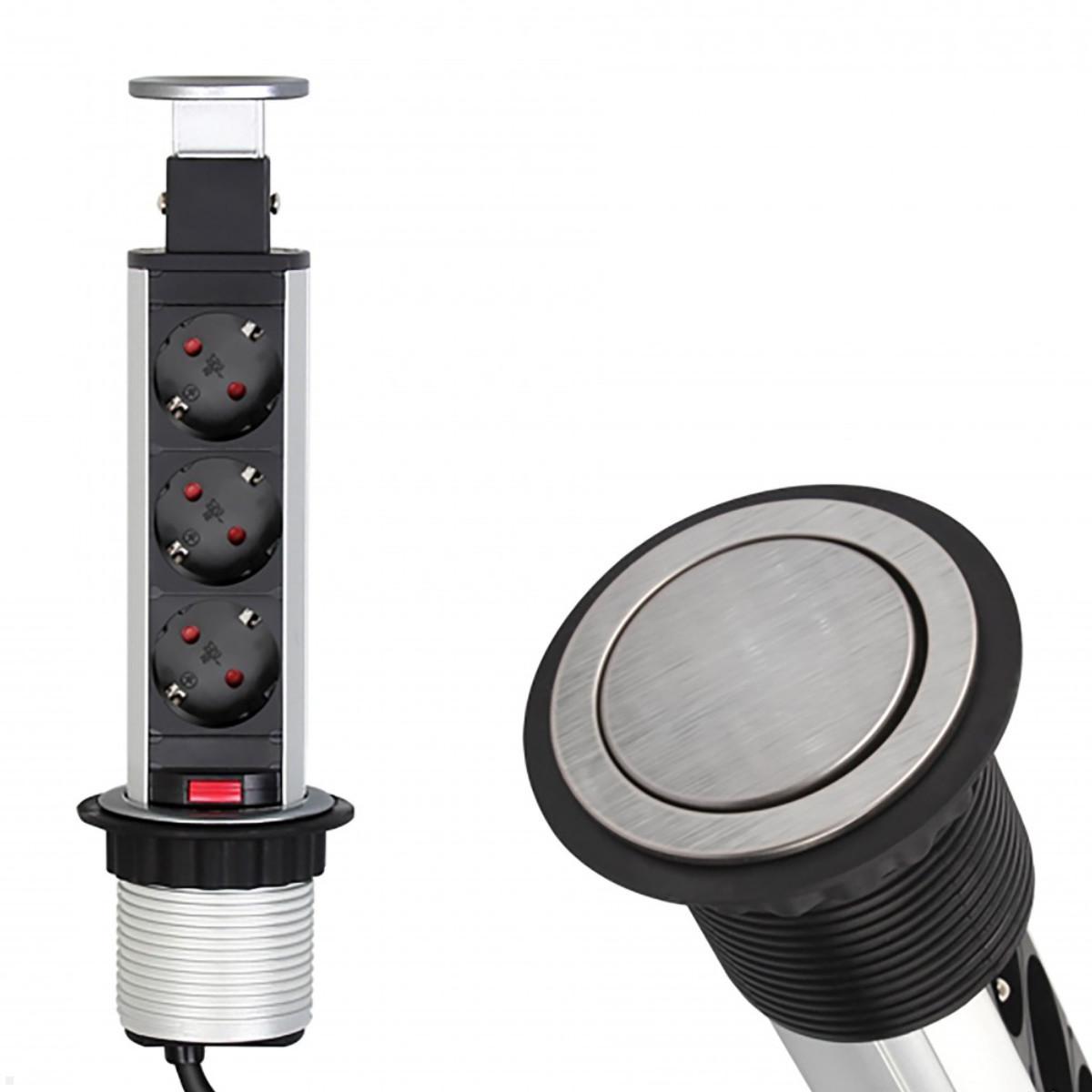

- Manually retractable / extendable
- Plate thickness: 18-52 mm
- Material: aluminum, plastic

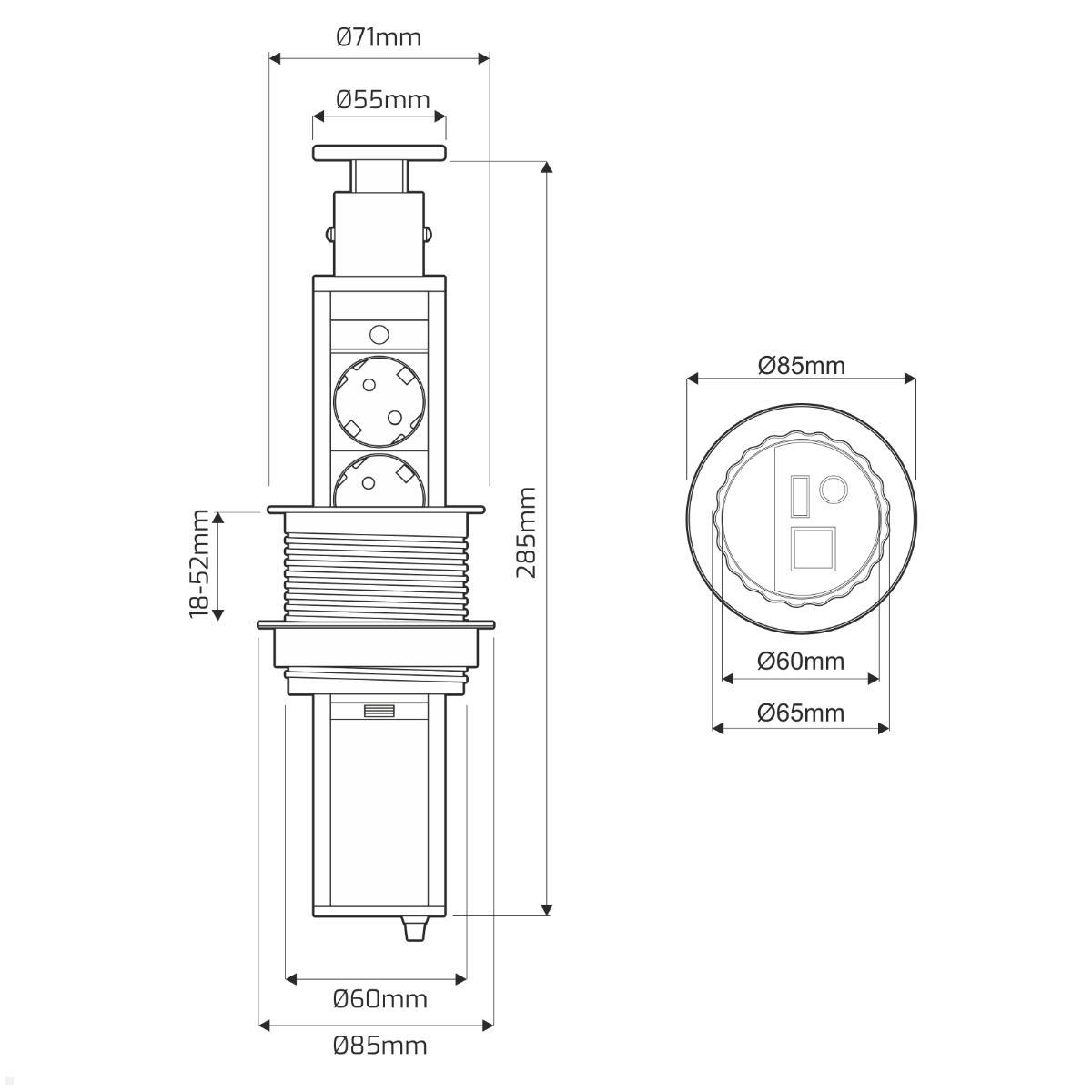

- Inlet diameter: 60 mm
- Extension height from table: approx. 217 mm
- Outer dimensions (extended): max. Ø 85 x 285 mm
- Voltage: 230V AC
- Power: 3600W
- Degree of protection: IP20

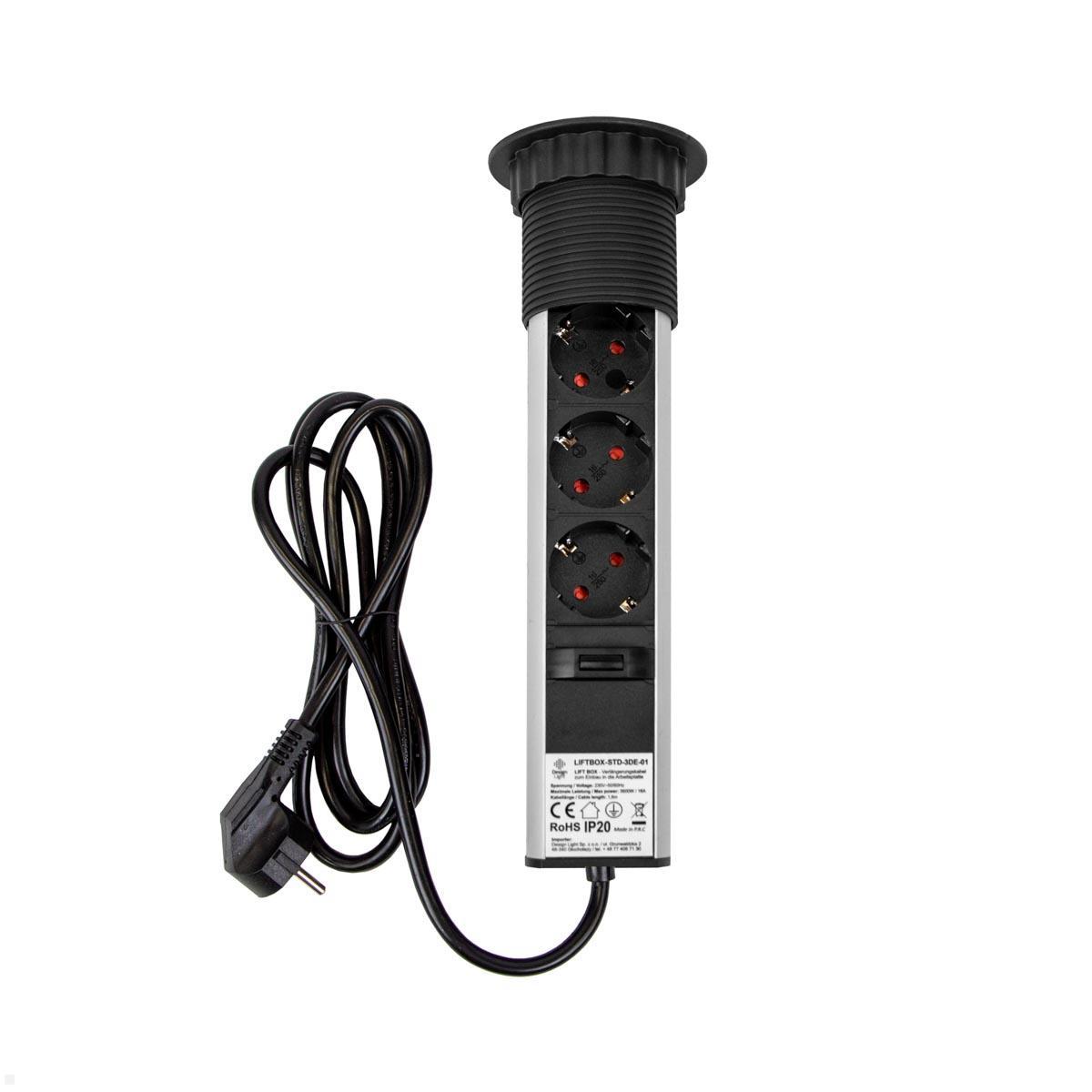

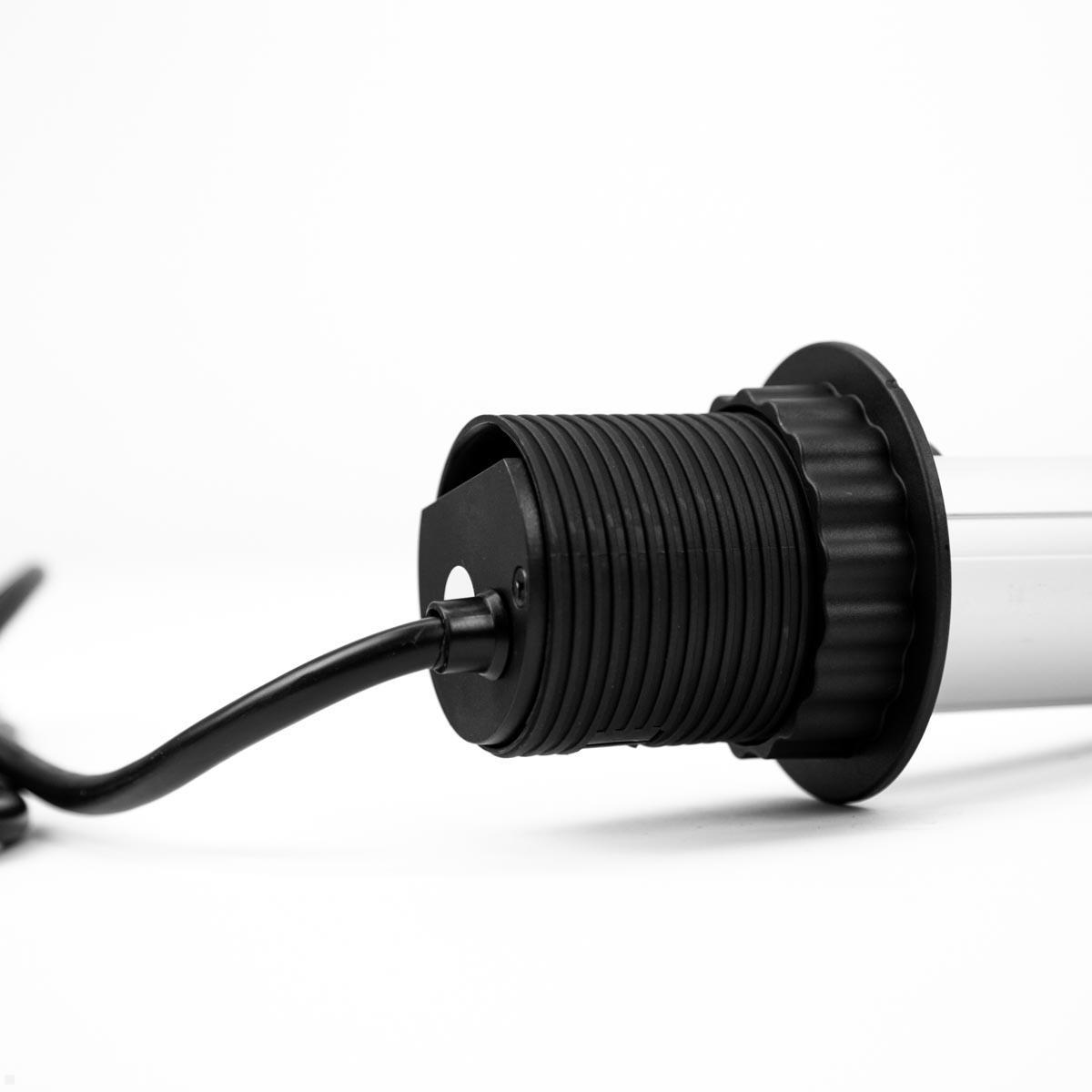

- Power cable: 1.8m with angled plug

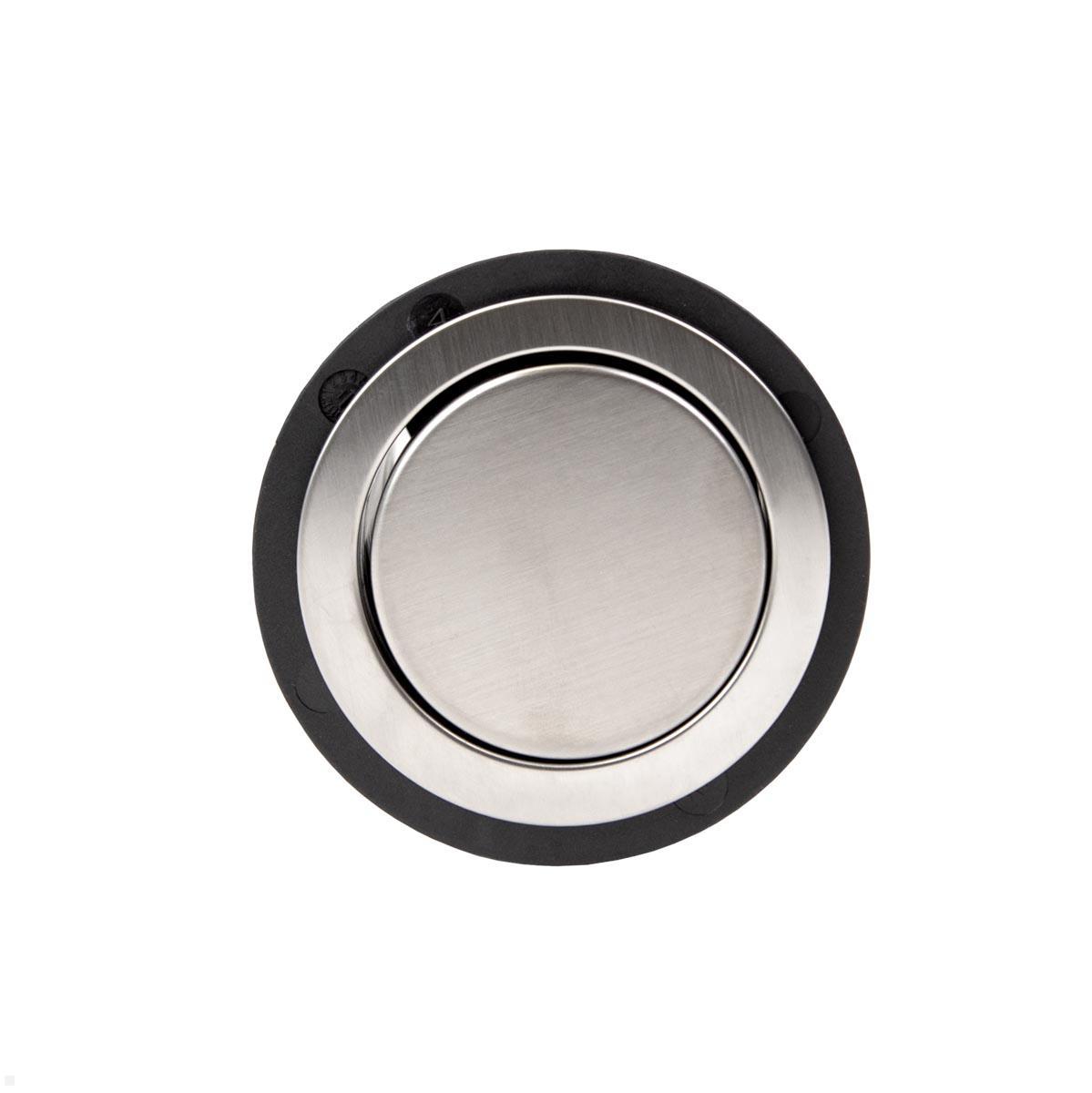

- Finish: brushed stainless steel
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 222 x 110 x 100 |
| Scope of delivery: | 1x socket strip including power cable |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / TecLines, Am Marienhof 8, 22880 Wedel, info@teclines.de |
| color: | Stainless Steel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
