TecLines TNT004 Tablet Flush- and Wall-mounted USB power supply 30W output
The TecLines TNT004 is a small flush-mounted USB power supply designed for tablets like iPads, Samsung Galaxy Tabs, or Microsoft Surface, suitable for both wall mounting and installation in furniture. This compact flush-mounted power supply with a USB-C connection has been specifically engineered to provide uninterrupted power delivery, delivering 3A and 30W (at 9V USB-C voltage) for tablets integrated into wall mounts and tablet housings.
USB power supply unit / tablet charger
The TecLines TNT004 is a sleek flush-mounted power supply specifically designed for tablets with a USB port, delivering an output power of 2A. It is discreetly installed within a mounting box positioned behind the tablet, allowing for uninterrupted charging even when the device is enclosed within a protective housing. Featuring a USB-C connection, this power supply unit is suitable for both wall mounting and integration into furniture. It seamlessly integrates with TabLines TWE and TSG tablet enclosures, presenting a tidy solution devoid of visible cables. This setup is particularly advantageous for scenarios requiring the tablet to remain stationary, such as room management signage, smart home automation, or machine control. The TecLines Charger, boasting a 30 watt output, can be easily fitted into flush-mounted boxes with a minimum depth of 42 mm.
USB-C flush-mounted power supply 30W
Please be aware that the scope of delivery only includes the TecLines USB charger. To create a complete wall mount setup for your tablet, you will also require a TabLines housing (TabLines TWH, TabLines TWP, TabLines TWE, or TabLines TSG), an appropriate charging cable, and a flush-mounted socket. The TecLines USB charger features a USB-C connection. You will need a corresponding charging cable based on the connection of your tablet or end device. TecLines – Intelligent technology by creative minds.
Key Features TecLines TNT004 USB-C power supply 30 Watt output
- Connection on the power supply unit: USB-C socket
- Application: Flush-mounted wall installation
- Power source: Brown / blue wire
- Input voltage: 100 - 240 VAC, 50/60 Hz
- Output power: 5V, 15W | 9V, 27W | 12V, 30W | 15V, 30W | 20V, 30W
- Power factor: 0.50 @ 5 Watt
- Complies with the USB-PD 3.0 protocol
- Internal power consumption in standby: 0 mW
- Operating temperature: 0°C ~ 50°C
- Dimensions (WxHxD): 49 x 47 x 28 mm
- Unit weight: 100 g
- 1500 volt isolation class II
- Suitable for flush-mounted installation (TecLines THWD001 cavity wall device socket)
- Suitable for a cavity box (e.g. TabLines THWD002)
- Flush-mounted box can be screwed directly onto the tablet wall-mounted protective housing / tablet case on the back
- Very suitable for TabLines TSG tablet protective housing (not included in the scope of delivery)
- Colour: Black
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Tilt: | - |
| Height range (mm): | - |
| Pivot: | - |
| Swivelling range: | - |
| Suitable for: | Almost all tablets |
| Packaging dimensions (LxWxH in mm): | 86 x 58 x 75 |

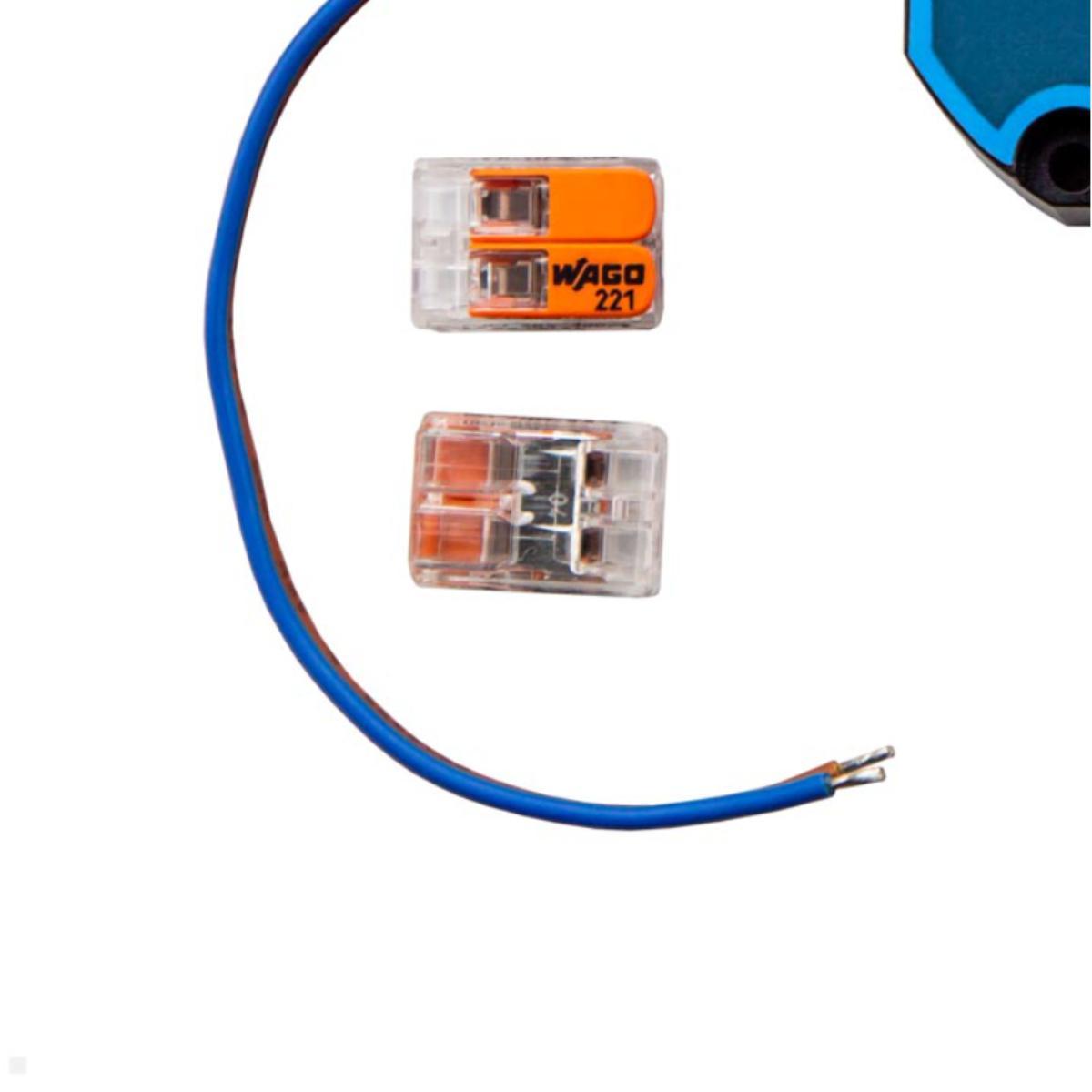

| Scope of delivery: | 1x TecLines TNT004 | 2x Wago Clips |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / TecLines, Am Marienhof 8, 22880 Wedel, info@teclines.de |
| Mounting type: | in-wall solution |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
