SMS Presence electric TV wall/floor mount up to 86 inch (K05-142-22)
€1,933.75*
delivery time: 1 - 5 working days
Monitor floor / wall mount

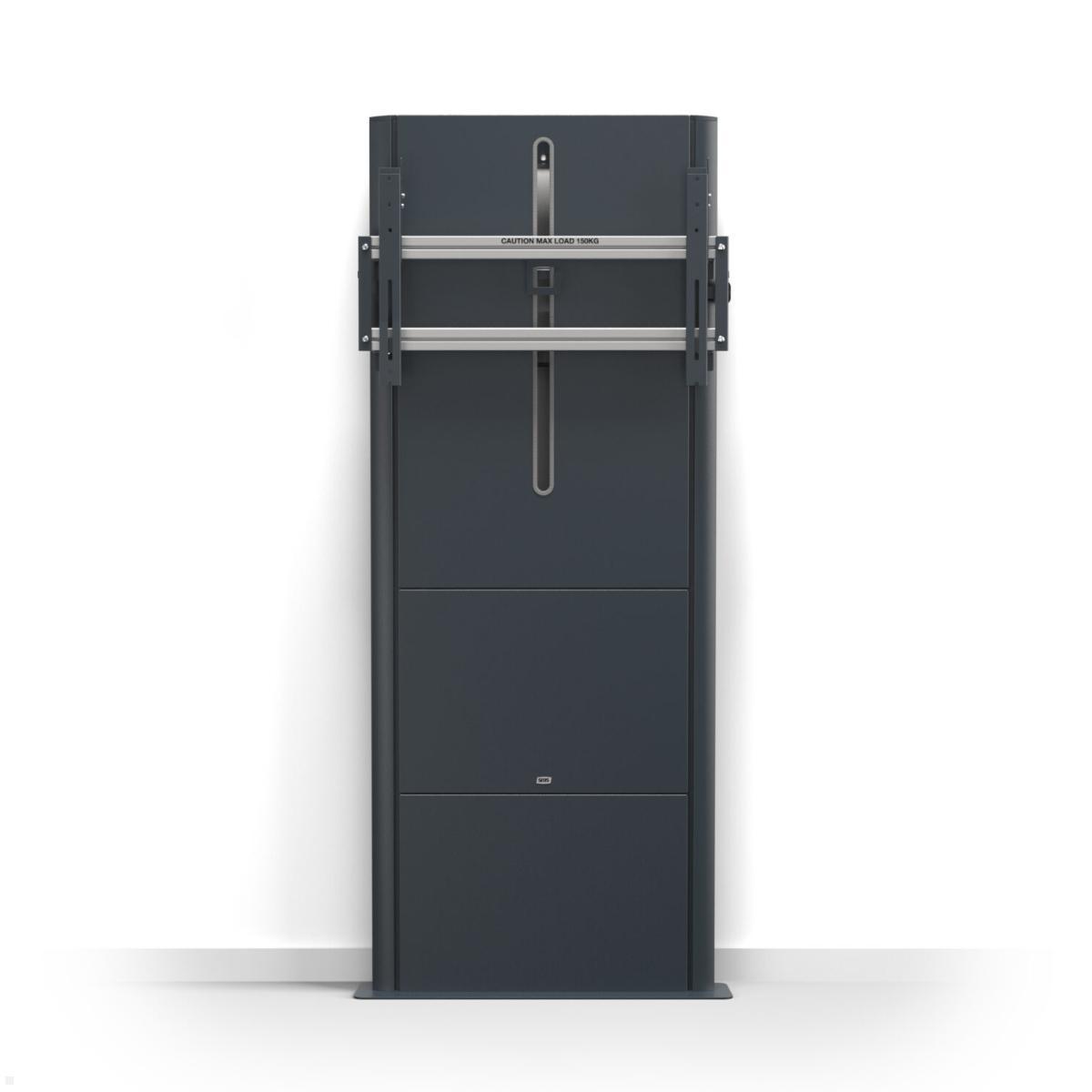

With the SMS Presence Wall/Floor Motor, screen content can be presented comfortably and flexibly: The monitor floor / wall mount from Smart Media Solutions is electrically height-adjustable by 500 mm at the touch of a button and features a particularly quiet motor. Its smart design shifts the weight from the wall to the floor, so that even large and heavy screens of up to 86 inches and a maximum weight of 150 kg can be securely mounted. Areas of use for the TV floor wall mount include meeting and conference rooms or lobbies. Since the holder takes up only very little floor space, it is ideal for small spaces where a regular floor stand with a wider base would only get in the way. The discreet design in dark gray blends stylishly into the spatial ambience. All necessary cables and smaller peripherals are elegantly concealed inside the monitor stand. If necessary, the TV / monitor can be locked to the bracket with the help of the enclosed locking screw. For additional theft protection, the display can be secured to the TV stand with a separate padlock.
Key features SMS Presence W/F Motor floor / wall mount (K05-142-22)
- Floor / wall mount for monitors or TVs
- Suitable for large format / heavy displays
- Electrically height adjustable by 500 mm
- Quiet motor
- Max. screen size: 86 inch
- Capacity: 150 kg
- VESA mount: 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400 mm

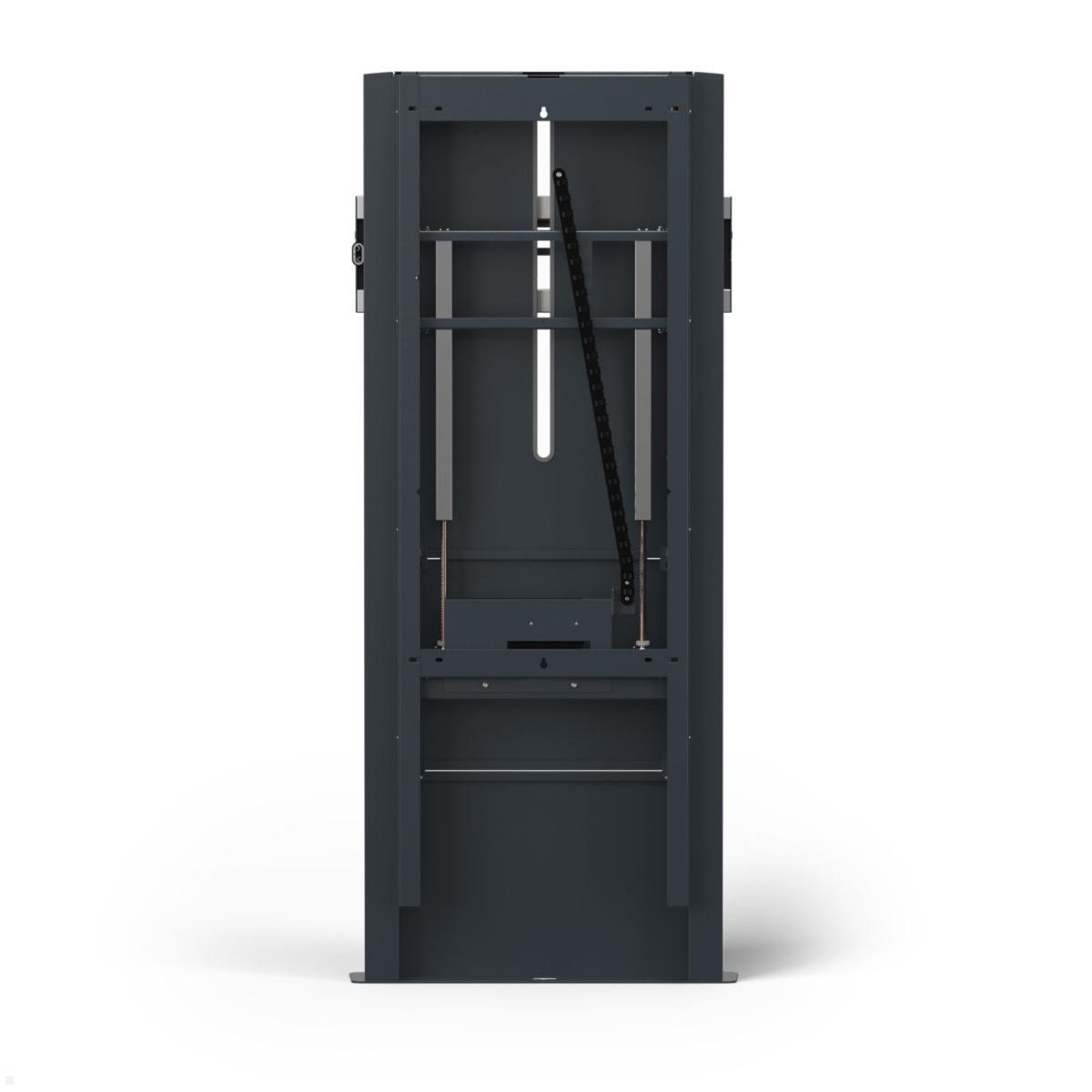

- Integrated cable management
- Weight: 50 kg
- Dimensions (WxHxD): 201 x 756 x 1782 mm
- Easy installation, mounting material included
- Warranty: 2 years
- Finish: dark gray

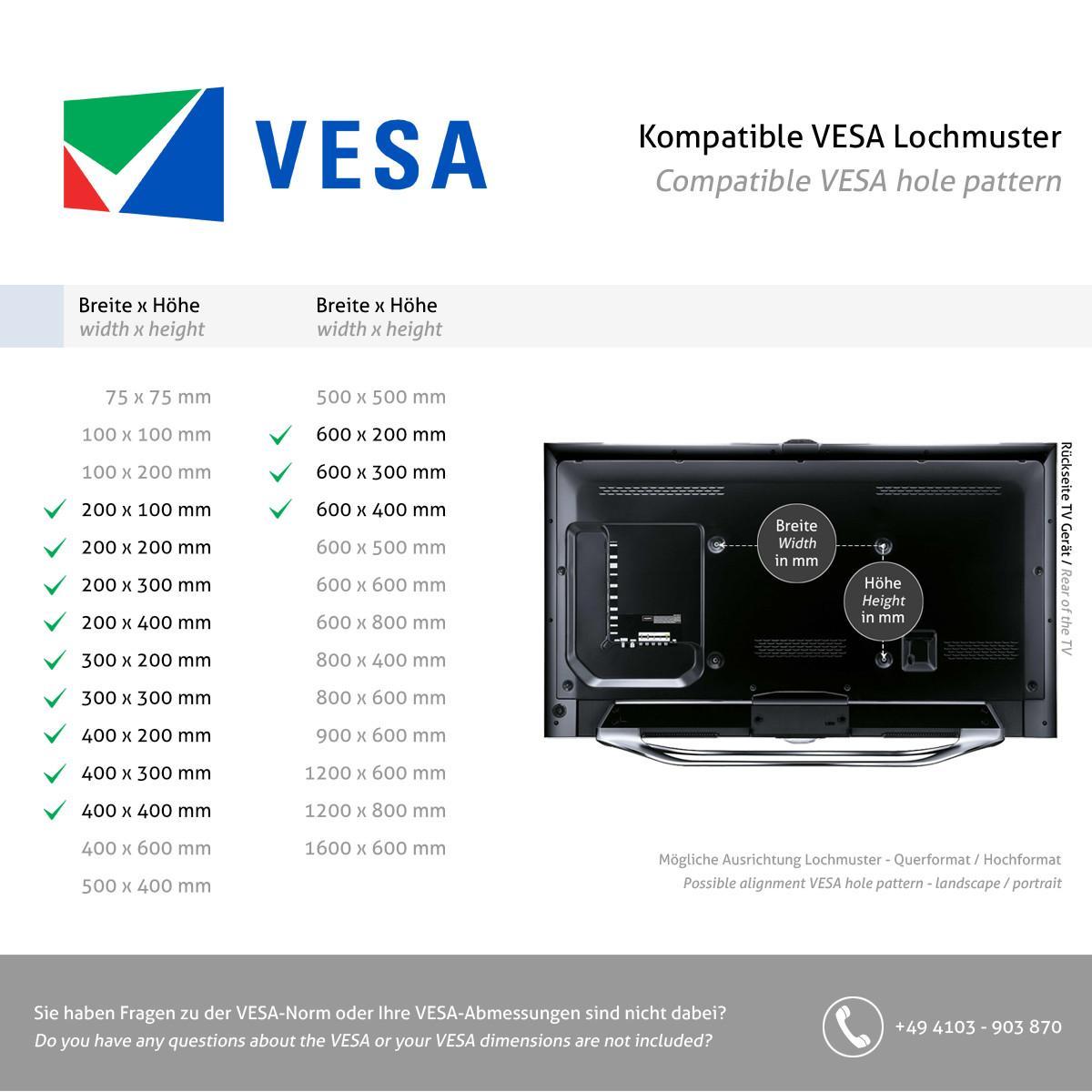

Does your monitor or display fit the VESA mount?
We would be happy to check if your monitor is suitable for this SMS Presence floor / wall mount (K05-142-22). Just tell us your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you if the monitor or display fits the monitor mount and if not, we will contact you.
VESA standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

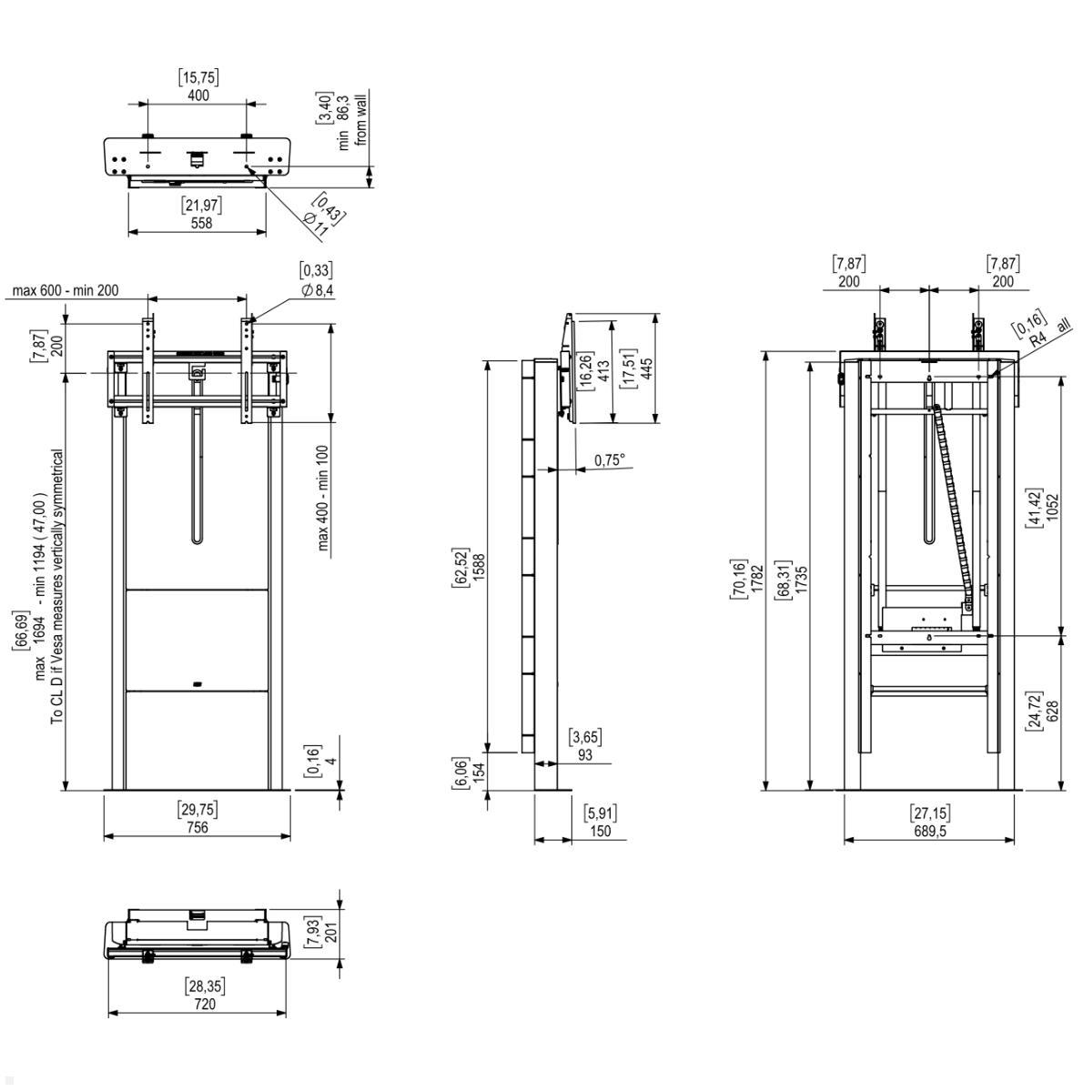

| Technical drawing: | [pdf] |
| Installation manual: | [pdf, 5,3 MB] |
| Capacity: | 150 kg |
| Height range (mm): | 500 |
| Screen size: | max. 86 " |
| VESA Standard: | 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 970 x 610 x 60 | 745 x 295 x 80 | 1790 x 770 x 220 |
| Scope of delivery: | SMS Presence W/F Motor Covers DG (05-031-2), MultiMount PRO 64 A/DG (03-009-6), SMS Presence W/F Motor Body 150 (05-018-21) |
| Contains installation material: | + |
| Manufacturer/Importer: | SMS Smart Media Solutions AB, Högbergsgatan 26b, 116 20 Stockholm, Sweden, info@smartmediasolutions.com |
| Warranty: | 2 years |
| Inch size: | 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch, 79 inch, 80 inch, 82 inch, 83 Zoll, 84 inch, 85 inch, 86 inch |
| Mobility: | electrical, height adjustable |
| Mounting type: | Floor wall mount, wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | dark grey |
| VESA (in mm): | VESA 200x200, VESA 200x300, VESA 200x400, VESA 300x200, VESA 300x300, VESA 350x350, VESA 400x200, VESA 400x300, VESA 400x400, VESA 500x400, VESA 600x200, VESA 600x300, VESA 600x400, VESA 800x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
