SMS Multi Display Wall Tilt
SMS Multi Display Wall Tilt - Straight to the target. Find the perfect image angle easily when mounting several screens in a row. The solution is a stepped tilt function, and the product is the SMS Multi Display Wall Tilt.
SMS Multi Display Wall Tilt
Line up large screens really close to the wall.

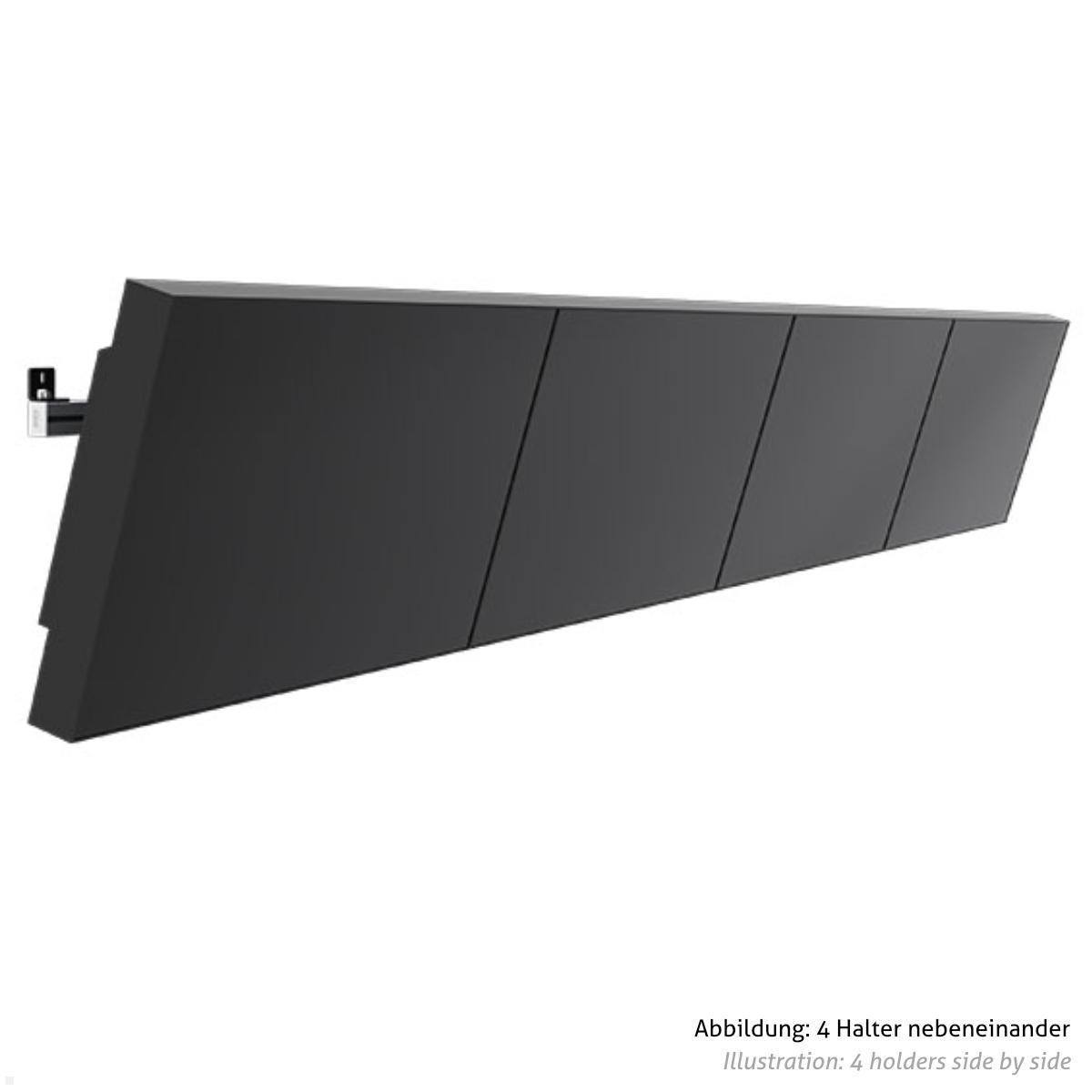

A solution that is easy to mount at a fixed tilt – particularly suitable for those seeking the perfect viewing angle when mounting several screens in a row. Can be used with screens from approximately 37”, right up to 65”. Simply choose as many modules as you need. Each module is supplied as a complete package with all necessary components, and can be set up in three easy steps. The solution makes it easy to place the screens exactly in line and allows edge-to-edge mounting. Can be tilted to three fixed angles: 5, 10 or 15 degrees.
Technical information:
- Color: Aluminium/black
- Max load (kg): 100 kg/screen
- Distance from wall (mm): Distance between wall and rear of screen: 46.5 mm
- Swivel: Can be tilted in steps: 5/10/15 degrees.
- Adjustable: Can be adjusted both depthwise and vertically. Simple fine adjustment.
- VESA standard (mm): 100-400 mm vertically. No limitation horizontally.
- Other: Can be locked with the accompanying locking pin or with a padlock (not included), to increase personal safety and security from theft.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: |  [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 100 kg |
| Tilt: | 5°/10°/15° |
| Screen size: | 37 - 65" |
| VESA Standard: | 100 - 400 mm vertically, no limitation horizontally. (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 460 x 170 x 130 |
| Contains installation material: | + |
| Manufacturer/Importer: | SMS Smart Media Solutions AB, Högbergsgatan 26b, 116 20 Stockholm, Sweden, info@smartmediasolutions.com |
| Warranty: | 2 years |
| Inch size: | 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Silver/Anthracite |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
