SMS FUNC interactive whiteboard mount motorized height adjustable (FST081001-MT)
€1,389.92*
delivery time: 1 - 5 working days
The SMS FUNC interactive whiteboard mount (FST081001-MT) in white is motorized height adjustable. Whiteboards weighing up to 50 kg can be attached to the wall mount.
SMS FUNC interactive whiteboard mount motorized height adjustable (FST081001-MT) white
Pull the handle up or down, and feel how the low-friction design ensures that the interactive board moves nearly by itself. Add to this the greater stability of the construction and handle, and you have a SMS interactive whiteborad bracket that is suitable for both conferences and schools. Children can reach easily high up on the board, and the adjustability means that no-one has to stretch unnecessarily.
Key features SMS FUNC interaktiver Whiteboardhalter elektrisch höhenverstellbar (FST081001-MT)
- Finish: white
- Tilt SMS projector slide: +/- 15°
- Stroke: 500 mm
- Warranty: 2 years
- Max load for projector rail: 8 kg
- Max total load: 50 kg
- Max board height: 1500 mm
- Min board height: 1170 mm
- Max board depth: 90 mm
- Projector rail: 450/680/1200/1450 mm (NOT included, please order separately!)
Projector rails and uni slide for Short Throw Projector - please order separatly:
- SMS Proj ShortThrow 450 A/W (FS000450AW-P2)
- SMS Proj ShortThrow 680 A/W (FS000680AW-P2)
- SMS Proj ShortThrow 1200 A/W (FS001202AW-P2)
- SMS Proj ShortThrow 1450 A/W (FS001450AW-P2)
- SMS Proj ShortThrow UniSlide W (AE022021)
Attention please:
The maximum load specified refers to the weight that the bracket as a whole can support. This is the combined weight of the projector and interactive board. Using a lighter projector will allow a correspondingly heavier board to be used. For example, the board may weigh 36 kg if a projector
weighing 4 kg is used. The experience of the user may vary, depending on the choice of projector and interactive board. This is not a factor within SMS’ control.
Attention! Please order projector Short throw lengths depending your Beamer
Depending on the manufacturer, different lengths for the column are recommended. Please check to see if your desired length fits into the projector:
- BenQ L=1450/1600 mm
- Epson L=1450 mm
- Hitachi L=680 mm
- Mitsubishi L=1450 mm
- NEC L=680/1450/1600 mm
- Optoma L=1450 mm
- Sanyo L=680/1450 mm
- Toshiba L=1450 mm
| Product sheet: |  [pdf, 110 kb - Englisch] |
|---|---|

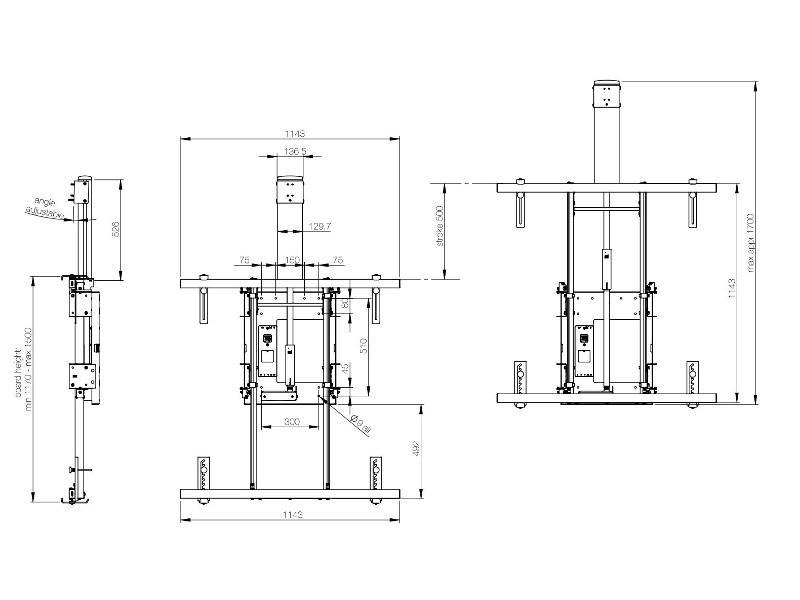

| Technical drawing: | [pdf, 143 kb] |
| Installation manual: | [pdf, 3,7 MB] |
| Capacity: | 50 kg |
| Tilt: | +/-15° |
| Height range (mm): | 500 |
| Distance of wall: | 157 mm |
| Accessories: | SMS Power Socket (PD100001EU, PD100002CH, PD100003UK) SMS Cable Management 500/1000 (CM010001, CM010002) SMS Proj ShortThrow 680 (FS000680AW-P2) SMS Proj ShortThrow 1200 (FS001202AW-P2) SMS Proj ShortThrow 1450 (FS001450AW-P2) |
| Packaging dimensions (LxWxH in mm): | 1250 x 630 x 200 |
| Contains installation material: | + |
| Manufacturer/Importer: | SMS Smart Media Solutions AB, Högbergsgatan 26b, 116 20 Stockholm, Sweden, info@smartmediasolutions.com |
| Warranty: | 2 years |
| Mobility: | height adjustable , tilting |
| Mounting type: | wall mount |
| color: | White |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
