SmartMetals Electric Monitor Stand XL up to 86 inches
SmartMetals Electric Monitor Stand XL up to 86 inches - 052.7200 & 052.7210

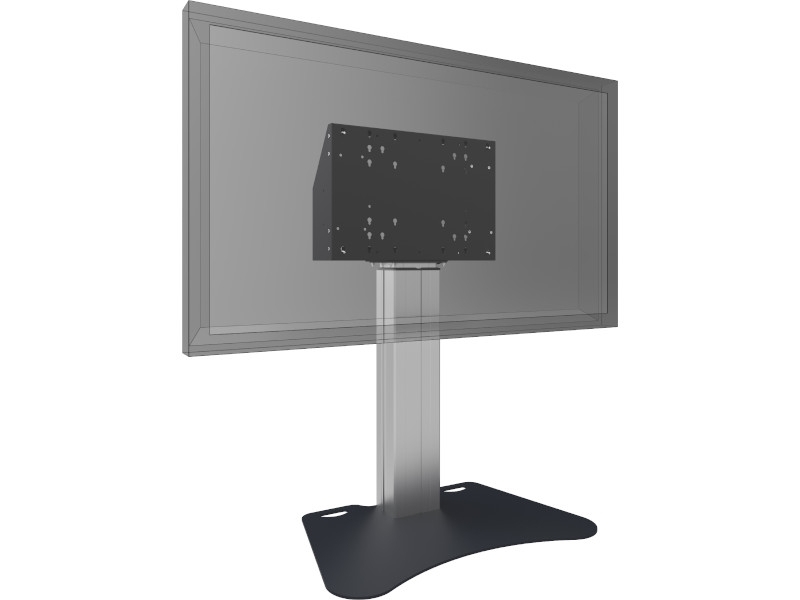

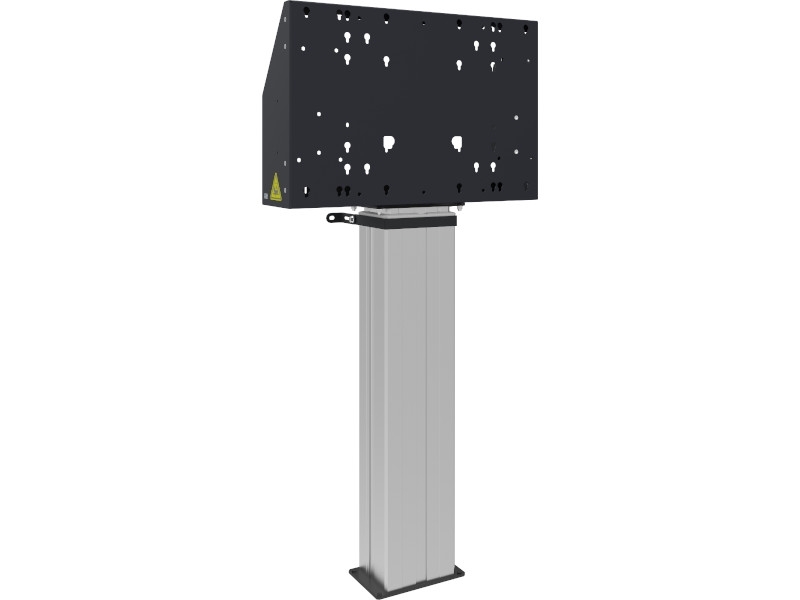

The SmartMetals Electric Monitor Stand XL Up to 86 inches is equipped with a electric lift system. Perfectly suited for custom mounting a touchscreen or monitor in lobbies, sales rooms or hotels. It consists of the base plate 052.7210 and the floor lift & nbsp; XL 052.7200. Thus, this is a floor lift with a stroke range of 600 mm .

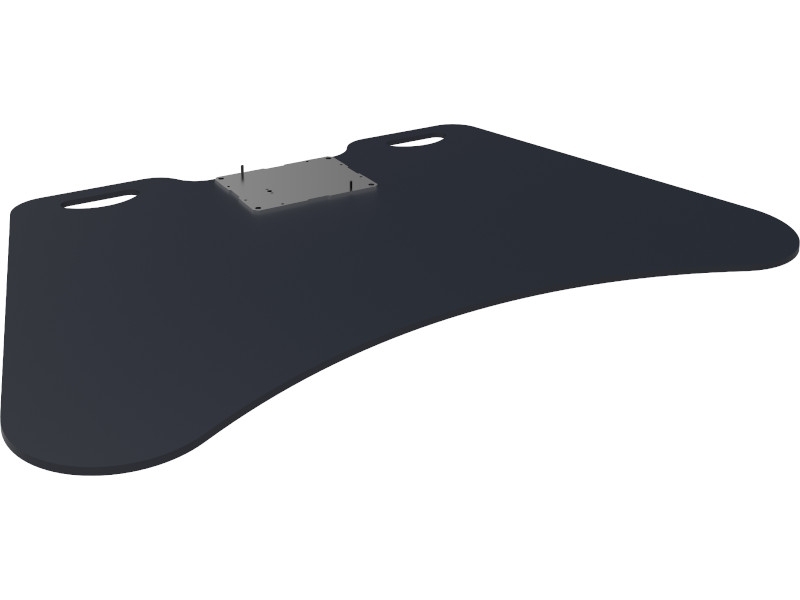

TheVESA contains many hole patterns up to 600 x 400 mm , so that most (touch) screens are compatible. The bottom plate allows free standing of the lift without the need to attach the stand to the floor or wall. Behind the monitor holder is a compartment for mounting a mini-PC. Attaching a thin client is possible with the integrated VESA 75 or 100.
Multiple application options. The SmartMetals Electric Monitor Stand XL for monitors or (touch) screens up to 86 inches screen diagonal can be used flexibly in many work environments. Whether as a point of information in a showroom, digital ordering in restaurants, at universities, colleges or schools. Likewise, hotels can benefit from a dynamic information panel. It can act as a presentation tool, represent service or mission plots, brainstorm in the office, and record a schedule or project schedule.
Technical details SmartMetals Electric Monitor Stand XL
- Weight: 62 kg
- Max. Capacity: 135 kg
- Color: Black, Aluminum
- Screen orientation: Portrait or landscape
- Screen size: max. 86 inch
- Stroke range: 600 mm up to 20 mm/s
- VESA holder: 200x200, 300x200, 400x200, 400x300, 400x400, 600x200, 600x400 mm li>
- Cable Guide: 30mm & nbsp; li> ul>
VESA Standard - Learn more about the VESA monitor bracket standards!
Does your monitor or display fit?
We'll be happy to let you know if your monitor is suitable for this SmartMetals product. Simply submit us your model (manufacturer + model no.) after placing the order. We will then check to see if the monitor or display fits the monitor mount and if not, we will contact you. Of course, you can contact us with any other questions. Our team will be happy to answer all your questions about the products offered.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf, 5,8 Mb] |
| Capacity: | 135 kg |
| Height range (mm): | 600 mm |
| Screen size: | 55 - 86 " |
| Material: | Metall |
| Special features: | Elektrisch Höhenverstellbar |
| VESA Standard: | 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm (www.vesa-standard.de) |
| Contains installation material: | + |
| Manufacturer/Importer: | SmartMetals Mounting Solutions B.V., Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info@smartmetals.nl |
| Warranty: | 5 years |
| Inch size: | 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch, 79 inch, 80 inch, 82 inch, 83 Zoll, 84 inch, 85 inch, 86 inch |
| Mobility: | electrical, height adjustable |
| Mounting type: | Floor stand |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Silver/Black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
