smart things s28 C sCharge PoE Charger up to 25 W via Ethernet with USB-C

In-wall Ethernet (LAN) power supply with USB-C port

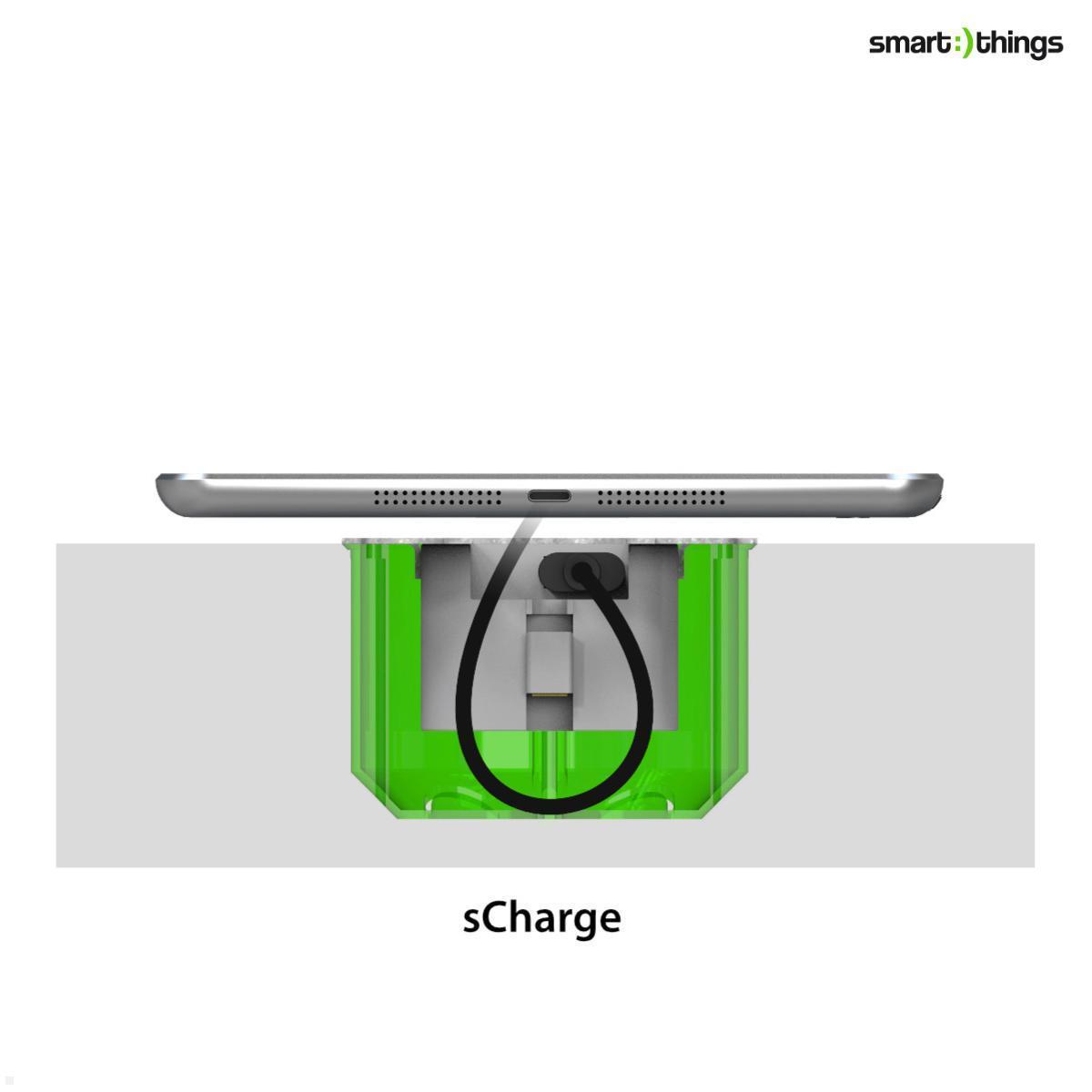

The smart things s28C sCharge PoE FIT C is a in-wall charger,which provides power to tablets via Ethernet with a USB-C port . As a PoE (Power over Ethernet) charger, it provides sufficient power even for larger tablet models and can establish an Ethernet (LAN) data connection at up to 95 Mbps. All that is needed is a standard CAT6 network cable. The flush-mounted charging station is specially designed for smart things sDock Fix series. With only a USB cable, the tablet has an Ethernet data connection and can be powered at the same time. The PoE charging station for tablets is compatible with Apple iPads tablets with USB-C port, Microsoft Surface Go tablets or Samsung Galaxy Tab models. Ideal is the smart things Charger for all applications where the iPad / tablet should be mostly in the same place, for example, for signage of the meeting rooms, to control SmartHome automation, scheduler, Zoom Room, Gotomeeting, Webex, Skype and other video conferencing POS stations and kiosks. The flush mount Ethernet power supply with USB-C connector can be installed in all EU flush mount boxes or device boxes with min. 44 mm depth. For iPads with Lightning connector this sCharger is NOT suitable.

Please note: Samsung Tab compatibility may vary. 2020 Tab A7 SMT500 models cannot make simultaneous power and data connections, although SMT510 and SMT515 are still compatible. Please check your specific model for USB-C data transfer compatibility.

Key features smart things s28 C sCharge PoE FIT C charging station via LAN cable

• In-wall power supply via LAN cable for all sDock Fix wall mounts with USB-C connectors
• Compatible with any IEEE 802.3af/at PoE switch or injector supports all USB-C iPads
• Suitable for smart things sDock Fix wall mounts
• Connects directly to the sDock Fix with USB to USB-C adapter cable
• Dual USB-C ports: A for Power + B for Data or Power
• Suitable for all flush-mount or device boxes with min. 44mm depth
• Provides Power Delivery Profles: 5 volt, 9 volt, 12 volt, 15 volt, and 20 volt
• Compatible with iPads with USB-C connector, Microsoft Surface Go, Samsung Tab A/S and more
• Requires PoE+ or IEEE 802.3at power
• Port USB-C: SB-C PD 3. 0 up to 25W
• LED indicator: power status (in exchange with power source)
• Operating temperature: -10° C - 60° C
• Operating humidity: 5% to 95% (non-condensing)
• PoE-Standard: IEEE 802. 3af/at/ (PSE)
• PoE line pair: 1/2/3/4/5(+) oder 3/6/7/8 (-)
• USB-C-PD-Profile: 5 V 2,6 A, 9 V 1,78 A, 12 V 1,34 A, 15 V 1,37 A, 20 V | 1,15 A
• The sDock Fix is not included and must be purchased separately

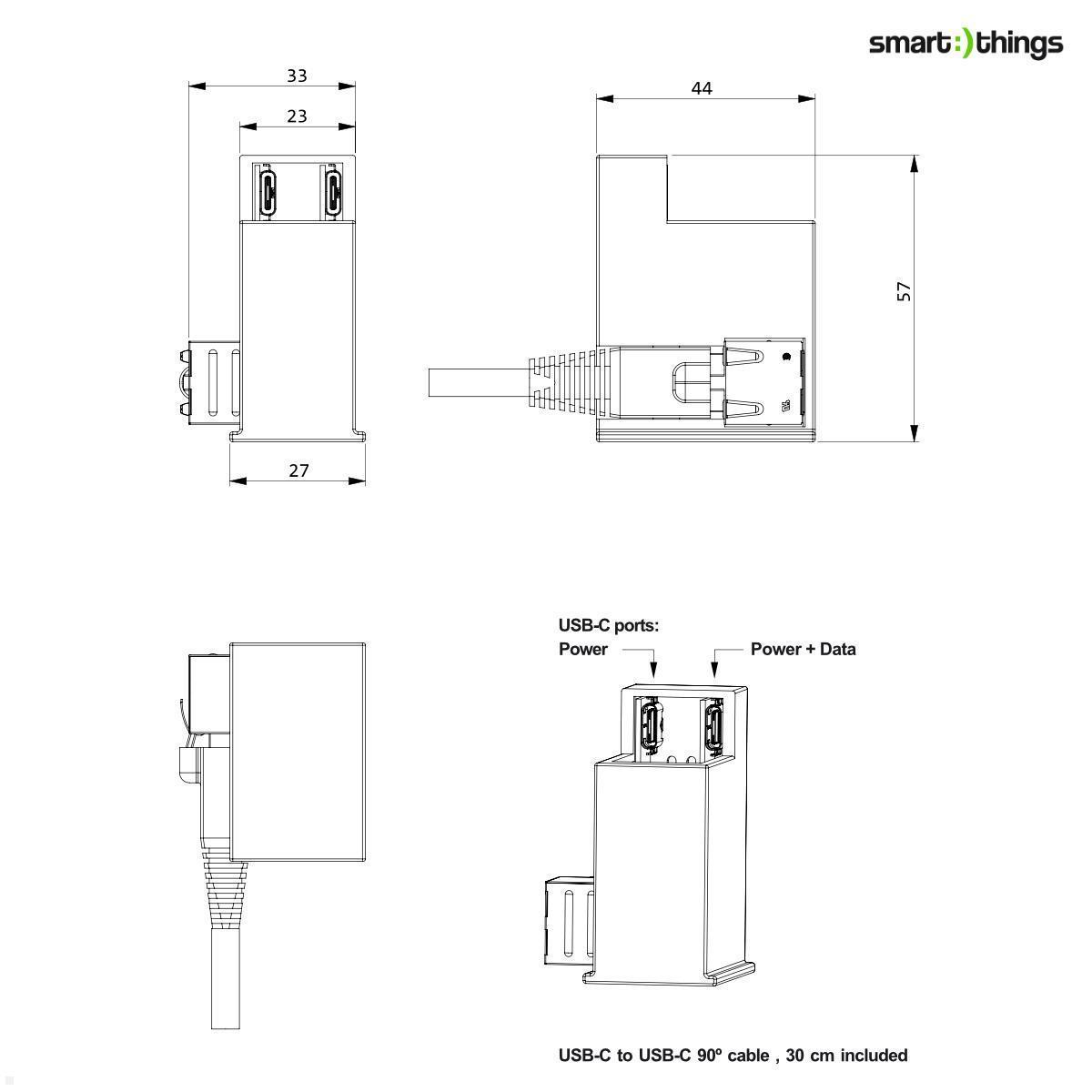

• Dimensions (HxWxD): 71 x 71 x 33 mm
• Delivery Includes adapter cable USB-C to USB-C (30 cm length)
• Warranty: 2 years
