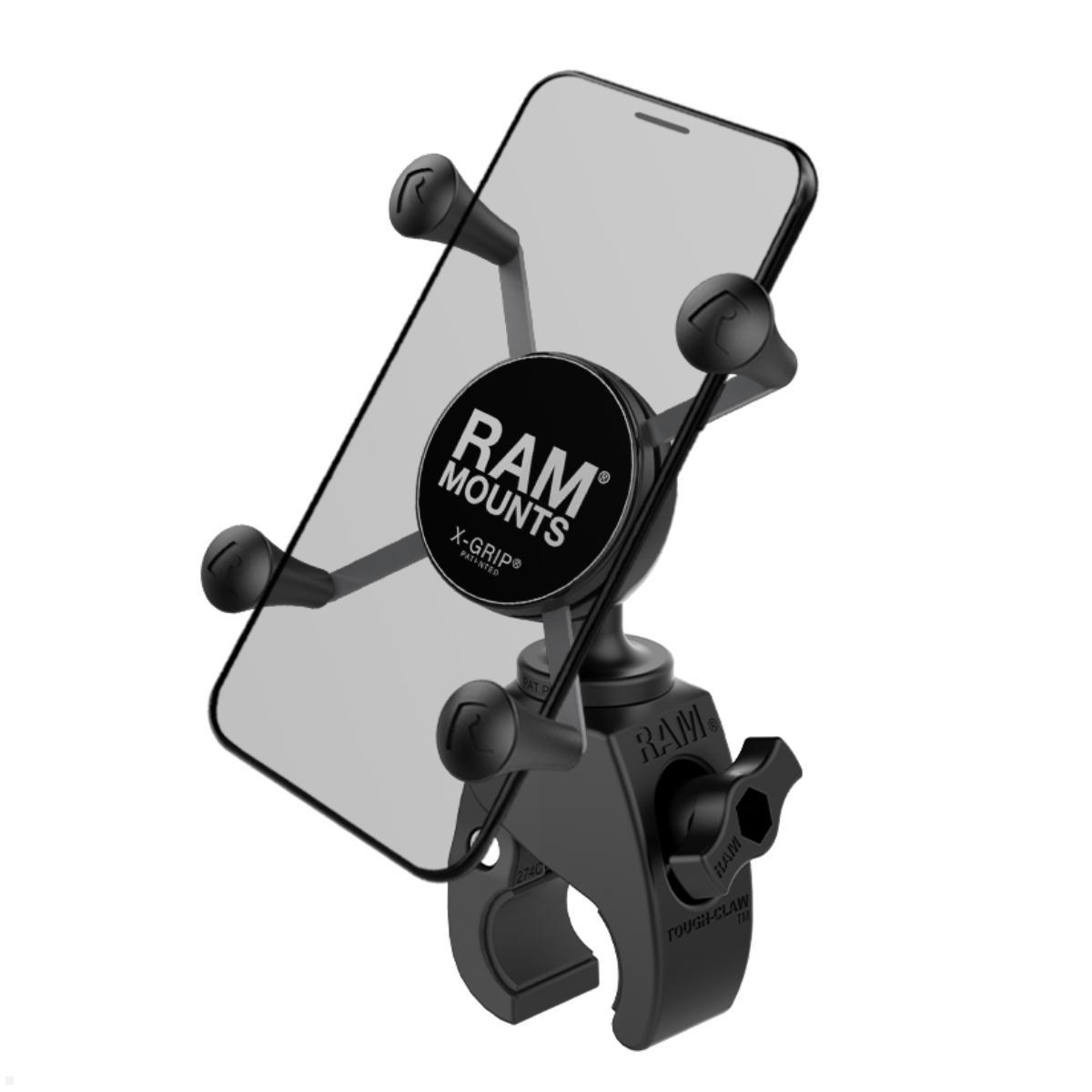

RAM Mounts X-Grip universal smartphone clamp, B-ball (RAM-HOL-UN7-400U), black
The RAM Mounts X-Grip smartphone mount provides an optimal solution for attaching to both tubes and protruding panels. Directly linked to the Tough-Claw screw clamp, the X-Grip bracket guarantees dependable attachment. For added security during outdoor pursuits, a safety rubber is incorporated to firmly hold your smartphone in place.

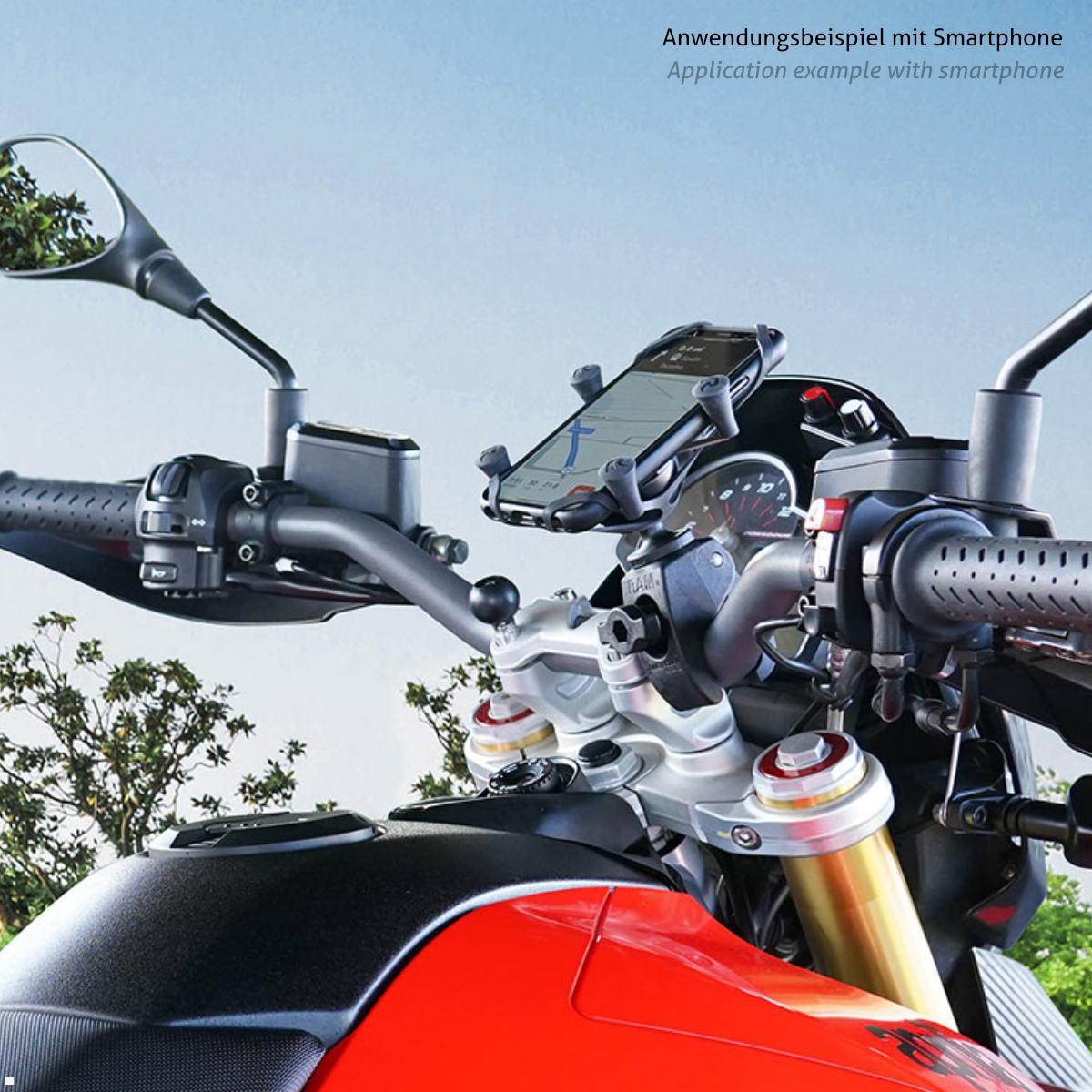

Bike / motorcycle smartphone holder
The RAM Mounts Universal Bike / Motorcycle Smartphone holder merges the sturdy Tough-Claw base with the adaptable X-Grip clamp. Featuring a clever open design, the X-Grip clamp securely holds smartphones without concealing them behind plastic or foam. It employs a clamp mechanism for secure attachment, with an added rubber lock for enhanced outdoor safety. Offering 360° rotation, this holder ensures versatile device positioning. The Tough Claw clamp can be swiftly mounted and removed without tools, fitting round, square, or irregular tubes, rods, and even flat surfaces. Its compact design enables usage across diverse settings like motorcycles, bicycles, wheelchairs, boats, kayaks, airplane cockpits, and more. Moreover, the RAM Mounts Tough-Claw proves ideal for fixing to bicycle handlebars, seatposts, roll bars, and various other applications.
Key features RAM Mounts RAM X-Grip Phone Mount with RAM Snap-Link Tough-Claw (RAM-HOL-UN7-400U)

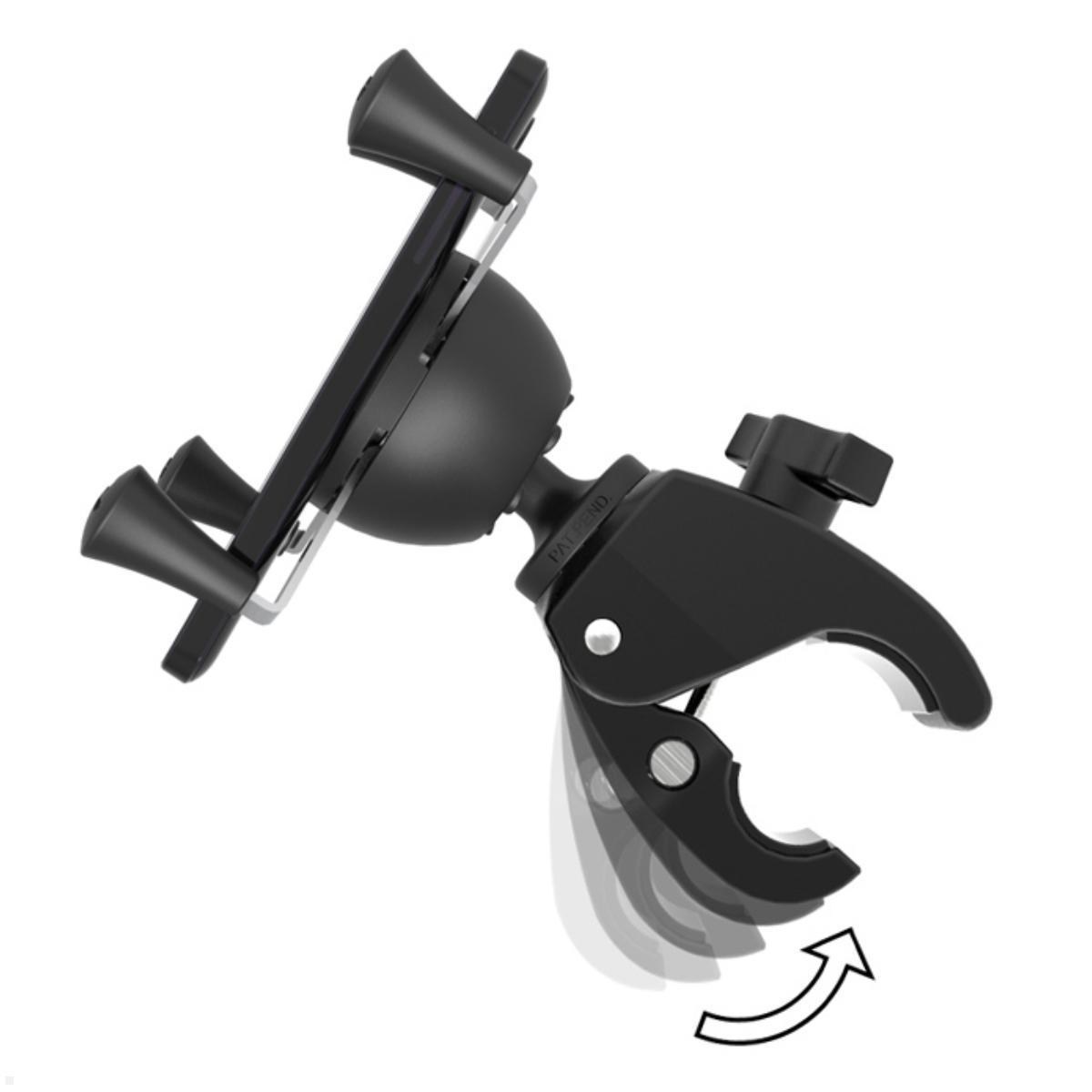

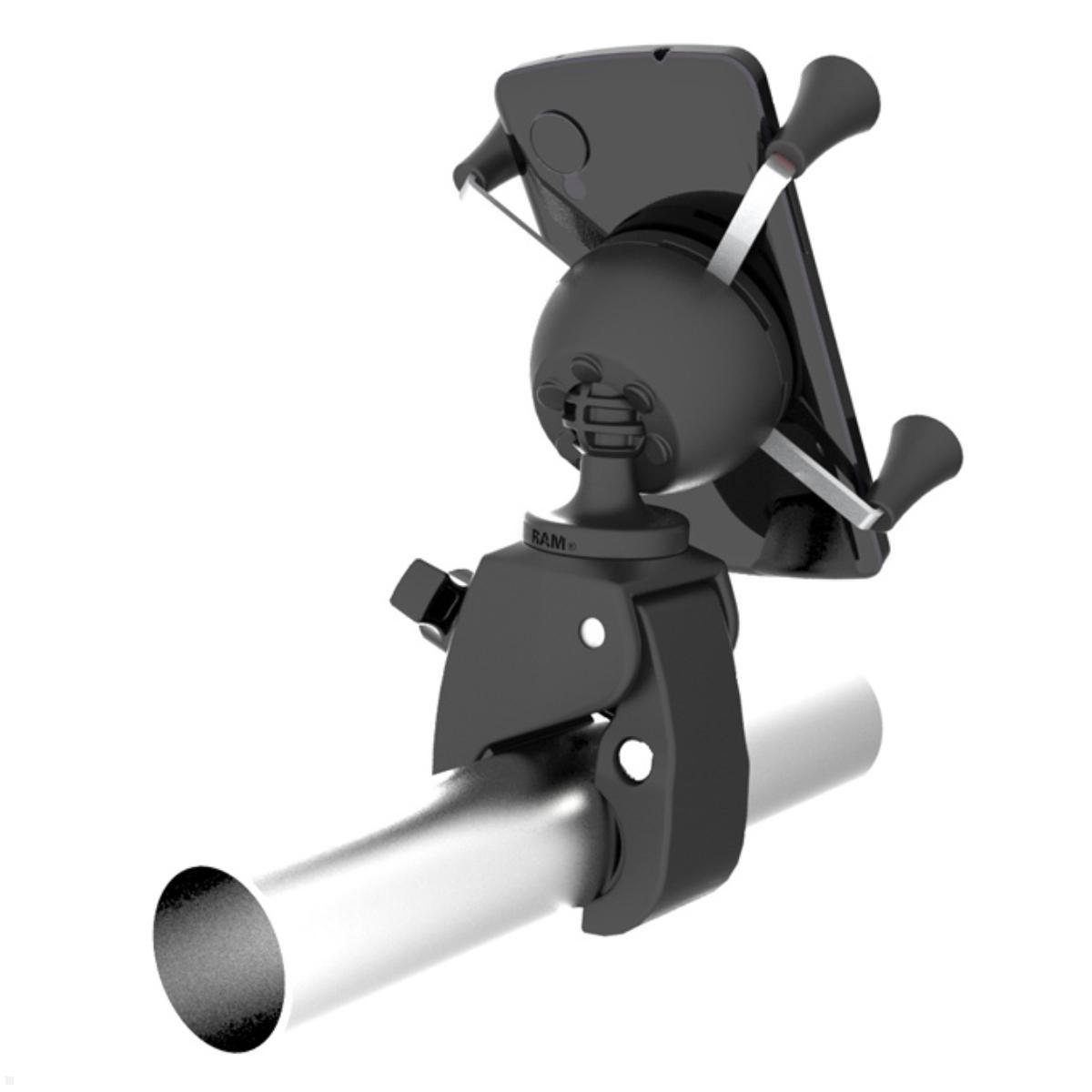

- Tough-Claw:
- Tool-free attachment
- Rubber coating on the inside of the clamp for a stable fit and protection of surfaces
- Suitable for diameters from 15.9 to 38.1 mm
- Suitable for protruding panels up to max. 29 mm thick
- Material: High-strength composite material with rust-resistant steel elements
- Clamp dimensions:
- Minimum width: 47.63 mm (requires a minimum height of 107.95 mm)
- Maximum width: 82.55 mm (requires a minimum height of 57.15 mm)
- Depth: 22.23 mm
- X-Grip:
- Suitable for smartphones / cell phones
- Device width: 47.63 - 82.55 mm
- Device depth: Max. 22.2 mm
- Incl. rubber lock for outdoor activities
- Spring-supported tensioning of the holding arms
- Holding fingers with rubber end caps
- Material: High-strength composite material (housing), steel (arms), rubber (end caps)
- Load capacity: Max. 0.23 kg
- Weight capacity: 0.227 kg
- Unit weightt: 0,227 kg
| Product sheet: |  [pdf - Deutsch] |
|---|---|
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Material: | High-strength composite material, powder-coated aluminum, steel, rubber |
| Suitable for: | For smartphones / cell phonesSmartphones with max. 82.55 mm width | max. 22.23 mm depth |
| Scope of delivery: | 1x RAM-HOL-UN7-400U (consisting of RAM Mounts Tough Claw / X-Grip) |
| Contains installation material: | + |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
2 May 2024 12:36
Perfekte Handyhalterung für jedes Abenteuer
Die Klammerhalterung ist echt genial! Sie hält mein Handy sicher am Fahrradlenker, egal ob ich über holprige Wege fahre oder durch die Stadt cruise. Die Installation war simpel (einfach fest die Klammer anziehen) und das Design gibt mir das Vertrauen, dass mein Handy bei der Fahrt auch sicher ist. Kann ich jedem empfehlen, der sein Handy auch unterwegs griffbereit haben möchte oder es als Navi nutzt. mfg Benjamin H.
