RAM Mounts motorcycle mounting handlebar head with B-ball (RAM-B-367U), black

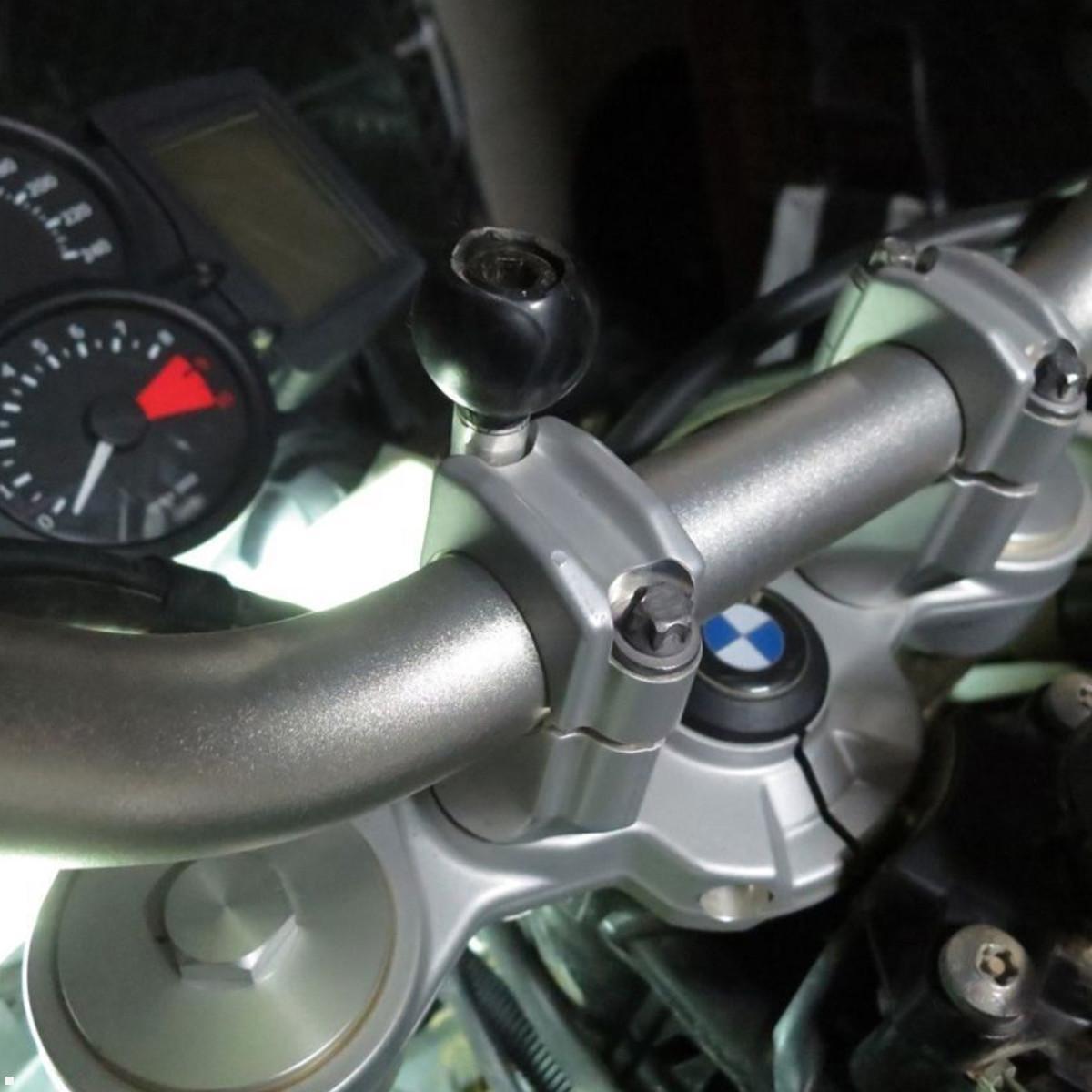

The RAM Mounts bracket is perfect for mounting on motorcycles, quads or other vehicles. With its short shaft and M8 screws, the bracket is specially designed for mounting on motorcycle handlebar ends.
Motorcycle mounting B-ball 1 inch

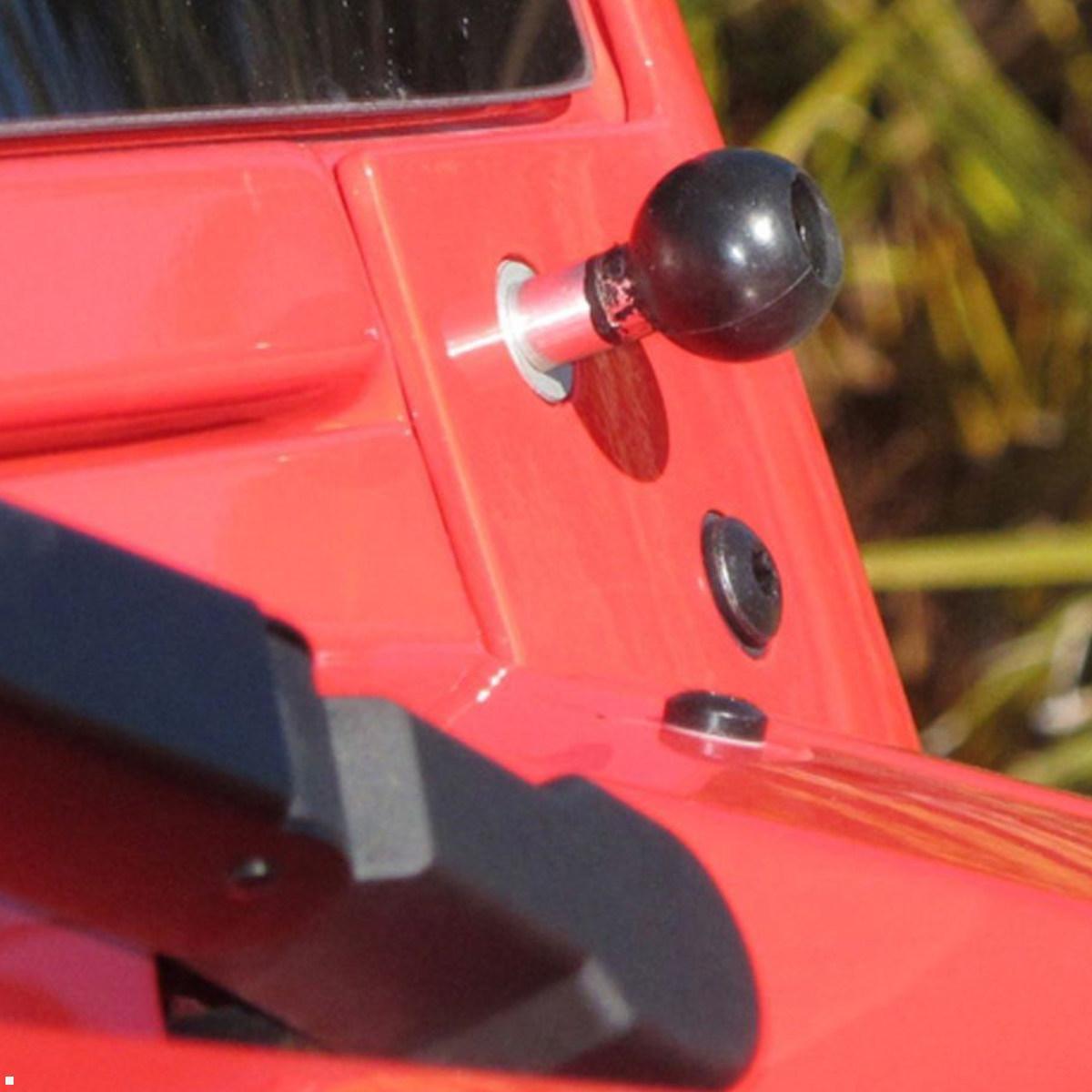

The RAM Mounts ball base with a diameter of 1 inch is a versatile mounting solution for motorcycles, quads or ATVs. With its short shaft and the M8 screws supplied, the bracket is specially designed for mounting on the motorcycle handlebar horn, which opens up a wide range of possible applications.
Ball base for tablets or smartphone holder

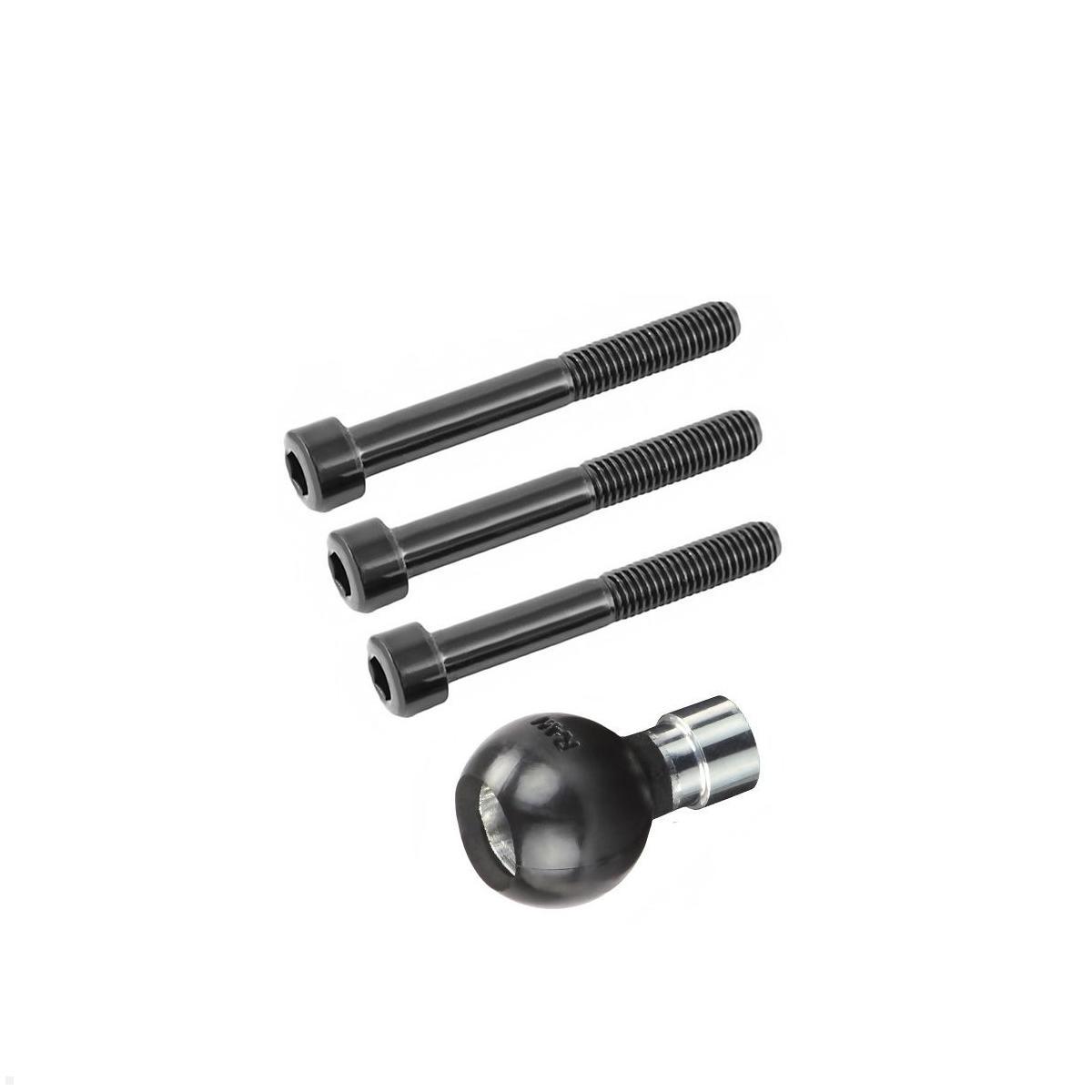

The scope of delivery includes a B-ball with one opening and a short shaft. The ball diameter is 25.4 mm (1 inch), which makes it ideal for many common mounting adapters. The ball base is made of high-quality, powder-coated aluminum, which ensures high durability and weather resistance. The black color provides a sleek and unobtrusive design that blends in with most vehicle types. Weighing approximately 113g, the ball base is light enough not to cause any additional strain on the vehicle, yet robust enough to ensure a secure fit.
Technical details RAM Mounts mounting option
- Material: aluminum, powder-coated
- Ball diameter: 25.4 mm for B-ball 1 inch
- Total length of connecting arm: 152.4 mm
- Incl. 2x M8 screws with 1.25 inch thread
- Bolt length: 55, 60 and 65 mm
- Application: Motorcycles, quads, ATVs
- Load capacity: up to 0.9 kg
- Finish: black RAL 9005
- Weight: approx. 240
- Compatible with RAM Mounts arms:
- RAM-B-201U
- RAM-B-201U-A
- RAM-B-201U-C
- RAP-B-200-12U
- RAP-B-201U-A
- RAP-B-201U
- RAM-B-201-201U
- RAM-B-201-SU
- RAM-B-201LU
| Product sheet: |  [pdf] |
|---|---|
| Others: | [pdf] |
| Capacity: | 0,9 kg |
| Material: | aluminum, powder-coated |
| Scope of delivery: | 1x steering head with B-ball (RAM-B-367U) |
| Contains installation material: | - |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
