Novus ScopeMaster phone holder silver/anthracite (714+0004+000)
The Novus ScopeMaster phone holder in silver-anthracite can be mounted easily on all table tops with a thickness of 18-74 mm via universal clamp. The extendable and pivotable 360° swivel arm phone combined with the rotating supporting plate for maximum flexibility.
Novus ScopeMaster telephone holder (714+0004+000)

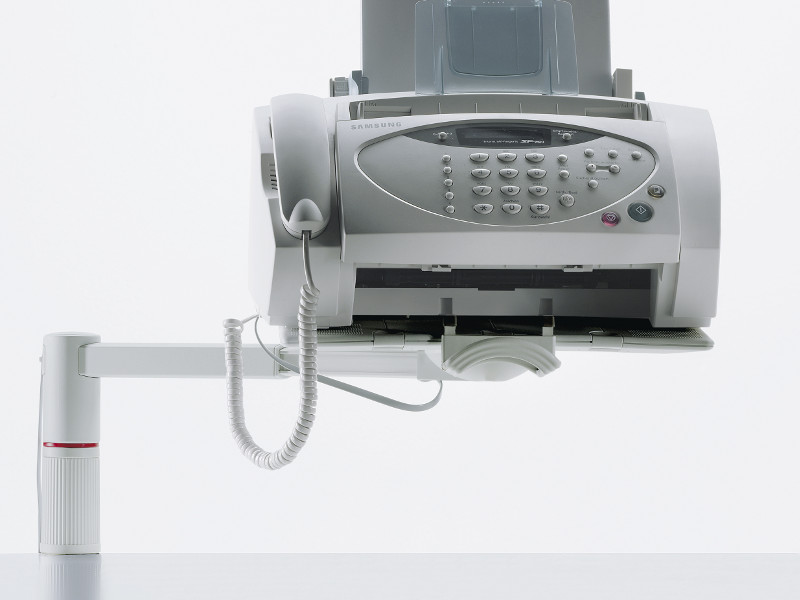

The solution for telephones, particularly in conjunction with extension platforms for small telephone systems, fax machines and notebooks. Inclined with smoothly telescopic pan and swivel base plate. Internal cable routing in the aluminum arm. The ScopeMaster can be combined with virtually all products from the NOVUS More Space System to create an intelligent unit.
Key features Novus ScopeMaster phone bracket (714+0004+000)

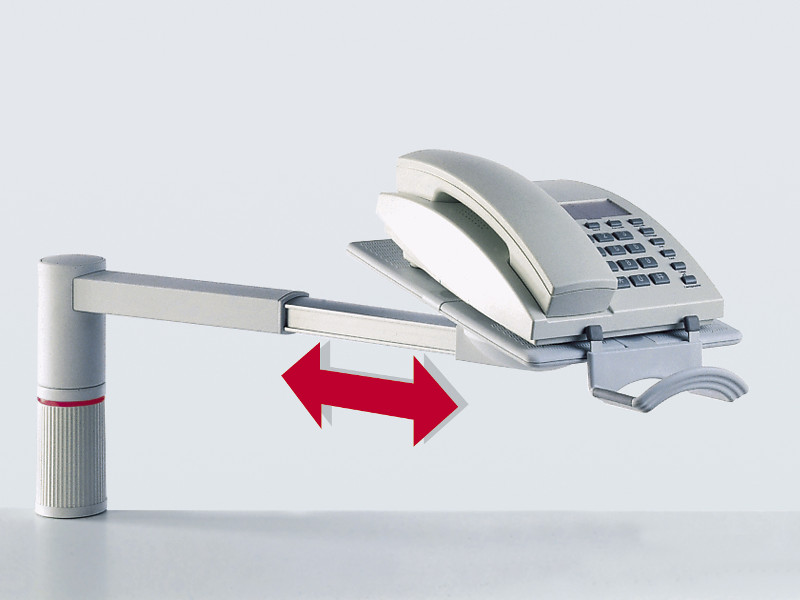

- Smoothly telescoping swivel arm for positioning of devices in the third level
- Table mounting with universal clamp 1 for a table thickness of 18-74 mm
- Max. weight: 2 kg
- Rotating support platform, inclined towards the user
- swivel around 360° for ease of movement
- Platform can be mounted crossways or lengthways
- Internal cable routing for optimum cable management

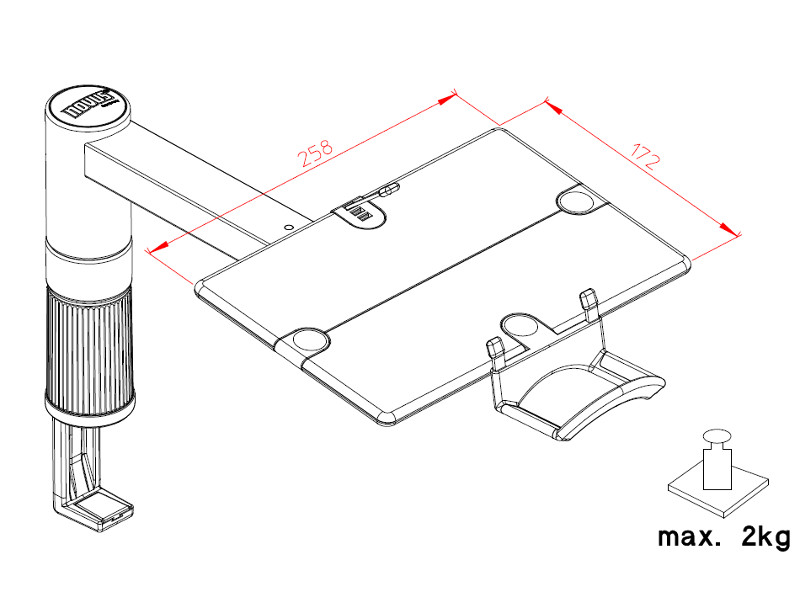

- Dimensions base plate: 258 x 172 mm
- Swivel arm: 388 - 530 mm
- Finish: silver/anthracite

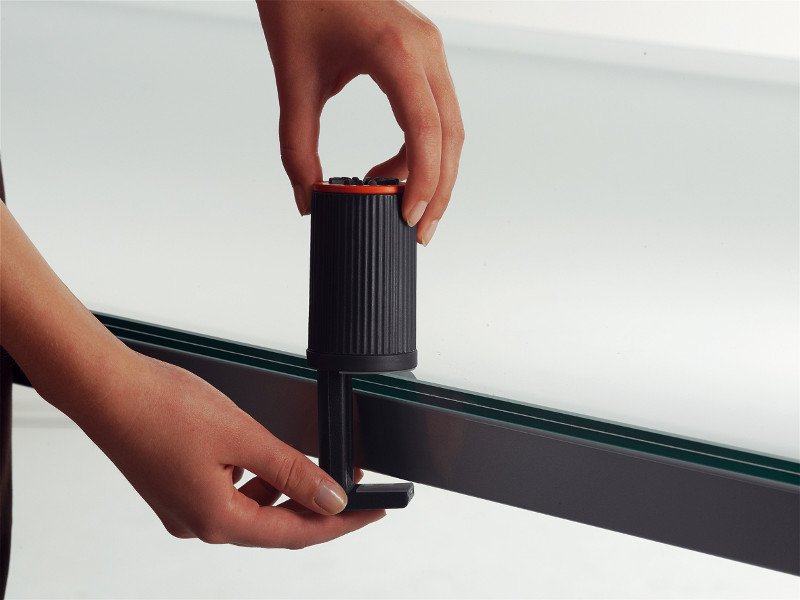

Universal clamp

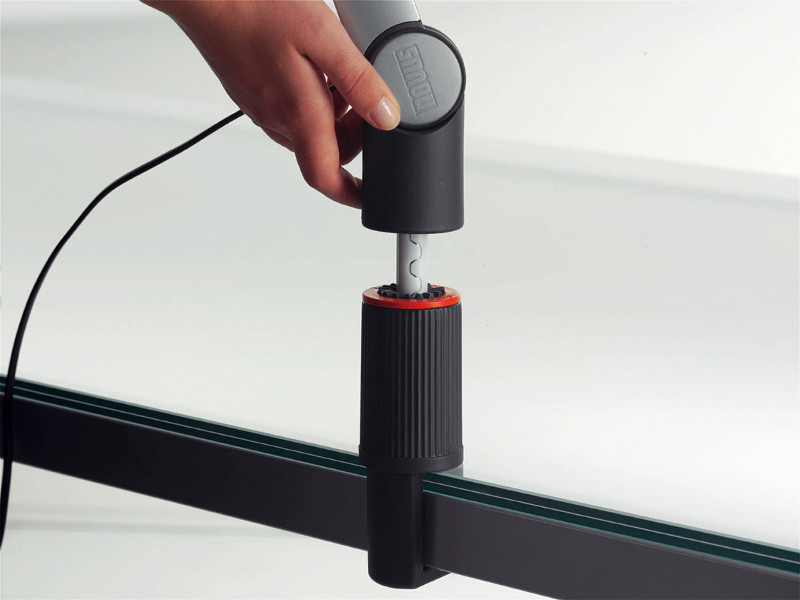

The universal clamp 1 is easy to handle and thus the ideal attachment for different carriers. The large clamping range is suitable for 90% of all desks. The easy mounting without tools and major effort or any time the fast reconnection of the ferrule. Thus, the multi-user systems meet the high demands of an individual workplace design justice, Novus naturally offers numerous special mounts for almost all products.
| Product sheet: |  [pdf, 88 kb] |
|---|---|

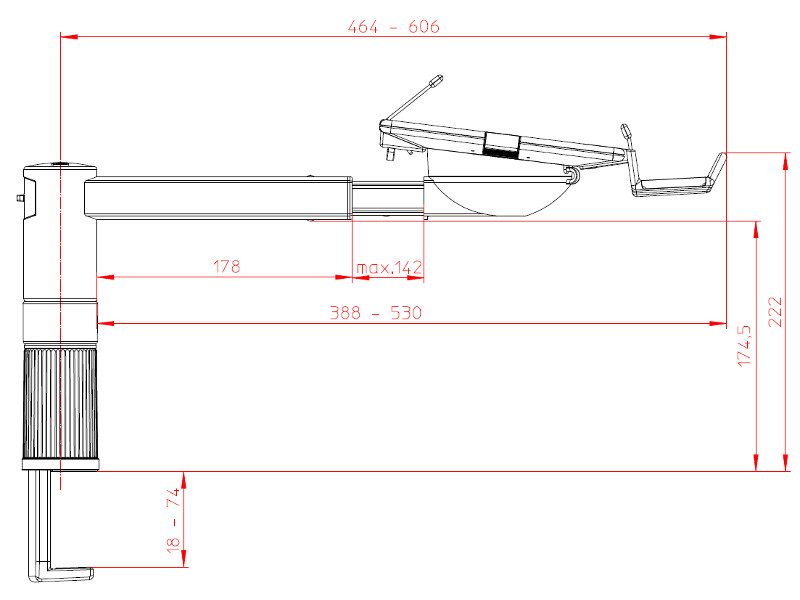

| Technical drawing: | [pdf, 67 kb] |
| Installation manual: | [pdf, 1,1 MB] |
| Capacity: | 2 kg |
| Swivelling range: | 360° |
| Length of the swivel arm: | 388 - 530 mm |
| Thickness of table (mm): | 18 - 74 mm |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Warranty: | 2 years |
| Mobility: | rotatable, swivelling |
| Mounting type: | desk - clamp |
| Theft-proof: | No |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
