Novus POS Connect M 200 arm (852+2839+000), silber
The Novus POS Connect M 200 support arm (852+2839+000) in silver is a support element for attaching a terminal (Verifon H5000, Primus PT201594, Magelan 1100i) to the Novus Point of Sale Solution.
Novus POS Connect M 200 Support Arm (852+2839+000) in silver
Our space-saving, flexible Novus products can be perfectly integrated into the store design and increase the user-friendliness in the checkout area with thoughtful details. The Novus POS Solutions is the adaptable innovation for the modern POS workplace and offers you a variety of individual combination possibilities.
POS Support Arm for Connect Plates Mounting
The Novus POS is a space-saving and functional Retail Lösung - A customizable and individualizable POS system that can be tailored to any need. With state-of-the-art mounting methods and many expansion options, Novus creates a retail system that is second to none. The Novus Retail System Connect M 200 support arm (852+2839+000) in silver is a monitor support arm for the Novus POS Solution. With its standard VESA mount and load capacity of up to 10 kg, it is the perfect extension for smaller displays or tablet PCs (in conjunction with a VESA-enabled tablet mount).
Technical details POS System Connect M 200 Support Arm (852+2839+000)
- Finish: silver
- Length monitor arm: 200 mm
- Height adjustable
- Tilts +/- 45 degrees
- Swivels: 190 degrees
- Rotates: 360 degrees
- VESA mount standard: 75x75, 100x100 mm
- Support capacity: 10 kg
- Warranty: 2 years
Nowadays accessories
- Novus POS Base 200 mm 851+2005+000 anthracite
- Novus POS Base 200 mm 851+2009+000 silver
- Novus POS Base 400 mm 851+4005+000 anthracite
- Novus POS Base 400 mm 851+4009+000 silver
- Novus POS Base 600 mm 851+6005+000 anthracite
- Novus POS Base 600 mm 851+6009+000 silver
- Novus POS Arm S monitor holder
- Novus POS Arm M 120 monitor holder
- Novus POS Arm L 380 monitor holder
- Novus POS connect plate Verifon h4000
- Novus POS connect plate Primus PT201594
- Novus POS connect plate Magelan 1100i
- Novus POS connect plate keyboard
| Product sheet: |  [pdf] |
|---|---|

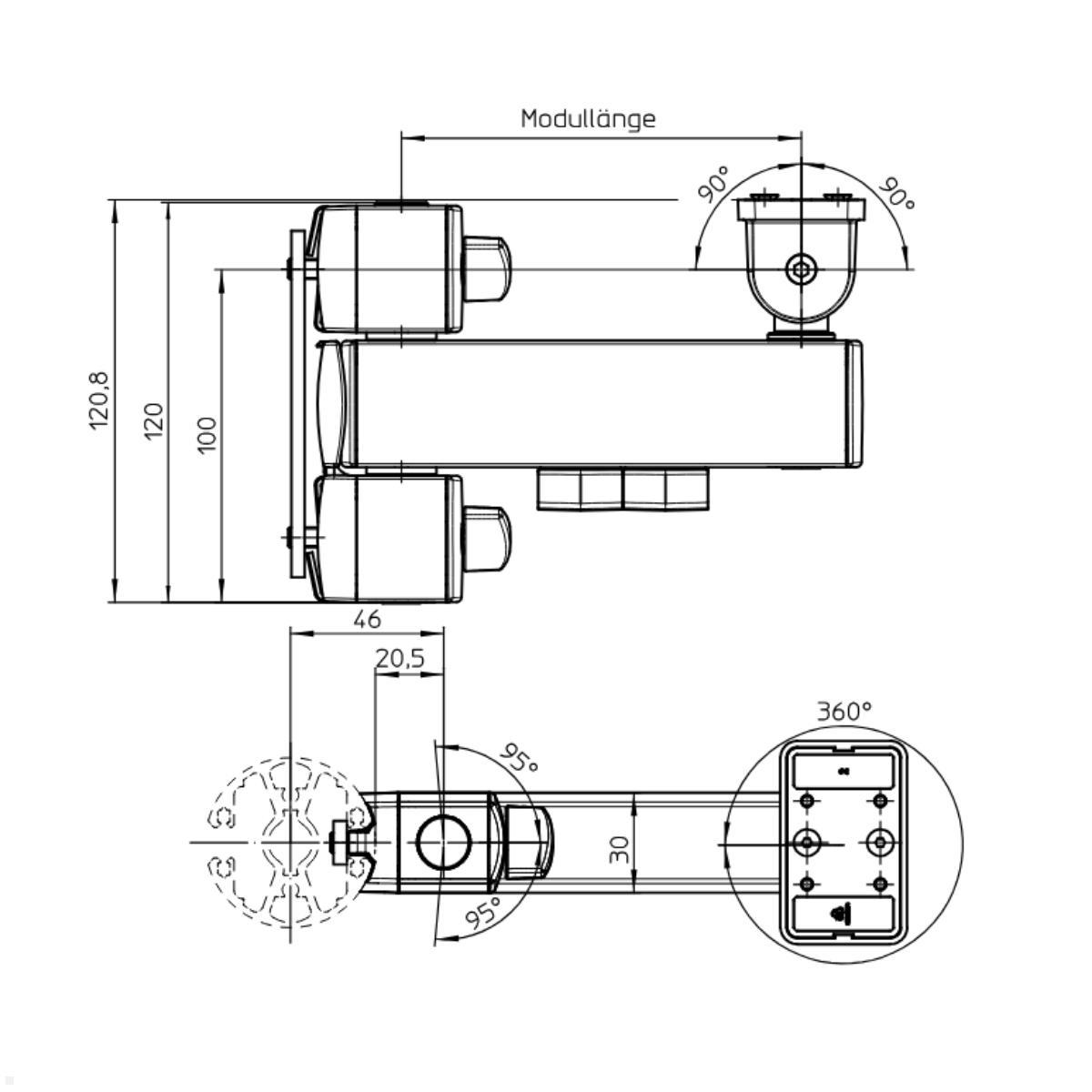

| Technical drawing: | [pdf] |
| Capacity: | 10 kg |
| Tilt: | +/- 45° |
| Swivelling range: | 190° |
| Length of the swivel arm: | 220 mm |
| Special features: | Novus POS Solutions |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Warranty: | 2 years |
| Mobility: | swivelling, tilting |
| Theft-proof: | No |
| color: | Silver |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
