Novus POS connect arm L415 D-M 853+4829+001 right, silver
The Novus Connect Arm L415, right (853+4829+001) in silver is a practical support arm for the point of sale. A monitor or a connecting plate with a maximum weight of 10 kg can be attached to the swiveling bracket.
POS monitor holder
The Point of Sale Novus POS Connect L 415 support arm 853+4829+001 is the adaptable innovation for the modern Point of Sale workplace and offers you a wide range of individual combination options. The flexible Novus POS products can be perfectly integrated into the shop design and increase user-friendliness in the checkout area with well thought-out details.
Support Arm Point of Sale
Novus 853+4829+001 is a support element for mounting a monitor and a Novus Connect Plate. The Connect Plate can be purchased specifically for an EC card reader, printer or scanner in the shop. The POS mount can be loaded with a weight of up to 10 kg. In addition, screens with a VESA dimension of 75 x 75 or 100 x 100 can be connected to the POS Monitor Mount Novus POS is a space-saving and functional system for the checkout area. A customisable and individualisable POS system that can be tailored to any need. The Novus POS Connect L 415, right, forms a perfect symbiosis at the point of sale with the carrying arm L415, left (853+4829+002). The monitor arms can be attached individually or together to a Novus POS base column. The Novus POS base column is required to attach the support arms.Key features Novus connect arm L415 D-M right, silver:
- Finish: Anthracite
- Material: Aluminium
- Height adjustable on POS column
- Swivel
- Tilt: +/- 45 degree
- VESA 75x75, 100x100
- Support arm reach: 415 mm
- Cable management
- Can be combined with L415 left 853+4829+002
- Load capacity: 10 kg
- Novus POS base column required (optionally available)
Does your monitor or display fit the monitor mount?
We would be happy to check whether your monitor and Novus connection plate are suitable for this Novus 853+4829+001 support arm. Simply tell us your model (manufacturer + model number) in the comments field at the end of the order process. We will then check for you whether your monitor or device fits the monitor holder and if not, we will contact you.
VESA standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

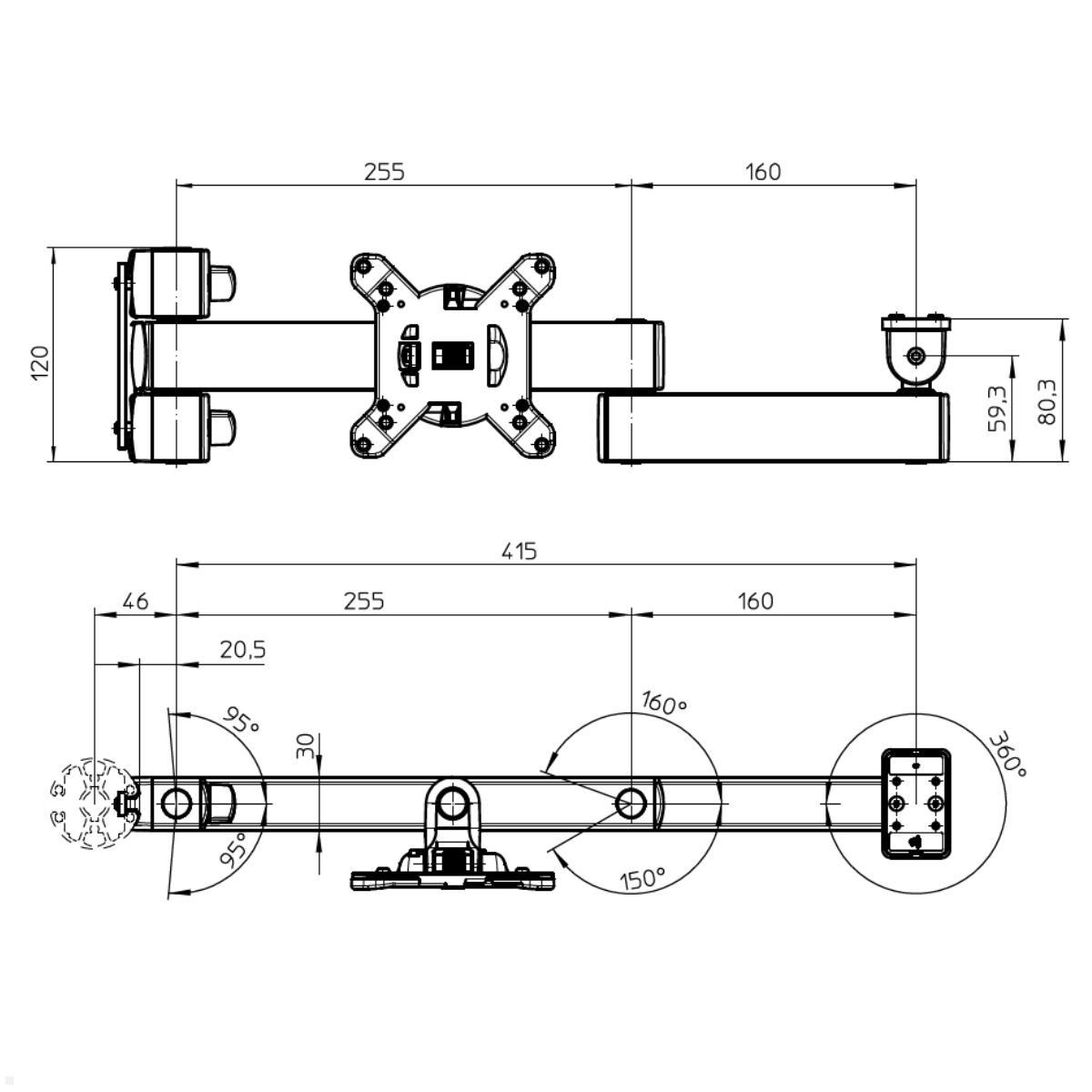

| Technical drawing: | [pdf] |
| Capacity: | 10 kg |
| Length of the swivel arm: | 415 mm |
| Material: | Aluminium |
| Special features: | With connect joints for Novus POS connect plates and monitor mounts |
| Suitable for: | Novus POS base Säulen |
| Packaging dimensions (LxWxH in mm): | 440x255x125 |
| Scope of delivery: | 1x POS connect L415 D-M |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Warranty: | 2 years |
| Mobility: | swivelling, tilting |
| Theft-proof: | No |
| color: | Silver |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
