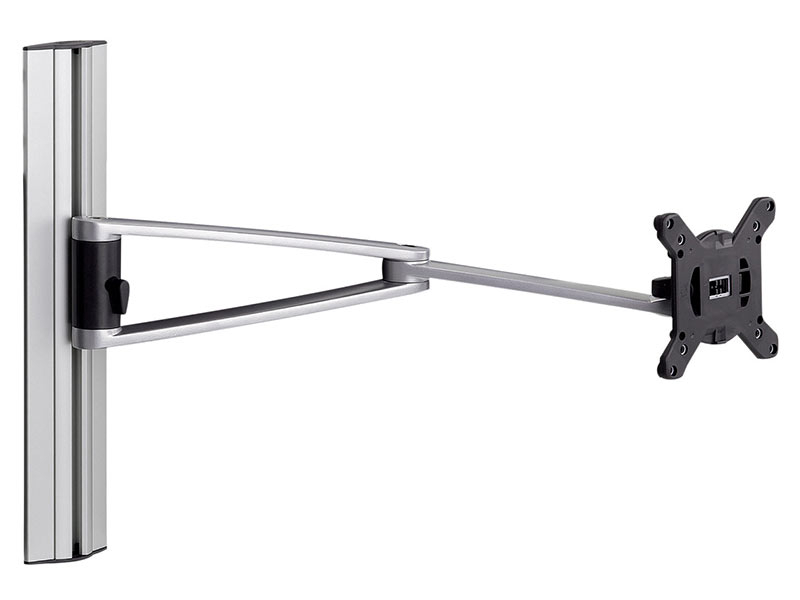

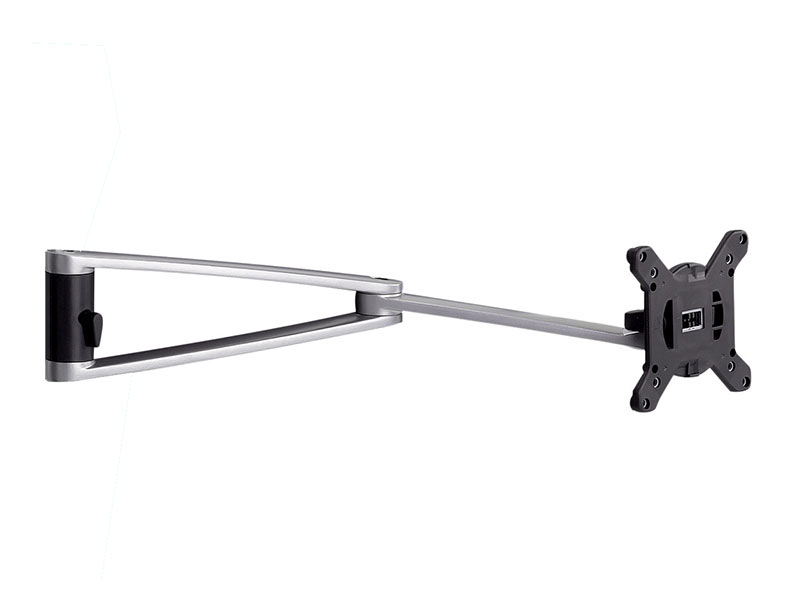

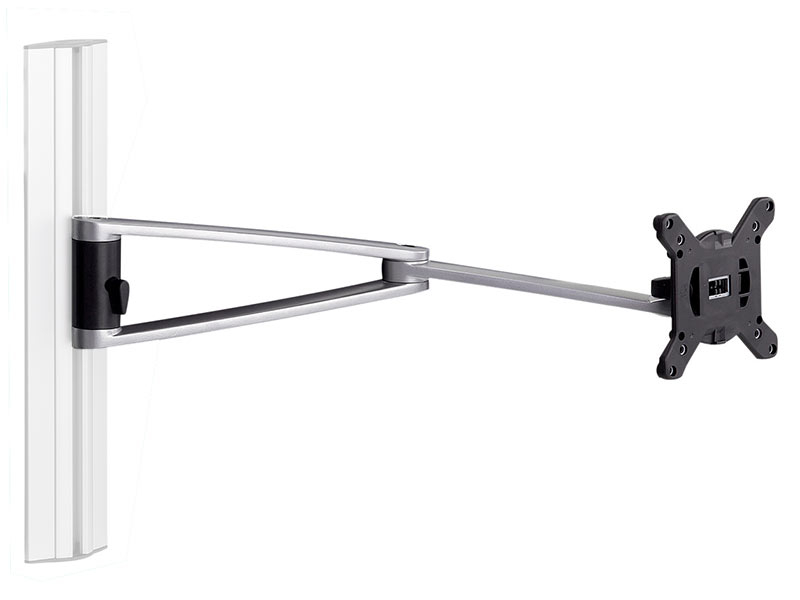

Novus MY one plus SW Monitor mount for Slatwall, silver (910+2079+000)
The Novus MY one plus SW swiveling monitor mount (910+2079+000) is equipped with a 350 mm long carriage for mounting on a slatwall. The display can be adjusted in height on the holder.
Novus MY one plus SW Monitor mount for Slatwall in silver 910+2079+000

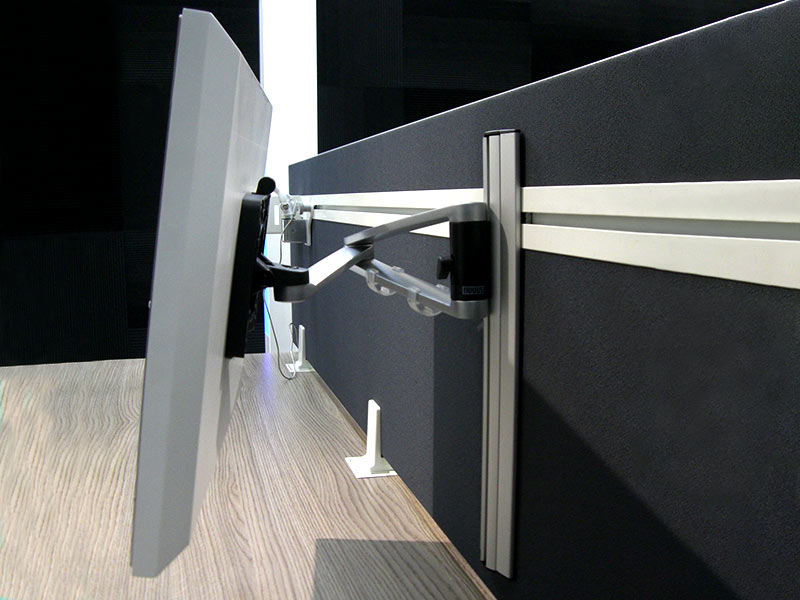

The Novus MY one plus SW display mount (910+2079+000) is equipped with a sliding carriage with sliding blocks for attachment to an organizational wall. On the support slide, the monitor can be adjusted by 350 mm continuously in height. Displays up to 5 kg and a VESA mount of 75x75 & 100x100 mm are compatible with the mount. Displays can be swiveled steplessly on the desk partition bracket.
Display Organization wall mounting
The Novus MY plus SW monitor holder with organizer wall mounting ensures optimum ease of use and will make everyday work easier. The monitor arms of the Novus MY series work ergonomically and efficiently. Novus offers practical additions such as tablet holders that can be easily attached to the organizational wall.
Key features swivel Monitor holder
- Capacity: 5 kg
- VESA mount: 75x75, 100x100 mm
- Steplessly adjustable along the column: 350 mm
- Swivel
- Range: 415 mm
- Incl. cable clips
- Connection to slatwall by sliding blocks
- Slatwall not included
- Included:
Novus MY Base carrying sledge with sliding blocks
Novus MY arm monitor holder - Can be combined with NOVUS MY tab and NOVUS QuickRelease
- Warranty: 2 years

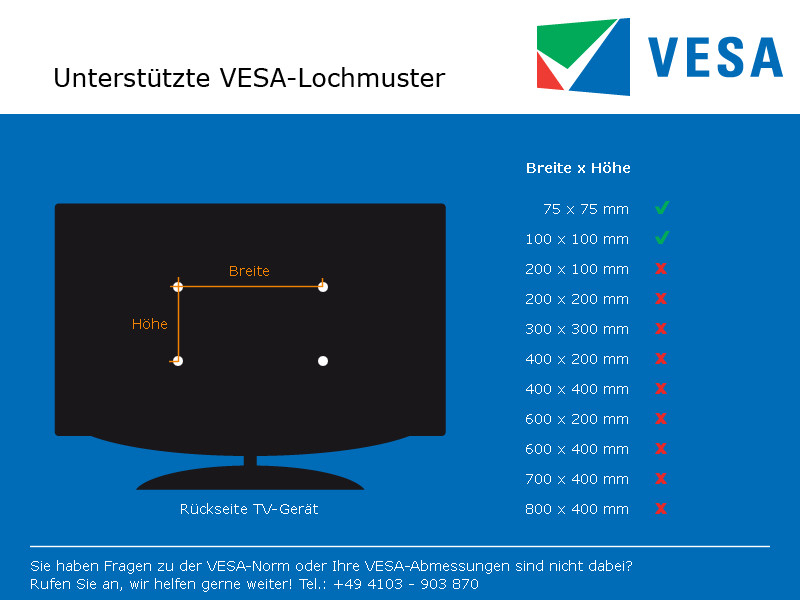

VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 95 kb] |
|---|---|

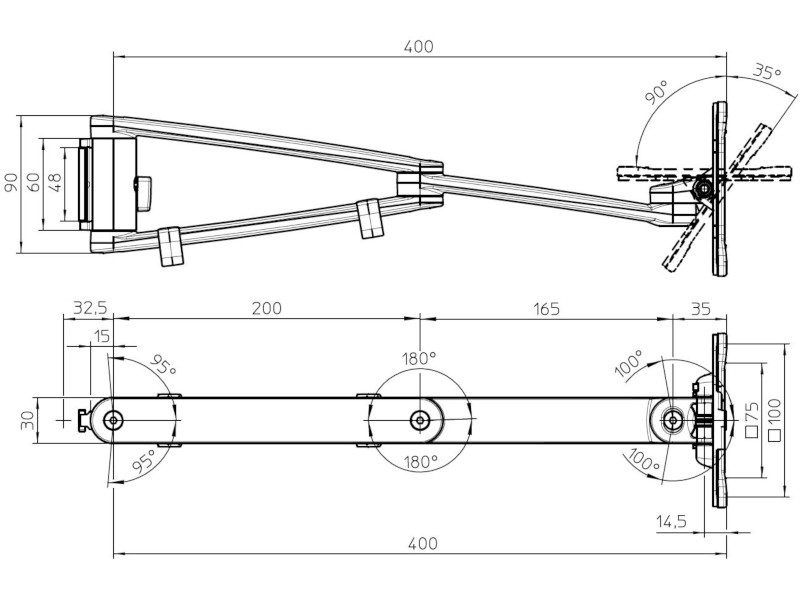

| Technical drawing: | [pdf, 166 kb] |
| Capacity: | 5 kg |
| Tilt: | - |
| Height range (mm): | 350 mm |
| Swivelling range: | 180° |
| Length of the swivel arm: | 415 mm |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Suitable for: | Novus Slatwall Element |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Warranty: | 2 years |
| Mobility: | height adjustable , swivelling |
| Mounting type: | for Slatwall |
| Theft-proof: | No |
| color: | Silver |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
