Novus evo POS EC Cash Terminal holder CCV Base Next, anthracite
The design of Novus POS Solutions adapts the checkout area in the hospitality and retail sectors to individual requirements. The CCV Base Next EC cash terminal offers an integrated receipt printer and WLAN. The Novus EC device holder reliably secures the terminal and enables easy removal if required.
EC Cash Terminal holder for CCV Base Next

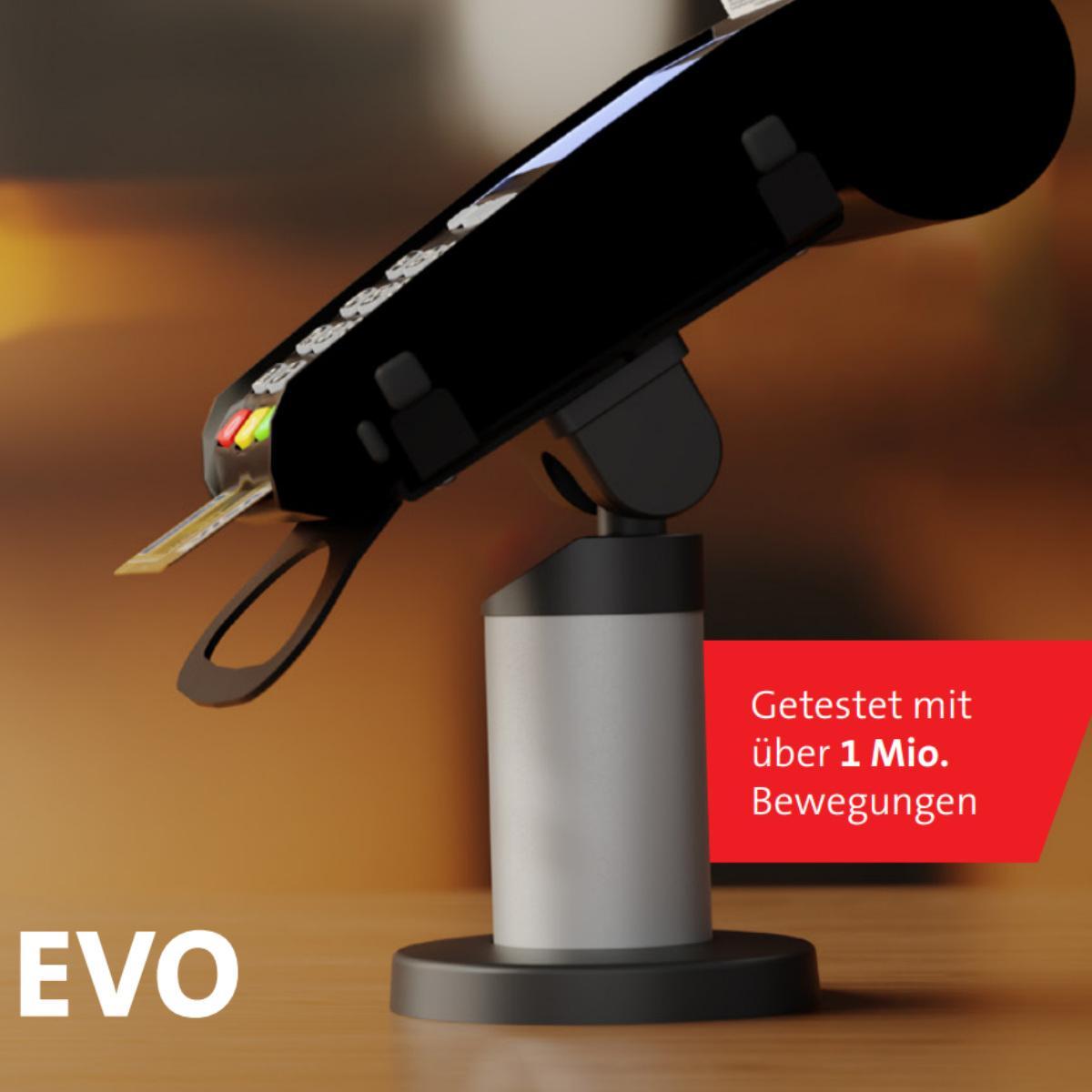

Modern POS systems must be flexible, user-friendly and durable. The Novus POS base evo meets these requirements and offers an innovative solution for payment terminals and tablets that is also extremely resilient. The base can be mounted on almost any surface in the sales area thanks to the option of either screwing on or screwing through the holder. Whether cash desk, sales counter, restaurant counter or counter - this stand can be effortlessly integrated into various environments.
Modern POS systems at the point of sale

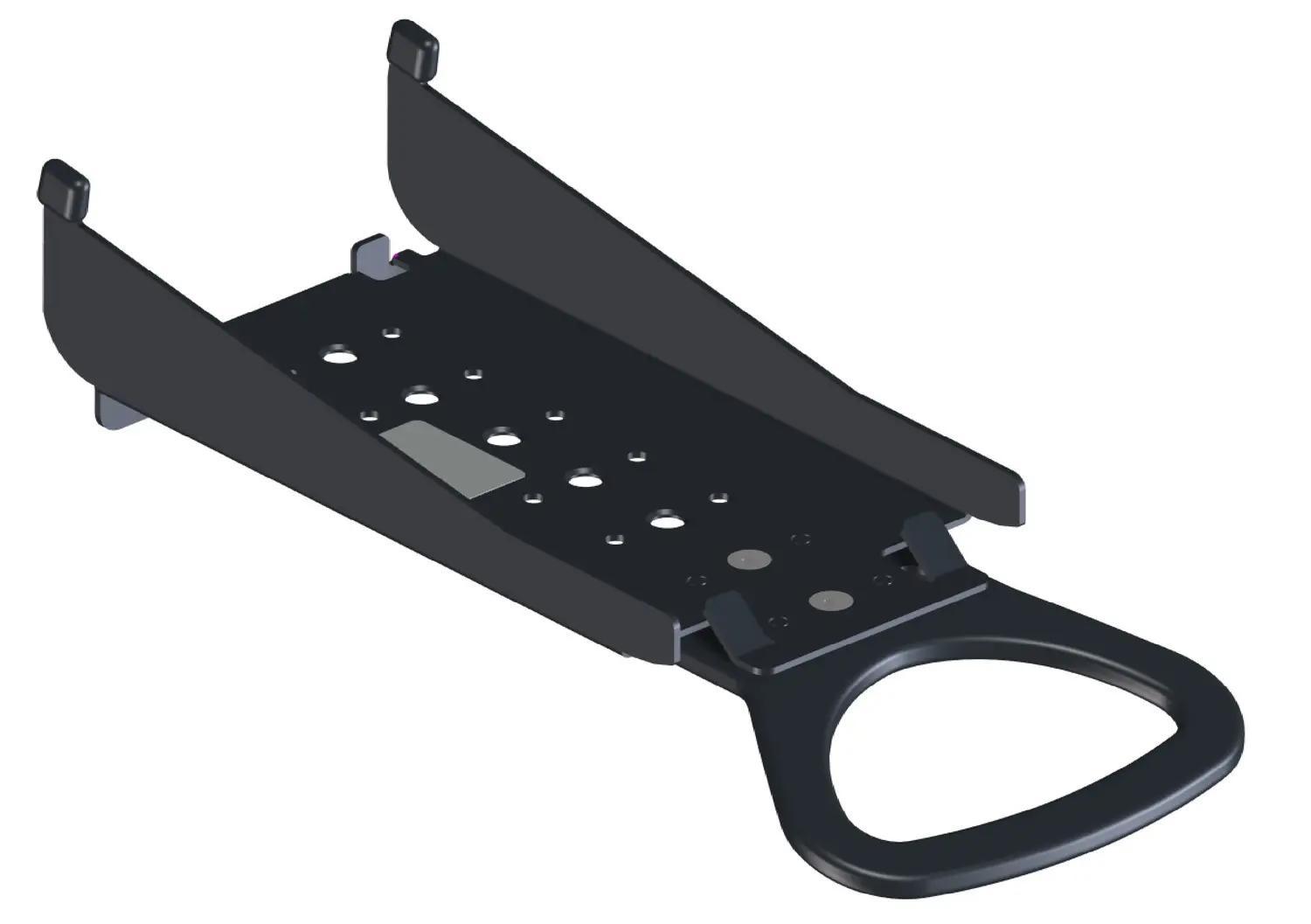

The modular design of Novus POS Solutions makes it possible to adapt the checkout area in the catering or retail sector specifically to the respective requirements. The EC Cash Terminal CCV Base Next impresses with functions such as an integrated receipt printer and WLAN functionality. The Novus EC device holder is specially designed for mounting the Base Next card terminal at the point of sale. The terminal sits securely and reliably in the Connect Plate, but can be easily removed at any time if required. Thanks to the integrated handle, the Connect Plate is also easy to move. The POS holder can only be used in combination with a Novus POS base column or a POS connect support arm, both of which are available separately and serve as the basis for designing a customized POS system.
Key features Novus POS card device holder
- Column length: 150 mm
- Rotatable: 290° (+/-145°)
- Tiltable: 180° (+/-90°)
- Capacity: 10 kg
- Holder for EC Cash Terminal CCV Base Next
- With handle ring for easy alignment of the EC device
- 2-in-1 column mounting for screw-on or screw-through mounting
- Column material: Anodized aluminium
- Connection plate material: metal with powder coating
- Finish: anthracite
| Product sheet: |  [pdf] |
|---|---|

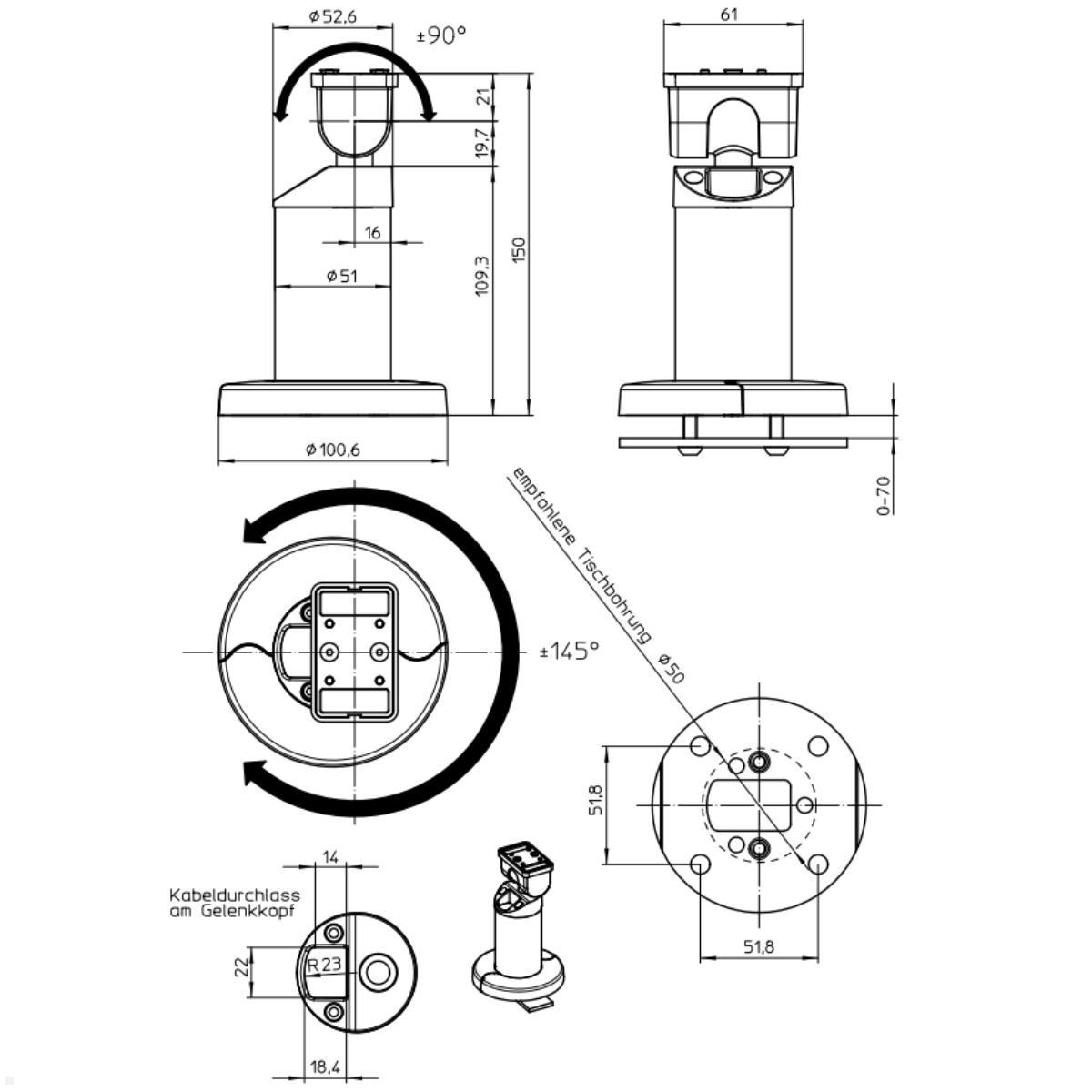

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 10 kg |
| Tilt: | 180° (+/-90°) |
| Swivelling range: | 290° (+/-145°) |
| Material: | Column: aluminum, connecting plate: powder-coated metal |
| Special features: | Novus evo POS base + Novus POS connect plate |
| Old model no.: | 851+1545+000|851+0035+056 |
| Suitable for: | CCV Base Next |
| Scope of delivery: | 1x Novus POS base evo, anthracite, 1x Novus POS holder for EC cash terminal CCV Base Next / PAX A80 |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Warranty: | 2 years |
| Mobility: | rotatable, tilting |
| Mounting type: | desk - drill screw fastening |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
