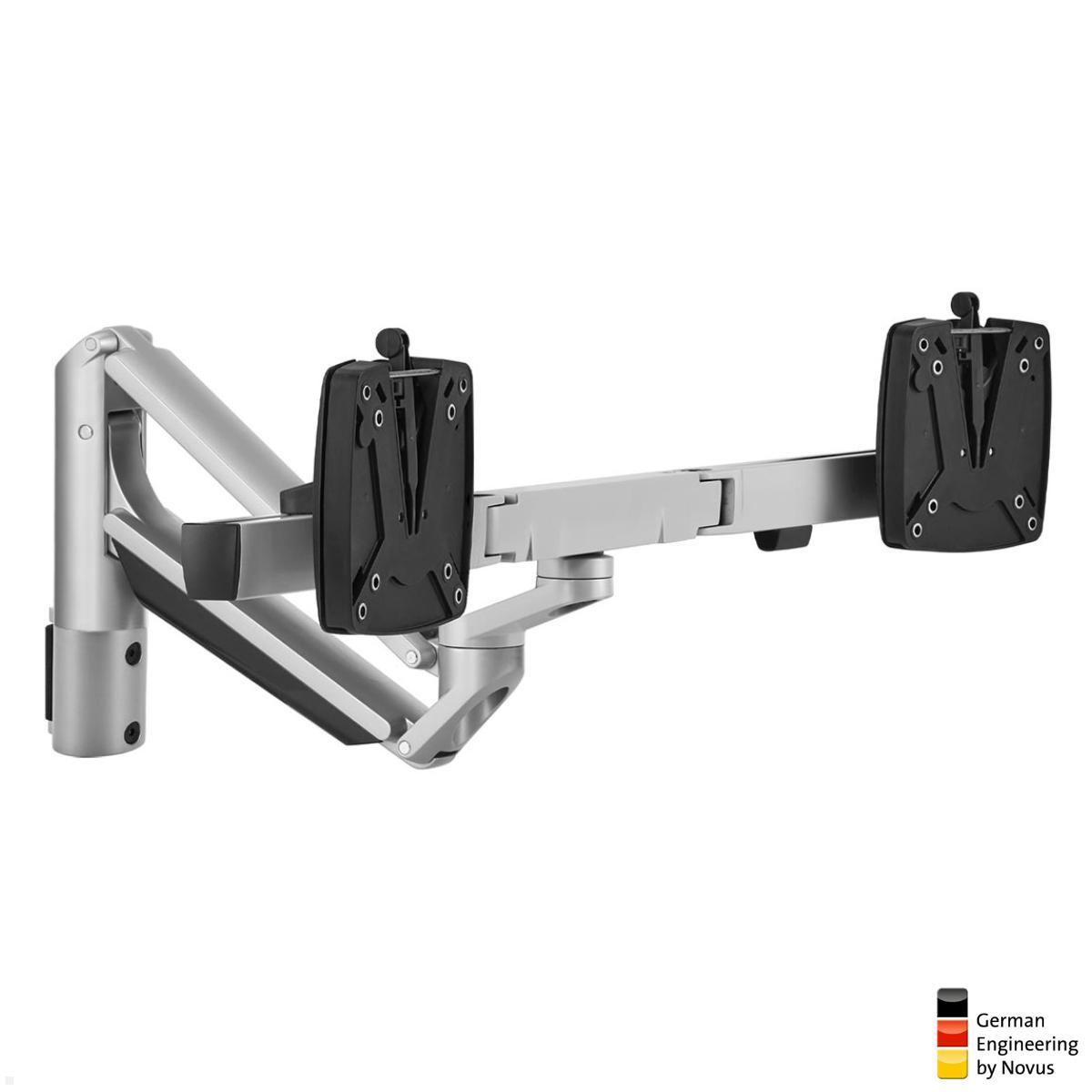

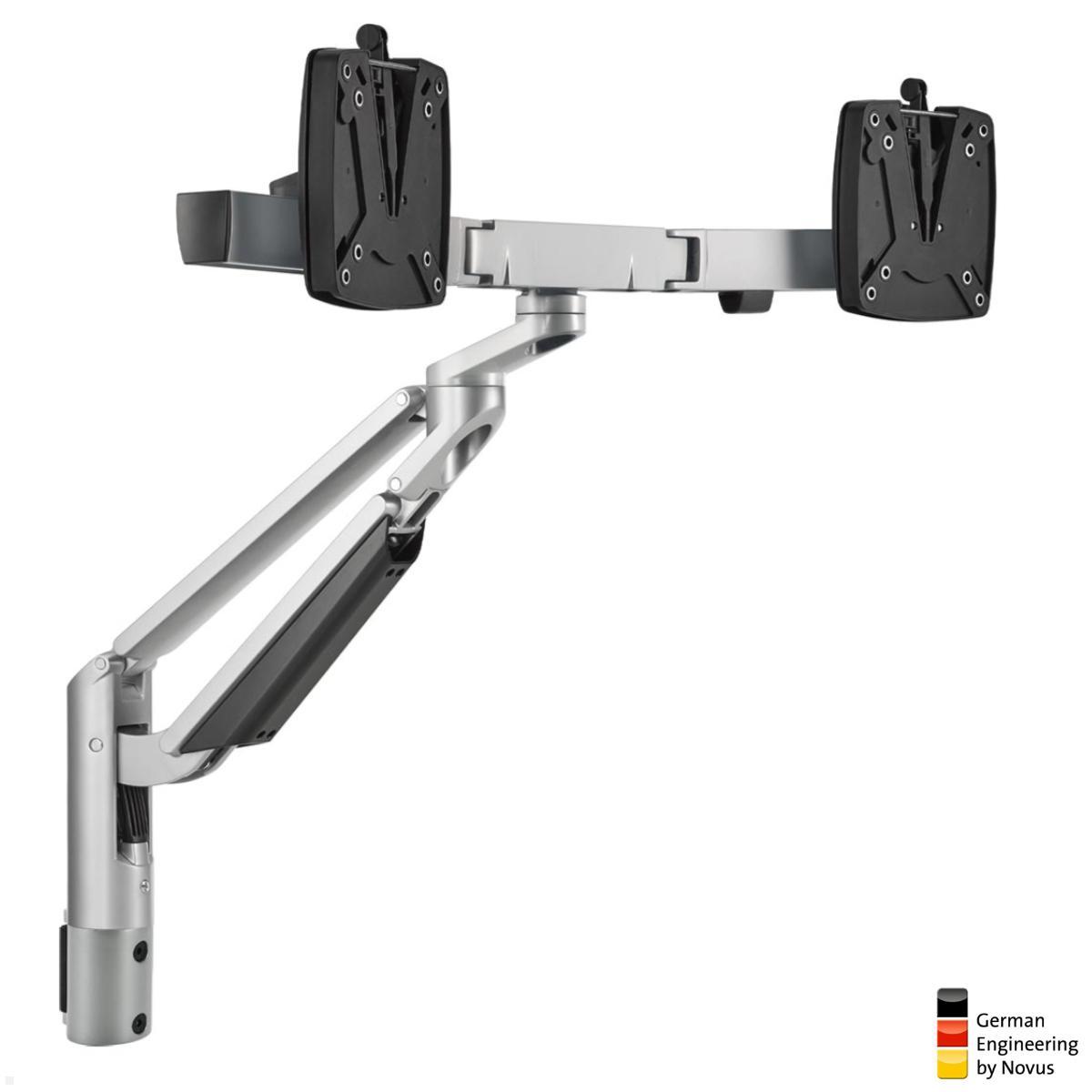

Novus Clu Plus X2 dual monitor mount for TSS columns (992+2009+001), silver
TSS column mount for 2 monitors

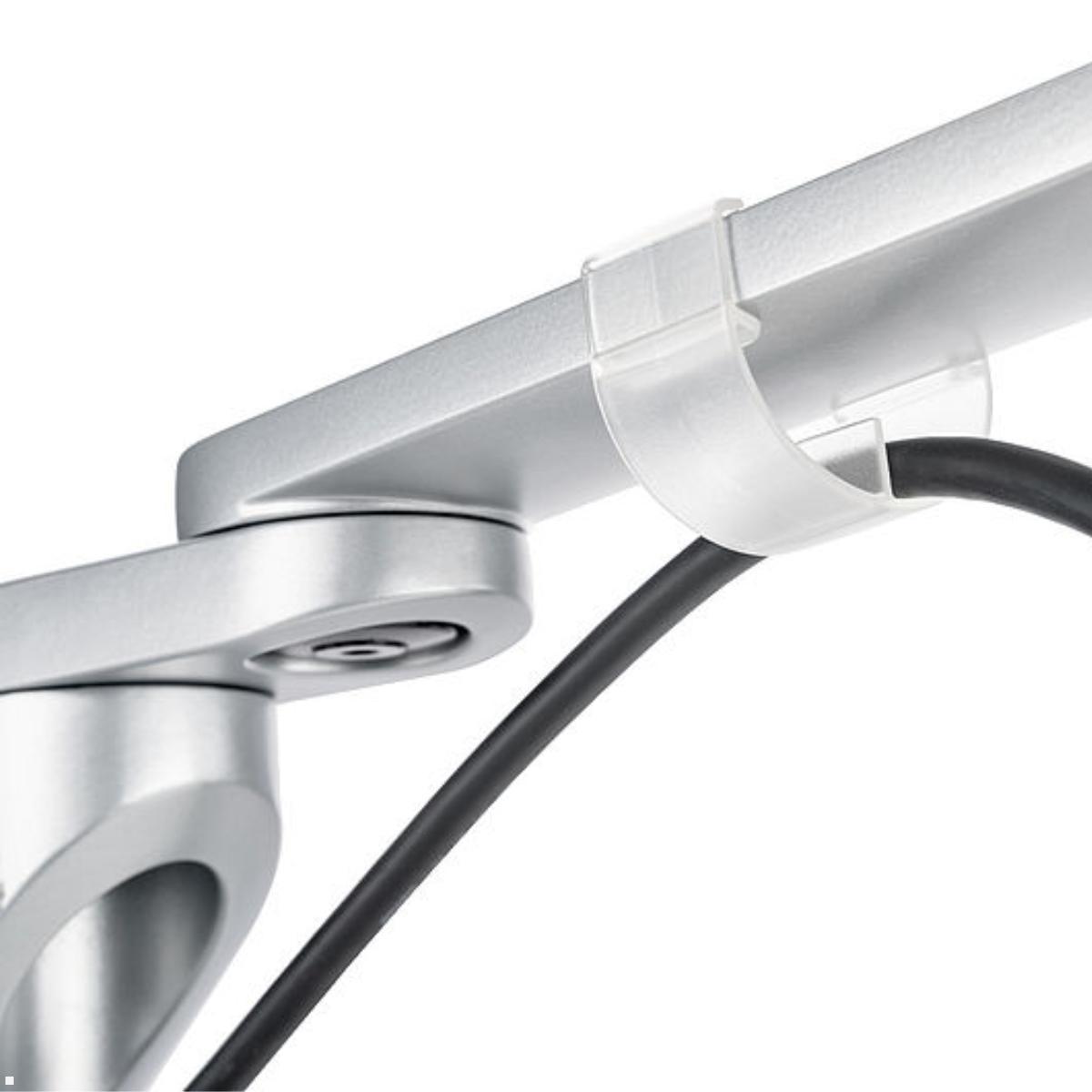

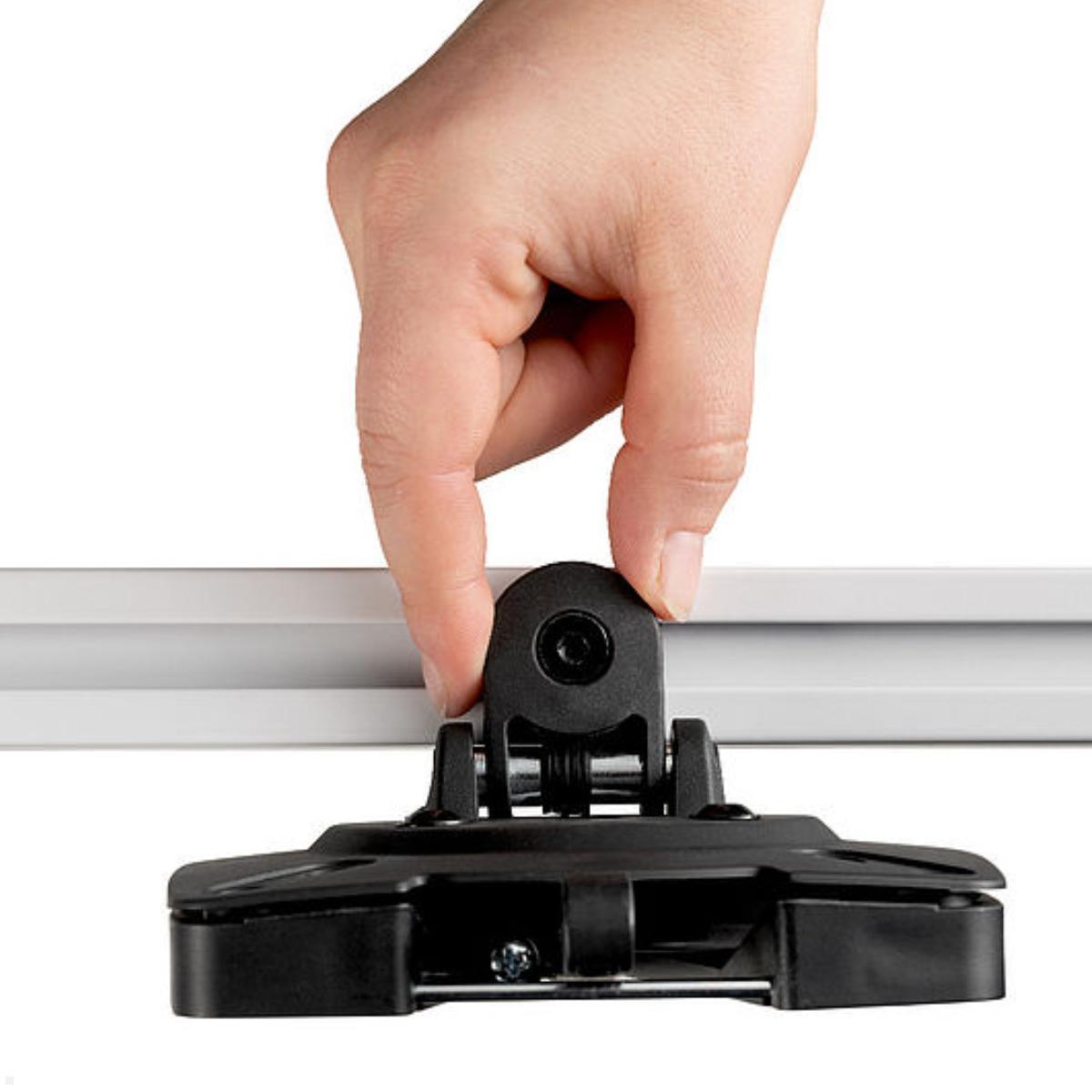

The dual monitor holder from the Novus Clu Plus series is specially designed for mounting on a Novus TSS column. Thanks to the crossbar, the TSS column mount for 2 monitors makes it possible to align two screens exactly next to each other. With a load capacity of up to 7 kg each and a maximum diagonal of 27 inches per display, the Clu Plus X2 (992+2009+001) is a user-friendly solution for multiple monitors at the workplace. The integrated cable management with cable clips ensures a tidy overall appearance at the desk. The practical QuickRelease system also makes it quick and easy to install the displays or remove them again if necessary. The dual monitor mount is swiveling as well as height-adjustable and combines power, functionality and handling in one design.

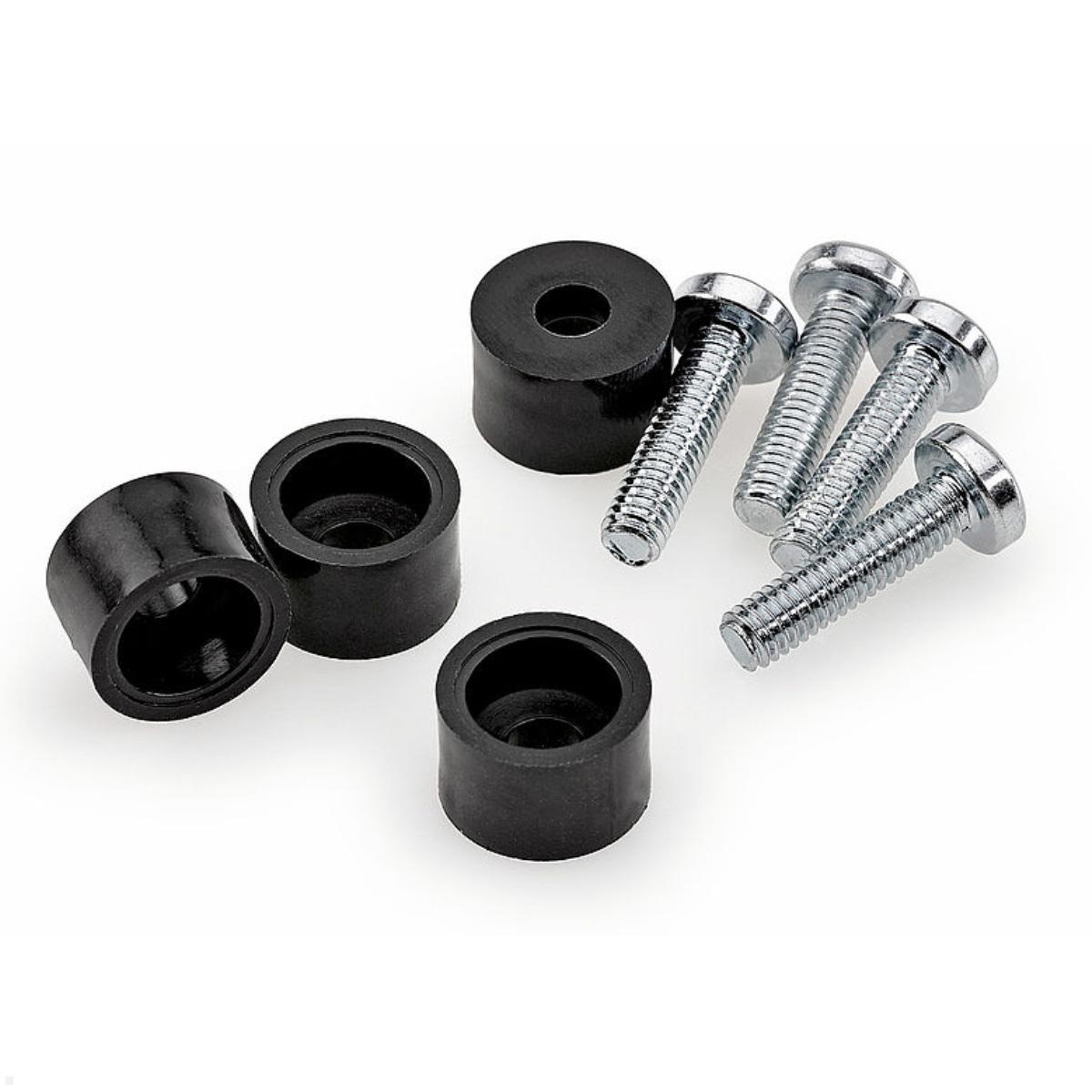

Spacer screw set
For mounting various monitor / TV models with recessed VESA standard holes or screw holes, it is necessary to bridge the distance of the recess with spacers. With the Novus spacer screw set (796+0905+000), the monitor mounts from the Novus Clu series can be mounted on almost all TV devices.
Key features Novus Clu Plus X2 dual monitor mount TSS (992+2009+001)
- Number of monitors: 2
- Arrangement: 2 monitors side by side
- Screen sizes: 19 - 27 inch
- Suitable for Novus TSS columns
- Maximum monitor width: 650 mm per monitor
- Load capacity per monitor: 2.5 - 7 kg
- 2-part monitor arm with gas pressure spring for comfortable, ergonomic adjustment of two monitors
- Double monitor crossbar with adjustable viewing angle for concave monitor positioning
- VESA mount: 75x75, 100x100 mm
- Swivel: 360 degrees with adjustable stop at 180
- Height adjustable: 180 - 480 mm (center of VESA mount to table surface)
- Reach: 375 mm

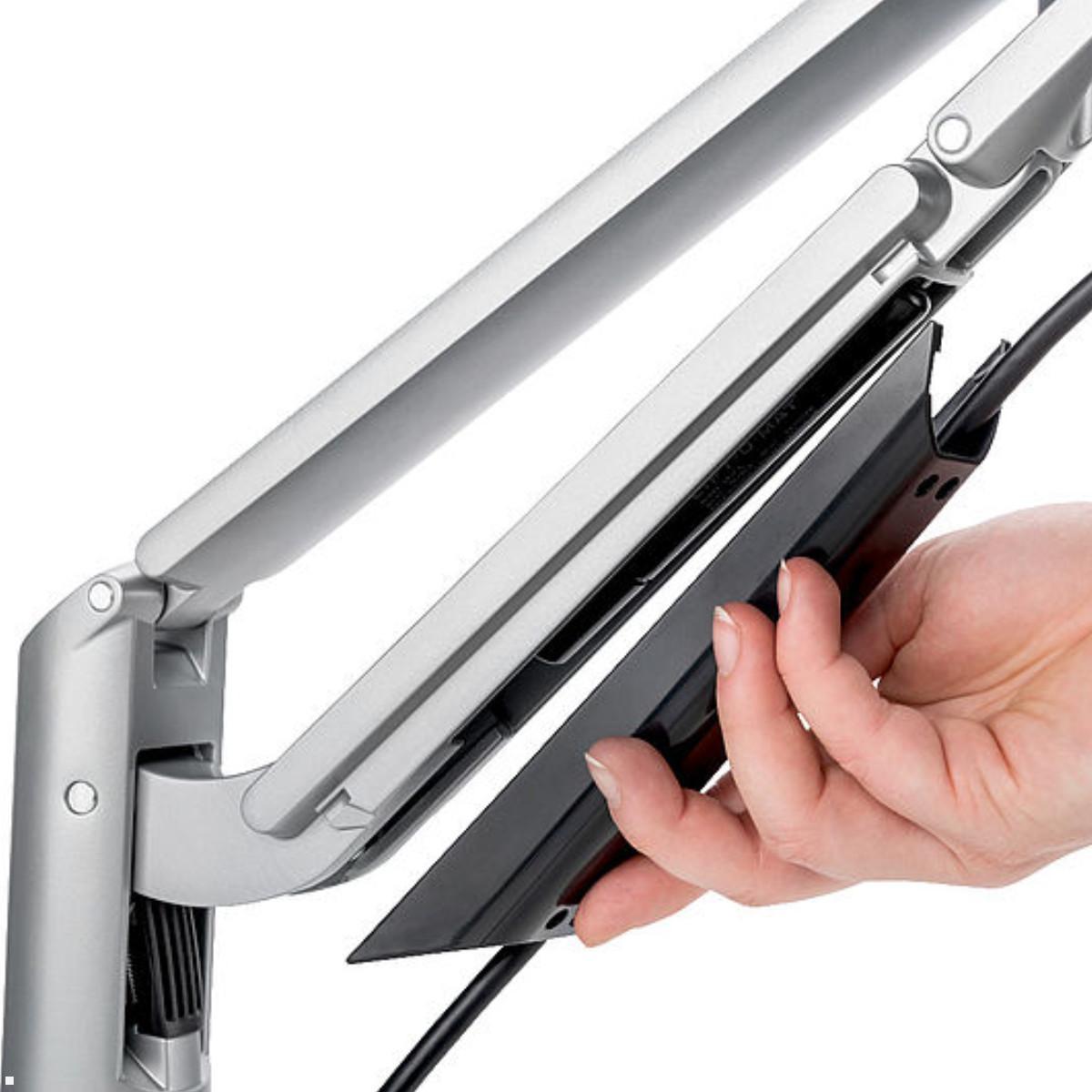

- Integrated cable management
- Easy and quick installation of the monitors through QuickRelease
- Incl. spacer screw set (796+0905+000)
- Own weight: 5,1 kg
- Warranty: 5 years
- Color: silver
Does your monitor or display fit?
We will check if your monitor is suitable for this Novus Clu Plus X2 (992+2009+001) dual monitor mount. Please send us your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will find out whether the monitor or the display fits or not and contact you.
VESA standard - Learn more about the VESA standards!
| Product sheet: |  [pdf] |
|---|---|

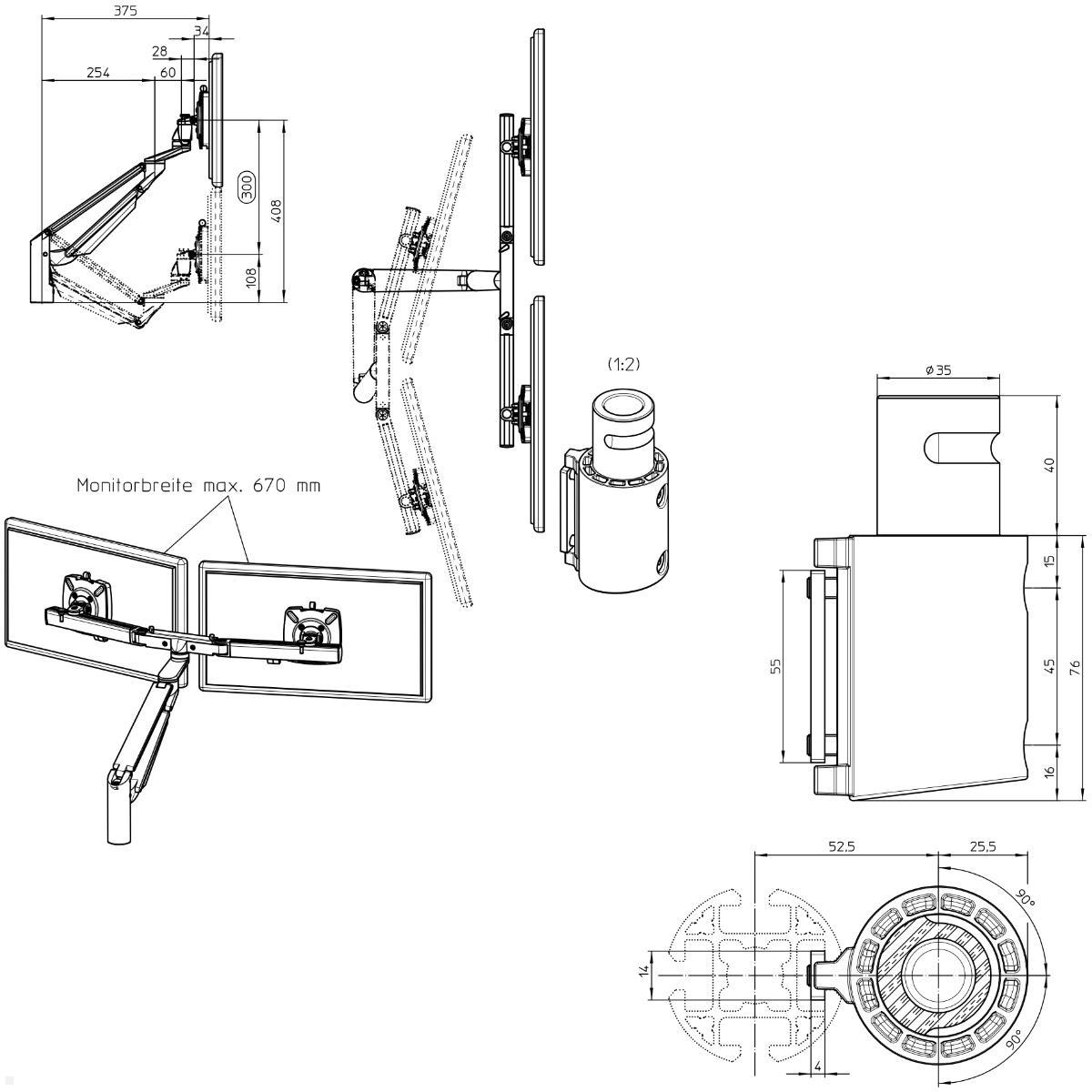

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 2,5 kg |
| Capacity: | 7 kg per monitor |
| Height range (mm): | 180 - 480 |
| Swivelling range: | 360° |
| Length of the swivel arm: | 375 mm |
| Screen size: | 19 - 27" |
| Material: | Aluminium, plastic |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Suitable for: | Novus TSS columns / Novus POS columns / straight aluminum profiles with 8 mm groove |
| Packaging dimensions (LxWxH in mm): | 575 x 380 x 124 |
| Scope of delivery: | 1x Clu Plus X2 dual monitor mount | 1x Clu Plus TSS column adapter | 1x spacer screw set | installation material |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Warranty: | 5 years |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | height adjustable , swivelling |
| Mounting type: | Aluminium profile, Pillar mount |
| Multi-monitor mount: | 2 monitors side by side |
| Theft-proof: | No |
| color: | Silver |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
Note on Curved Monitors:
If a curved suitability is not explicitly mentioned with the mount, we do not guarantee that the mount is suitable for curved screens. We are happy to check the compatibility for you! Write us an email with your TV model and the desired monitor mount!
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
